Identification
Manufacturer
Steinel
E-number
941326939
Variants
Light colour
3000K Warm white
Dimensions
Dimensions L × W × H
331 x 331 x 56 mm
PU1 net weight
2.0880
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
26 W
Own consumption
0,39 W
B10 fuse (pcs)
36.0000
B16 fuse (pcs)
58.0000
C10 fuse (pcs)
61.0000
C16 fuse (pcs)
97.0000
Maximum inrush current
16,5 A
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 10 m (79 m²)
Tangential range
Ø 10 m (79 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,8 m
Nevalux sensor technology
BT SIG Mesh

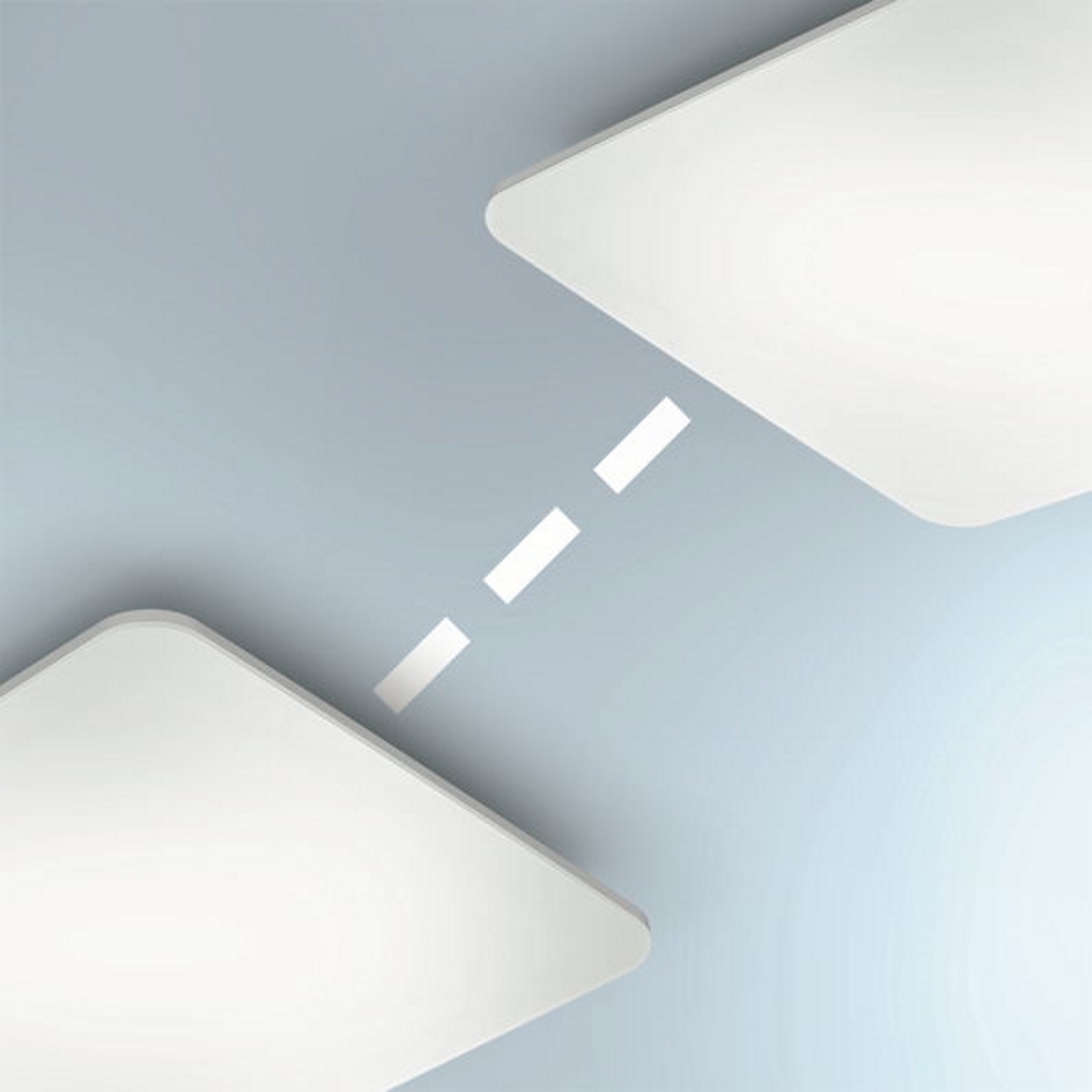

Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Bluetooth Mesh
Slave mode adjustable
Yes
Lighting technology
Measured luminous flux 360°
2801 lm
Colour temperature
3000 K
LED colour deviation
SDCM3

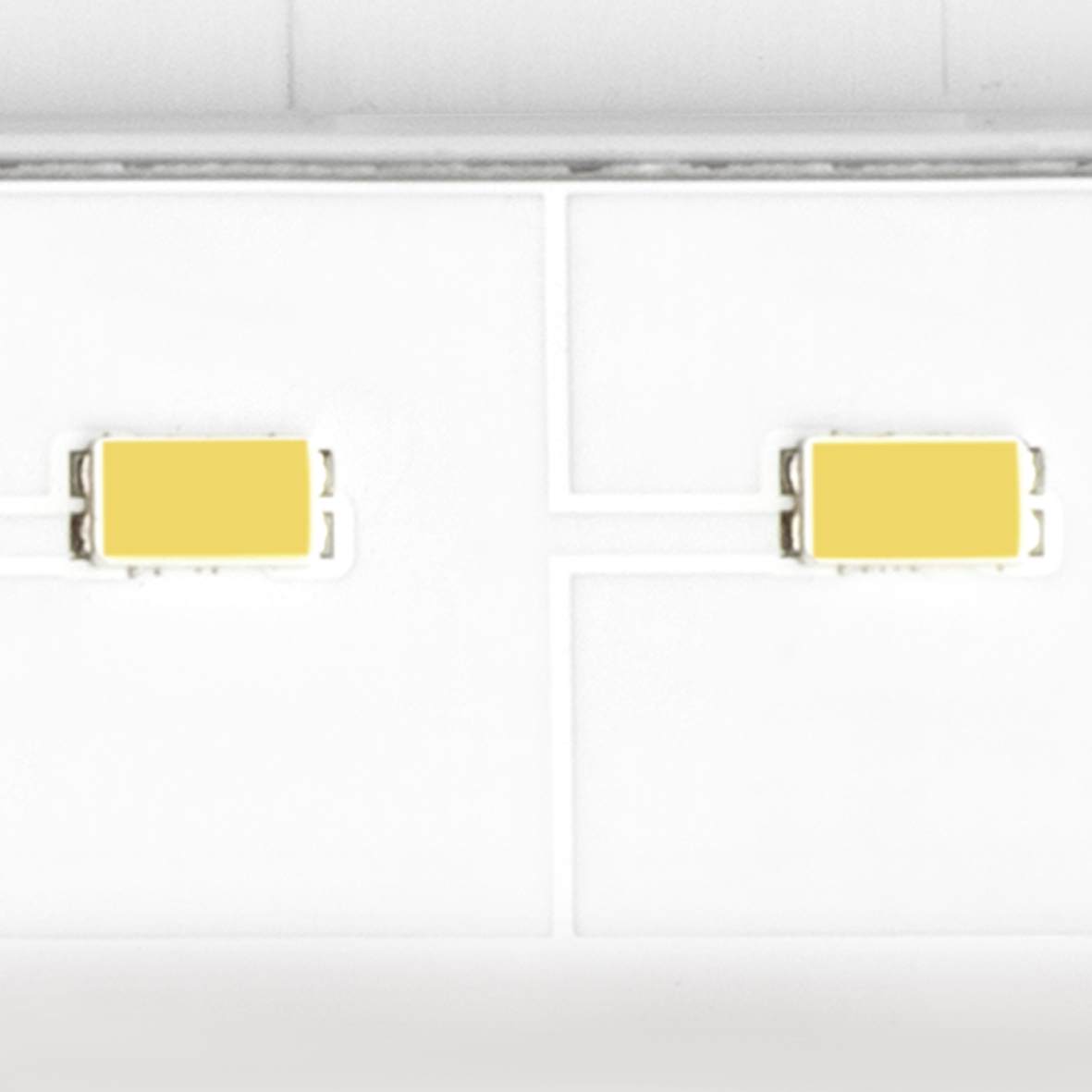

With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without

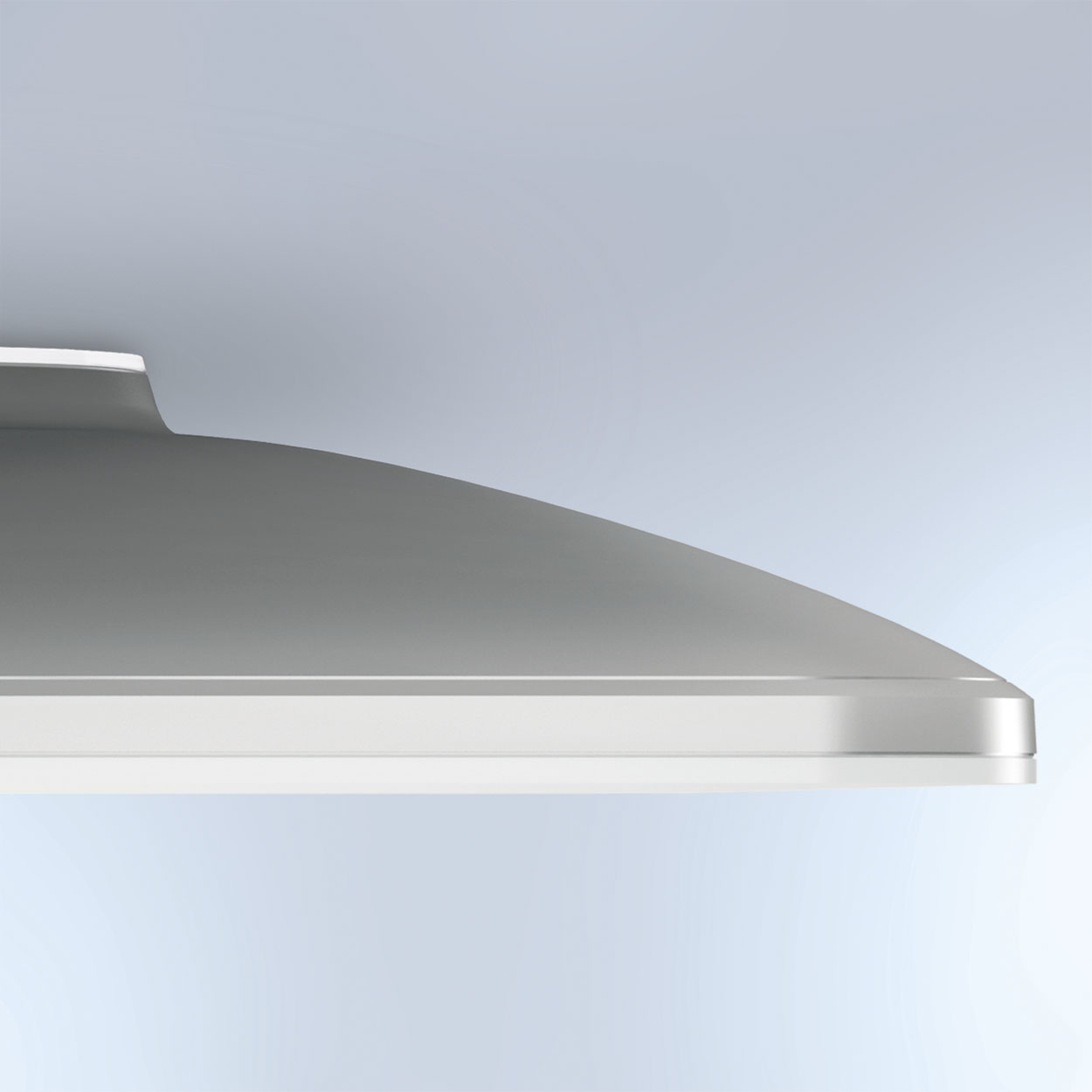

LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L80B50
LED lifetime per IEC 62717 L70
100.000 h
LED lifetime per IEC 62717 L80
74.000 h
LED lifetime per IES TM-21 L70
>60.000 h
LED lifetime per IES TM-21 L80
>60.000 h
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 s – 60 Min.

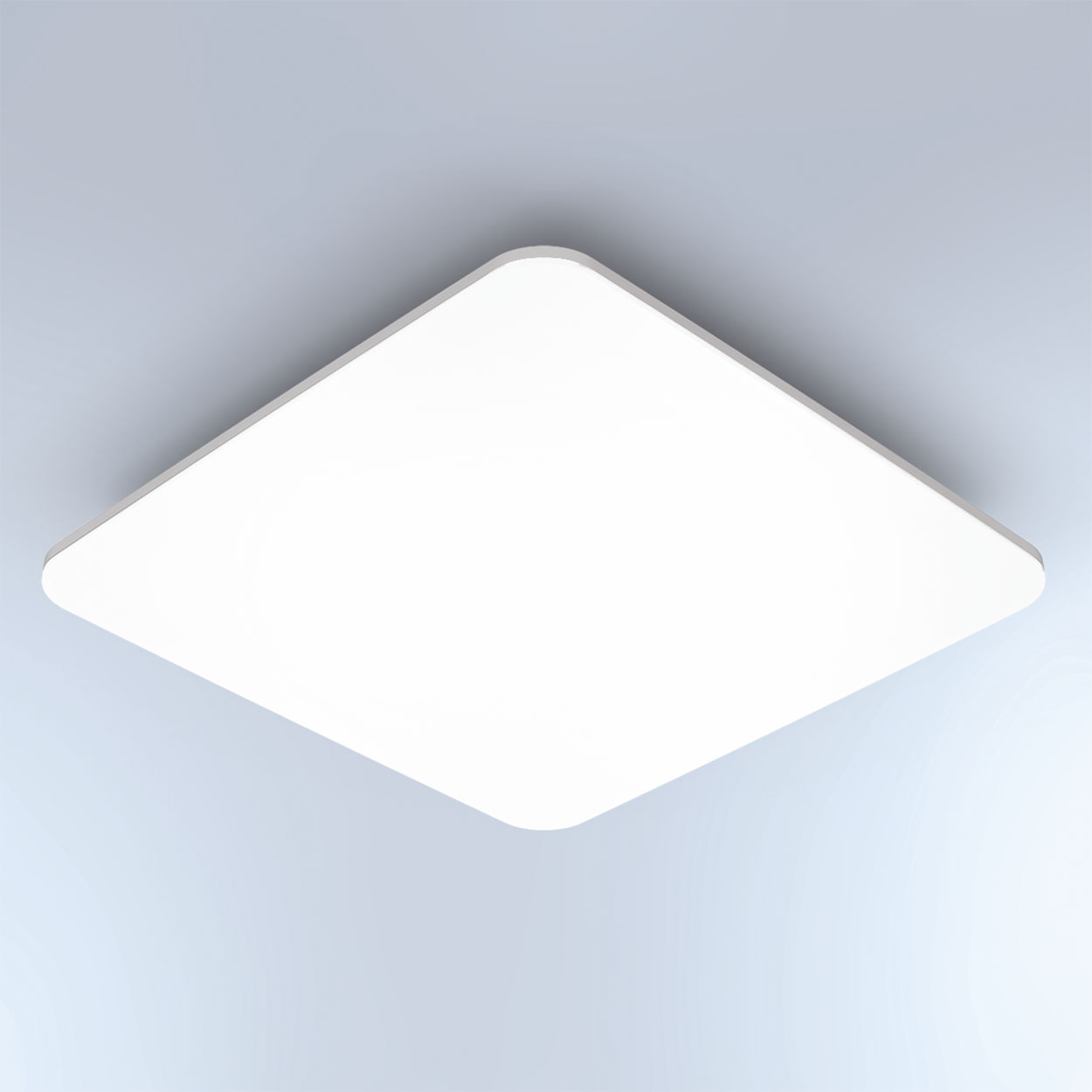

Base light function
Yes
Base light function detail
LED effect light
Base light function time
1-60 min
Main light adjustable
Yes
Functions
Group parameterisation
Manual ON / ON-OFF
Neighbouring group function
Presence function
Motions sensor
Connection to central battery systems
DIM function
Adjustable fade time when switching on and off
Light sensor
Normal / test mode
Orientation light
Presence detector logic
Encrypted communication
Settings via
Bluetooth

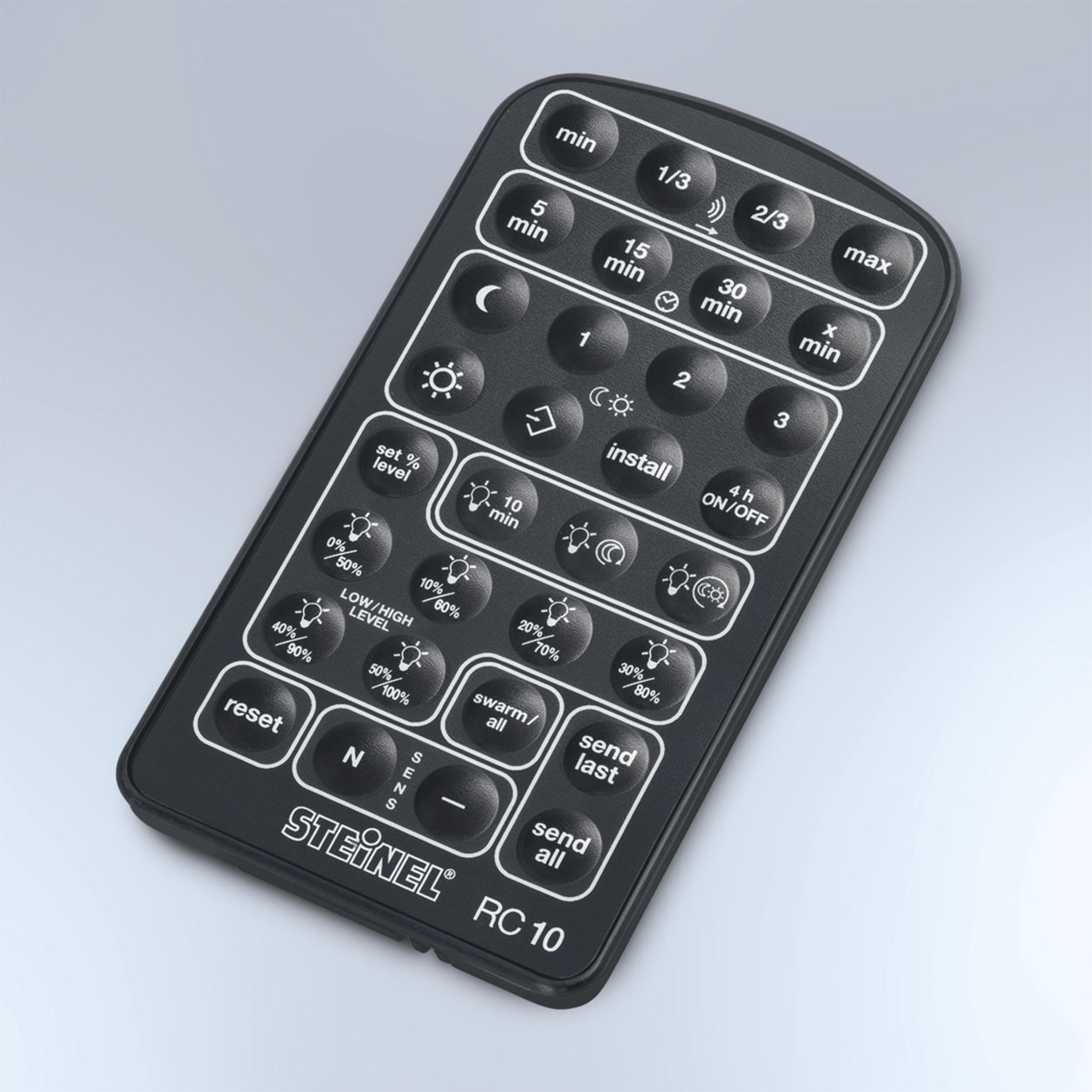

With remote control
No
Twilight setting teach
Yes
Base light function in percent
7 – 100 %
Base light function percent from
7.0000
Base light function percent to
100.0000
Housing & material
Impact resistance
IK03
Protection class (IP)
IP20
Protection class
II
Ambient temperature
from -20 up to 40 °C
Housing material
Aluminium
Cover material
Plastic, opal
Mounting location
wall
ceiling
Application location
Indoors
Mounting type
Surface wiring
Application room
corridor / aisle
changing room
function room / ancillary room
kitchenette
stairwell
WC / washroom
outdoors
Indoors
Colour
Silver
Scope of delivery & warranty
Manufacturer warranty
5 years
House number sheet included
No
Certificates & EPREL
EPREL category
Surrounded product with integrated light source
