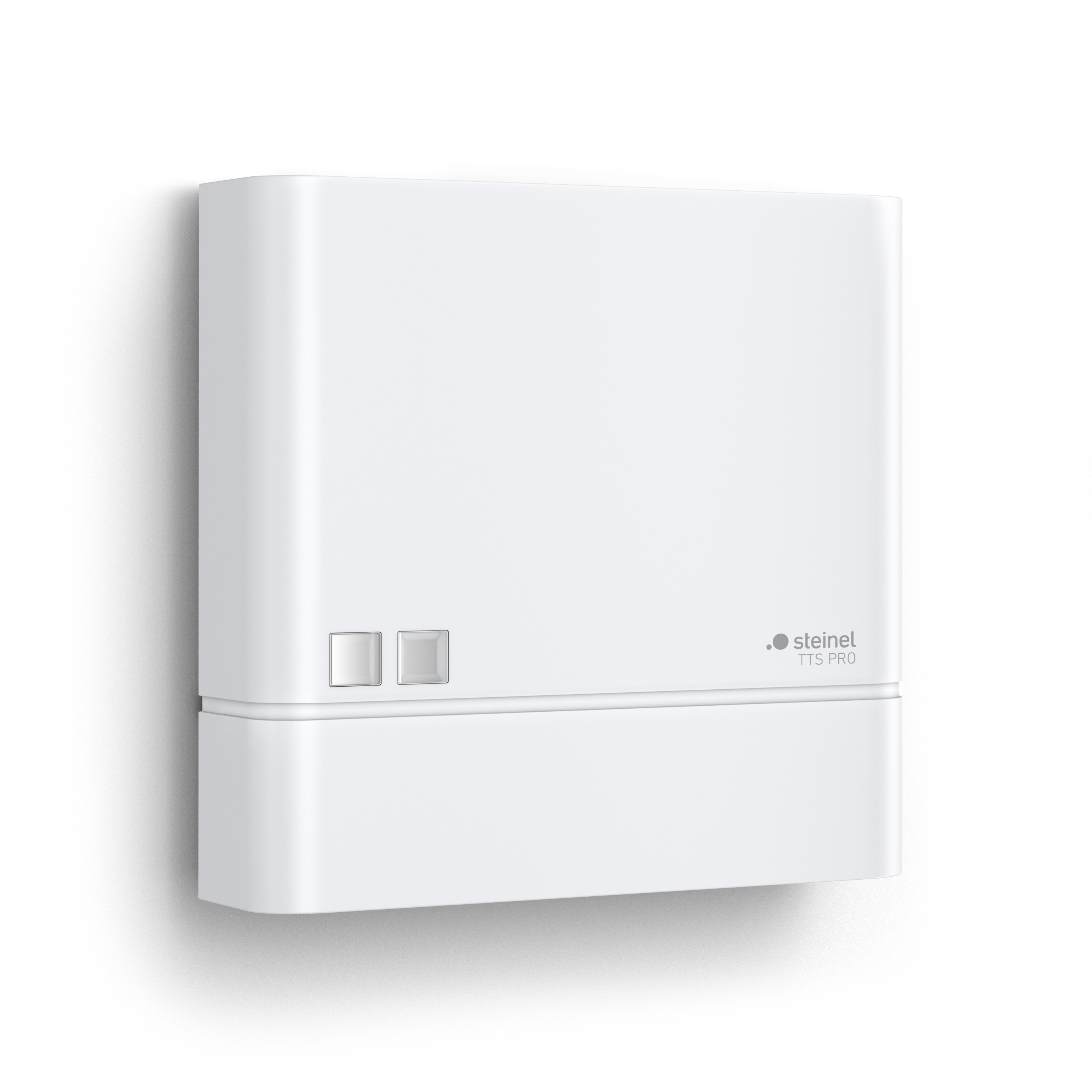

Steinel TTS PRO white

Steinel TTS PRO white

EAN-No. 4007841089122 · ELDAS® no. 089122

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel Bluetooth Mesh

Steinel TTS PRO white

EAN-No. 4007841089122

ELDAS® no. 089122

Price: Please log in to see prices

Version

With relay Without relay

Colour

White Anthracite

Night-time lighting - but the smart way: The TTS PRO twilight switch, equipped with modern Bluetooth technology, has a sleek design and scores points for its outstanding ease of use. The scheduler function in the STEINEL Connect app can be used to define various scenes and settings depending on the time of day and time of day. This is practical if the lighting control is to be coordinated with opening times - working days have different requirements to Sundays and public holidays. The Real Time Clock and the 7-day battery memory ensure reliable and permanently functioning light management. Thanks to Bluetooth Mesh, the TTS PRO can be connected and adjusted wirelessly with various STEINEL Connect lights. The twilight switch is available in white and anthracite.

  • Modern design harmonises with any architecture
  • Twilight switch and timer combined in one product, for brightness and time-dependent switching
  • Even more time-saving installation, as only one product needs to be installed
  • Simple commissioning via the free Steinel Connect app
  • Timer can be set via Nightmatic mode or with even more flexible timer schedules
  • Functions as a timer in the Connected Lighting System with automatic summer and winter time changeover
  • Permanently functioning light management even in the event of a power failure thanks to Real Time Clock and 7-day battery storage

Identification

Version Photo-cell controller
Manufacturer Steinel
E-number 535903081

Variants

Version With relay
Colour White

Dimensions

Dimensions L × W × H 38 x 95 x 95 mm
PU1 net weight 0.1250

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Switching output 1 resistive 1000 W
LED lamps > 8 W 250 W
Own consumption 0,5 W
Maximum inrush current 15 A

Sensor technology

Sensor technology Photo-cell controller
With motion detector No
Nevalux sensor technology BT SIG Mesh, On / Off

Connectivity

Networking Yes
Type of networking Master/master Master/slave
Networking via Bluetooth Mesh

Lighting technology

Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 1 – 1000 lx
Base light function No
Settings via Bluetooth Mesh App Smartphone
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room outdoors front door courtyard & driveway Indoors all round the building terrace / balcony
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

UV resistant material

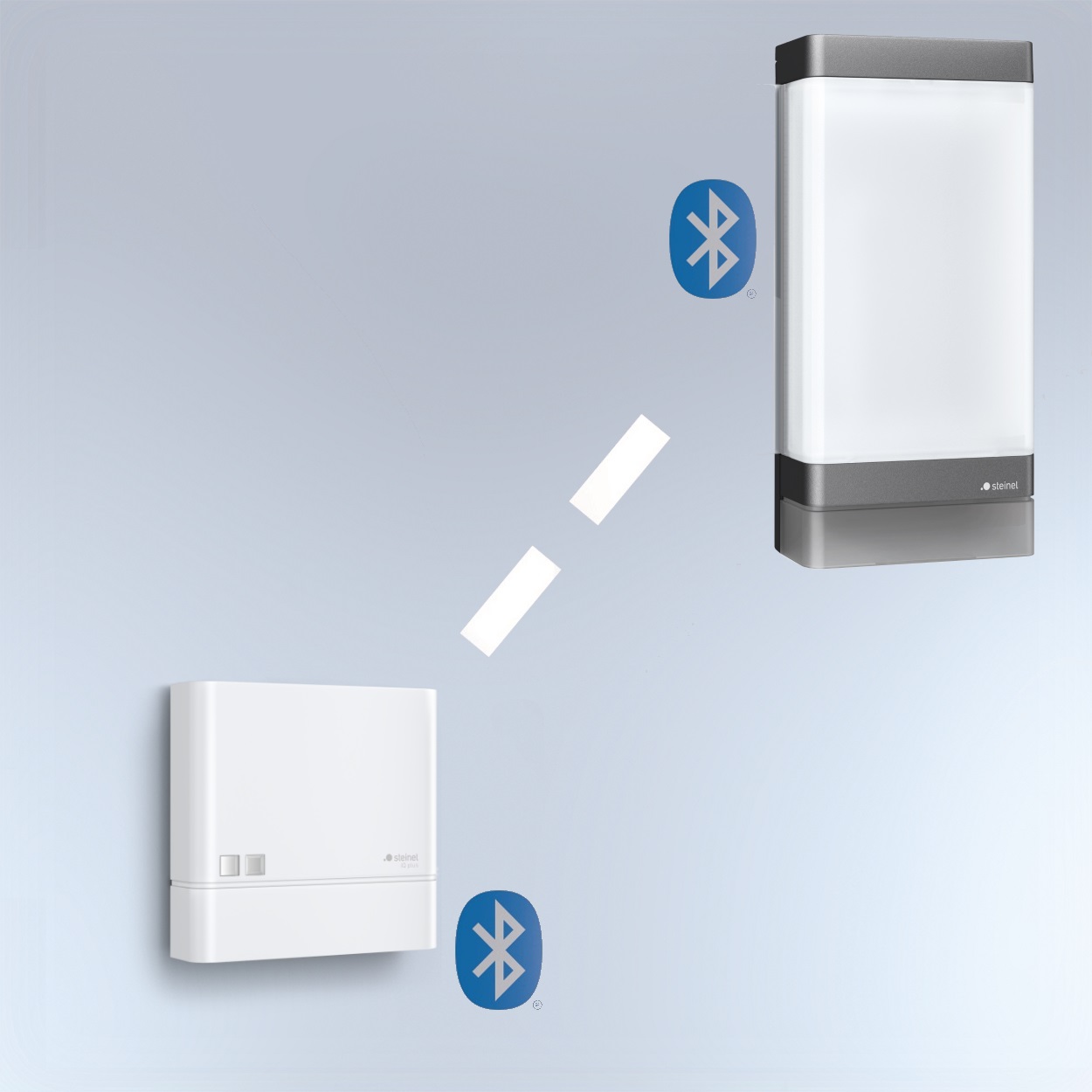

Interconnectable and adjustable via Bluetooth

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
