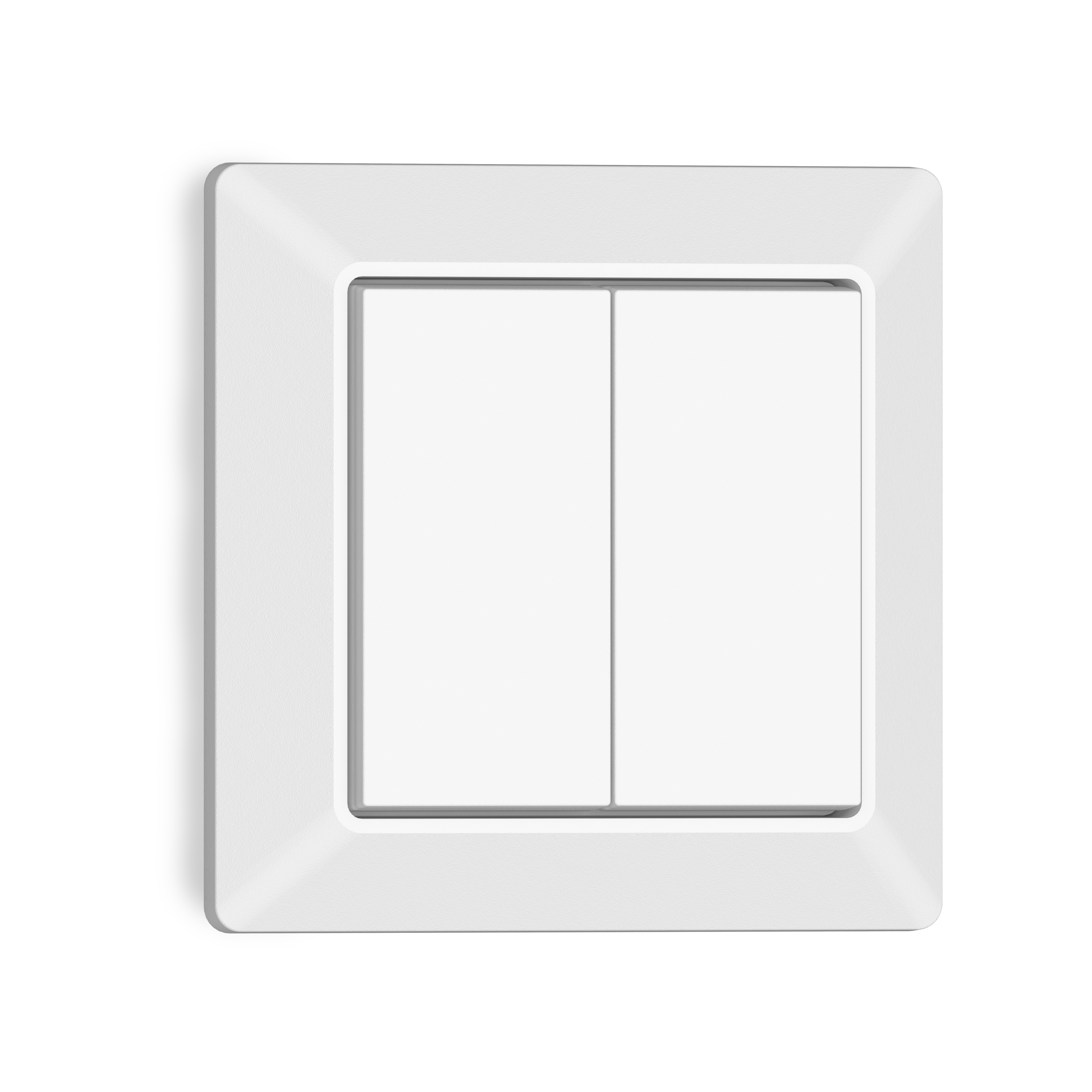

Steinel Wireless push button PB4-Bluetooth

EAN-No. 4007841084660

ELDAS® no. 084660

The switch does not require any cables at all and is therefore perfectly suited for locations where there is no need for electricity. Standard dimensions make retrofitting and converting switches child's play. Both screw and adhesive mounting are possible. Compatible with Steinel Bluetooth Mesh products for wireless integration in sensors and luminaires. The wireless switch is taught-in at the touch of a button and connected to the desired lights and sensors using the STEINEL Connect App. Individual override or the scene function can be used. Last but not least, the product is maintenance-free as no batteries are needed. Simply pressing the switch is enough to supply power.

Ideal for use independent of power supply due to cordless operation
Flexible and easy to retrofit and convert due to standard dimensions
Compatible with Bluetooth mesh technology for wireless integration
Individual override of networked products
Teach-in by pressing buttons: 10s - 1s - 10s
Screw and adhesive mounting possible
Maintenance-free, as no batteries are required

Identification

Version Other

Type of accessory Other

Manufacturer Steinel

E-number 535900075

Dimensions

Dimensions L × W × H 15 x 81 x 81 mm

PU1 net weight 0.0600

Electrical

Supply voltage detail by pressing the rocker switch, current-independent

Switching output 1 potential-free No

Switching output 2 potential-free No

Sensor technology

With motion detector No

Sneak-under protection No

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Transmission range 30 m

Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes

Networking via Bluetooth Mesh

With bus coupler No

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch No

Base light function No

Main light adjustable No

Functions Push button configuration

Settings via Bluetooth Mesh App

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Protection class without

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Mounting location wall

Application location Indoors

Mounting type Surface wiring

Application room one-person office recreation room function room / ancillary room open-plan office hotel room Indoors classroom conference room / meeting room stairwell

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates TÜV

Cross-/up-selling

Up-selling 23214

Technical drawing

Data sheet Product brochure
