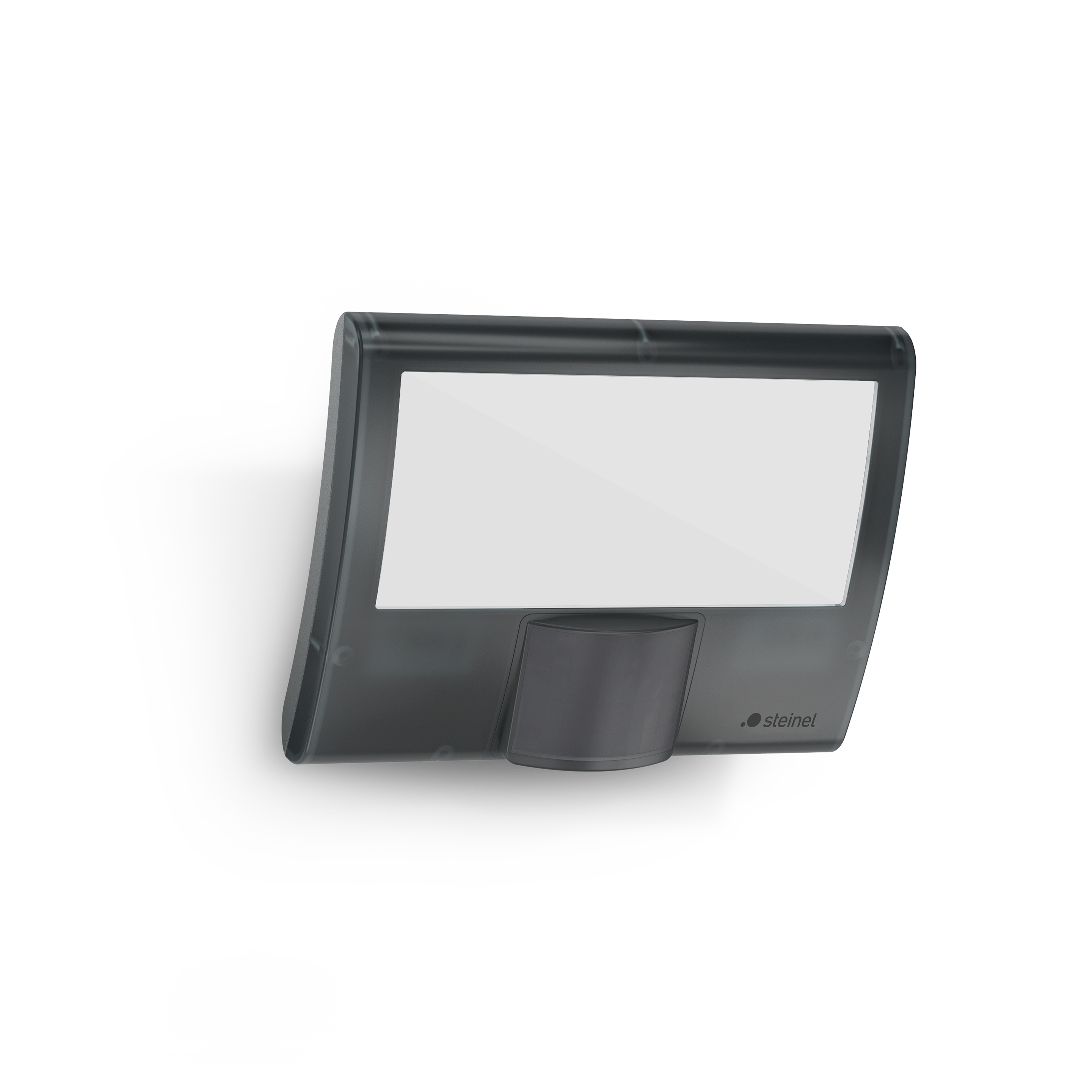

Steinel XLED curved S Anthracite

Steinel XLED curved S Anthracite

EAN-No. 4007841012076 · ELDAS® no. 012076

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel XLED curved S Anthracite

EAN-No. 4007841012076

ELDAS® no. 012076

Price: Please log in to see prices

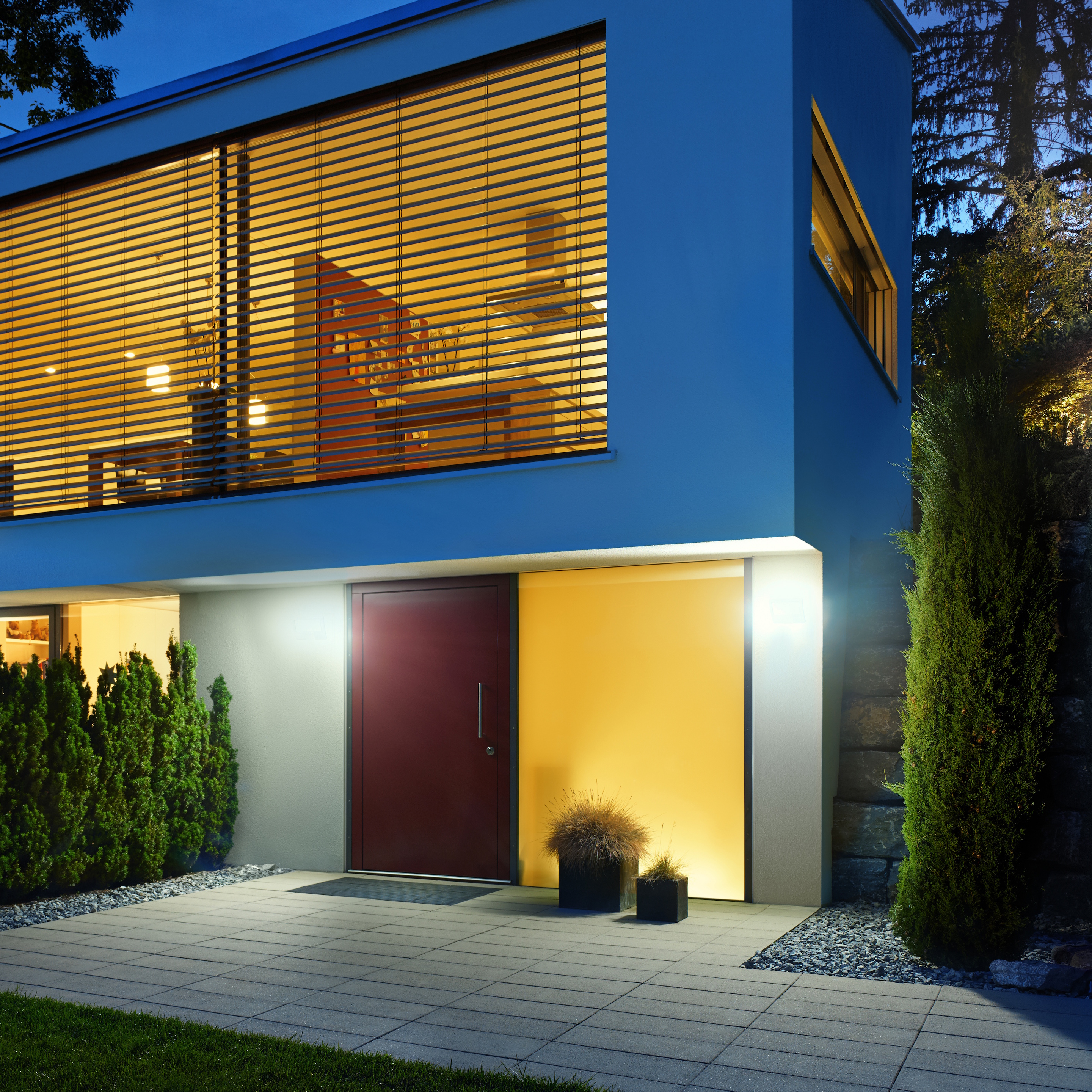

The compact XLED curved S outdoor spotlight is ideal for illuminating entrances and access paths. The functional spotlight not only fulfils safety requirements, but also creates a pleasantly charming lighting effect in combination with the house façade. Both the sensor and the entire outdoor spotlight present themselves in a pleasantly restrained, unobtrusive look, leaving the light to play the clear leading role in the skilful staging around the house and courtyard.

  • Spotlight with motion detector for optimal illumination of small areas
  • Compact and unobtrusive design with sensor in housing colour
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)
  • Automatic light thanks to 160 ° Infrared sensor with up to 8 m detection of movement
  • Spotlight head can be swivelled horizontally by 60°, incl. cover sticker for exact adjustment of the detection area
  • Warm white light (3000 K) and long-life 9,3 W LEDs with 862 lm, with an illumination of max. 100 sqm, max. 4m mounting height
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941200259

Variants

Housing colour Anthracite

Dimensions

Dimensions L × W × H 120 x 160 x 107 mm
PU1 net weight 0.3900

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,3 W
Own consumption 0,5 W

Sensor technology

Max. mounting height 4,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Radial range r = 4 m (22 m²)
Tangential range r = 8 m (89 m²)
Mounting height 1,8 – 4 m
Optimal mounting height 2 m
Nevalux sensor technology On / Off

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 862 lm
Colour temperature 3000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 2 s – 70 Min.
Base light function No
Main light adjustable No
Settings via Potentiometers
Twilight setting teach No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room outdoors all round the building terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

Certificates EMC
EPREL energy efficiency class F
EPREL category Light source

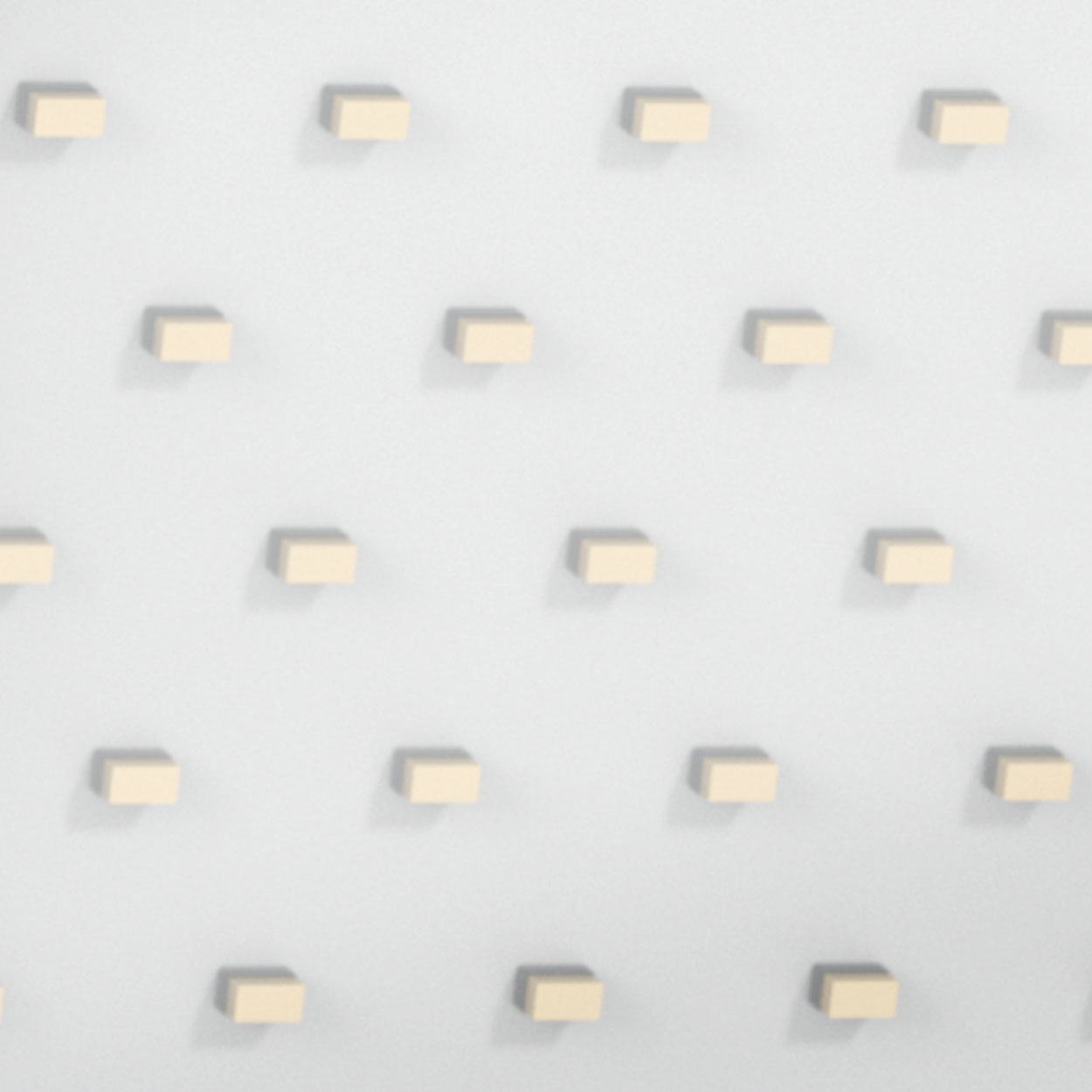

Including STEINEL LED system

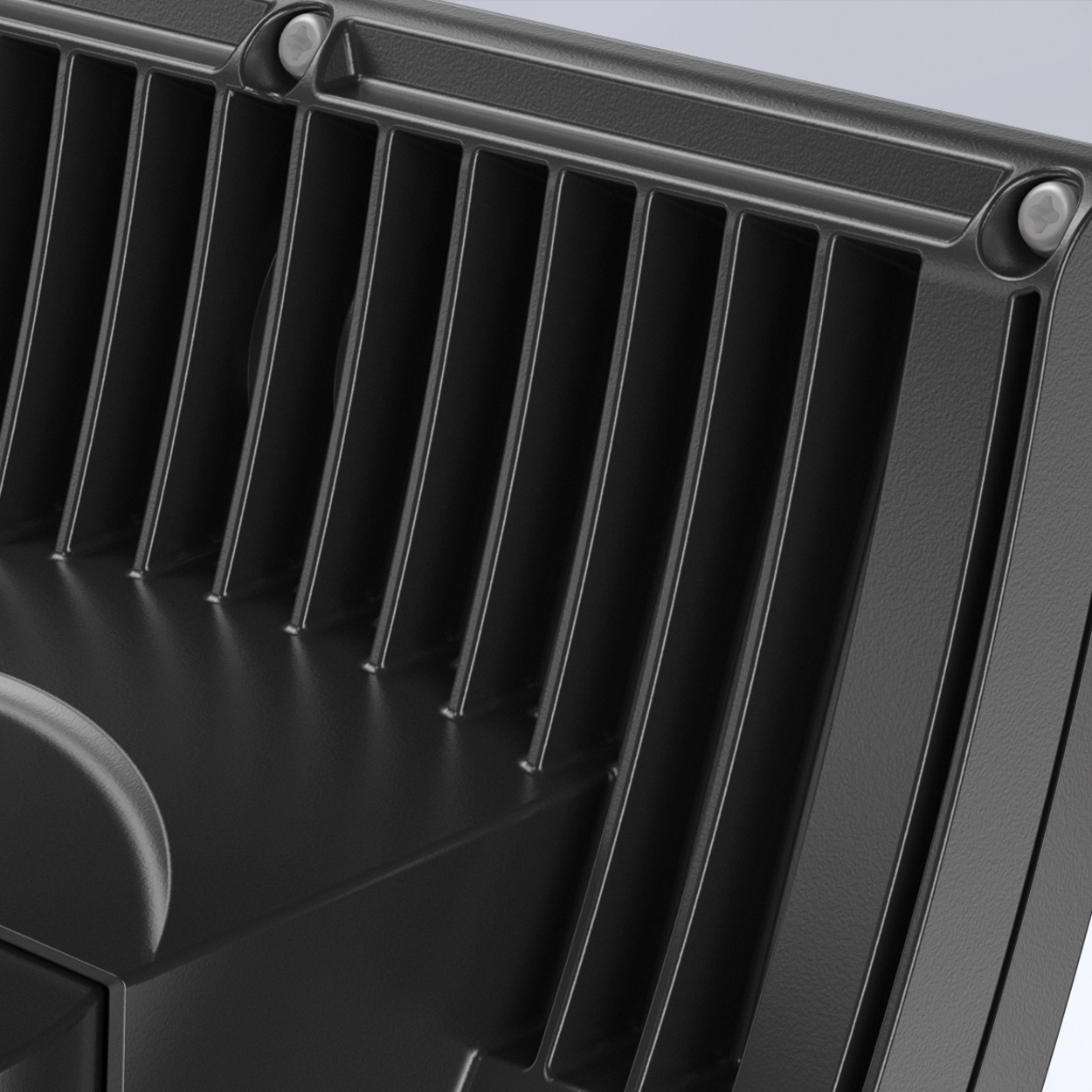

HCMC cooling system

UV-resistant plastic

Colour rendering index Ra ≥ 80

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram
