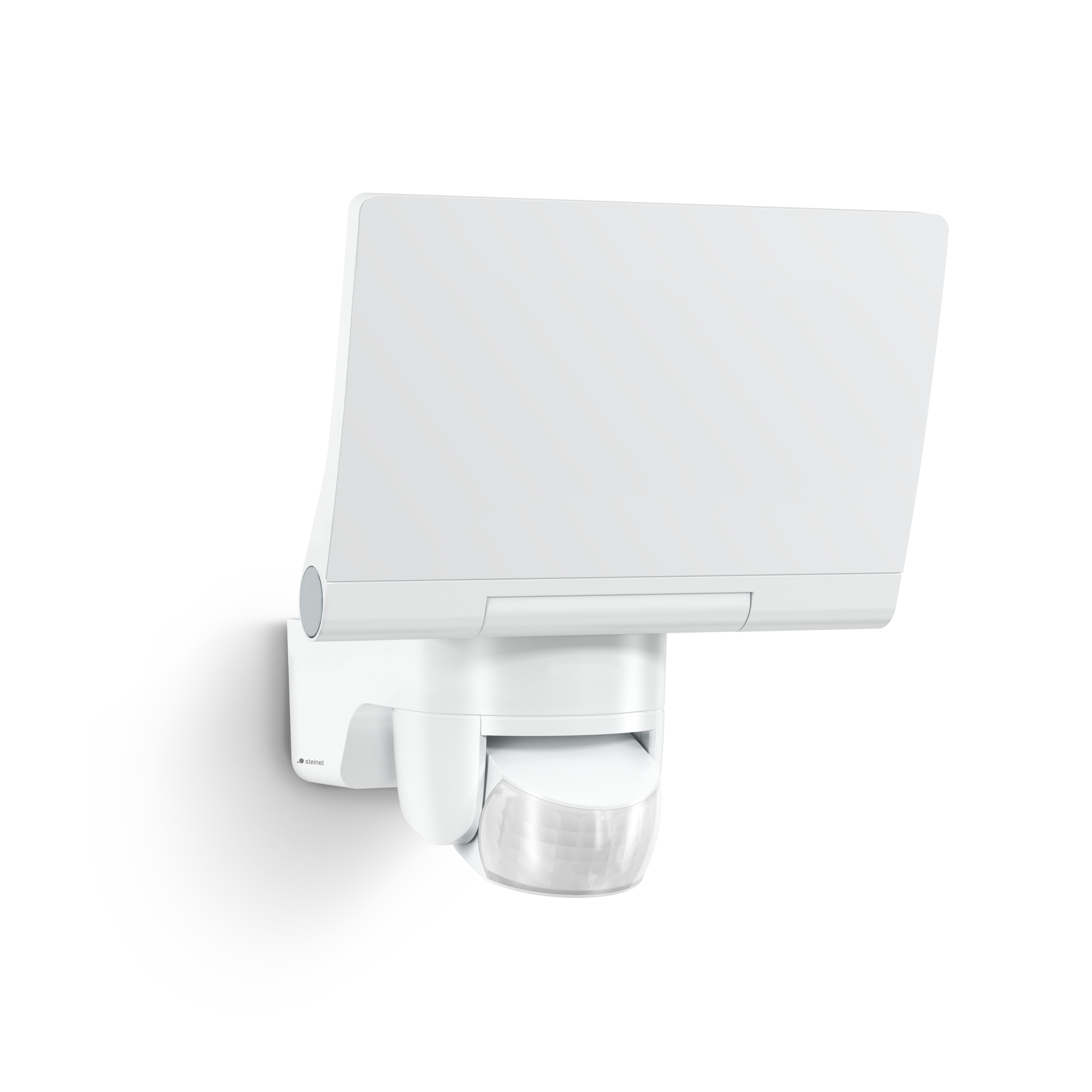

Steinel XLED home 2 SC white

EAN-No. 4007841065454

ELDAS® no. 065454

Colour

White Black

The moveable sensor-switched outdoor floodlight with fully swivelling LED panel in a classy opal look. The XLED home 2 SC sensor-switched floodlight comes in a sophisticated design. It is not just an eye-catcher, but also a truly talented mover. Thanks to the fully swivelling LED panel, every corner of the entrance area can be illuminated with flexibility and in exactly the way required. The highly efficient LED technology coupled with the opal cover provides maximum lighting comfort. Thanks to Bluetooth, multiple floodlights can be wirelessly networked into groups and controlled via app.

Spotlight with motion detector and fully swivelling LED panel in noble opal look
Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

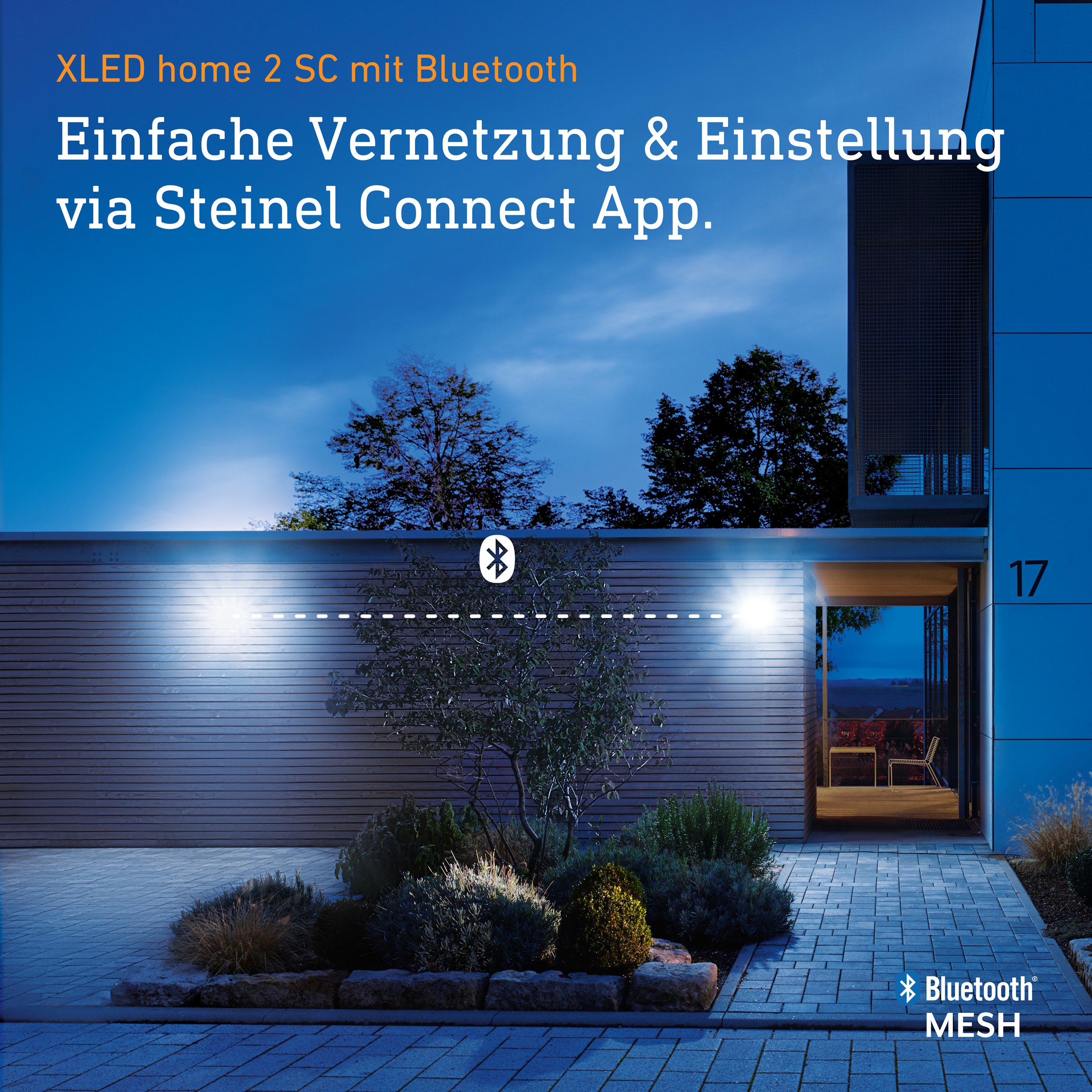

Wireless networking via Bluetooth and easy setting via STEINEL Connect App
Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Functions: night saving mode and timer
Warm white light (3000 K) and long-life 13,8 W LEDs with 1550 lm, with an illumination of max. 150 sqm, max. 4m mounting height
Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel

E-number 941200499

Variants

Colour White

Dimensions

Dimensions L × W × H 161 x 180 x 218 mm

PU1 net weight 0.5760

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 13,8 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Radial range r = 5 m (39 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,8 – 4 m

Optimal mounting height 2 m

Nevalux sensor technology BT SIG Mesh, On / Off

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Bluetooth

Lighting technology

Measured luminous flux 360° 1550 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system HCMC (High Conductive Magnesium Composite)

Soft light start No

Continuous light selectable

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function No

Main light adjustable No

Functions Group parameterisation Manual ON / ON-OFF Neighbouring group function Master/slave override Night economy mode Timer

Settings via Bluetooth

Twilight setting teach Yes

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material HCMC

Cover material Plastic, opal

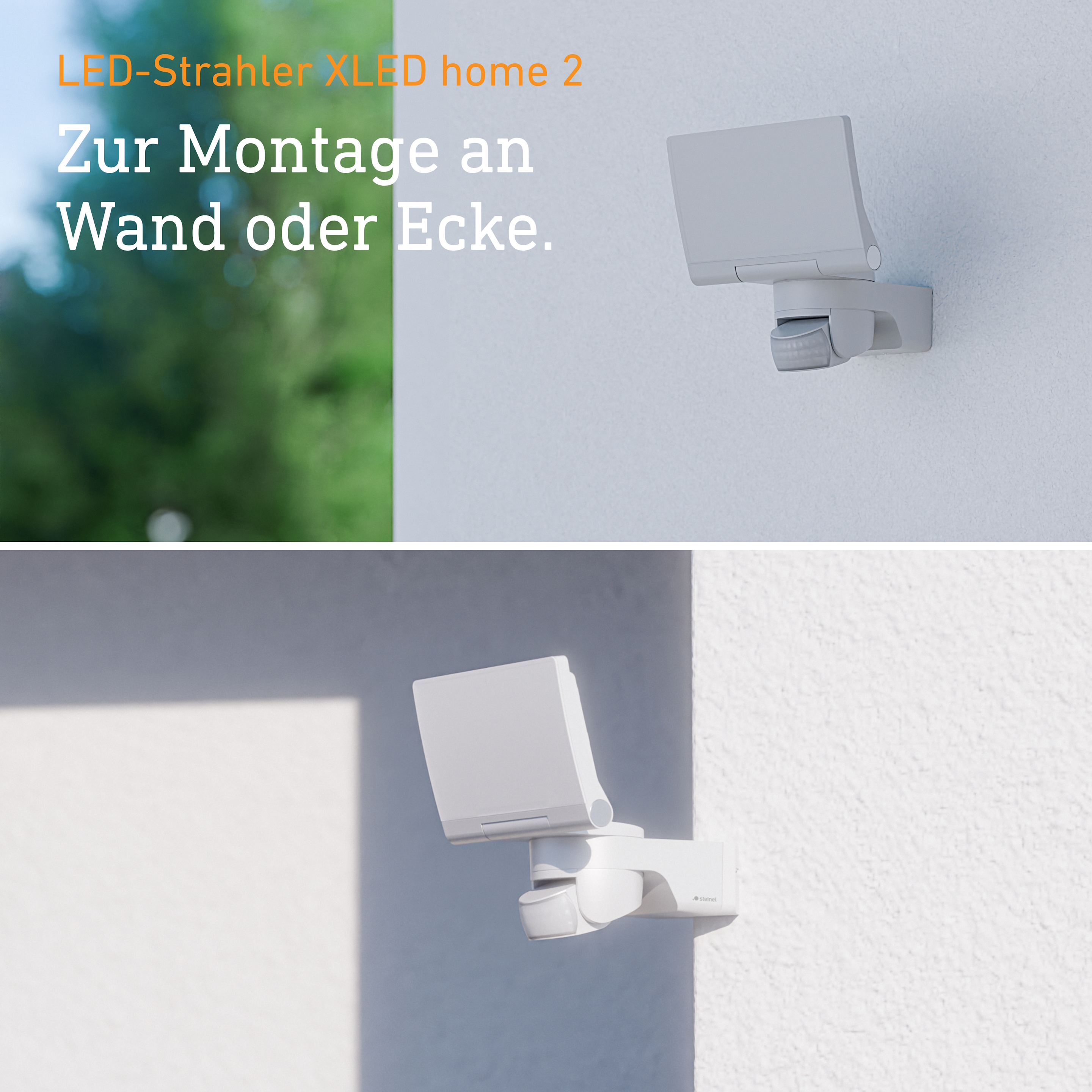

Mounting location wall corner

Application location Outdoors

Mounting type Surface wiring

Application room outdoors all round the building terrace / balcony courtyard & driveway

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E

EPREL category Light source

Cross-/up-selling

Accessories 28871,21316,21314,21307

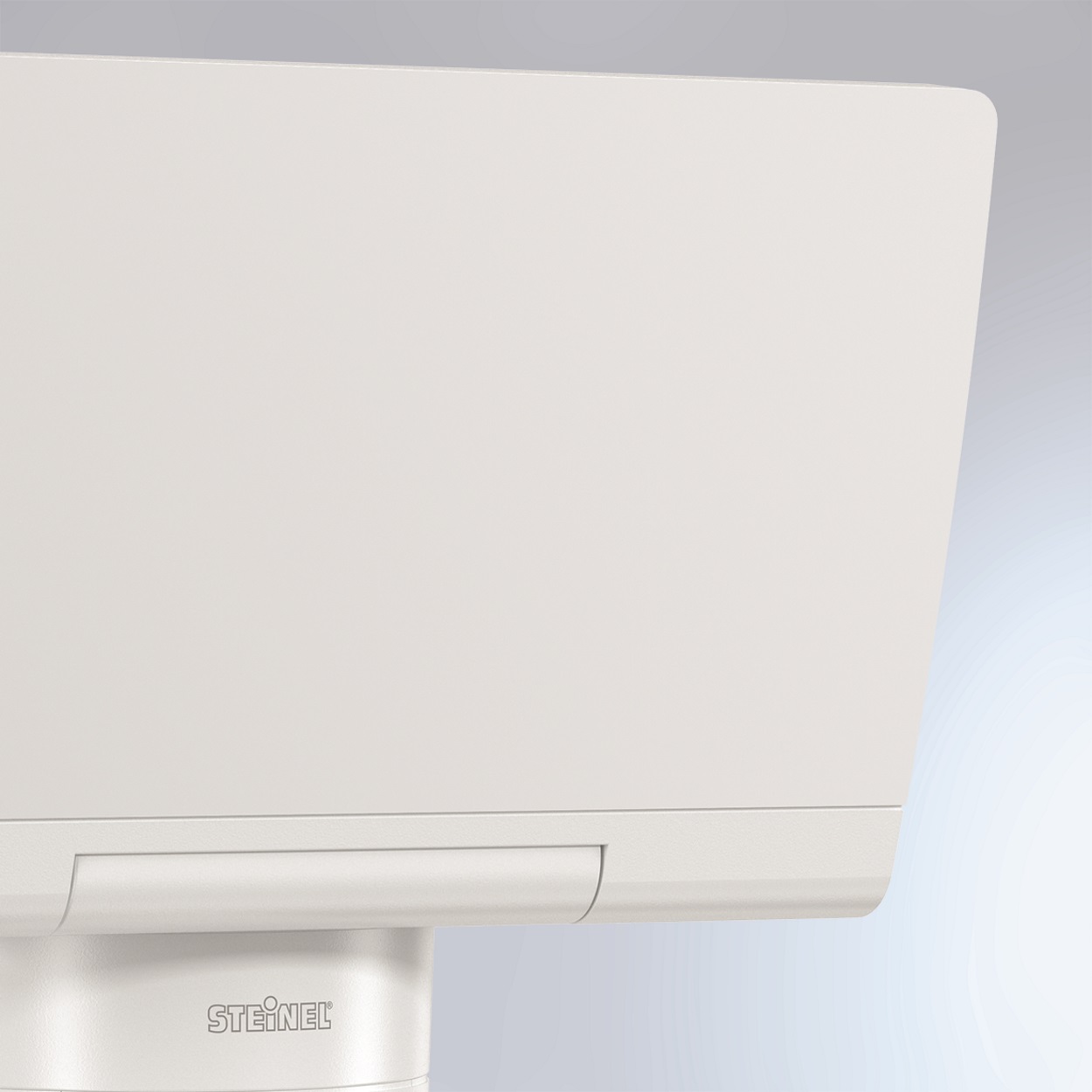

Including STEINEL LED system

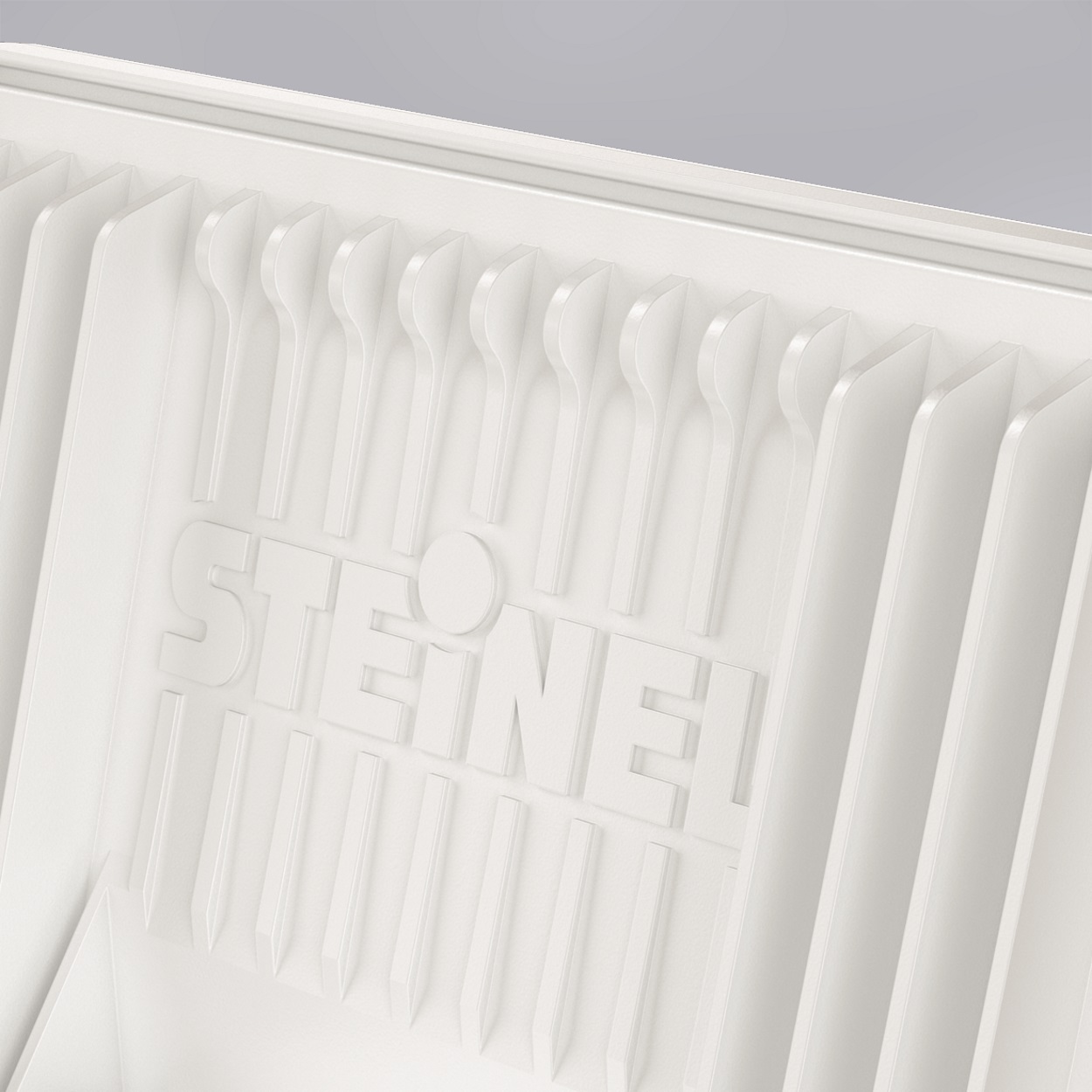

HCMC cooling system

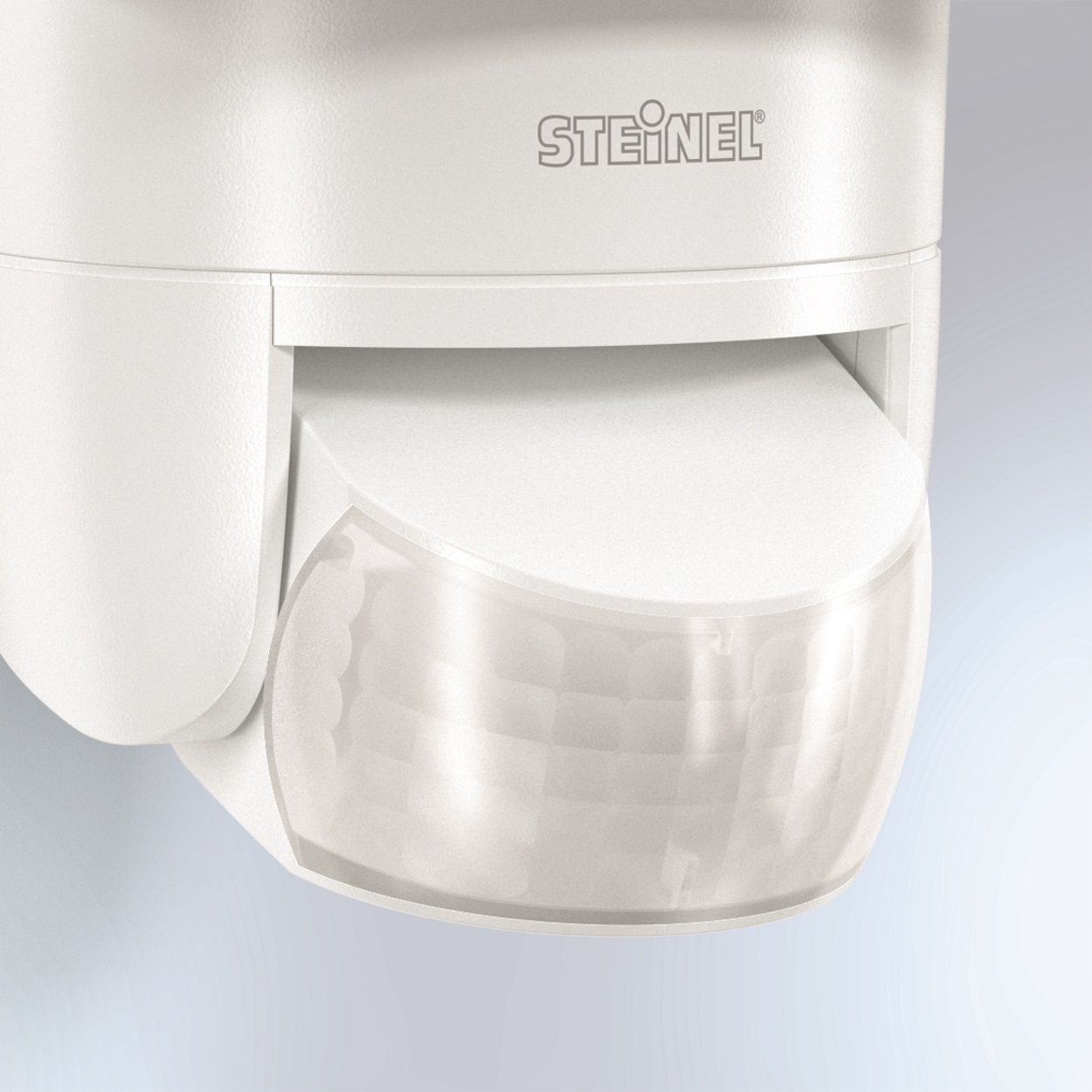

UV-resistant plastic

Colour rendering index Ra ≥ 80

Technical drawing

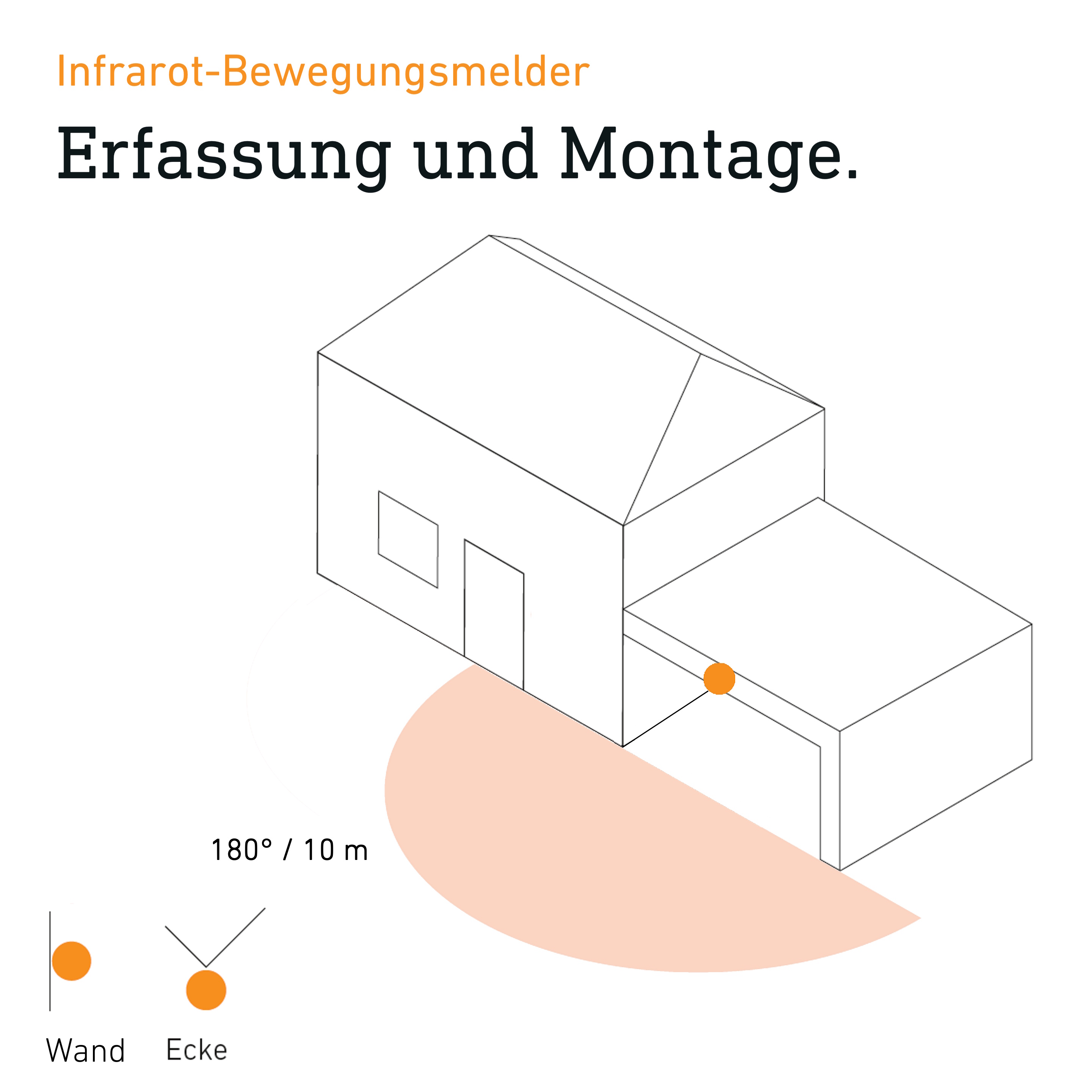

Sensor detection areas

Wiring diagram 1

Master/master interconnection circuit diagram

Data sheet Declaration of conformity Drilling template LDT file (light distribution)
