Steinel

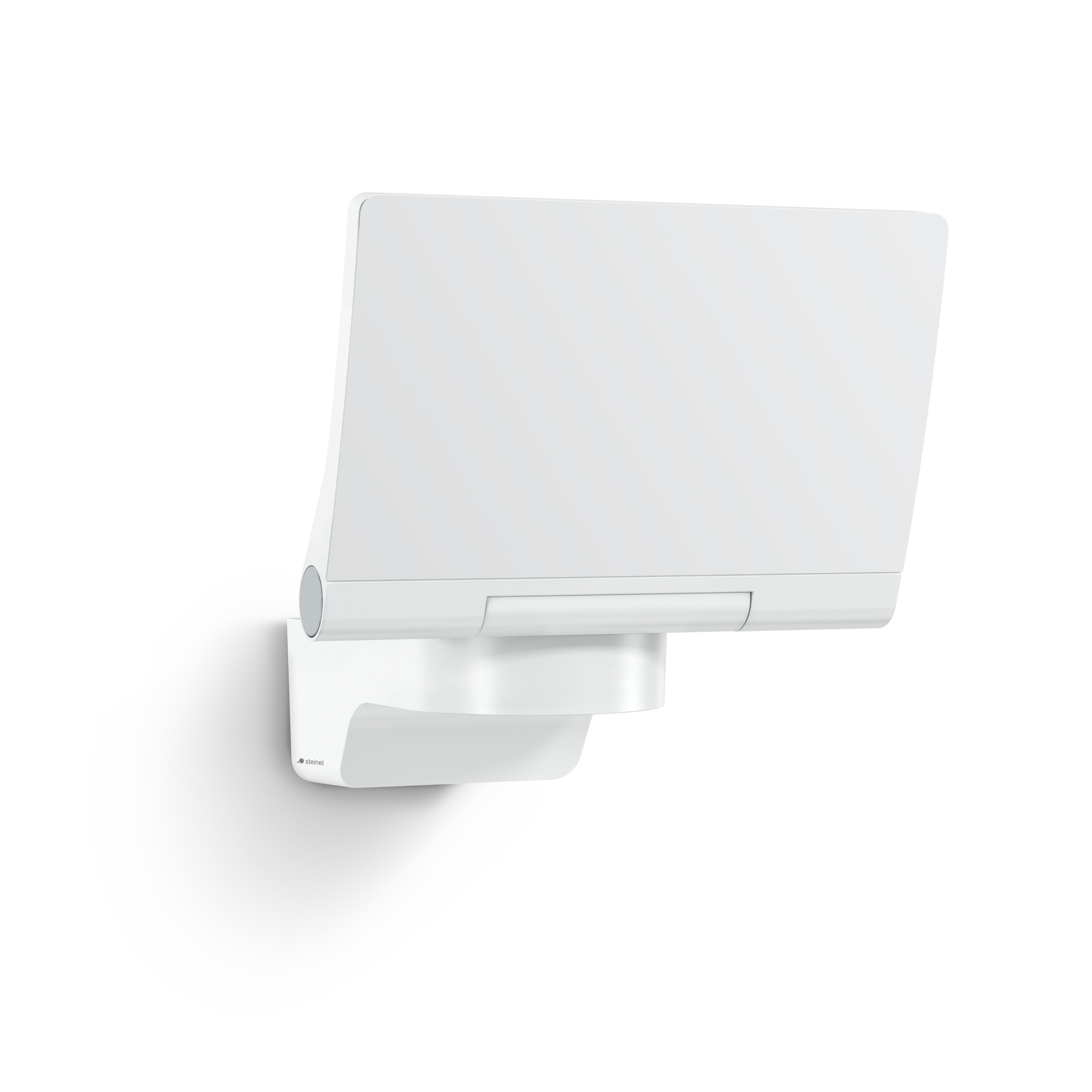

Steinel XLED home 2 white

EAN-No. 4007841033125

ELDAS® no. 033125

Price: Please log in to see prices

Version

Master Slave

Colour

White Black

Luminous flux

1484 lm 2120 lm

The XLED home 2 floodlight not only comes in a high-quality look. It also impresses with excellent performance. The outdoor floodlight without sensor can easily be interconnected and provides perfect lighting that reaches into the very last corner of any property with its fully swivelling LED panel made of opal glass. And as a single floodlight combined with a sensor, the attractive motion-detecting talent does a great job too.

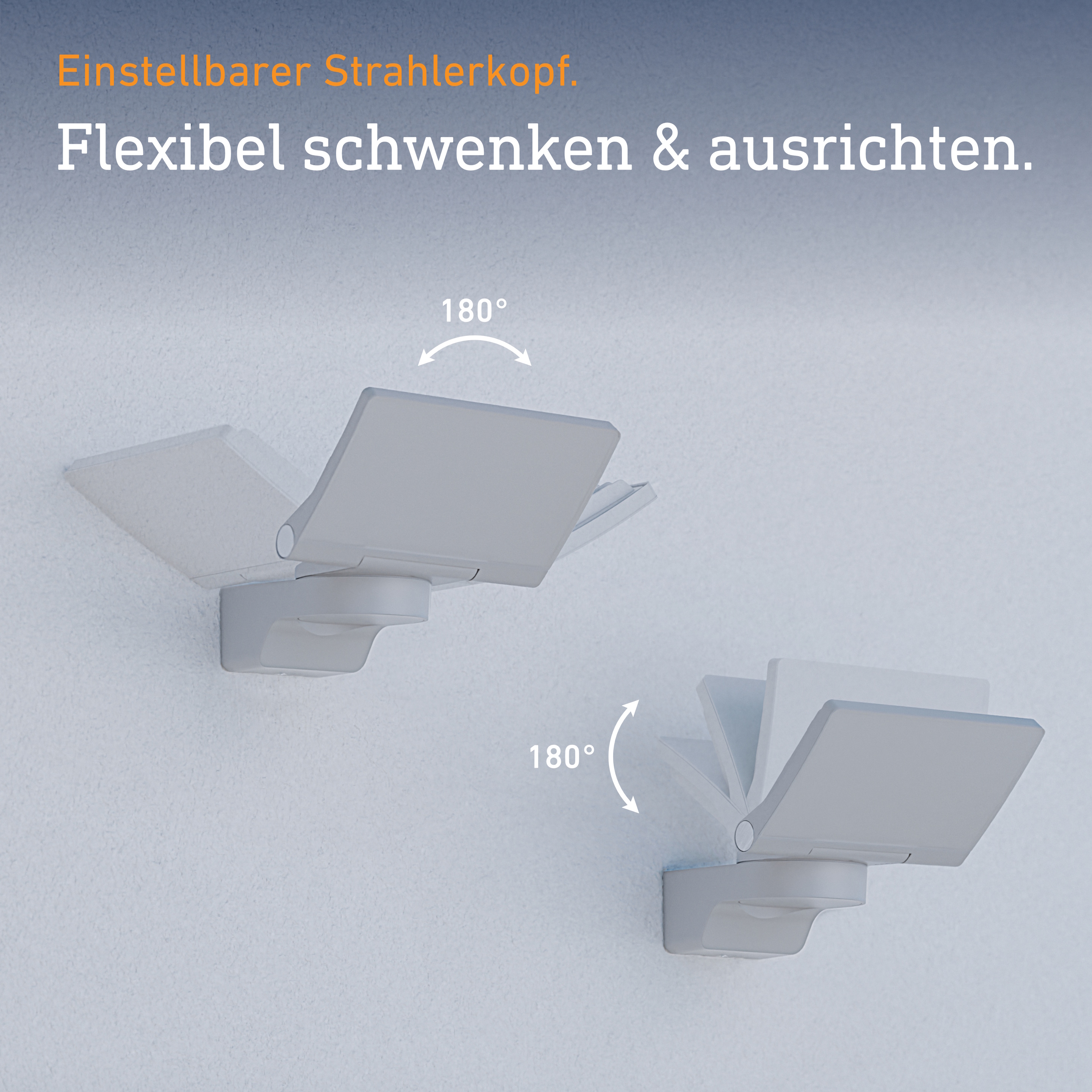

  • Spotlight without motion detector, with fully swivelling LED panel in noble opal look
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

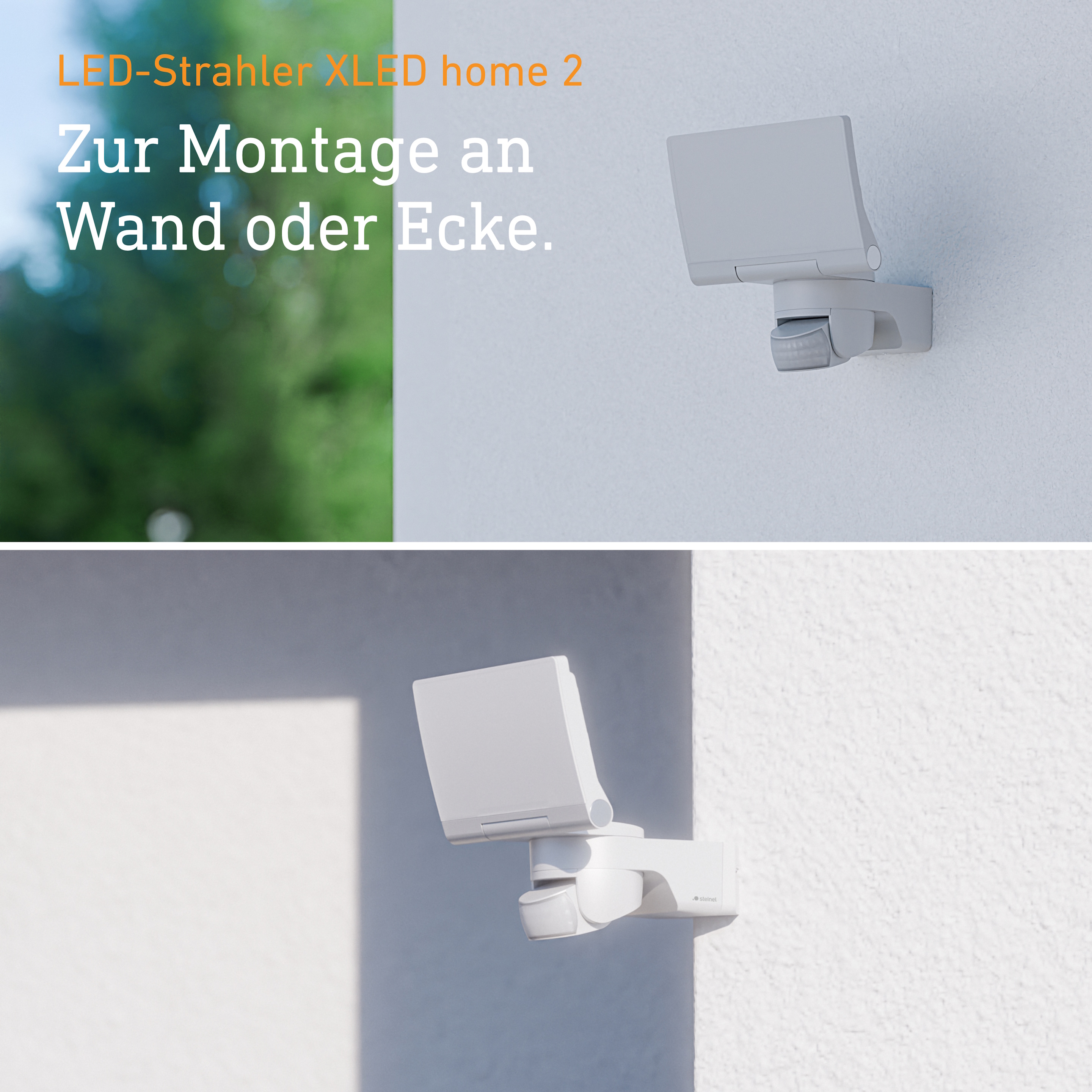

  • Optional corner wall bracket available for optimal illumination of an area in front of two house walls
  • Warm white light (3000 K) and long-life 13,7 W LEDs with 1550 lm, with an illumination of max. 150 sqm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 924700192

Variants

Version Slave
Colour White
Luminous flux 1484 lm
Housing colour White

Dimensions

Dimensions L × W × H 161 x 180 x 181 mm
PU1 net weight 0.4830

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 13,7 W

Sensor technology

With motion detector No

Lighting technology

Measured luminous flux 360° 1550 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system HCMC (High Conductive Magnesium Composite)
Photobiological safety per EN 62471 Sonstige

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material HCMC
Cover material Plastic, opal
Mounting location wall corner
Application location Outdoors
Mounting type Surface wiring
Application room outdoors all round the building terrace / balcony courtyard & driveway

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

Cross-/up-selling

Accessories 21316,21314,21307

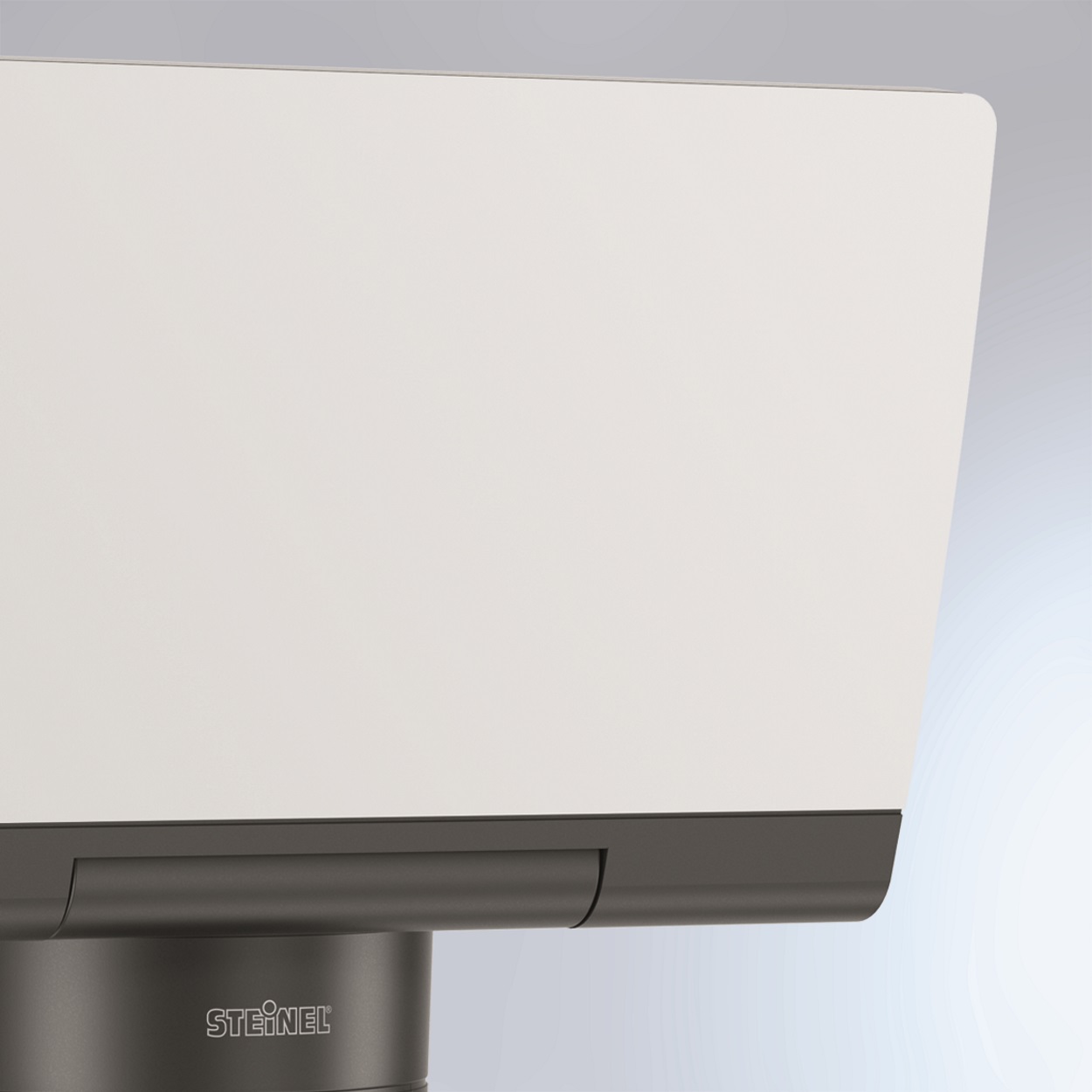

Including STEINEL LED system

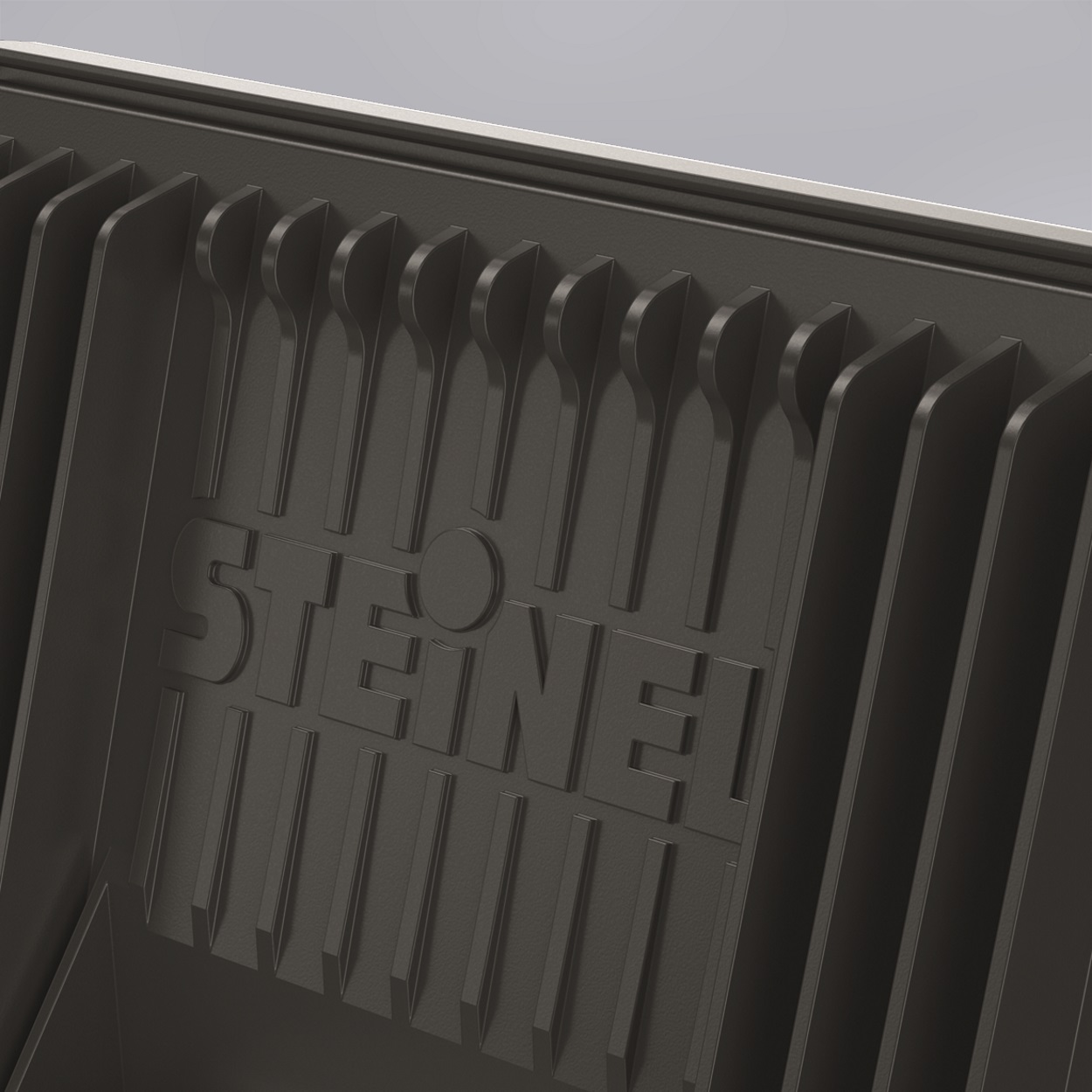

HCMC cooling system

UV-resistant plastic

Colour rendering index Ra ≥80

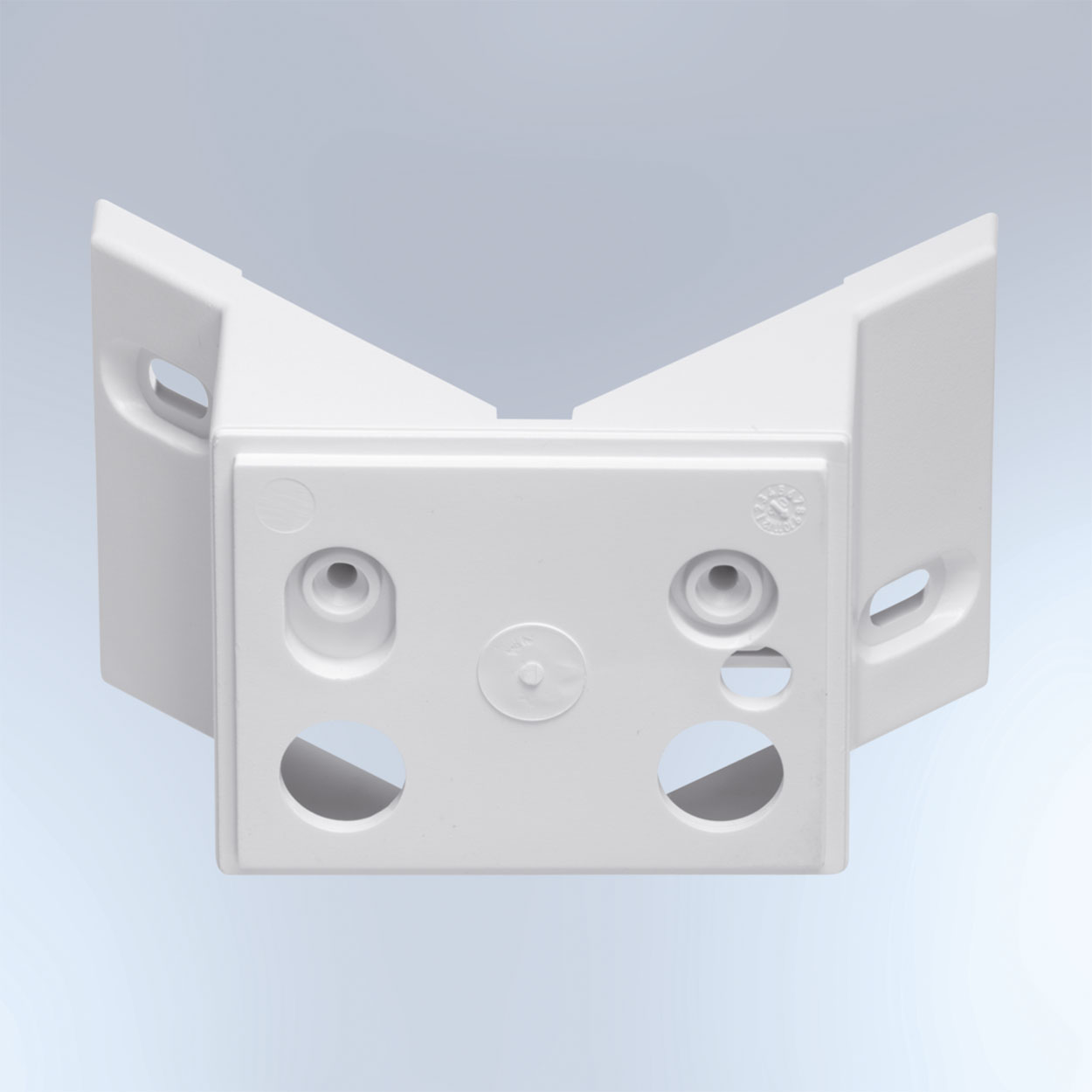

Optional corner wall mount bracket

Technical drawing

Wiring diagram 1

Slave circuit diagram

Corner wall mount XLED Home 2/ Protect/ Pro 240 black

Corner wall mount XLED Home 2/ Protect/ Pro 240 black

Item no. 055875

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse graphite

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse graphite

Item no. 053086

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse white

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse white

Item no. 055615

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse Silver

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse Silver

Item no. 053109
