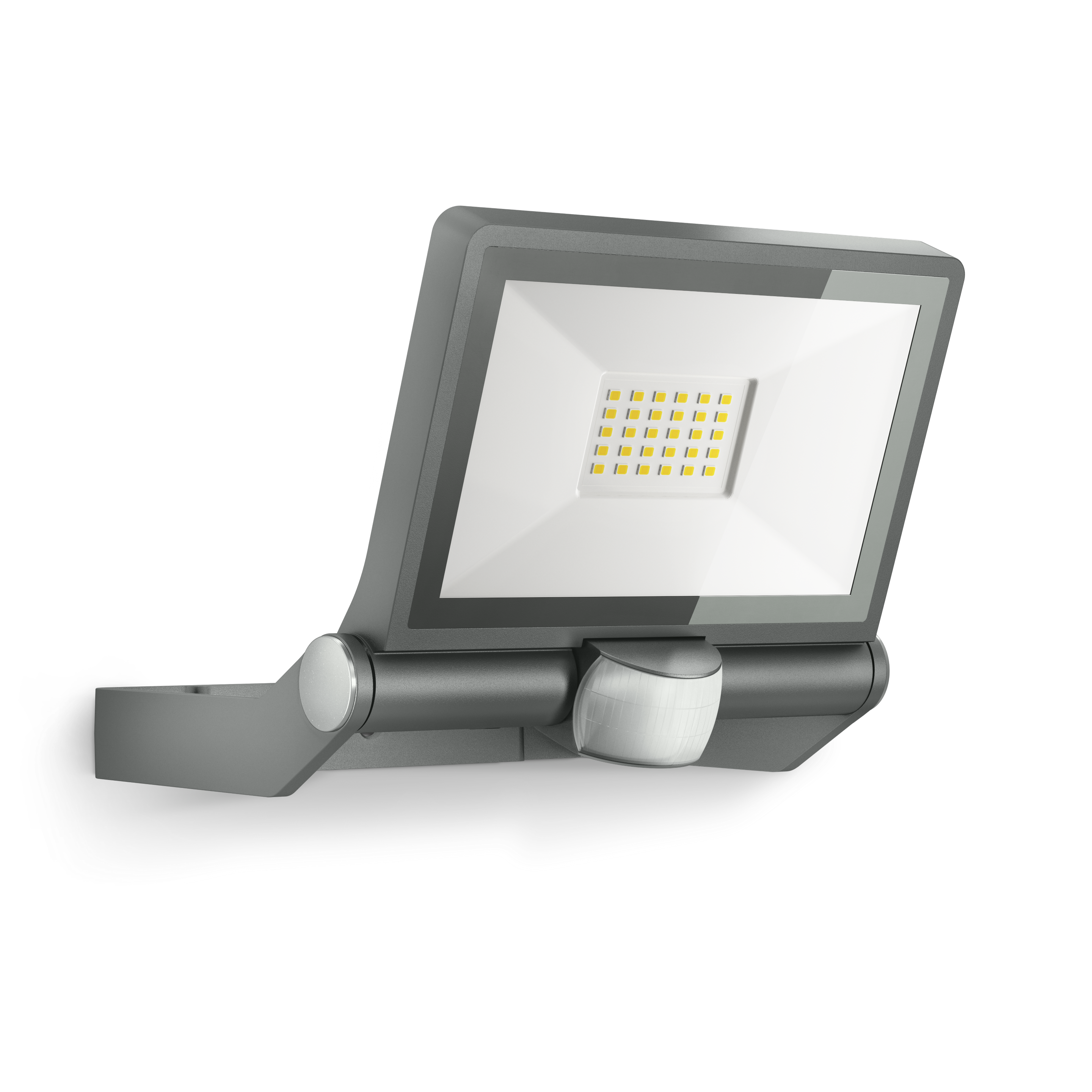

Steinel XLED ONE S Anthracite

Steinel XLED ONE S Anthracite

EAN-No. 4007841065249 · ELDAS® no. 065249

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel XLED ONE S Anthracite

EAN-No. 4007841065249

ELDAS® no. 065249

Price: Please log in to see prices

Colour

Anthracite white

The wall and ceiling spot XLED ONE S is available with and without sensor. Warm white 3000 K, 2050 lm and a powerful reflector in both versions provide perfect illumination to light up any point outside the home – and, thanks to its energy-saving 18,6 W, also the eyes of those who own it. The LEDs fitted in the spots promise an astonishingly long service life of over 30 years. Sensor version XLED ONE S comes with a 180° infrared sensor and reach of 12 m, automatically switching light on as soon as movement is detected. The light ON time can be set as needed. The stylish LED panel in high-quality aluminium can be tilted through 180°.

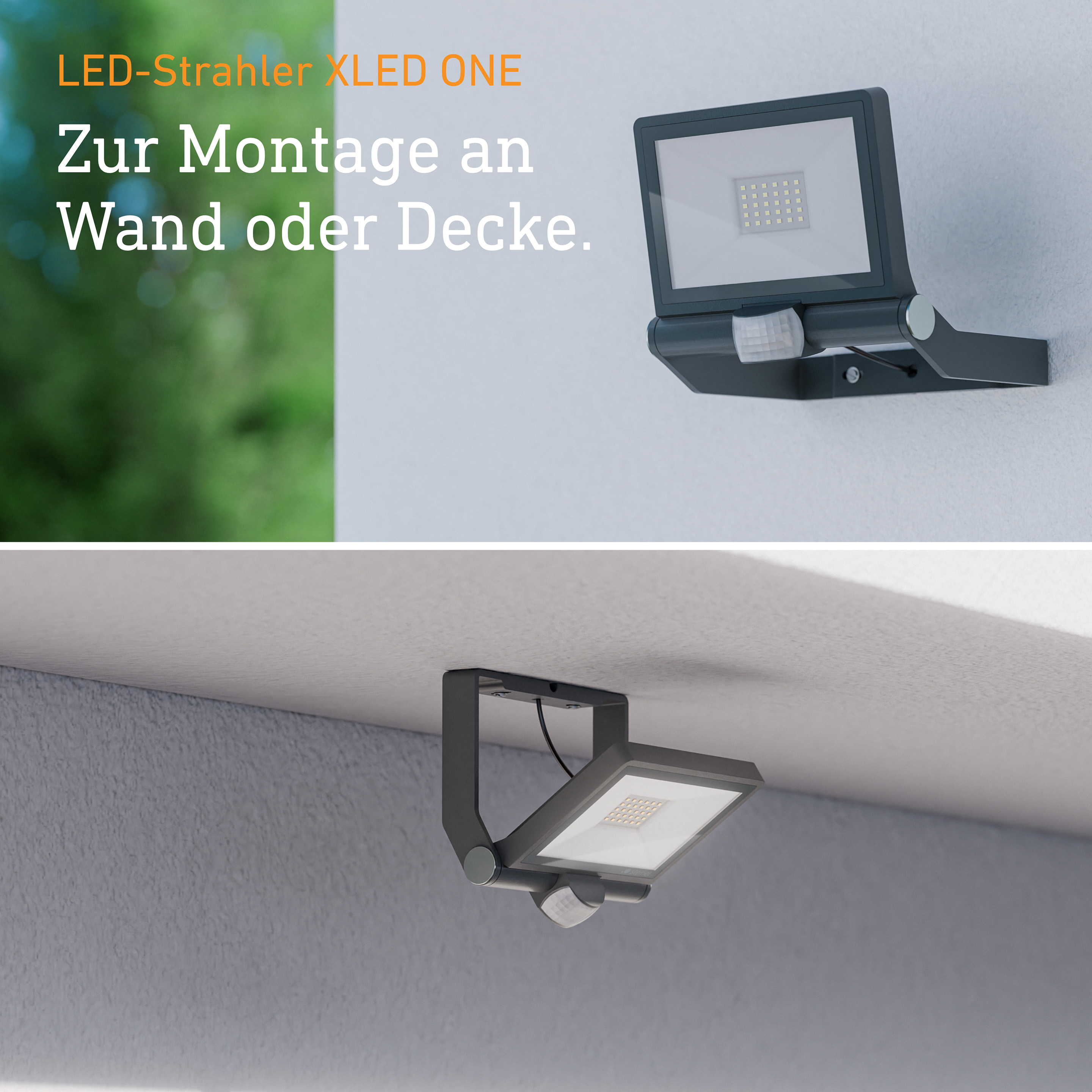

  • Spotlight with motion detector for wall and ceiling mounting
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)
  • Automatic light thanks to 180 ° Infrared sensor with up to 12 m detection of movement
  • LED panel as well as sensor can be swivelled vertically by 180°, incl. cover sticker for exact adjustment of the detection area
  • Warm white light (3000 K) and long-life 18,6 W LEDs with 2050 lm, with an illumination of max. 300 sqm, max. 3m mounting height
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941200449

Dimensions

Dimensions L × W × H 202 x 229 x 195 mm
PU1 net weight 1.1850

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 18,6 W

Sensor technology

Max. mounting height 3,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Sneak-under protection No
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range r = 3 m (14 m²)
Tangential range r = 12 m (226 m²)
Mounting height 1,8 – 3 m
Optimal mounting height 2 m
Nevalux sensor technology On / Off

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2050 lm
Colour temperature 3000 K
LED colour deviation SDCM6
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 36000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 8 s – 35 Min.
Base light function No
Main light adjustable No
Settings via Potentiometers

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Glass transparent
Mounting location wall ceiling
Application location Outdoors
Mounting type Surface wiring
Application room outdoors all round the building courtyard & driveway
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

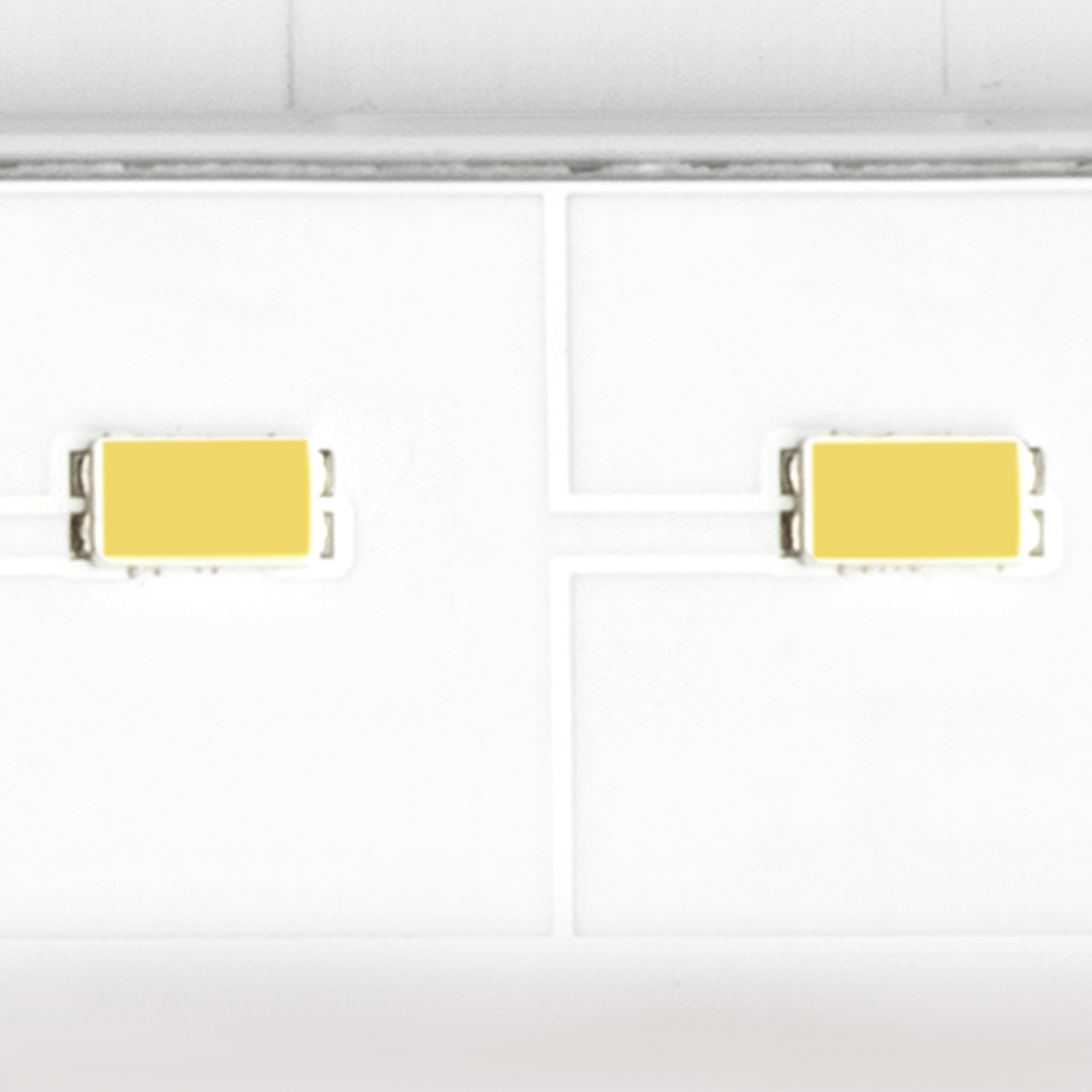

Including STEINEL LED system

UV resistant material

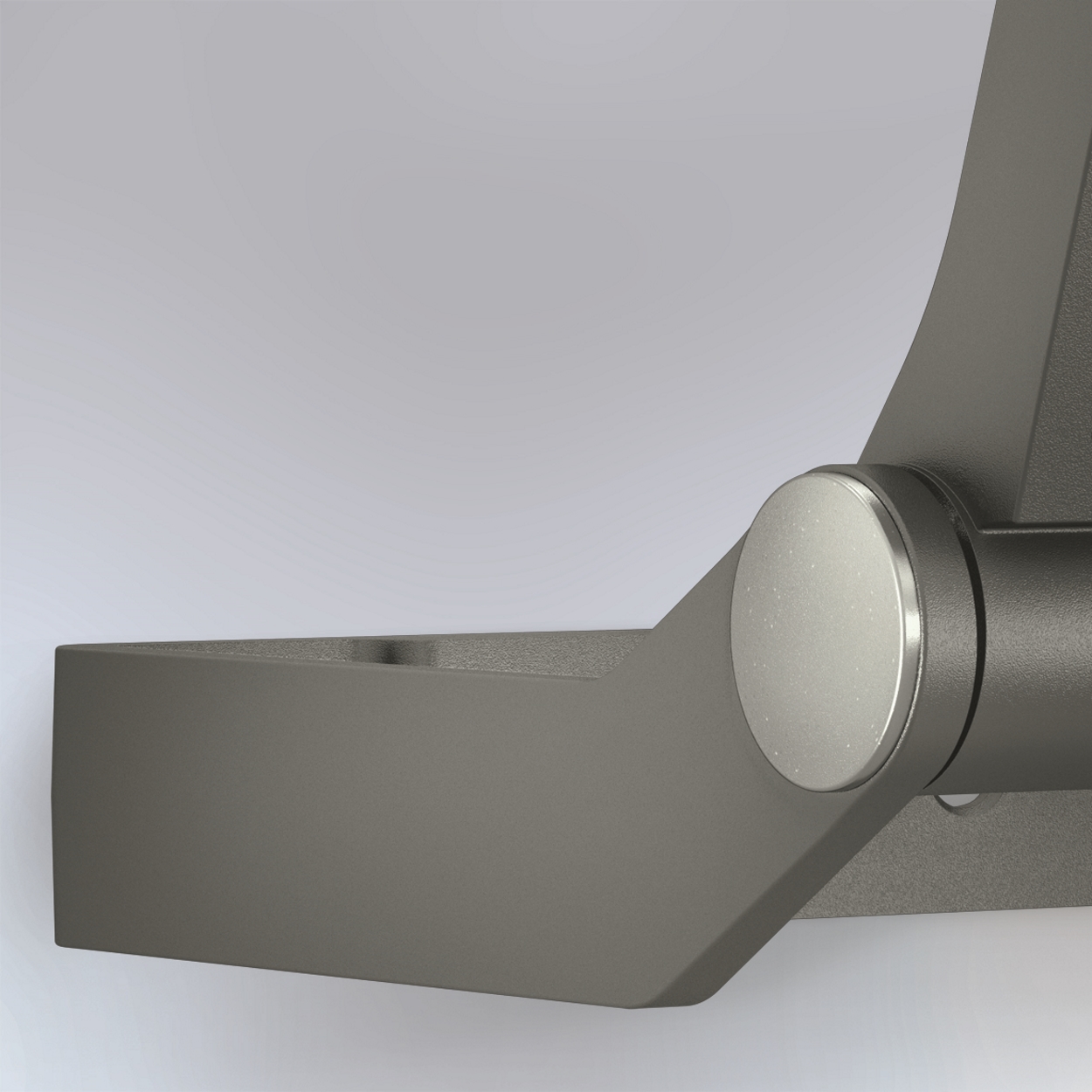

High-quality aluminium

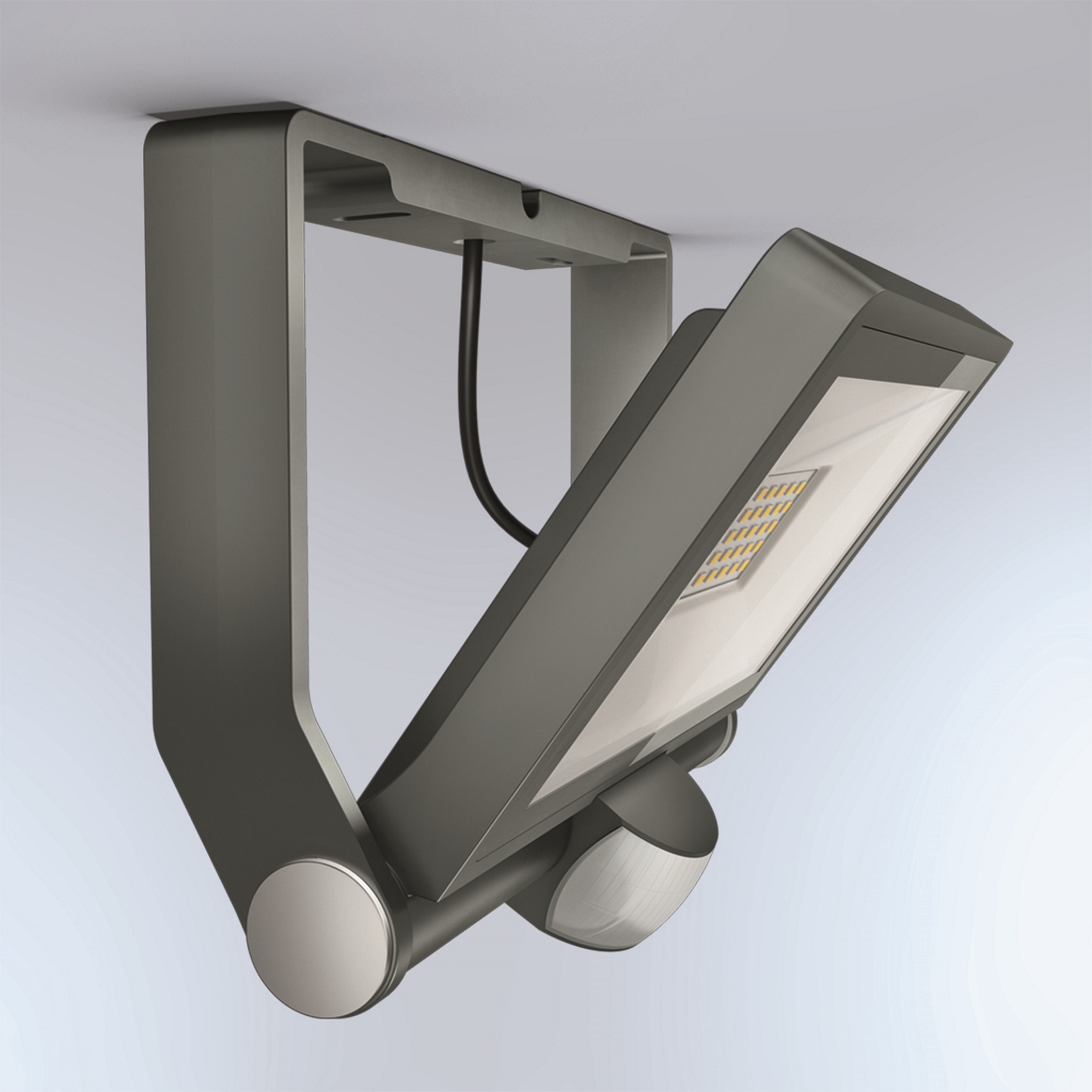

Suitable for mounting on ceilings

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram
