Steinel XLED PRO 240 black

Steinel XLED PRO 240 black

EAN-No. 4007841068097 · ELDAS® no. 068097

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel XLED PRO 240 black

EAN-No. 4007841068097

ELDAS® no. 068097

Price: Please log in to see prices

Version

Master Slave

Colour

White Anthracite Black

The version of the XLED PRO 240 without sensor is simply interconnected with the master version via cable, providing synchronous illumination for even larger areas. The fully swivelling, extra-slim LED flat panel delivers 2124 lm of light, and is ideal for illuminating large areas around the building with on-demand lighting. In conjunction with 3000 K colour temperature, the opal diffuser produces an inviting lighting mood. The LED floodlight has a power consumption of just 19,3 W.

Identification

Manufacturer Steinel
E-number 941501359

Variants

Version Slave
Colour Black

Dimensions

Dimensions L × W × H 161 x 180 x 199 mm
PU1 net weight 0.6400

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 19,3 W

Sensor technology

With motion detector No
Nevalux sensor technology On / Off

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2124 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system HCMC (High Conductive Magnesium Composite)
Soft light start No
Photobiological safety per EN 62471 Sonstige

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Base light function No
Main light adjustable No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material HCMC
Cover material Plastic, opal
Mounting location wall corner
Application location Outdoors
Mounting type Surface wiring
Application room outdoors all round the building terrace / balcony courtyard & driveway

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E
EPREL category Light source

Cross-/up-selling

Accessories 21316

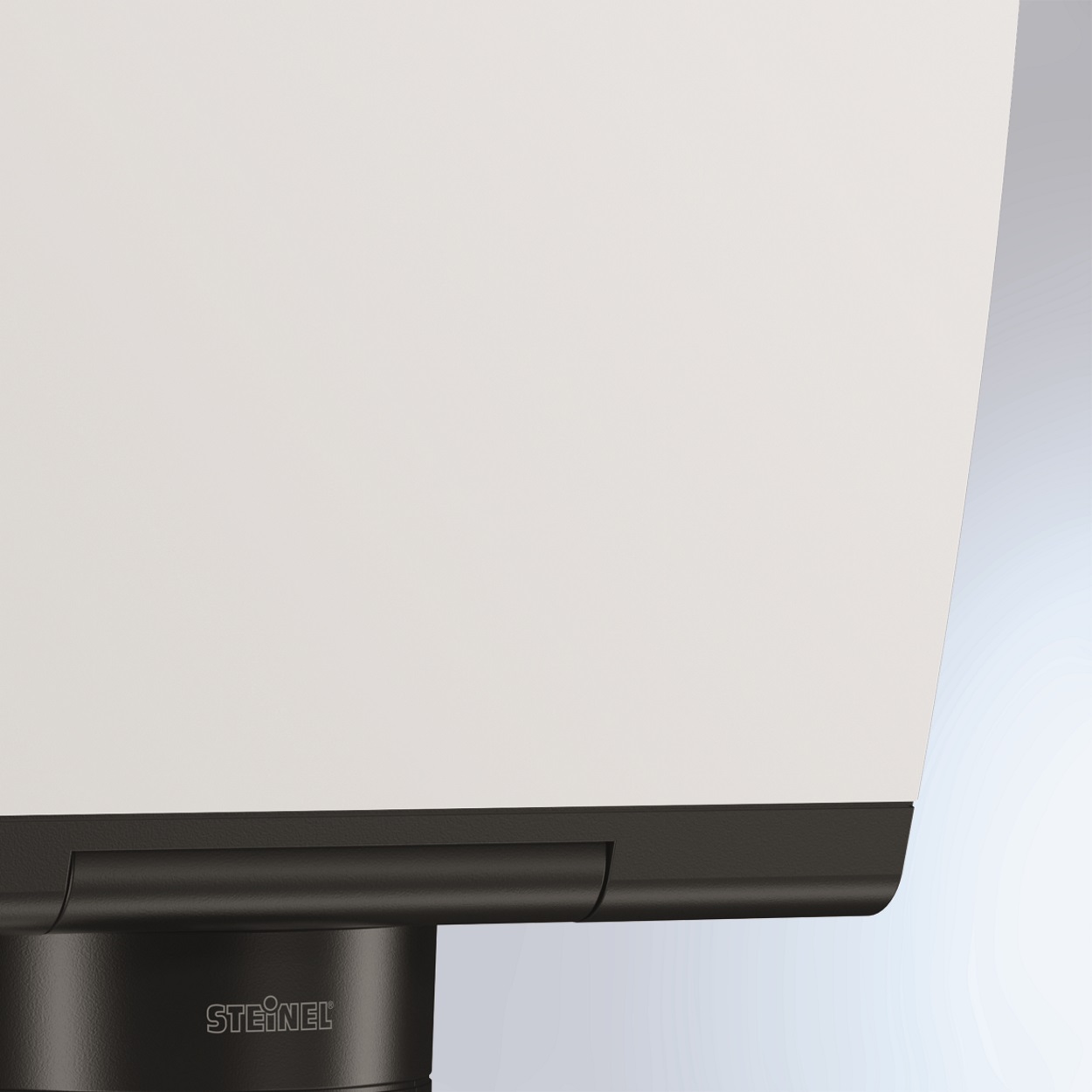

Including STEINEL LED system

HCMC cooling system

UV-resistant plastic

Colour rendering index Ra ≥80

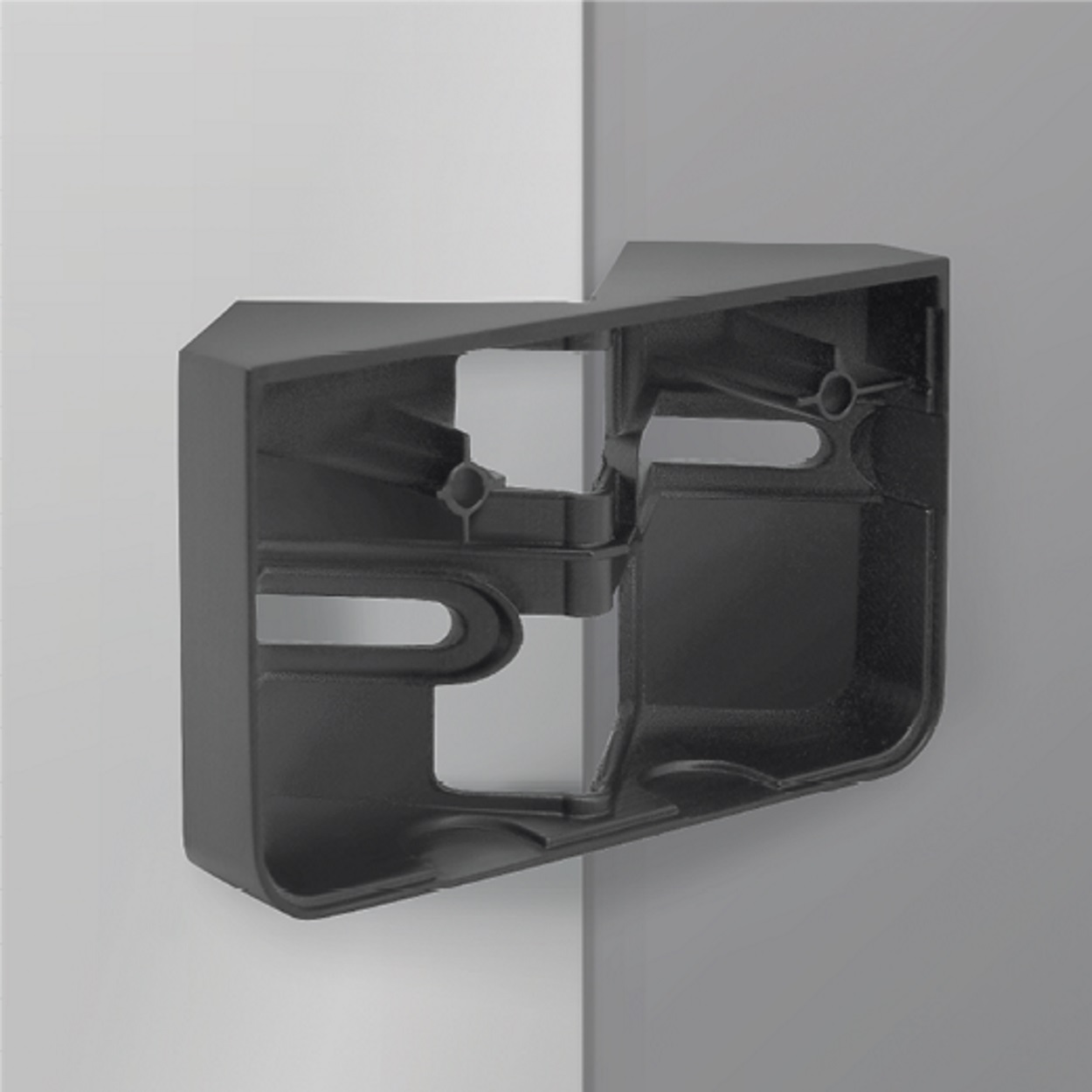

Optional corner wall mount bracket

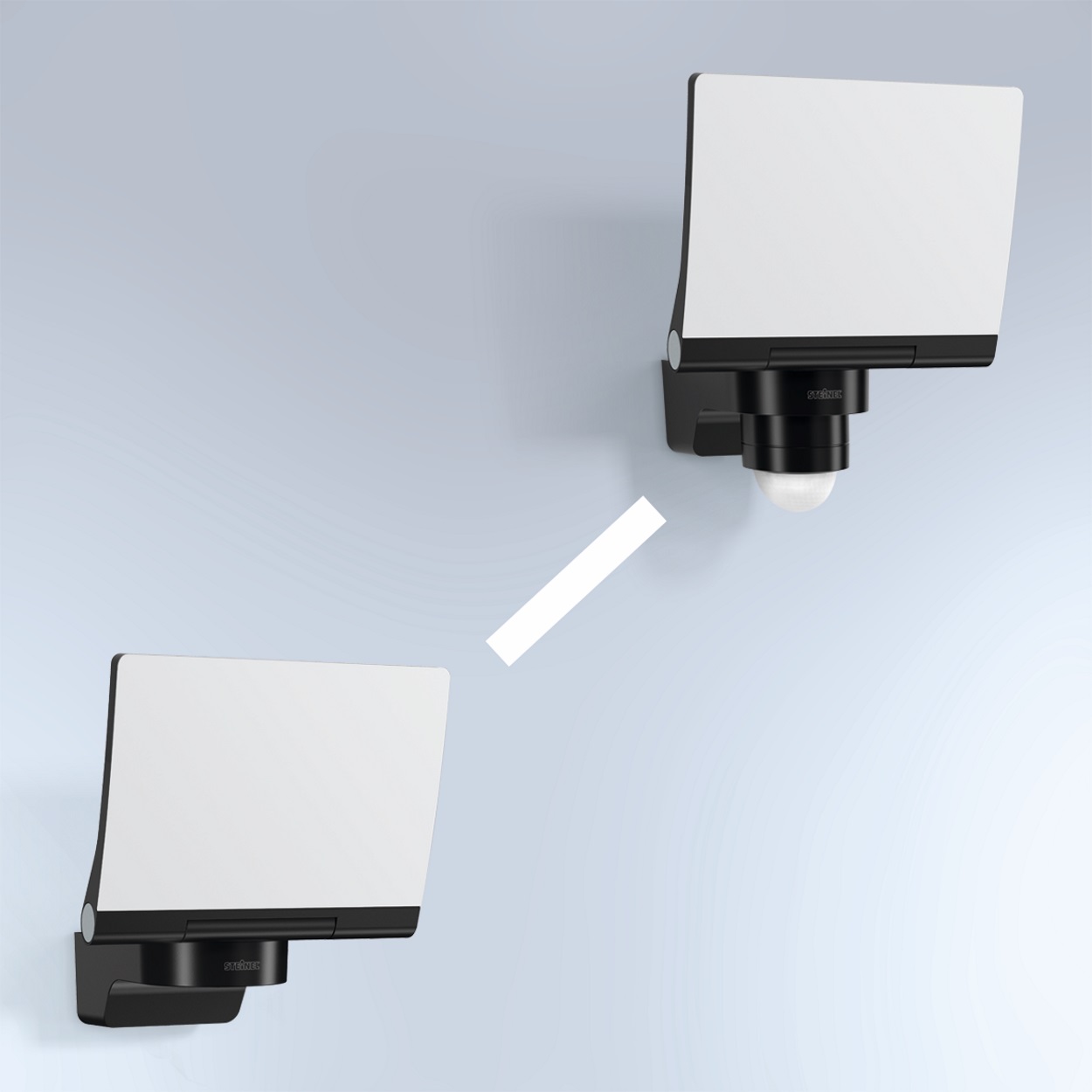

Can be interconnected with slave version

Technical drawing

Wiring diagram 1

Master/slave interconnection circuit diagram
