Steinel XLED PRO 240 S warm white white

EAN-No. 4007841068073

ELDAS® no. 068073

Version

Master Slave

Colour

White Anthracite Black

The XLED PRO 240 S sensor-switched outdoor floodlight is a lighting and detection wizard. The fully swivelling, extra-slim LED flat panel delivers 2124 lm of light, and is ideal for illuminating large areas around the building with on-demand lighting. In conjunction with 3000 K colour temperature, the opal diffuser produces an inviting lighting mood. The LED floodlight is fitted with a 240° infrared sensor that reliably detects the smallest of movements, has a reach of up to 12 m and makes an effective deterrent to unwanted visitors. The LED floodlight has a power consumption of just 19,3 W.

Identification

Manufacturer Steinel

E-number 941200429

Variants

Version Master

Colour White

Dimensions

Dimensions L × W × H 161 x 180 x 223 mm

PU1 net weight 0.6400

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 19,3 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 240 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (19 m²)

Tangential range r = 12 m (302 m²)

Mounting height 1,80 – 6 m

Optimal mounting height 2 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Networking via Cable

Networking quantity

Lighting technology

Measured luminous flux 360° 2124 lm

Colour temperature 3000 K

LED colour deviation SDCM3

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system HCMC (High Conductive Magnesium Composite)

Soft light start No

Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 15 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

Twilight setting teach No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material HCMC

Cover material Plastic, opal

Cover material (scope of delivery) shrouds

Mounting location wall corner

Application location Outdoors

Mounting type Surface wiring

Application room outdoors all round the building terrace / balcony courtyard & driveway

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Media & files

Wiring diagram 3 text Master/slave interconnection circuit diagram

Certificates & EPREL

EPREL energy efficiency class E

EPREL category Light source

Cross-/up-selling

Accessories 21307

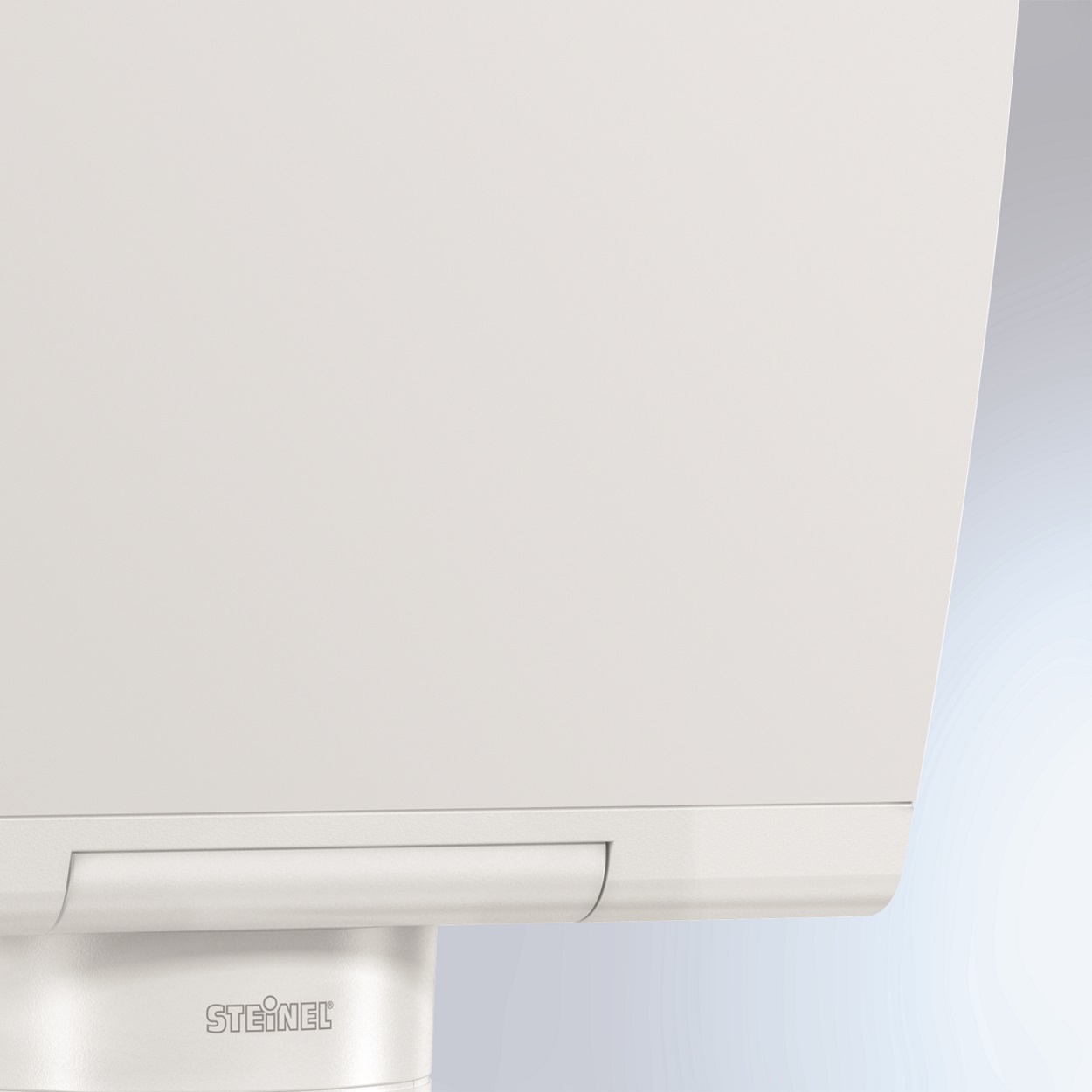

Including STEINEL LED system

HCMC cooling system

UV-resistant plastic

Colour rendering index Ra ≥80

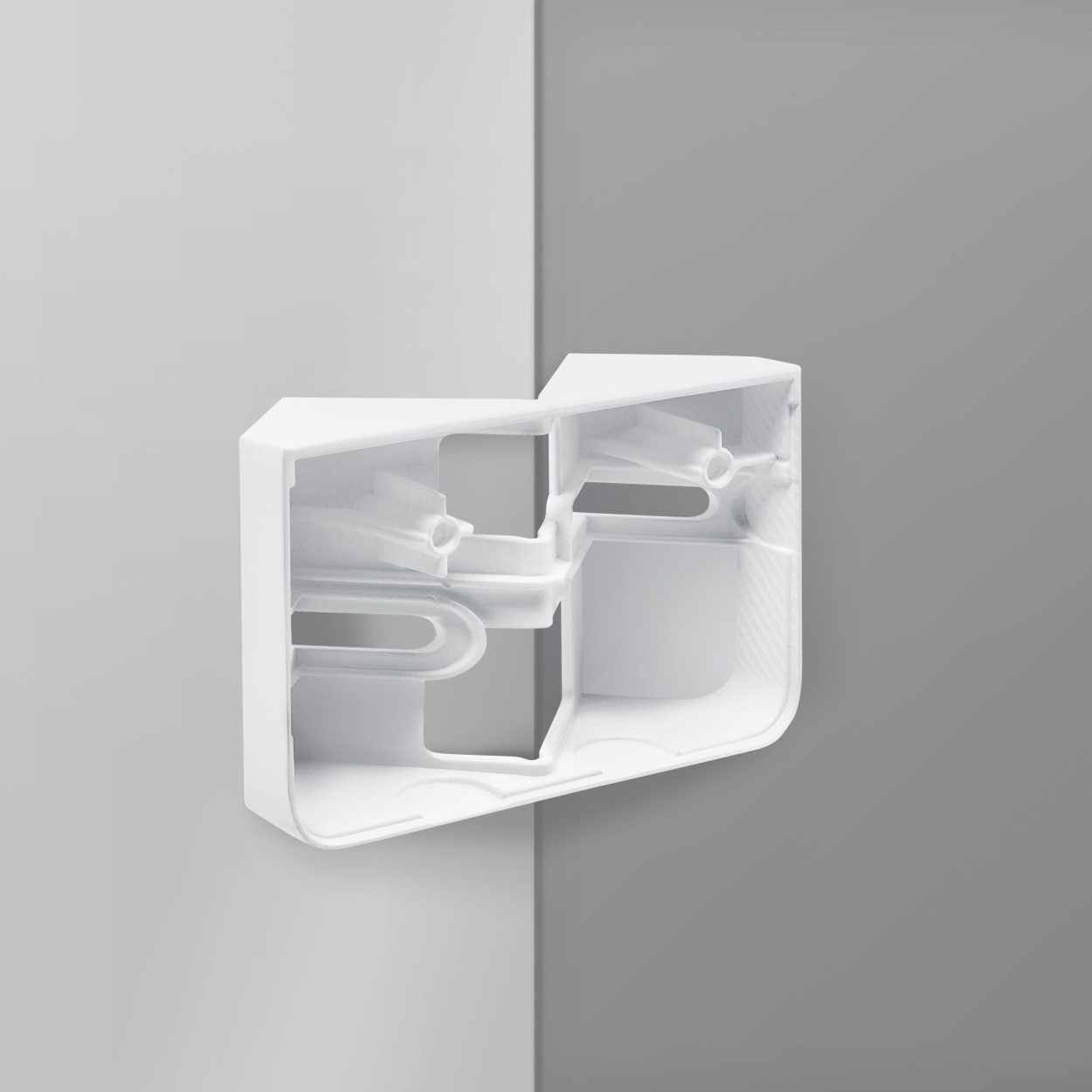

Optional corner wall mount bracket

Technical drawing

Sensor detection areas

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Declaration of conformity Drilling template LDT file (light distribution)
