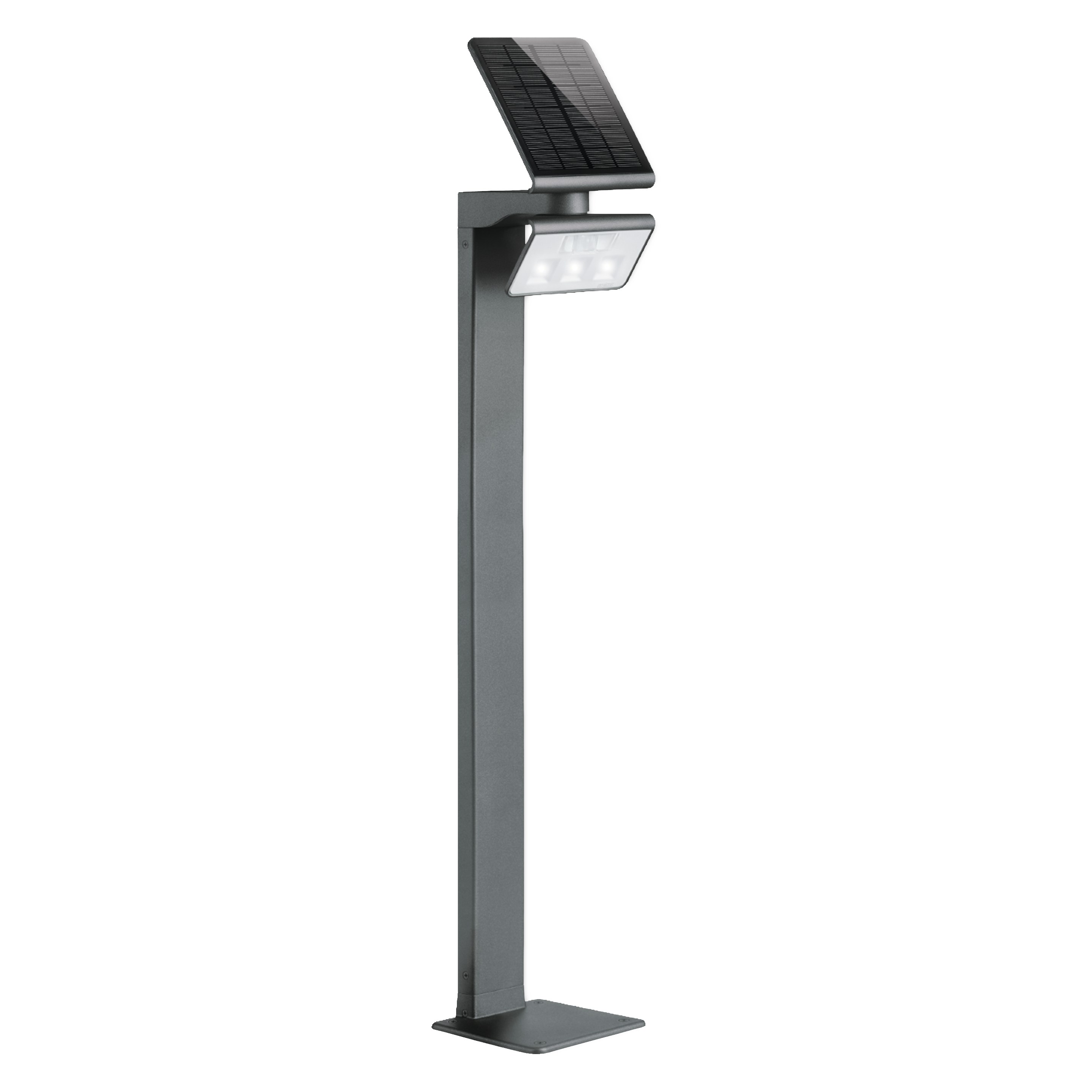

Steinel XSolar GL-S Anthracite

Steinel XSolar GL-S Anthracite

EAN-No. 4007841085681 · ELDAS® no. 085681

Highlights Technical data Highlights Illustrations Downloads Videos
Steinel

Steinel XSolar GL-S Anthracite

EAN-No. 4007841085681

ELDAS® no. 085681

Price: Please log in to see prices

Well-lit driveways and paths to your entrance doors give you and your guests a good feeling of security. With the free-standing version of our efficient solar luminaire, you combine this with elegant aesthetics and illuminate up to 20 sqm with bright LED light. Without any energy costs. Bulb changes are also a thing of the past thanks to 50,000 hours of LED life.

Identification

Manufacturer Steinel
E-number 941749119

Variants

Colour Anthracite

Dimensions

Dimensions L × W × H 188 x 194 x 1178 mm
PU1 net weight 2.8460

Electrical

Power 1,2 W
Supply voltage detail Solar supply, no mains power required Lithium-iron-phosphate rechargeable battery 2500 mAh

Sensor technology

Sensor technology passive infrared
With motion detector Yes
Detection angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Radial range r = 1.5 m (3 m²)
Tangential range r = 5 m (31 m²)
Optimal mounting height 1 m

Lighting technology

Measured luminous flux 360° 150 lm
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 lx
Time setting 10 s – 0,5 Min.
Base light function Yes
Base light function time all night
Functions Motions sensor
Settings via Potentiometers
Base light function in percent 3 %
Base light function percent from 3.0000
Base light function percent to 3.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class III
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, transparent
Mounting location Stand mounted
Application location Outdoors
Application room outdoors garden terrace / balcony courtyard & driveway
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

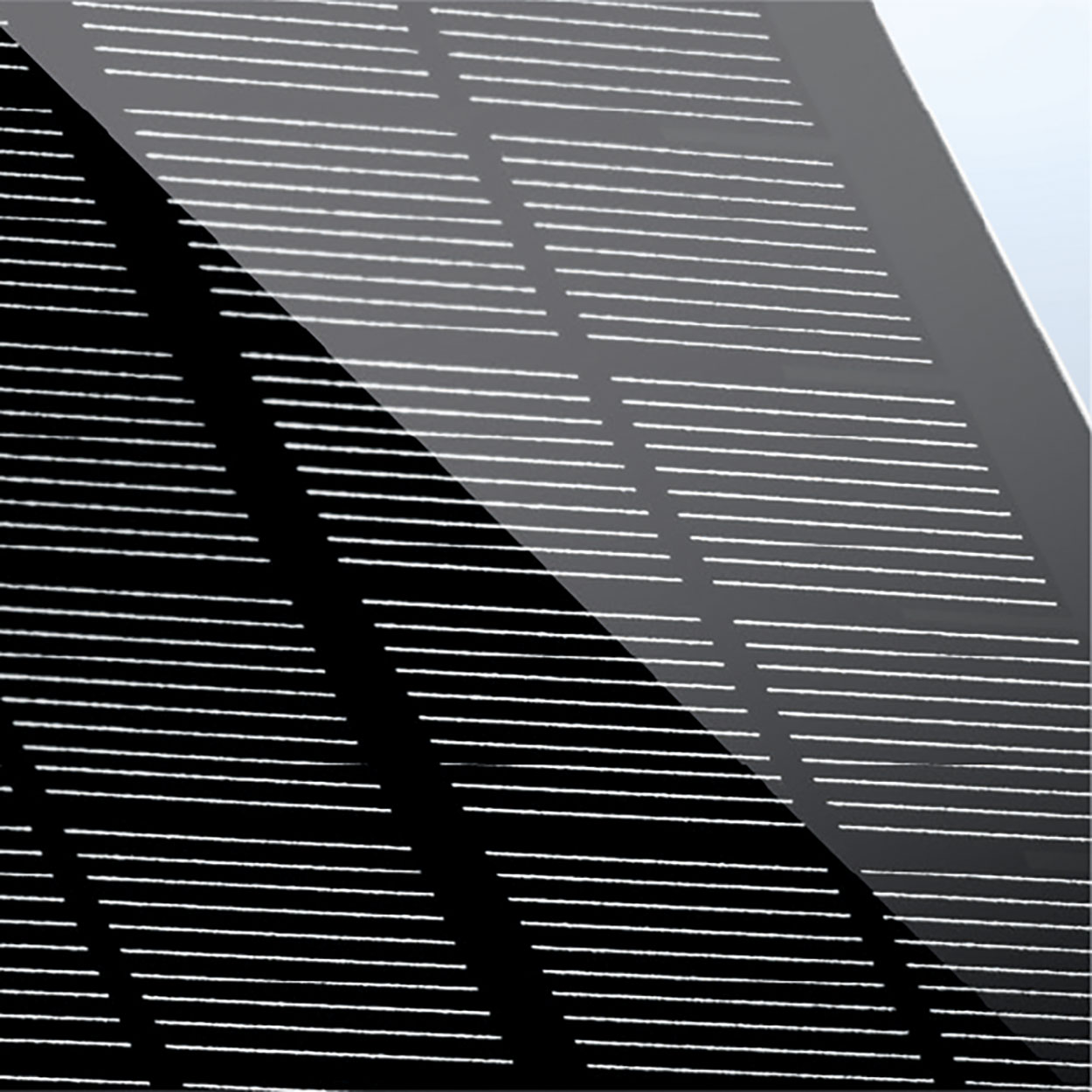

High-quality monocrystalline solar panel

Including 2500 mAh lithium iron-phosphate rechargeable battery

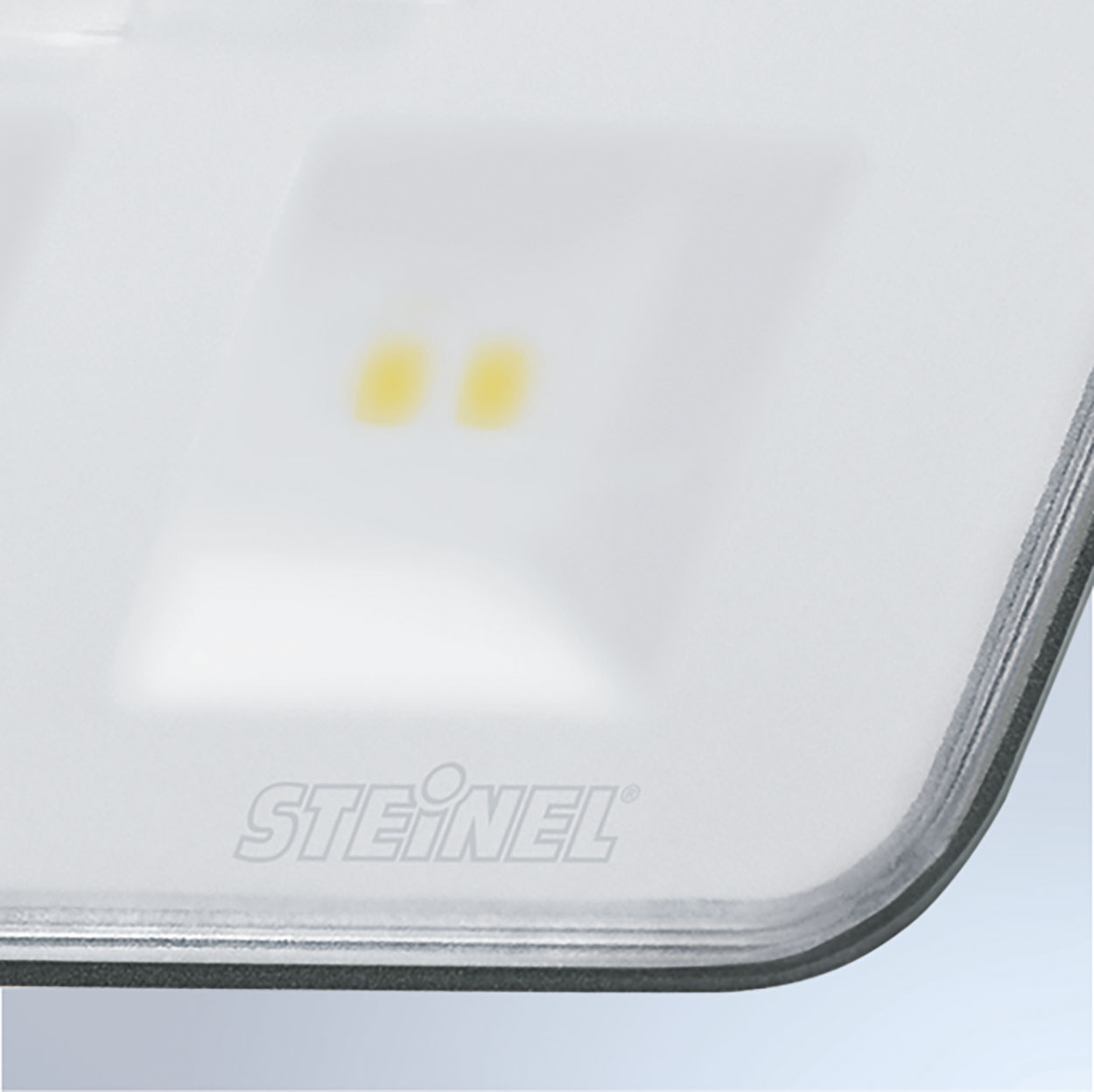

Including STEINEL LED system

Optional basic lighting level

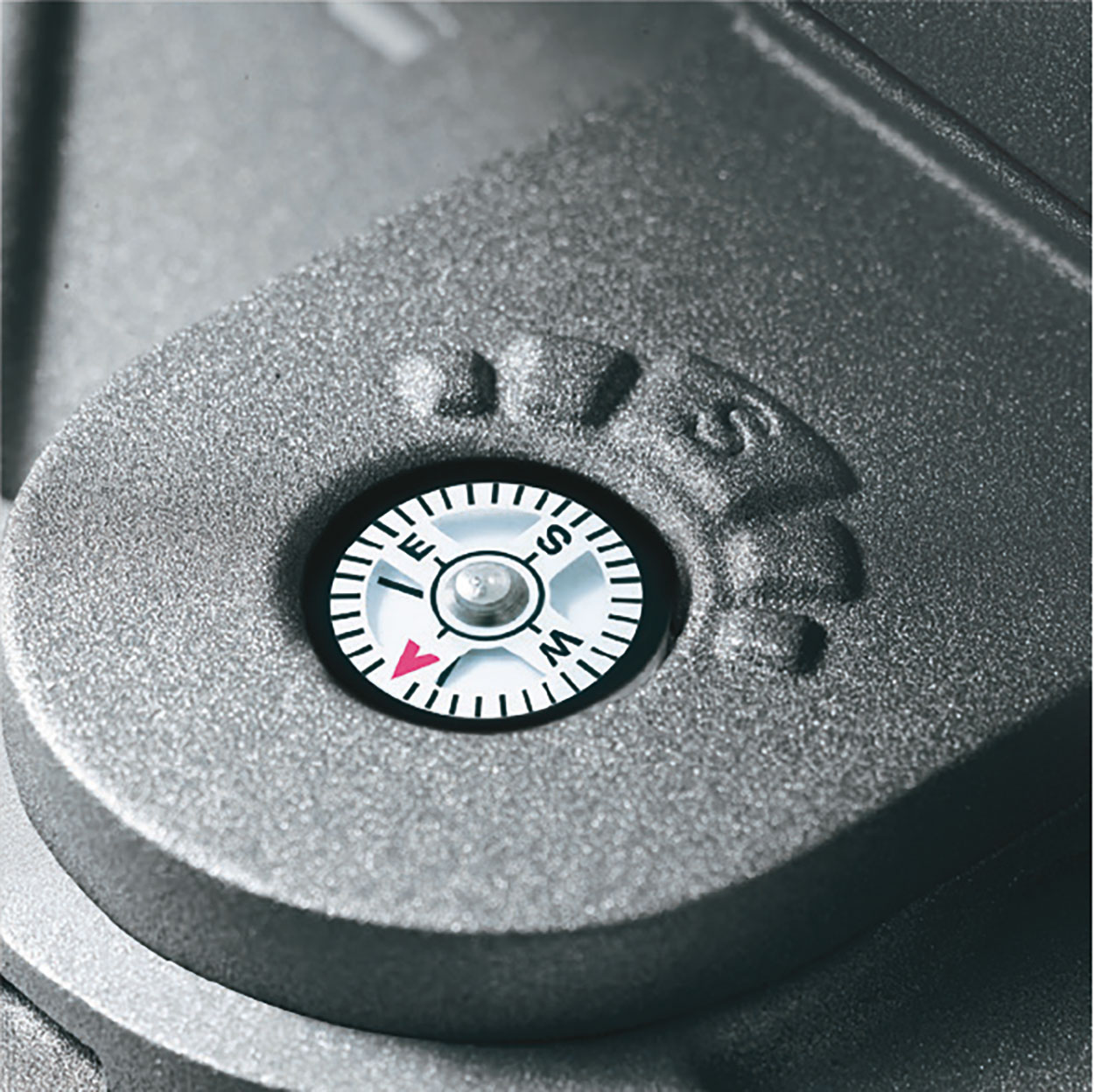

Compass for setting the panel to face the optimum direction

Technical drawing

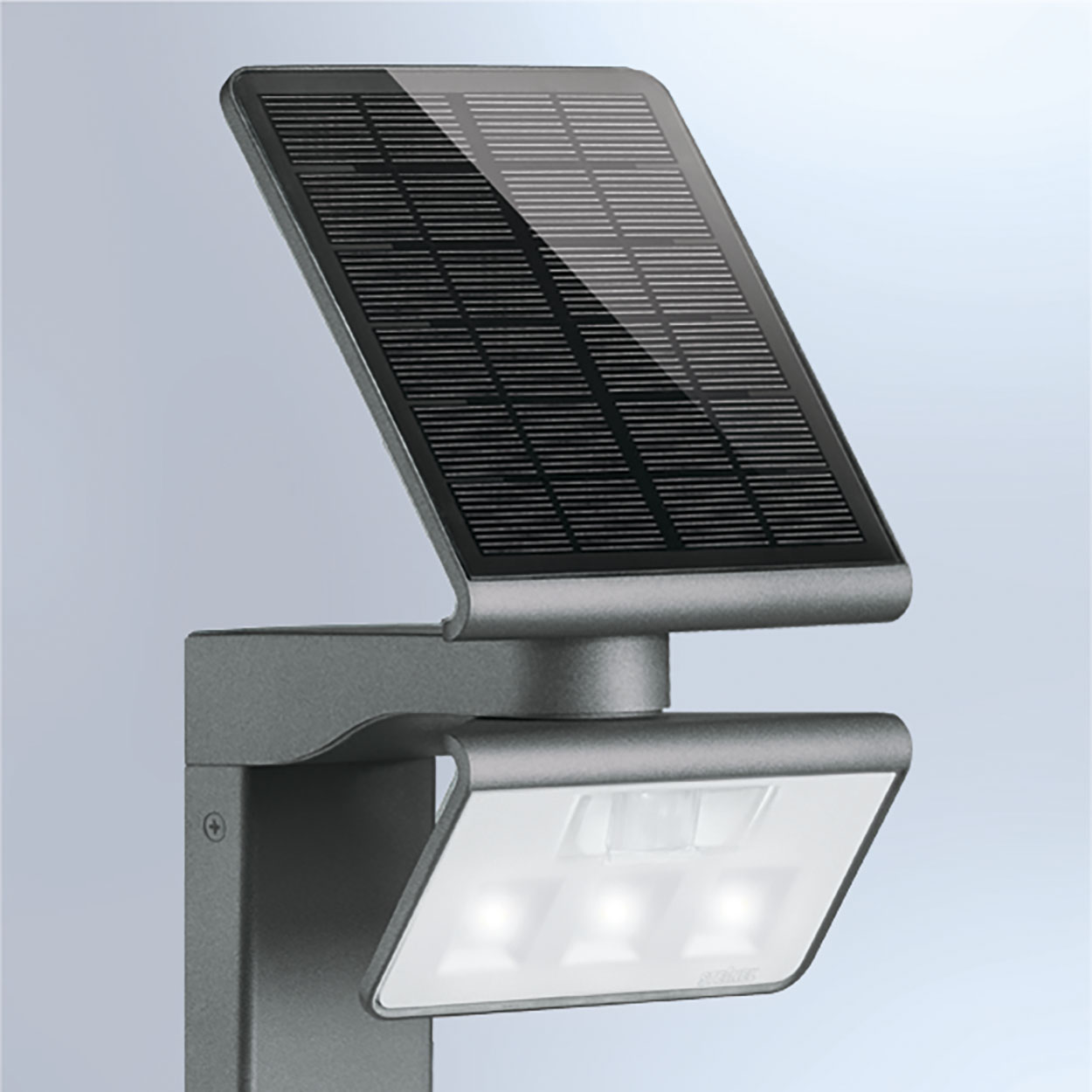

Sensor detection range
