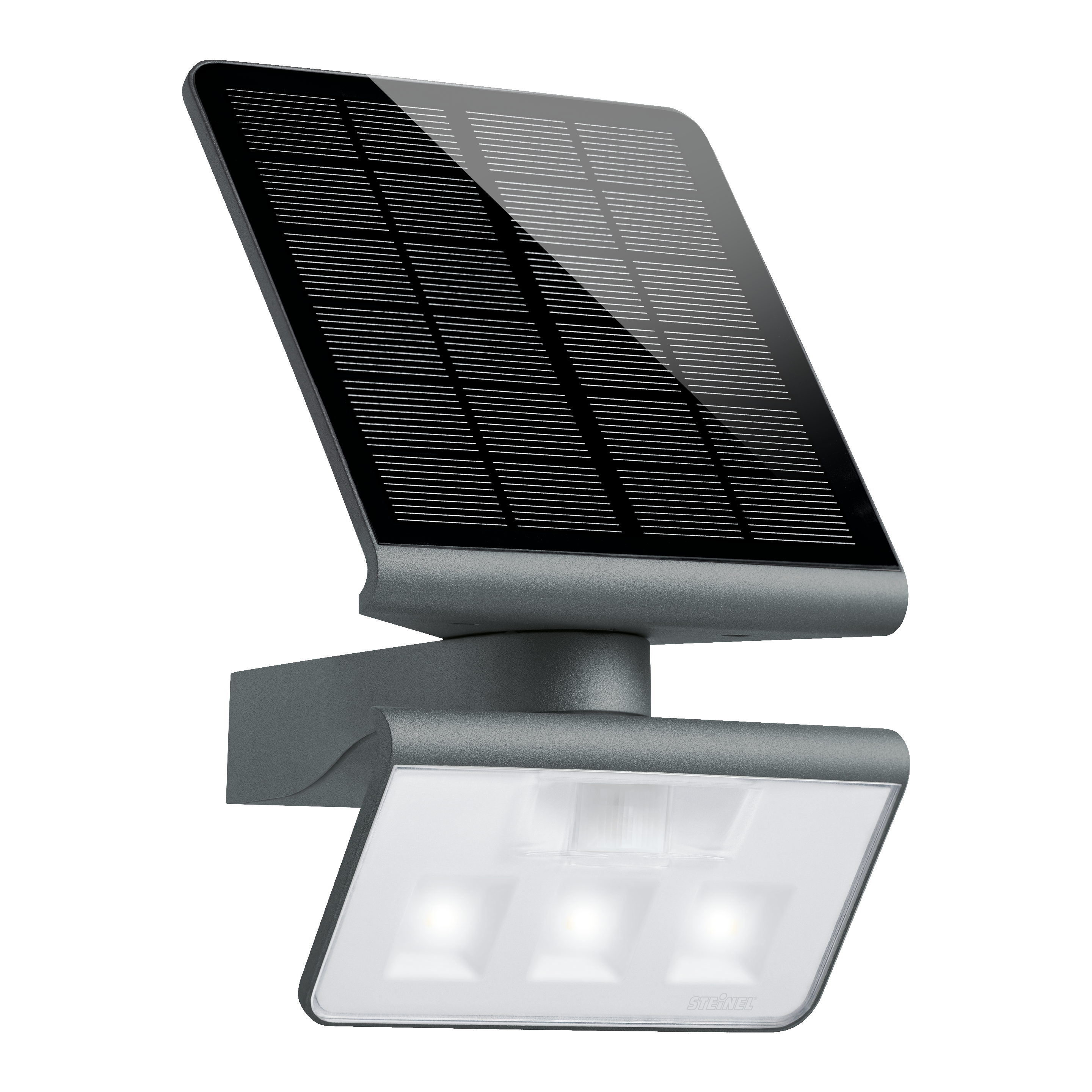

Steinel XSolar L-S Anthracite

Steinel XSolar L-S Anthracite

EAN-No. 4007841085698 · ELDAS® no. 085698

Highlights Technical data Highlights Illustrations Downloads Videos
Steinel

Steinel XSolar L-S Anthracite

EAN-No. 4007841085698

ELDAS® no. 085698

Price: Please log in to see prices

No more hassle about unusable solar lights: With the XSolar, STEINEL has developed the first solar light that always works. It combines the best technical components - from the highly efficient monocrystalline solar panel, the powerful infrared sensor and the temperature-resistant rechargeable battery with 60-day light reserve to the intelligent microprocessor control system - to reliably supply your outdoor area with bright LED light over an area of up to 30 square metres. 365 days a year. In all weathers. And 0,- Euro electricity costs. This makes it the most elegant solution for mounting on garden walls, outside walls and wherever there is no electricity connection available.

Identification

Manufacturer Steinel
E-number 941201719

Variants

Colour Anthracite

Dimensions

Dimensions L × W × H 187 x 189 x 298 mm
PU1 net weight 1.5000

Electrical

Power 1,2 W
Supply voltage detail Lithium-iron-phosphate rechargeable battery 2500 mAh Solar supply, no mains power required

Sensor technology

Max. mounting height 2,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Radial range r = 2 m (5 m²)
Tangential range r = 8 m (78 m²)
Mounting height 1,80 – 2,00 m
Optimal mounting height 1,8 m

Lighting technology

Measured luminous flux 360° 150 lm
Colour temperature 3000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 lx
Time setting 10 s – 1 Min.
Base light function Yes
Base light function time all night
Functions Motions sensor
Settings via Potentiometers
Base light function in percent 3 %
Base light function percent from 3.0000
Base light function percent to 3.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class III
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, transparent
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room outdoors front door all round the building terrace / balcony courtyard & driveway
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years
Extension cable included 6 m

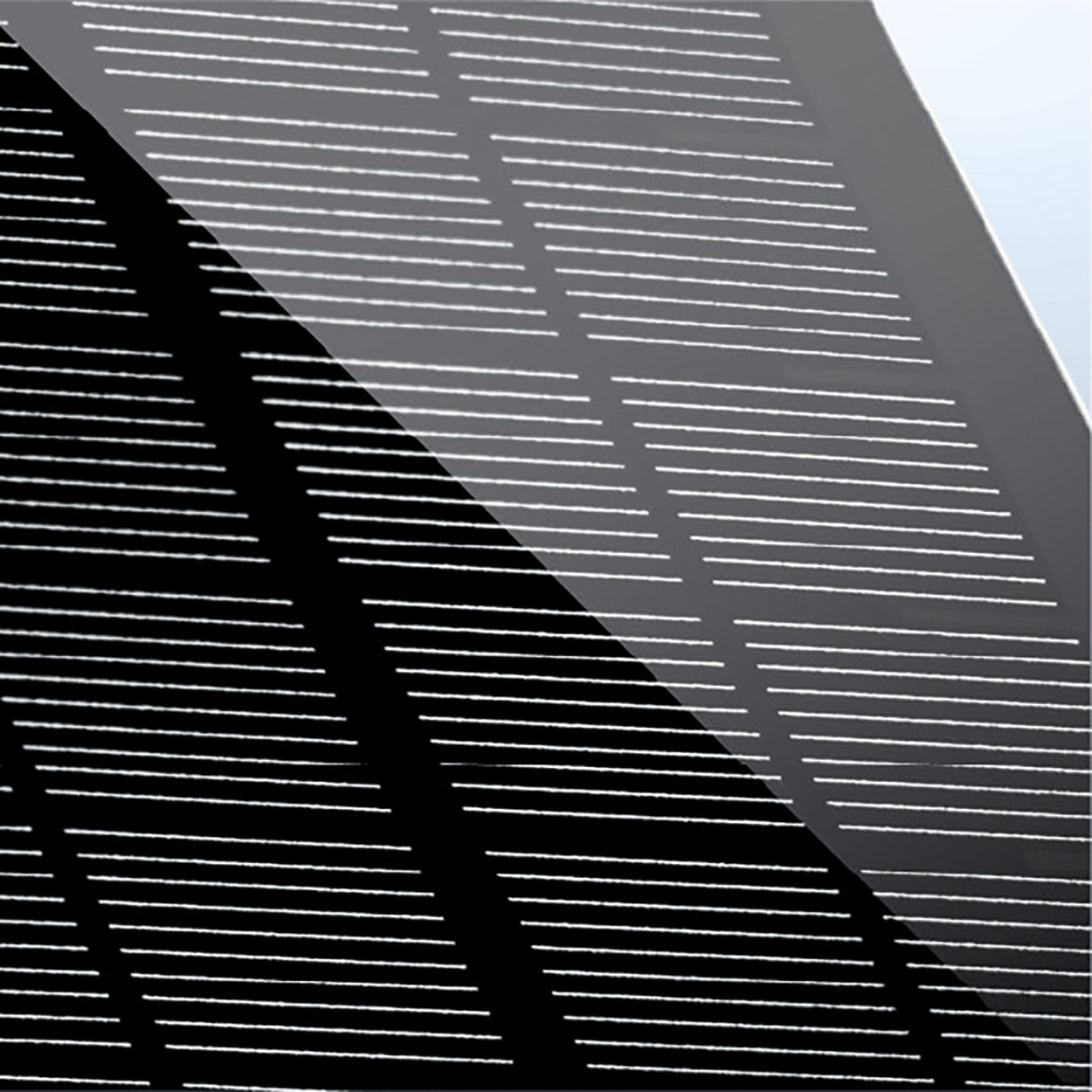

High-quality monocrystalline solar panel

Including 2500 mAh lithium iron-phosphate rechargeable battery

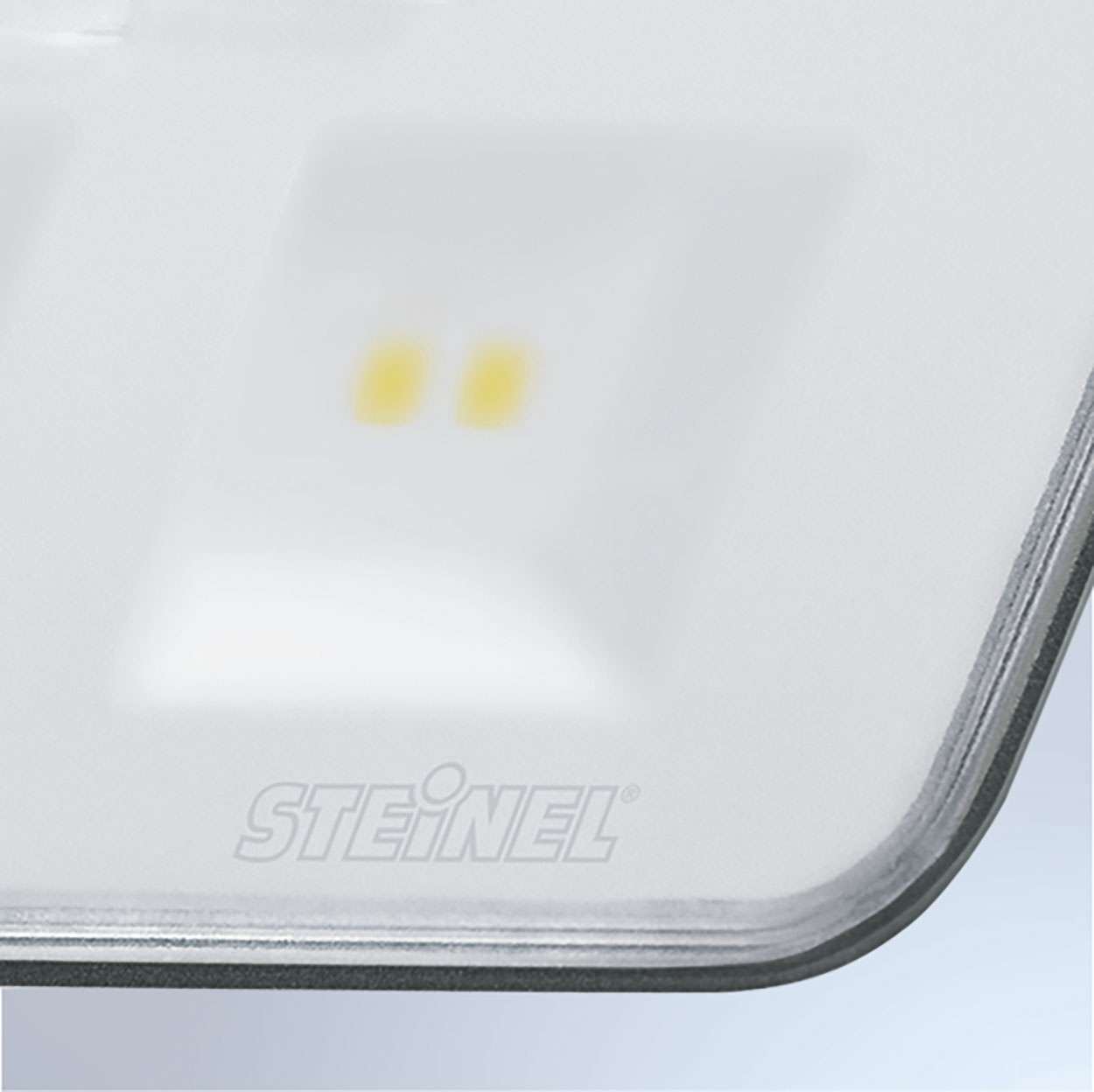

Including STEINEL LED system

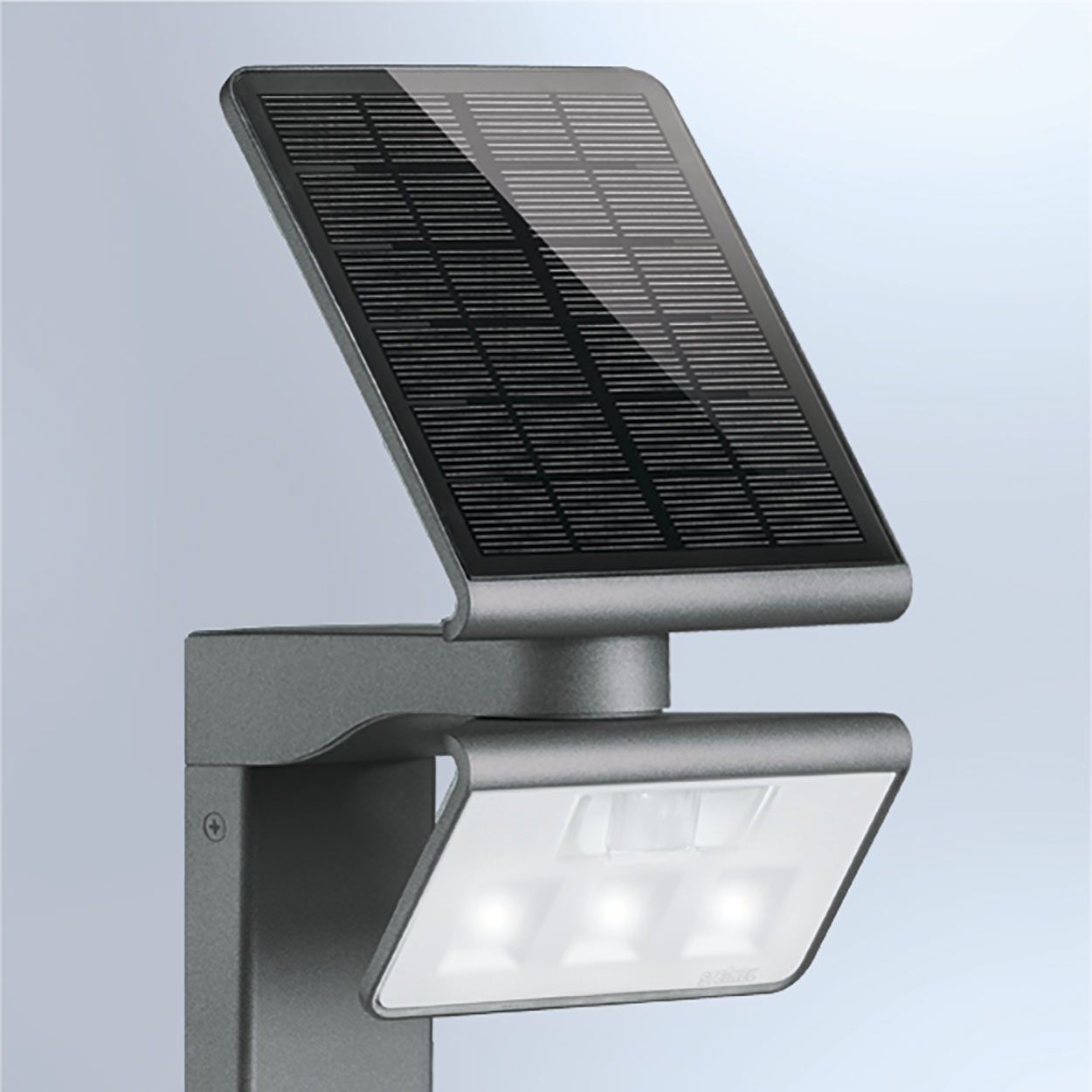

Optional basic lighting level

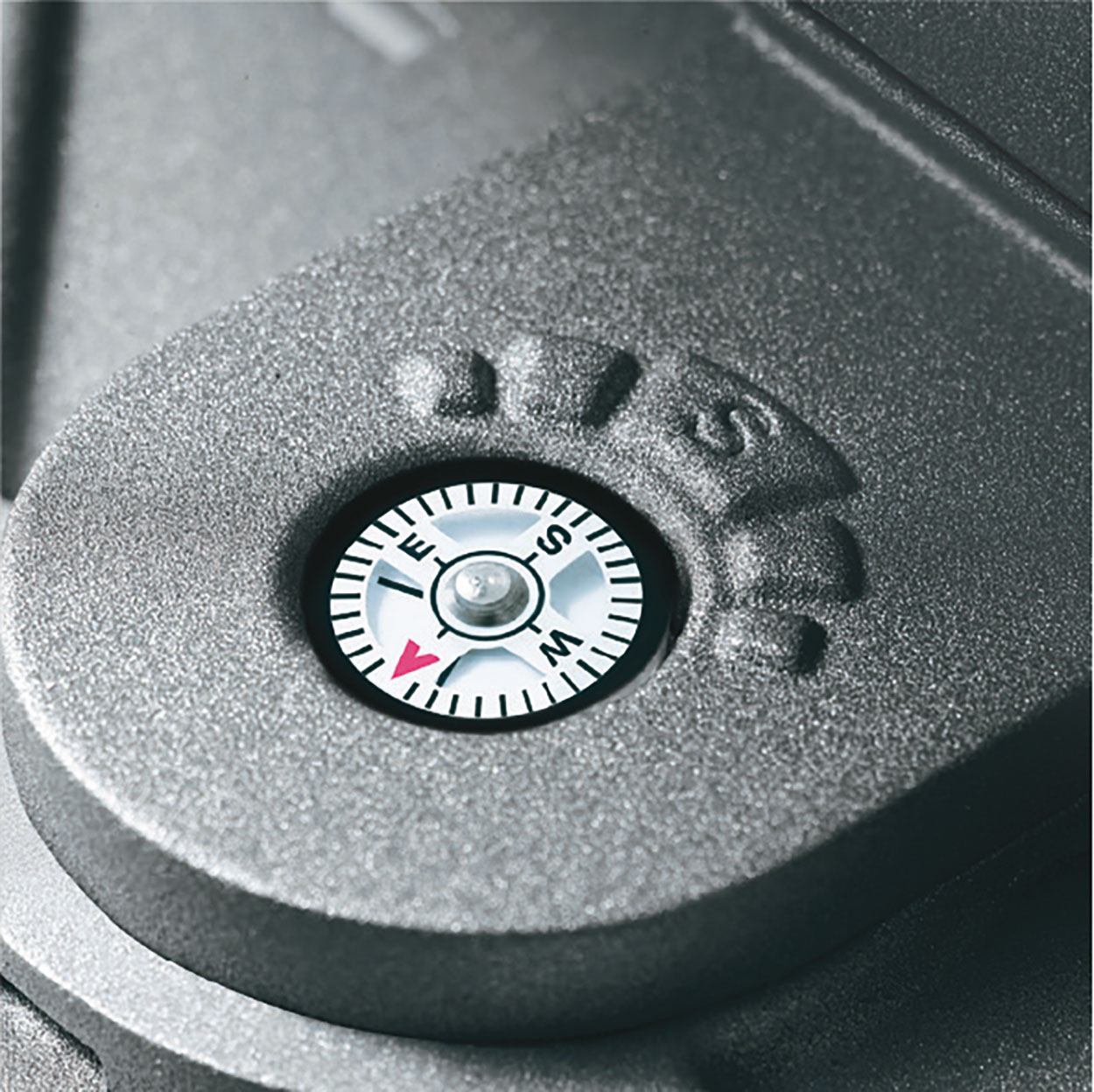

Compass for setting the panel to face the optimum direction

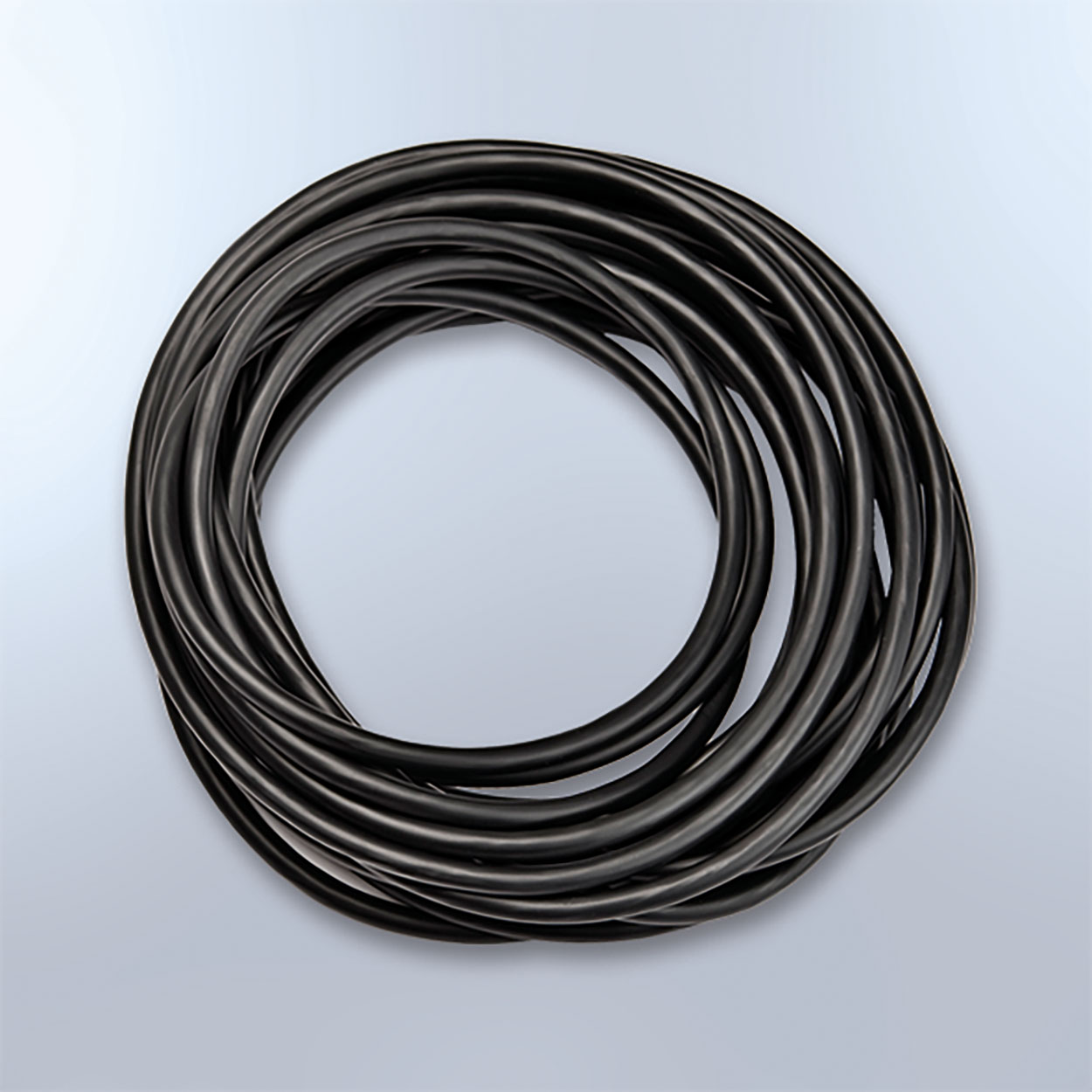

Included 6 m extension cable

Technical drawing

Sensor detection areas
