Steinel XSolar SOL-O S Anthracite

EAN-No. 4007841052959

ELDAS® no. 052959

Price: Please log in to see prices

Version

Without sensor With sensor

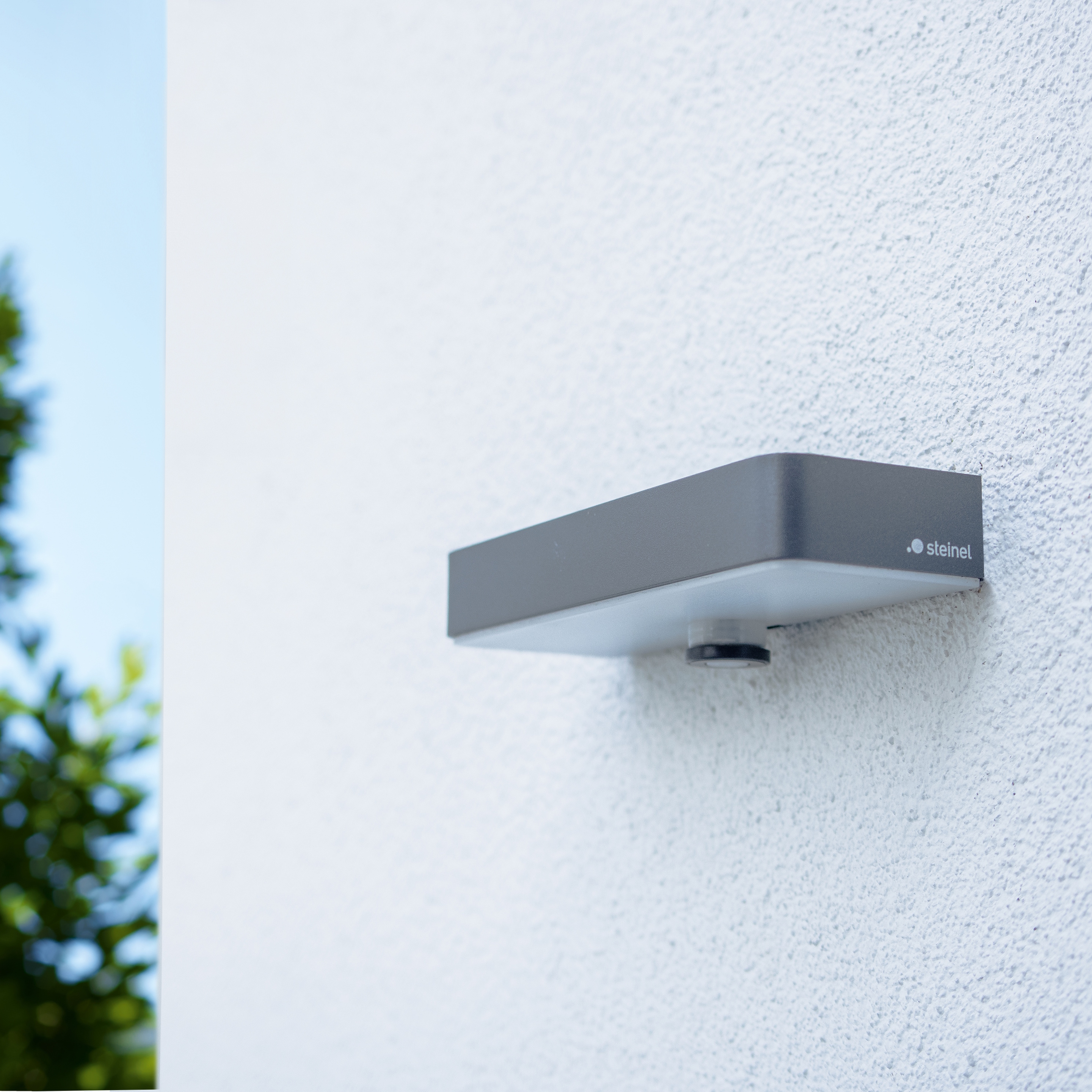

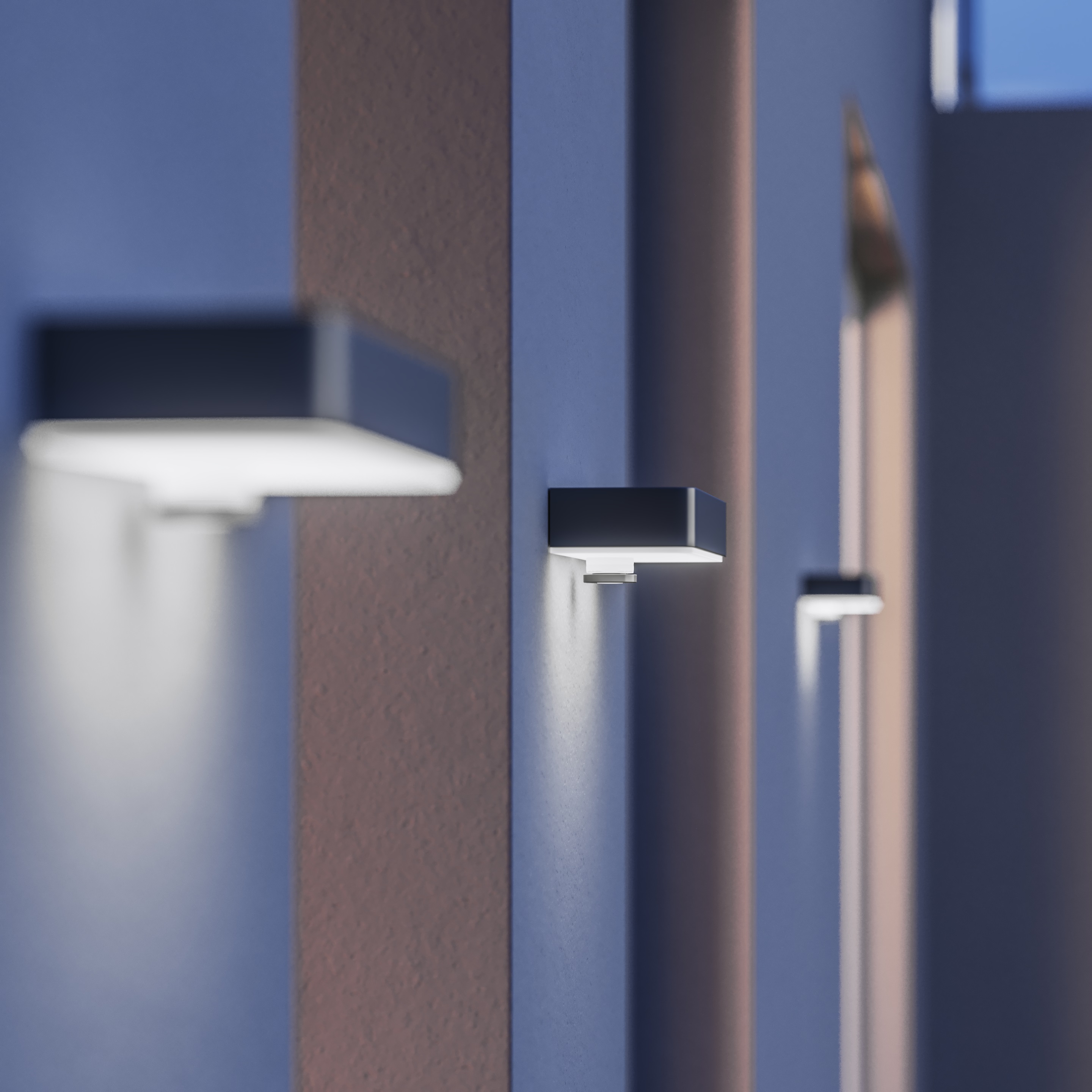

No mains connection, no energy costs: the XSolar SOL-O S outdoor light uses the power of the sun and does not need any cables. The highly efficient LED system with 273 lm ensures perfect lighting all around the building. Powerful lithium-iron-phosphate rechargeable batteries ensure 365 days of light per year. The night light function comes into action at twilight. The high-quality solar panel is made of monocrystalline glass. The intelligent microprocessor control system is a STEINEL patent. When the sensor detects movement, the light switches ON at full light intensity.

  • NEW: Now even brighter with 273 lm!
  • Solar light with motion detector and effective downward lighting (downlight), in elegant simple design with high-quality aluminium housing
  • Fast and flexible installation even in places without cable connection, 0€ electricity costs for 365 days of light a year
  • Thanks to the monocrystalline solar panel, the powerful lithium-ferrum battery charges optimally even in cloudy weather and with few hours of sunlight, 4000 mAh capacity for up to 20 days of light reserve
  • Automatic light thanks to 360° infrared mini sensor with up to 6 m detection in case of movement (can be individually limited by cover switches supplied)
  • Functions: adjustable basic light (all night or only in the morning and evening hours), pleasant soft light start
  • Warm white light (3000 K) with long-life LED lighting system (50. 000 h LED life)
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941200169

Variants

Version With sensor

Dimensions

Dimensions L × W × H 91 x 242 x 53 mm
PU1 net weight 0.5570

Electrical

Power 3,3 W
Supply voltage detail Solar supply, no mains power required 2 x Lithium-iron-phosphate rechargeable battery 2000 mAh

Sensor technology

Max. mounting height 2,50 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 360 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range Ø 4 m (13 m²)
Tangential range Ø 12 m (113 m²)
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m

Lighting technology

Measured luminous flux 360° 273 lm
Colour temperature 3000 K
LED colour deviation SDCM5
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 lx
Time setting 10 s – 0,5 Min.
Base light function Yes
Base light function time all night
Functions Motions sensor
Settings via Potentiometers
Base light function in percent 3 %
Base light function percent from 3.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class III
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, structured
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room outdoors front door all round the building terrace / balcony courtyard & driveway
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

Certificates GS

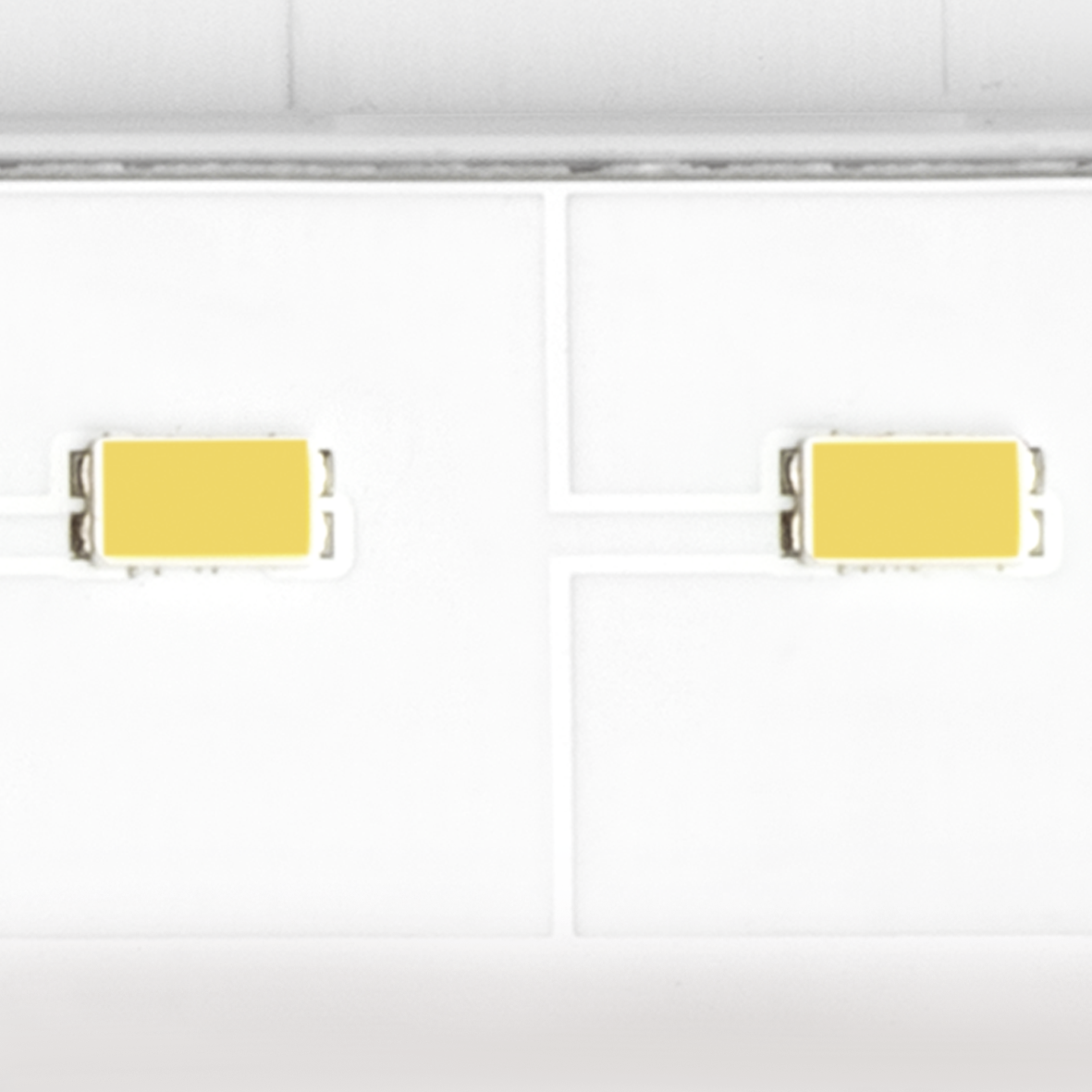

Including STEINEL LED system

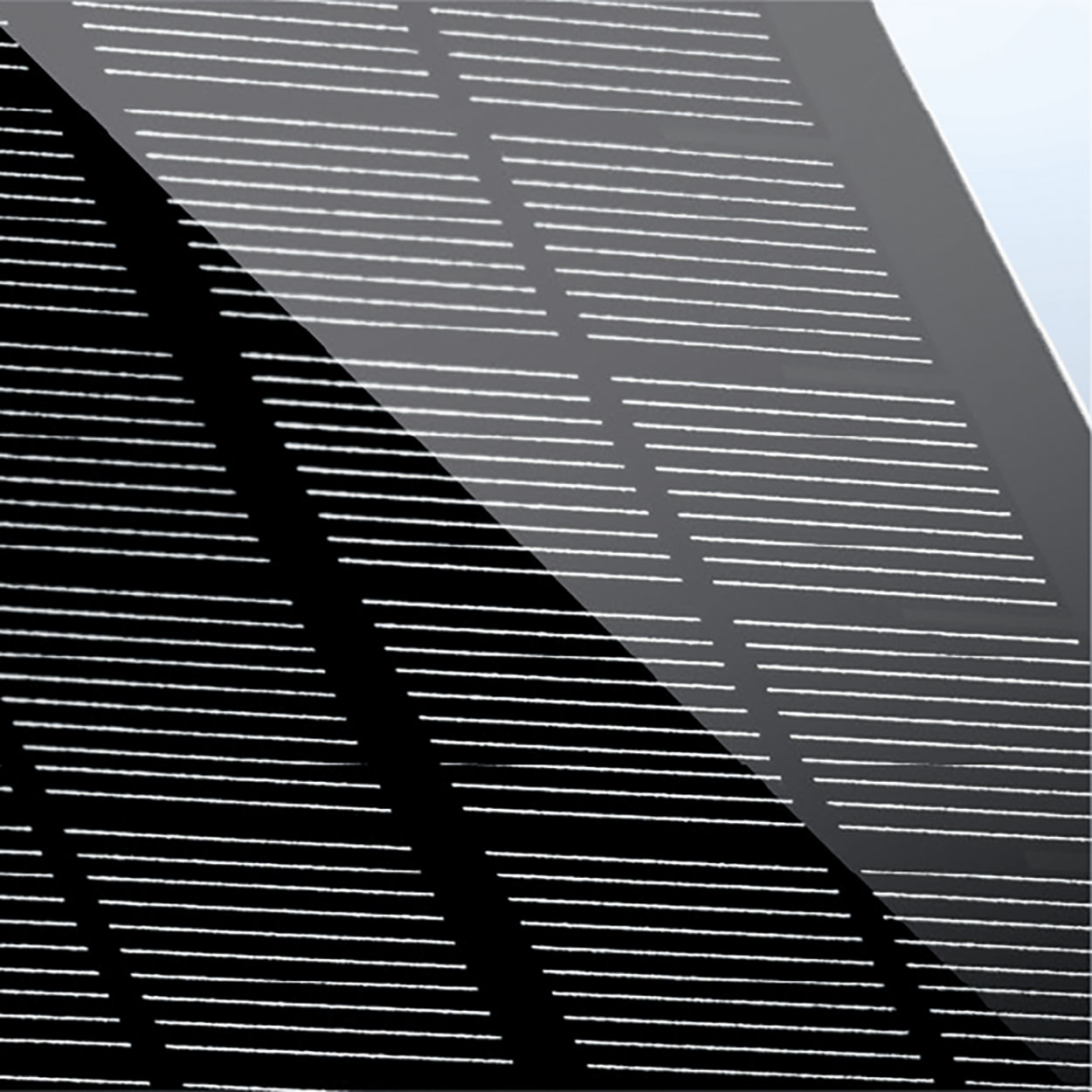

High-quality monocrystalline solar panel

Intelligent soft light start

High-quality aluminium

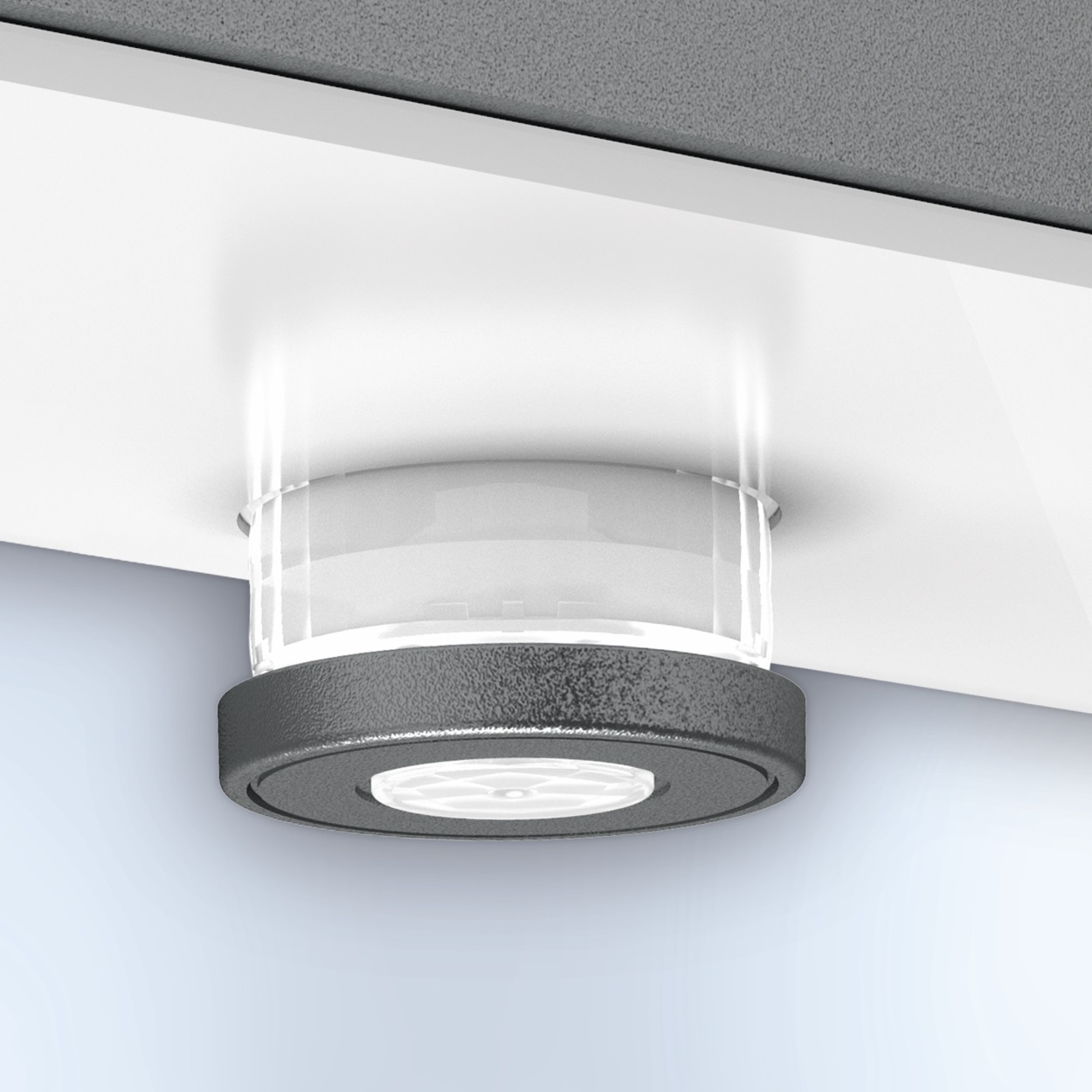

360° infrared mini-sensor

Includes lithium iron-phosphate rechargeable battery

Technical drawing

Sensor detection areas
