Nevalux asali B1500 4K DALI 120
ELDAS® no. 221609
Price: Please log in to see prices
Intelligence
DALI without intelligence
Connect incl. light control
Optics
120 degrees
90 degrees UGR 19

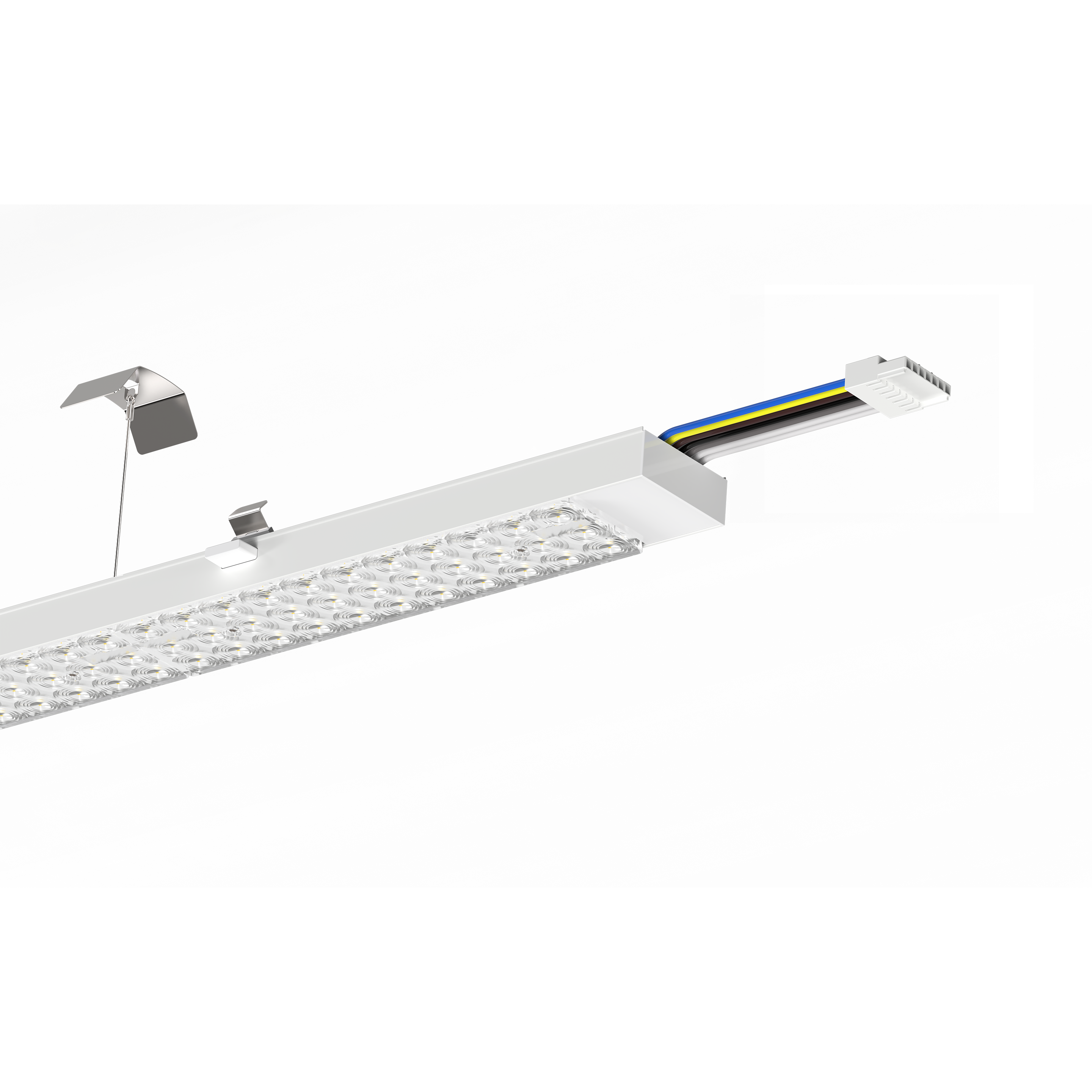

- The universal trunking insert asali from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market.
Identification
Manufacturer
Nevalux
Variants
Intelligence
DALI without intelligence
Optics
120 degrees
Dimensions
Dimensions L × W × H
1528 x 64.7 x 30 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
68 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
310 mA
Maximum number of luminaires per circuit breaker
C10: 15x, C16: 24x, C25: 37x, B10: 9x , B16: 14x, B25: 22x
Sensor technology
With motion detector
No
Nevalux sensor technology
DALI 2
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
10880 lm
Beam angle
120°
Luminaire luminous efficacy
160 lm/W
Glare value
UGR < 26
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP40
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Lens transparent
Mounting type
Use in continuous row
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
C
