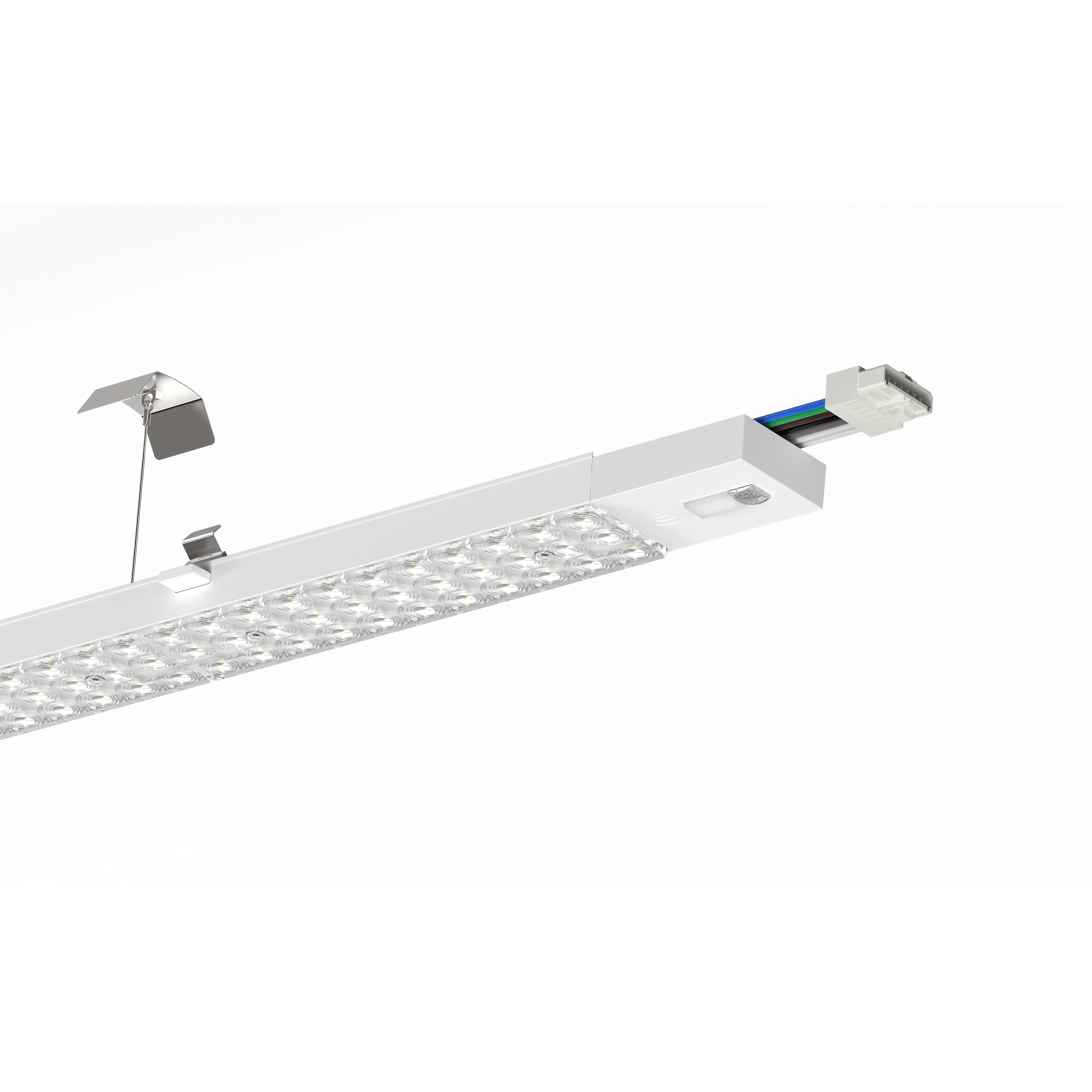

Nevalux asali connect B1500 4K 120
ELDAS® no. 221580
Price: Please log in to see prices
Intelligence
DALI without intelligence
Connect incl. light control
Optics
120 degrees
90 degrees UGR 19
- The universal trunking insert asali from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market. The intelligent asali Connect application variants have permanently installed presence and brightness sensors in conjunction with Bluetooth networking. This results in a powerful light management system as well as unlimited flexibility in the formation of light groups. The savings achieved in addition to the LED technology are considerable and make it possible to claim subsidies.
Identification
Manufacturer
Nevalux
Variants
Intelligence
Connect incl. light control
Optics
120 degrees
Dimensions
Dimensions L × W × H
1528 x 64.7 x 30 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
68 W
Replaceable driver
Yes
Type of wiring
Through wiring included
LED rated current
310 mA
Maximum number of luminaires per circuit breaker
C10: 12x, C13: 15x, C16: 19x, C20: 24x, B10: 7x , B13: 9x, B16: 11x, B20: 14x
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360°
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Mounting height
< 10 m
Presence range
4 x 4 m (16 m²)
Nevalux sensor technology
Smartlink, BT SIG Mesh
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
10880 lm
Beam angle
120°
Luminaire luminous efficacy
160 lm/W
Glare value
UGR < 26
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
With program-controlled lighting control
Yes
Housing & material
Protection class (IP)
IP40
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Lens transparent
Mounting type
Use in continuous row
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
C
