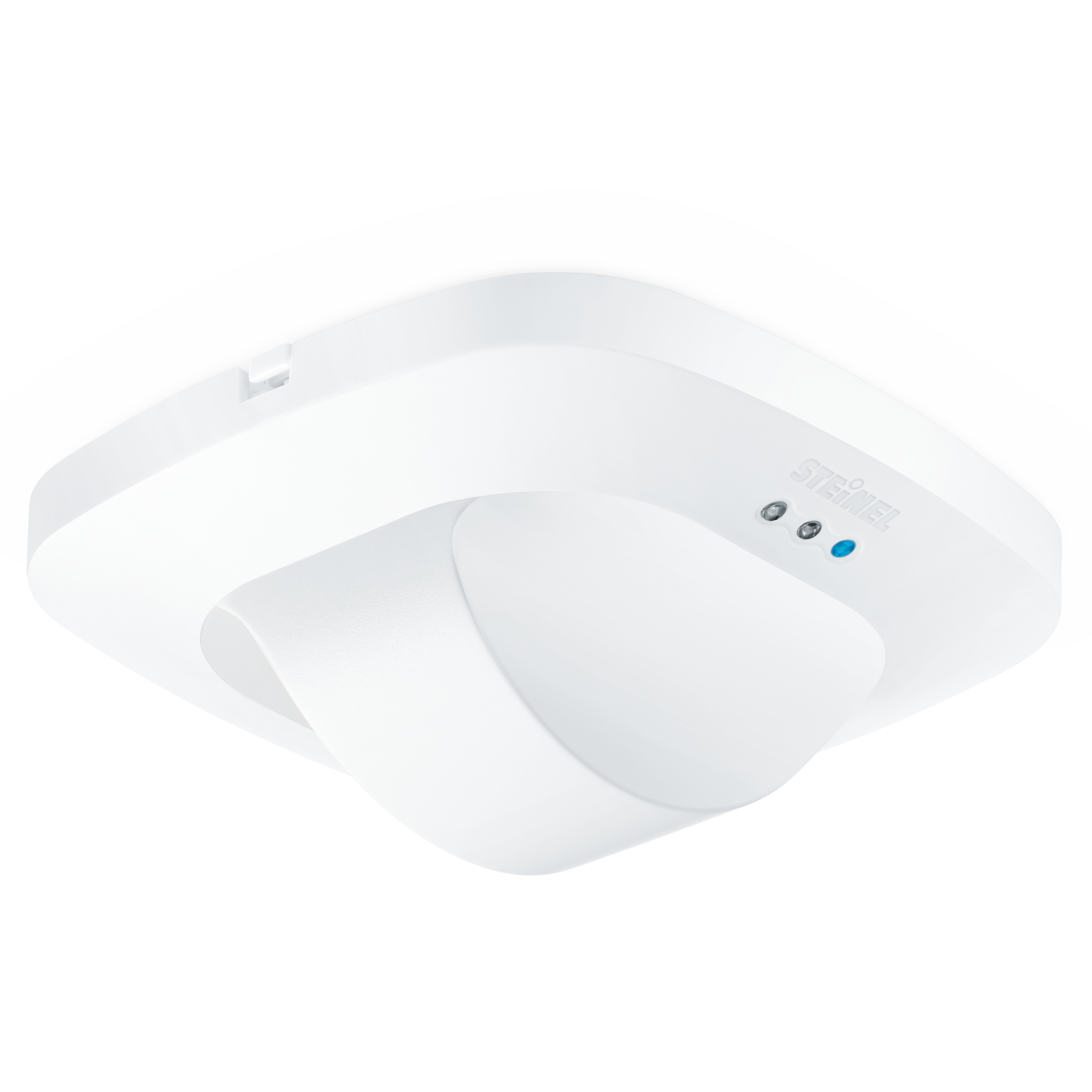

Nevalux Dual HF DALI-2 APC - Unterputz
EAN-No. 4007841003005
ELDAS® no. 4007841003005
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
Mounting type
Flush-mounted
Surface-mounted
Identification
Version
Presence detector
Manufacturer
Nevalux
E-number
535935905
Variants
Version
DALI
Mounting type
Flush-mounted
Dimensions
Dimensions L × W × H
74 x 120 x 120 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Control output DALI
Broadcast 2x12 electronic ballasts
Sensor technology
Max. mounting height
3,50 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
20 x 3 m (60 m²)
Tangential range
20 x 3 m (60 m²)
Mounting height
2,50 – 3,50 m
Optimal mounting height
2,8 m
Nevalux sensor technology
DALI 2
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Cable
Lighting technology
Soft light start
Yes
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
30 s – 30 Min.
Base light function
Yes
Base light function time
1-60 min, all night
Functions
Normal / test mode\nSemi-/fully automatic\nPushbutton / switch mode\nManual ON / ON-OFF\nConstant-lighting control ON-OFF
Settings via
Remote control\nDIP switches\nPotentiometers\nSmart Remote
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 %
Base light function percent from
10.0000
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
corridor / aisle\nIndoors
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
DALI-2
