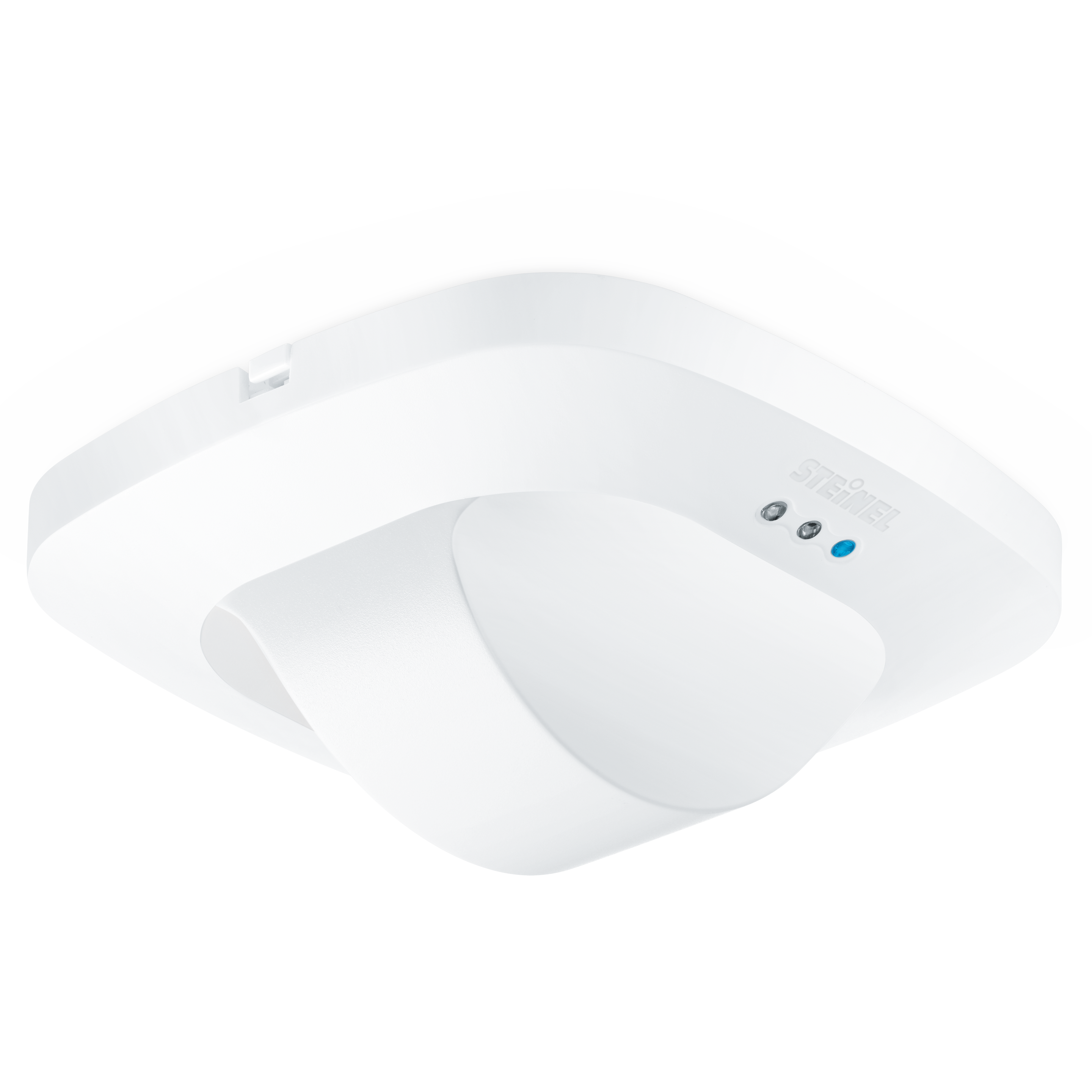

Steinel Dual HF DALI-2 Input Device - concealed

EAN-No. 4007841057459

ELDAS® no. 057459

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

KNX DALI-2 Input Device 230V 1 channel DALI

Mounting type

Flush-mounted Surface-mounted

The Dual HF corridor sensor works with high-frequency technology that's particularly advanced. The system is fitted with 2 sensors, with each covering one corridor direction. Both of them together cover a good 20 metres in walking direction - for complete and reliable detection without blind spots. Tangential reach is deliberately limited to corridor width so as to avoid detecting movements behind closed doors, for instance.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535932000

Variants

Version DALI-2 Input Device

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 74 x 120 x 120 mm

PU1 net weight 0.1780

Electrical

Mains connection 12 – 22,5 V / 50 – 60 Hz

Supply voltage detail DALI bus

Switching output 2 potential-free No

Control output DALI Addressable/slave

Maximum inrush current 800 A

Max. current consumption per IEC 62386-101 42 mA

Typical current consumption at 16 V input voltage 10 mA

Max. current consumption at 10 V input voltage in regular operation 14 mA

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 20 x 3 m (60 m²)

Tangential range 20 x 3 m (60 m²)

Mounting height 2,50 – 3,5 m

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 7.0000

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room corridor / aisle Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Cross-/up-selling

Accessories 13669,13677,13674,12367

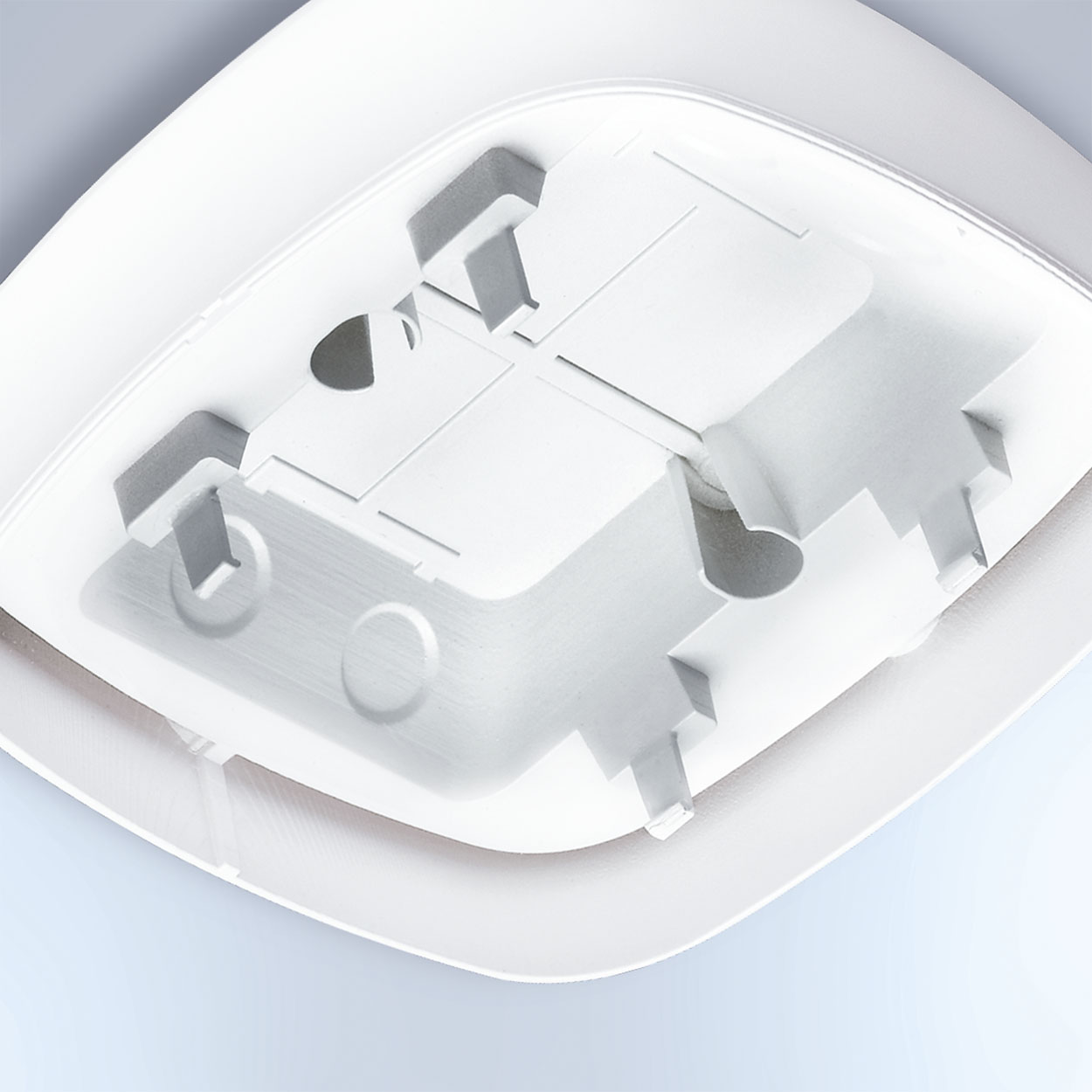

Optional surface-mounting adapter

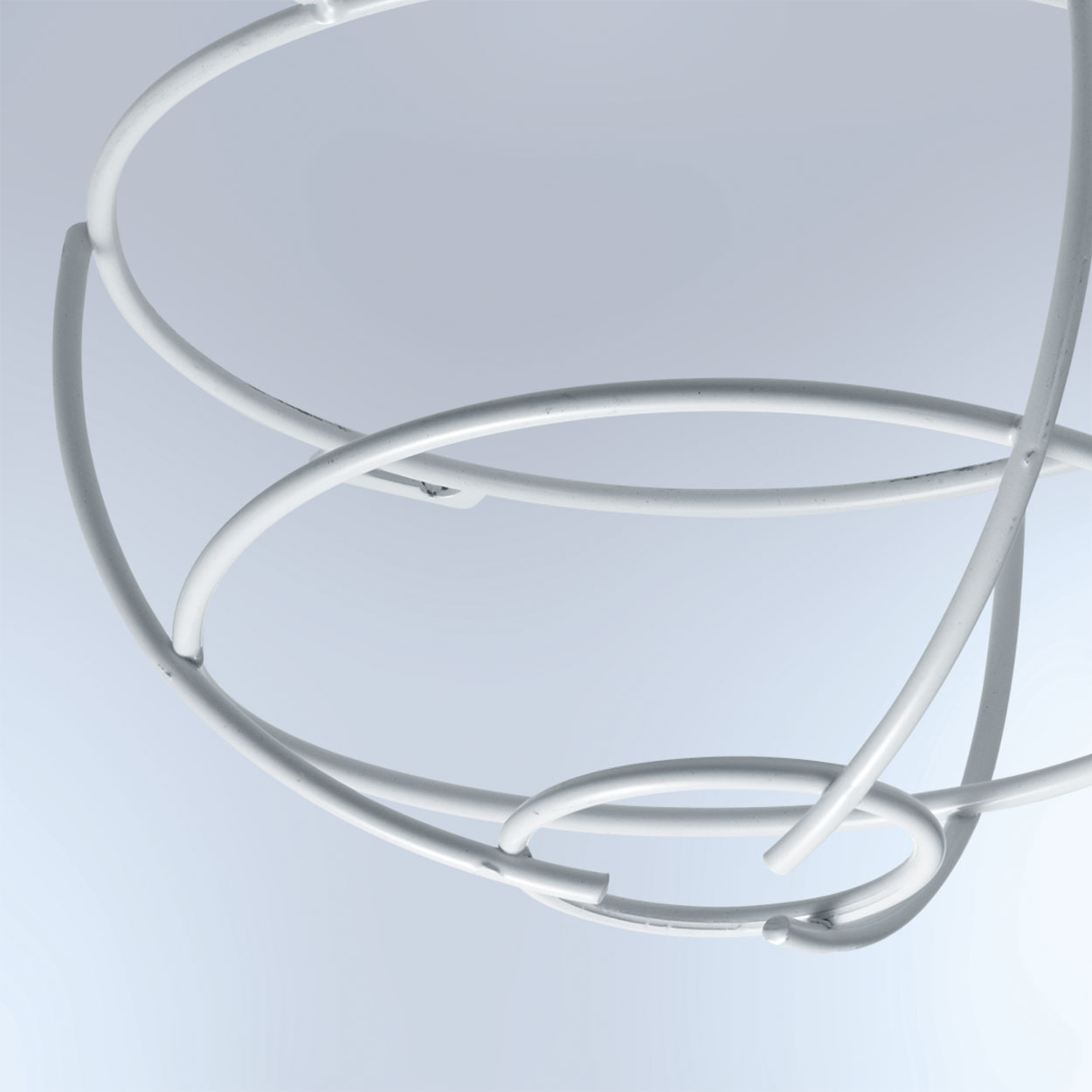

Optional guard cage

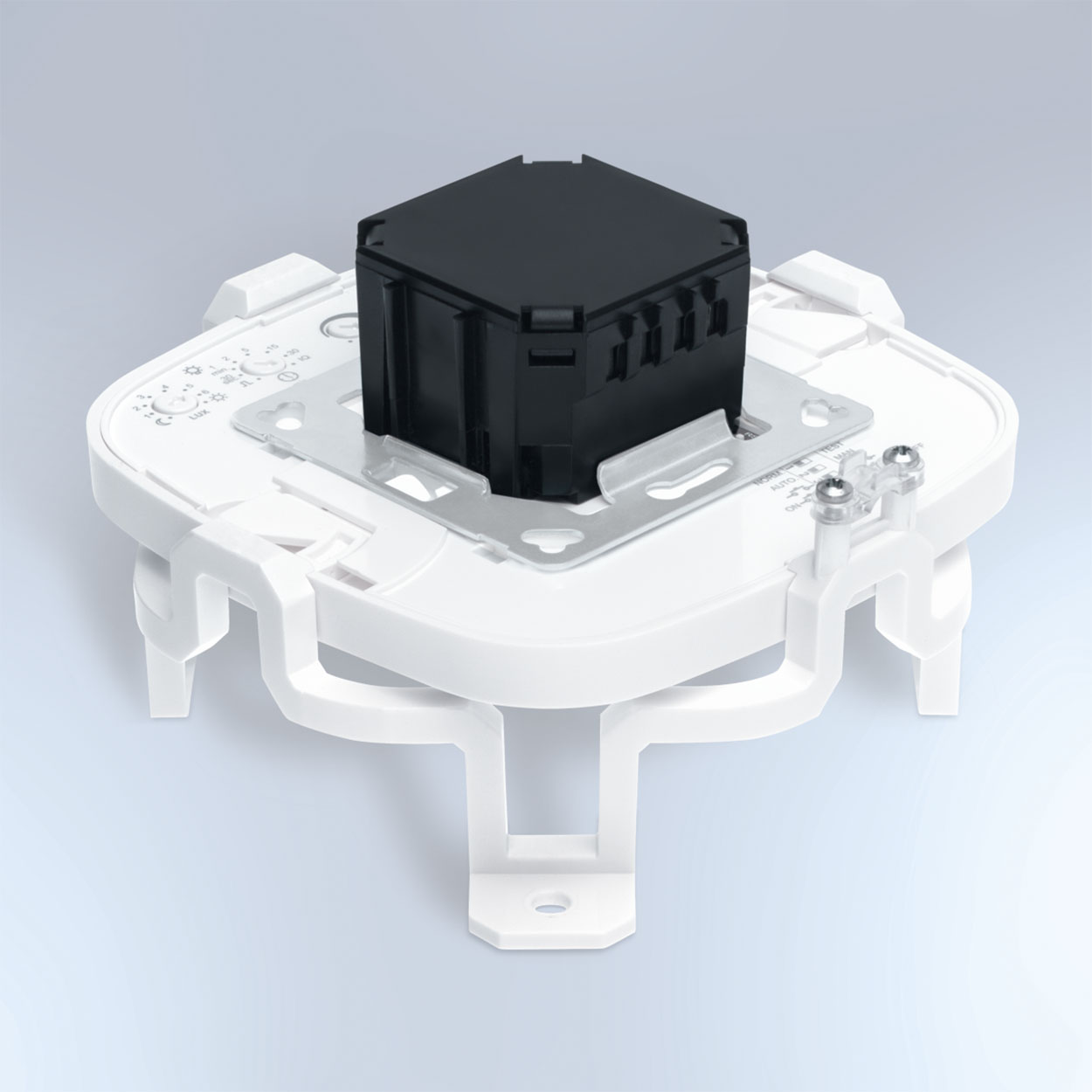

HF ceiling adapter for installation in suspended ceilings

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity

Surface-mounted adapter Control Pro IP54 white

Item no. 000363

Control PRO guard cage

Item no. 003036

HF-ceiling adapter

Item no. 006600

Remote control Smart Remote

Item no. 009151
