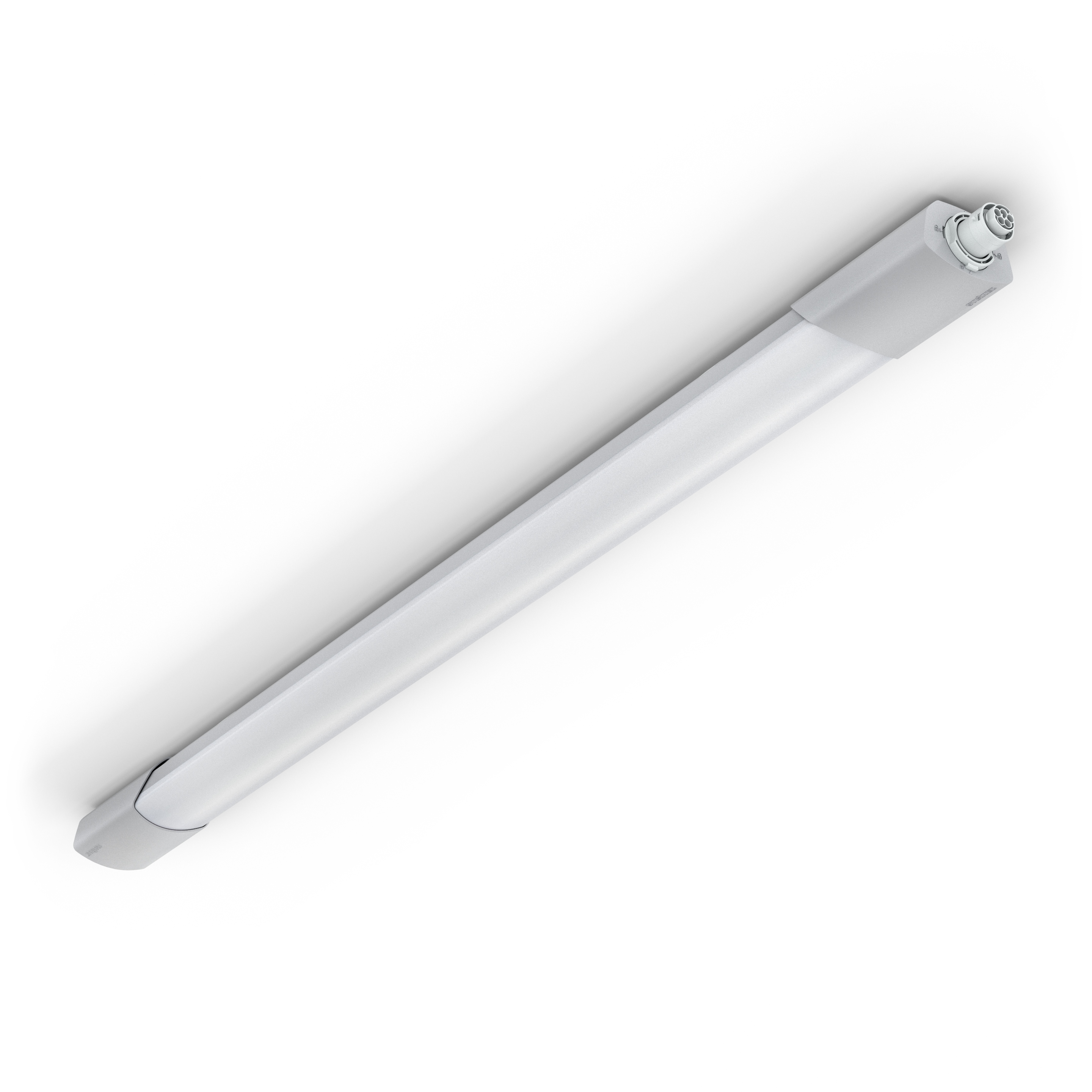

Nevalux RS PRO 5150 SC mit Bewegungsmelder & Bluetooth Verso
ELDAS® no. 221393
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Dimensions
RS PRO 5150 Length 1500mm
RS PRO 5100 Length 1370mm
Identification
Type of accessory
Other
Manufacturer
Nevalux
E-number
941006369
Variants
Dimensions
RS PRO 5150 Length 1500mm
Cable entry
Rear and lateral
Dimensions
Dimensions L × W × H
1500 x 87 x 58 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
42 W
Own consumption
0,45 W
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ø 10 m (79 m²)
Tangential range
Ø 10 m (79 m²)
Mounting height
2,00 – 4,00 m
Nevalux sensor technology
BT SIG Mesh
Connectivity
Networking
Yes
Lighting technology
Measured luminous flux 360°
5940 lm
Colour temperature
4000 K
Colour rendering index
90-100
Illuminant
LED cannot be replaced
Lifetime
LED lifetime max. °C
60000 h
Luminous flux decline per LM80
L80B10
Settings
Twilight setting
2 – 2000 lx
Time setting
5 sec – 60 min
Base light function
Yes
Base light function time
1-60 min
Functions
Encrypted communicationPresence functionOrientation lightNeighbouring group functionLight sensorFree selection of the light value in a luminaire groupAdjustable fade time when switching on and offMotions sensorConnection to central battery systems
With remote control
Yes
Base light function in percent
10 %
Base light function percent from
10.0000
Housing & material
Impact resistance
IK07
Protection class (IP)
IP66
Protection class
II
Ambient temperature
-20 – 40 °C
Housing material
Plastic
Cover material
Plastic, structured
Material
Plastic
Colour
grey
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
DEKRA
