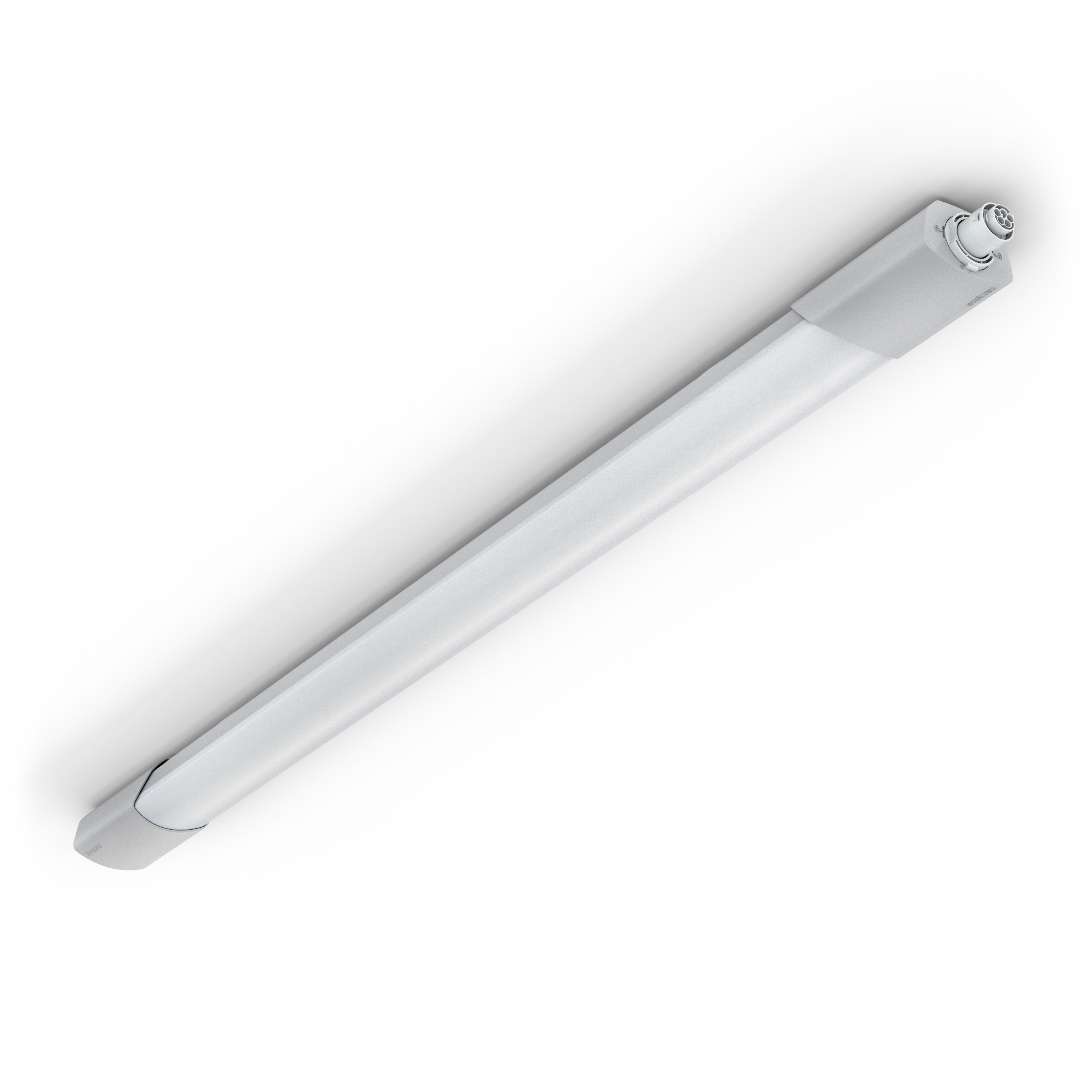

Steinel RS PRO 5150 SC with motion detector & Bluetooth

Steinel RS PRO 5150 SC with motion detector & Bluetooth

EAN-No. 4007841058739 · ELDAS® no. 058739

Steinel Bluetooth Mesh

Steinel RS PRO 5150 SC with motion detector & Bluetooth

EAN-No. 4007841058739

ELDAS® no. 058739

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Dimensions

RS PRO 5150 Length 1500mm RS PRO 5100 Length 1370mm

Changing of the guard in car parks, cellars, halls, garages, corridors and all rooms still equipped with old diffuser luminaires. The new RS PRO 5150 indoor luminaires, with a length of 1500 mm and a luminous intensity of 5940 lm, will impress you with greater size and performance. Installation is basically quite simple: you use the existing wiring, mount on existing drill holes, network the new installation wirelessly and set all parameters via app. The result: the latest luminaire technology on an existing basis, state-of-the-art ease of use with many features and direct cost savings thanks to maximum energy efficiency. Our variants with emergency light and 5-core through-wiring are also new.

Identification

Type of accessory Other
Manufacturer Steinel
E-number 941375599

Variants

Dimensions RS PRO 5150 Length 1500mm
Cable entry Lateral

Dimensions

Dimensions L × W × H 1500 x 87 x 58 mm
PU1 net weight 1.7700

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 42 W
Own consumption 0,45 W
B10 fuse (pcs) 41.0000
B16 fuse (pcs) 65.0000
C10 fuse (pcs) 67.0000
C16 fuse (pcs) 108.0000
Maximum inrush current 14,8 A

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 10 m (79 m²)
Tangential range Ø 10 m (79 m²)
Mounting height 2,00 – 4,00 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 5940 lm
Colour temperature 4000 K
Illuminant LED cannot be replaced
Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 60000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10
LED lifetime per IEC 62717 L70 100.000 h
LED lifetime per IEC 62717 L80 68.000 h
LED lifetime per IES TM-21 L70 > 60.000 h
LED lifetime per IES TM-21 L80 > 60.000 h

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 1-60 min
Main light adjustable 0 - 100 %
Functions Encrypted communication Neighbouring group function Free selection of the light value in a luminaire group Adjustable fade time when switching on and off Connection to central battery systems Motions sensor Light sensor Orientation light
With remote control Yes
Base light function in percent 10 – 100 %
Base light function percent from 10.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK07
Protection class (IP) IP65
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location wall ceiling
Material Plastic
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 27098,27099

Including STEINEL LED system

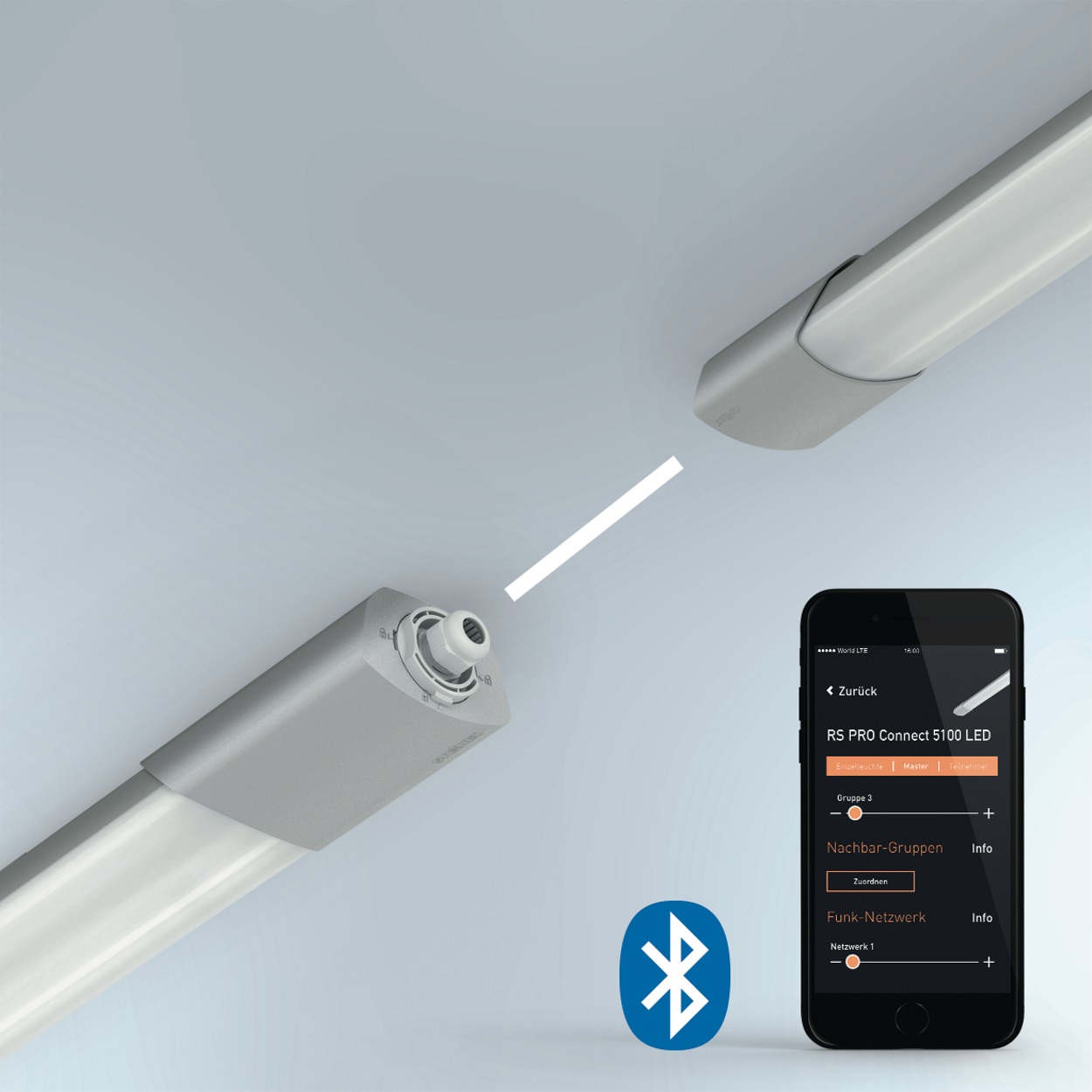

Interconnectable and adjustable via Bluetooth

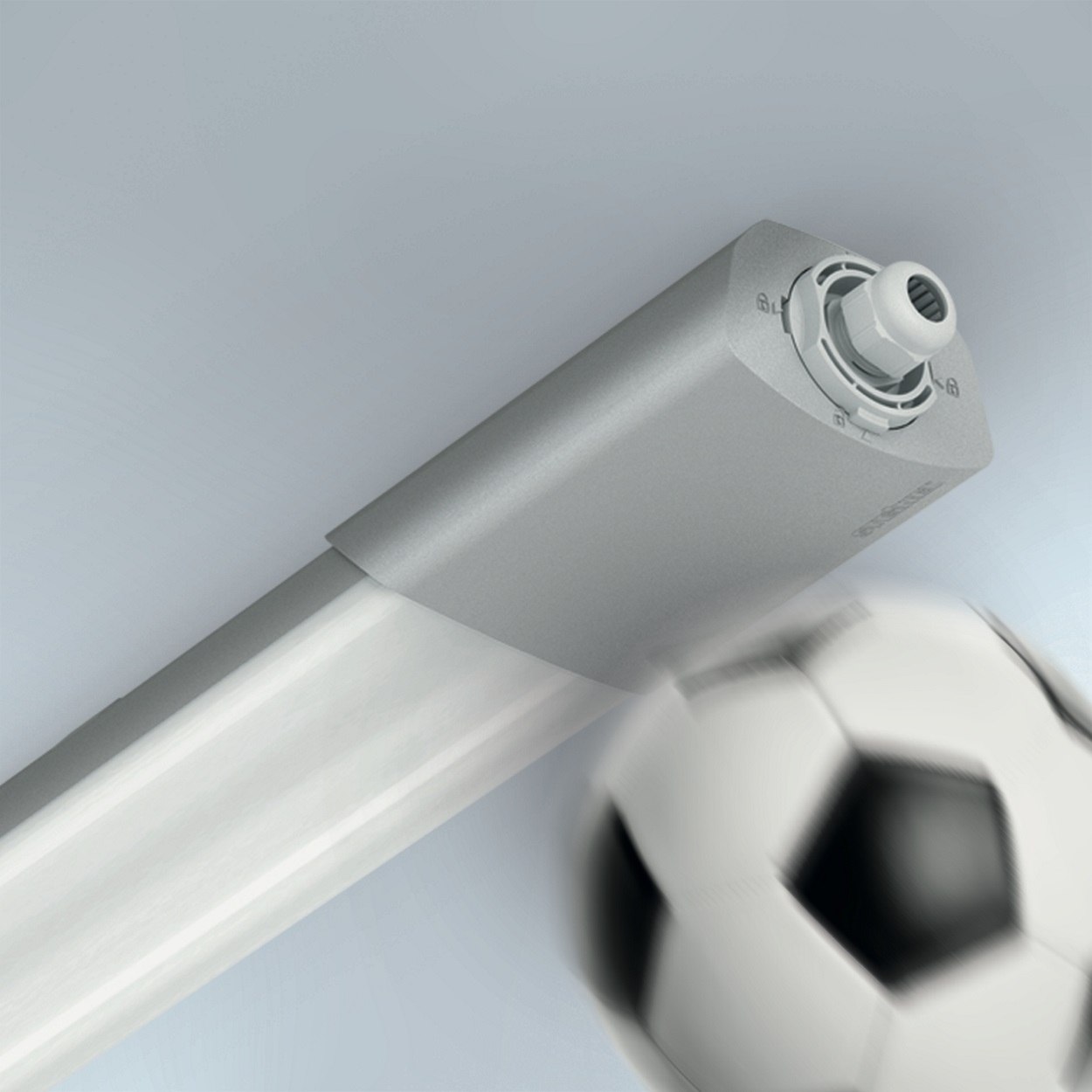

Impact-resistant material rated to IK07

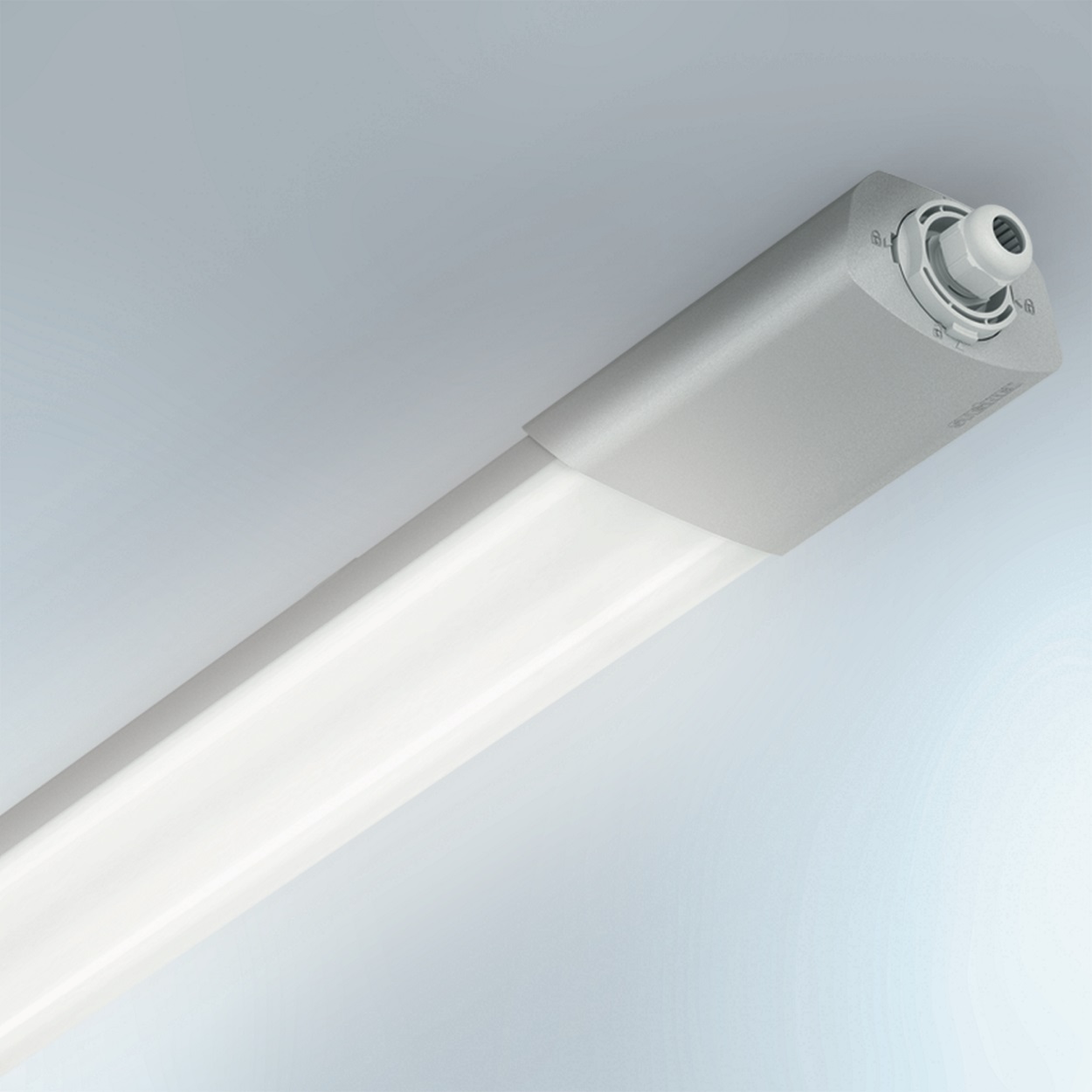

Optional basic lighting level 0 - 100 %

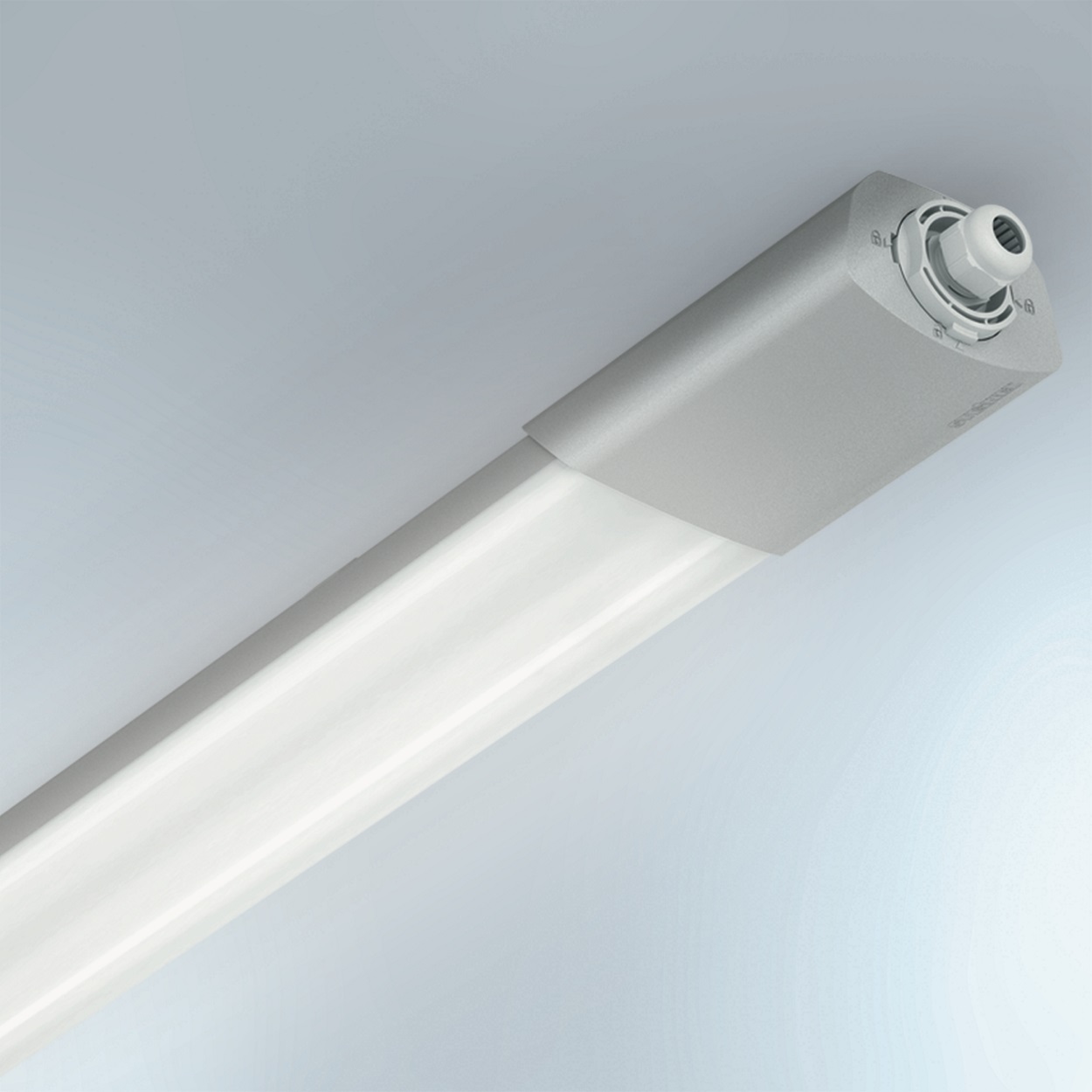

Adjustable main light brighness (0 - 100%)

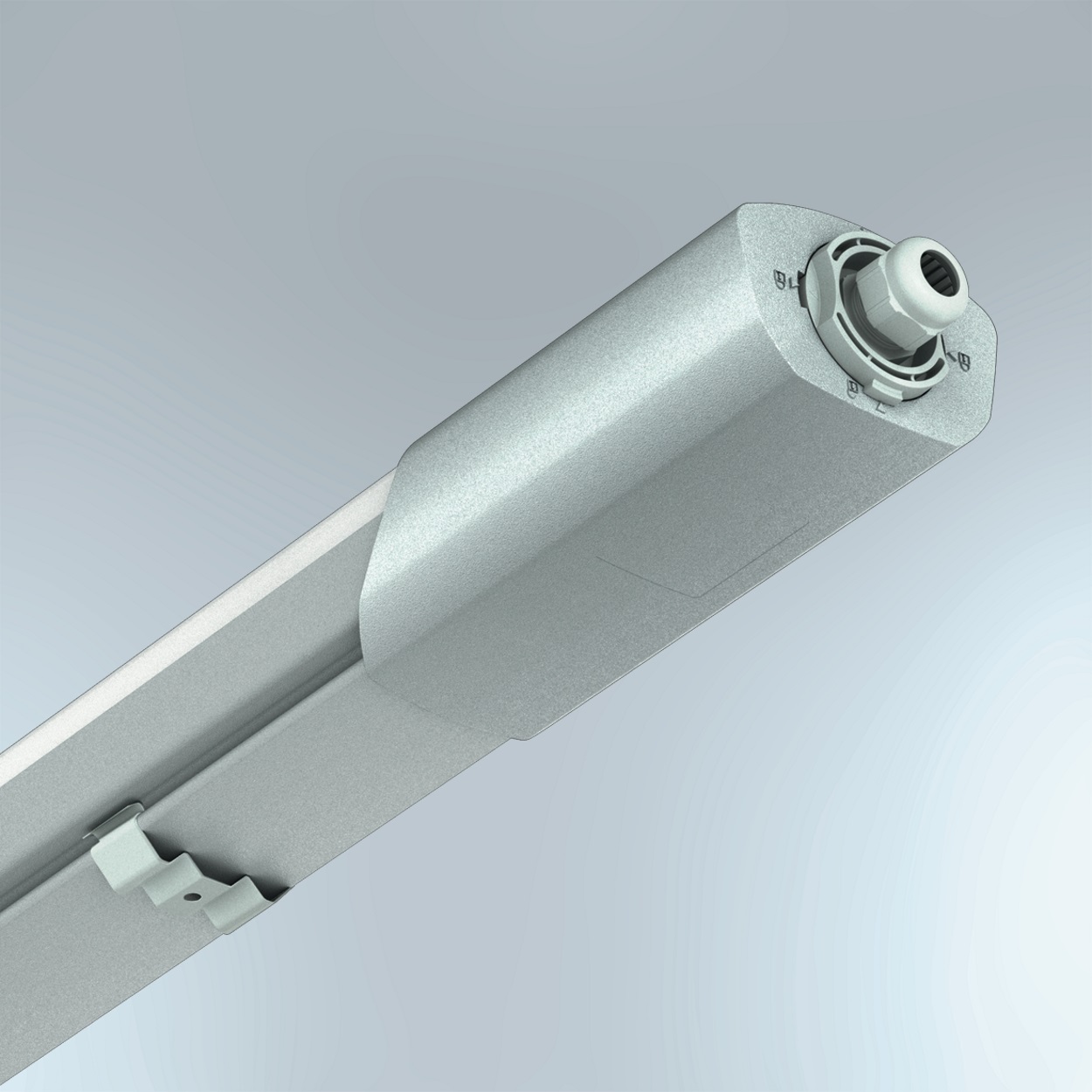

Adjustable mounts for easy installation

Technical drawing

Sensor detection areas

Wiring diagram 1

Master circuit diagram
