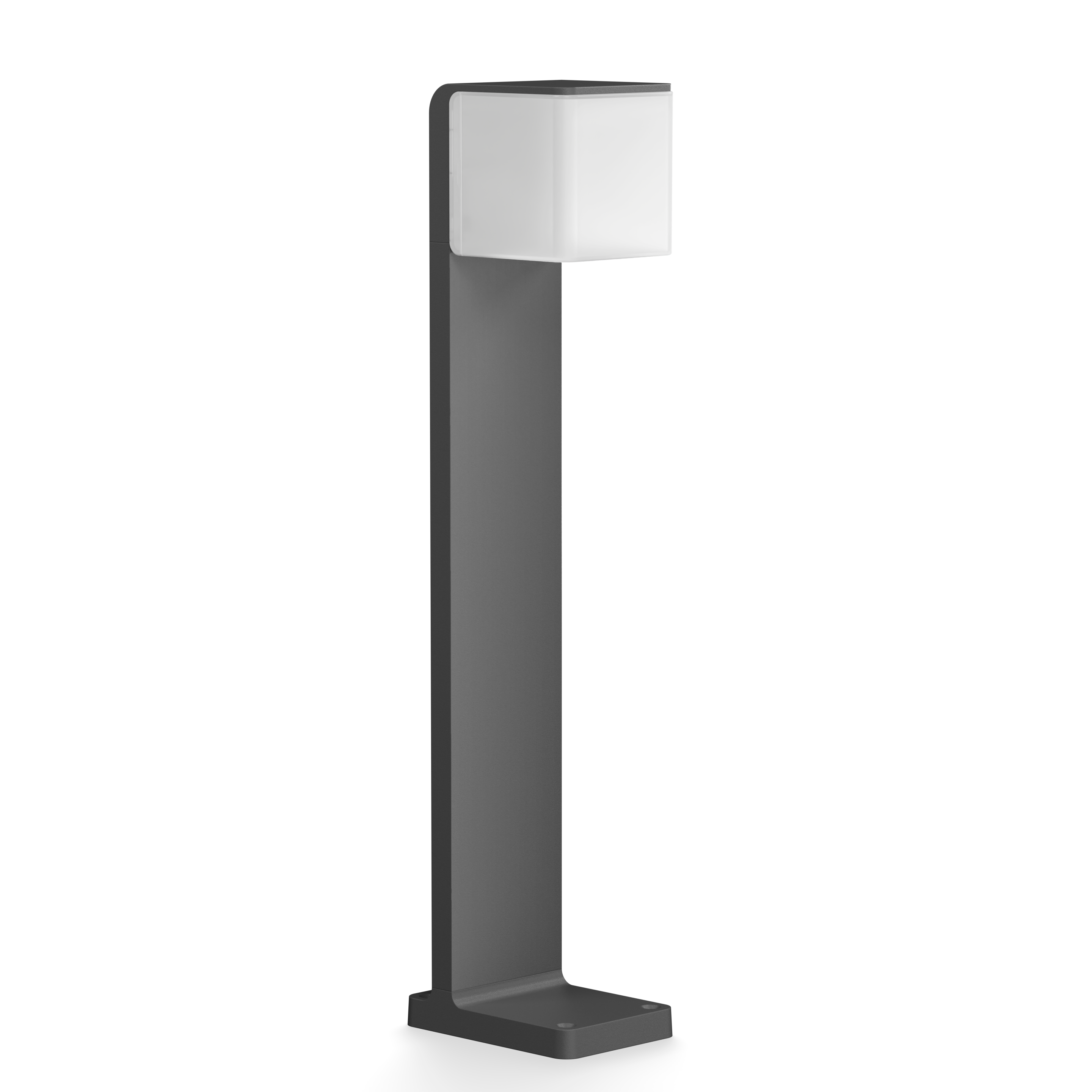

Steinel GL 80 C without motion detector, with Bluetooth

Steinel GL 80 C without motion detector, with Bluetooth

EAN-No. 4007841079284 · ELDAS® no. 079284

Steinel Bluetooth Mesh

Steinel GL 80 C without motion detector, with Bluetooth

EAN-No. 4007841079284

ELDAS® no. 079284

Price: Please log in to see prices

Version

Without sensor Sensor

Colour

Anthracite Silver

The imposing GL 80 C outdoor light with a 63.3 cm support stand made of durable aluminium shows off its true strength – and always brings the best light to the dark all around the home with 650 lm. With its attractive design, the light also cuts a superior figure both day and night. Both as a stand-alone solution and also in combination with other lights, for example along the driveway. Here, the lights can be conveniently interconnected to form a synchronously responding lighting group via app and via Bluetooth. This rangy and, at just 9,1 W, pleasantly low-consumption gem is available in the colour anthracite. The light enclosure is made of UV-resistant plastic. Intelligent functions such as dimmable main light, dimmable night light (when combined with an SC version), a pleasant soft light start, and a practical scheduling function ensure the right lighting scenario in every situation.

  • Floor and path luminaire without motion detector, perfect for illuminating paths and driveways
  • Elegant and modern design in cube format made of UV-resistant material

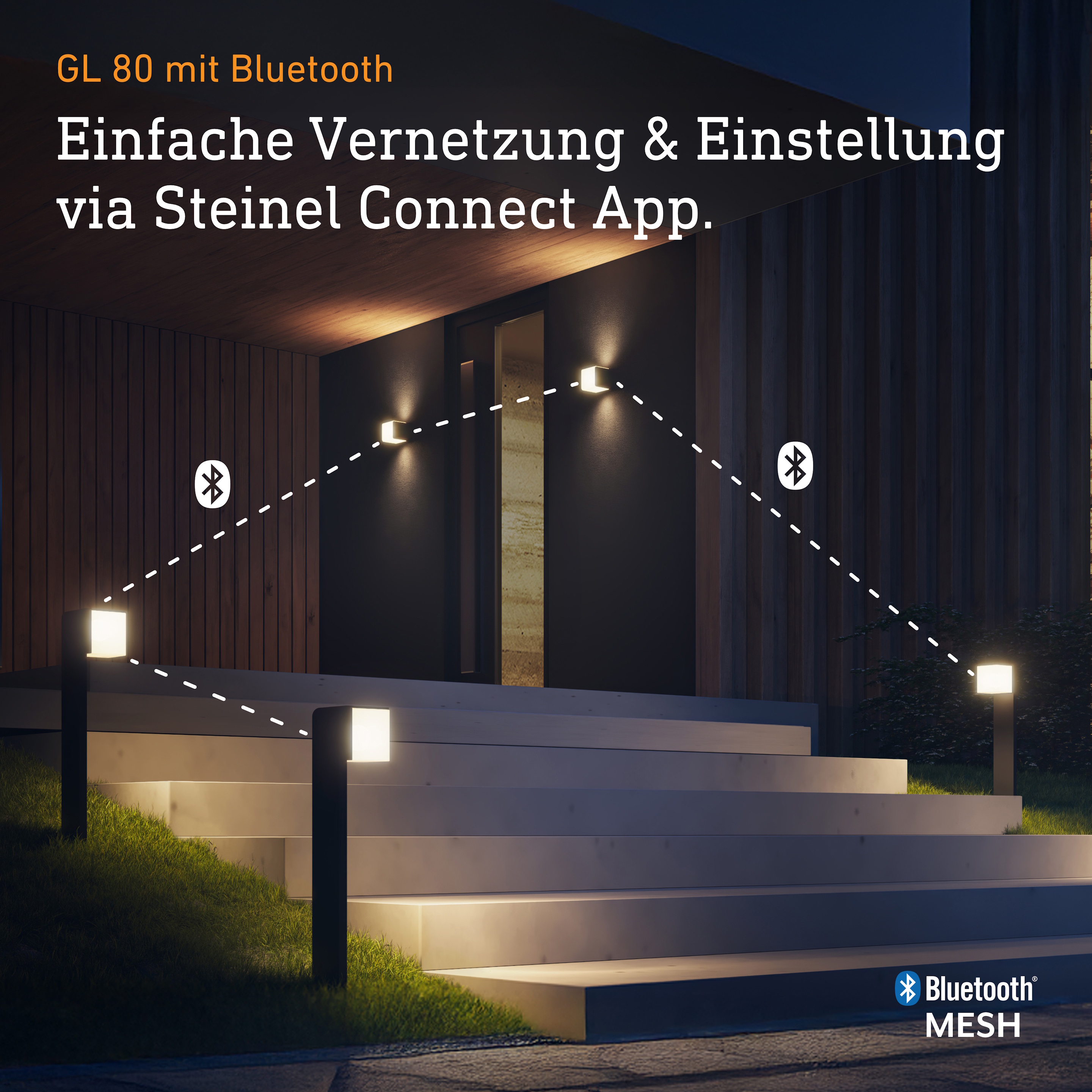

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App
  • Functions: adjustable basic and main light (basic light only in combination with a Bluetooth sensor luminaire), scheduling function
  • Warm white light (3000 K) and long-life 9,1 W LEDs with 650 lm

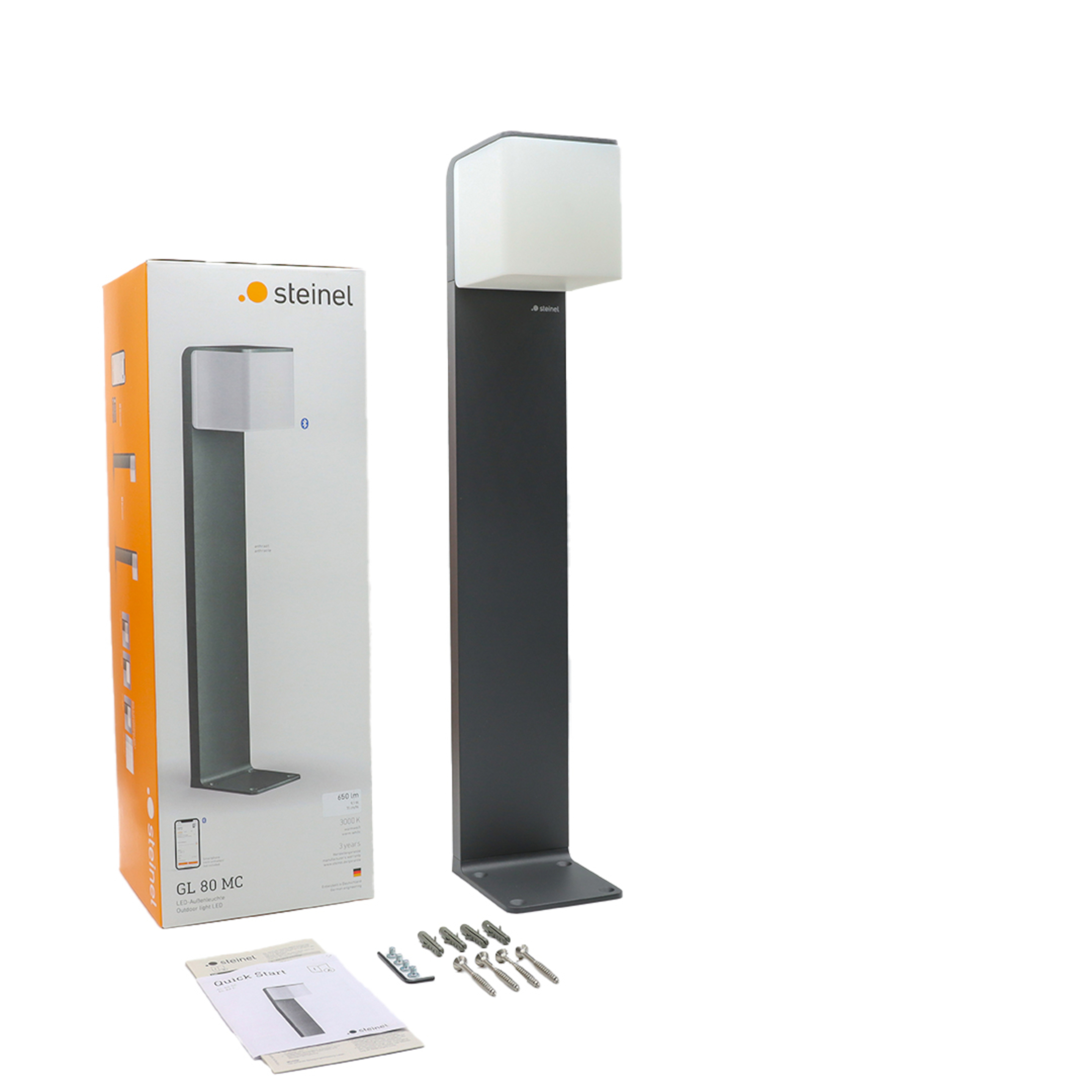

  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941700569

Variants

Version Without sensor
Colour Anthracite

Dimensions

Dimensions L × W × H 161 x 110 x 633 mm
PU1 net weight 1.3700

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,1 W

Sensor technology

With motion detector No
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking via Bluetooth

Lighting technology

Measured luminous flux 360° 650 lm
Colour temperature 3000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced

Lifetime

LED lifetime L70B50 25°C > 60000 h

Settings

With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Housing material Plastic
Cover material Plastic, opal
Mounting location Stand mounted
Application location Outdoors
Mounting type Surface wiring
Application room garden front door courtyard & driveway all round the building terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Spare parts 25796,25788
Accessories 28871

Intelligent soft light start

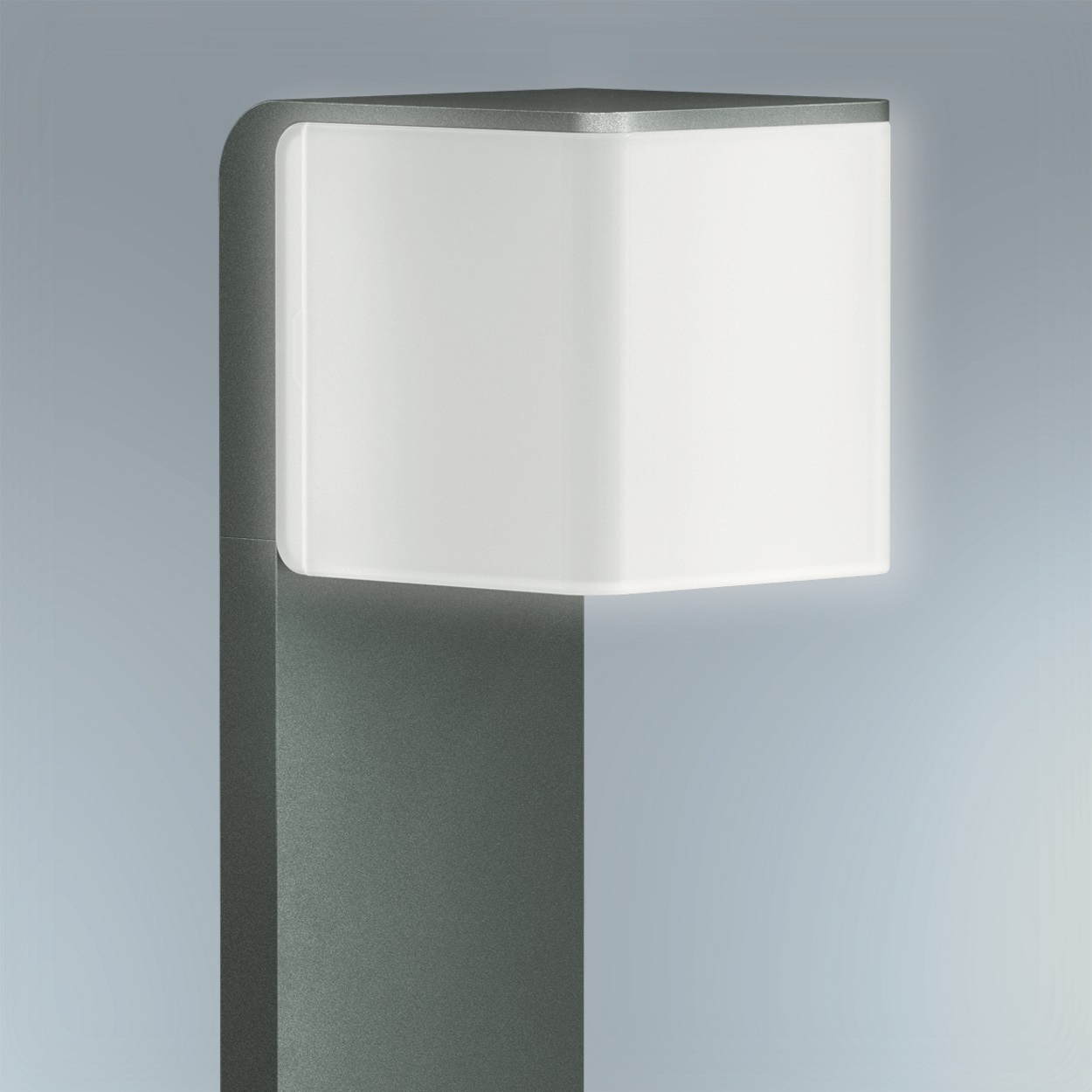

Optional basic lighting level 10 - 100 % (only with bluetooth sensor product)

UV-resistant plastic

Technical drawing

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth

Replacement profile GL 80 Anthracite

Replacement profile GL 80 Anthracite

Item no. 078751

Ersatz-Fuss GL 80 anthrazit

Ersatz-Fuss GL 80 anthrazit

Item no. 4007841078737

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620

Replacement foot GL 80 Anthracite

Replacement foot GL 80 Anthracite

Item no. 089870
