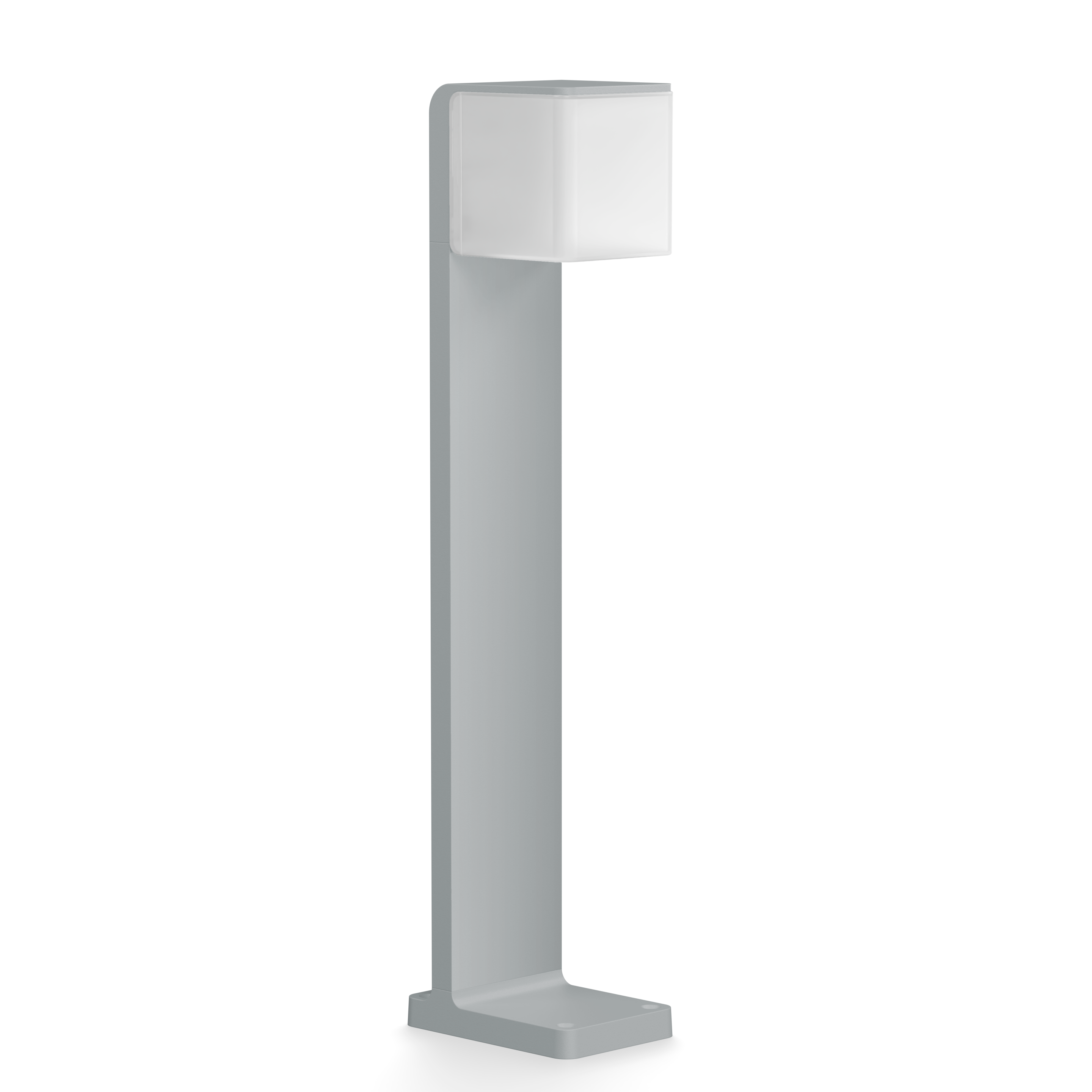

Steinel GL 80 SC Silver

EAN-No. 4007841055486

ELDAS® no. 055486

Price: Please log in to see prices

Version

Without sensor Sensor

Colour

Anthracite Silver

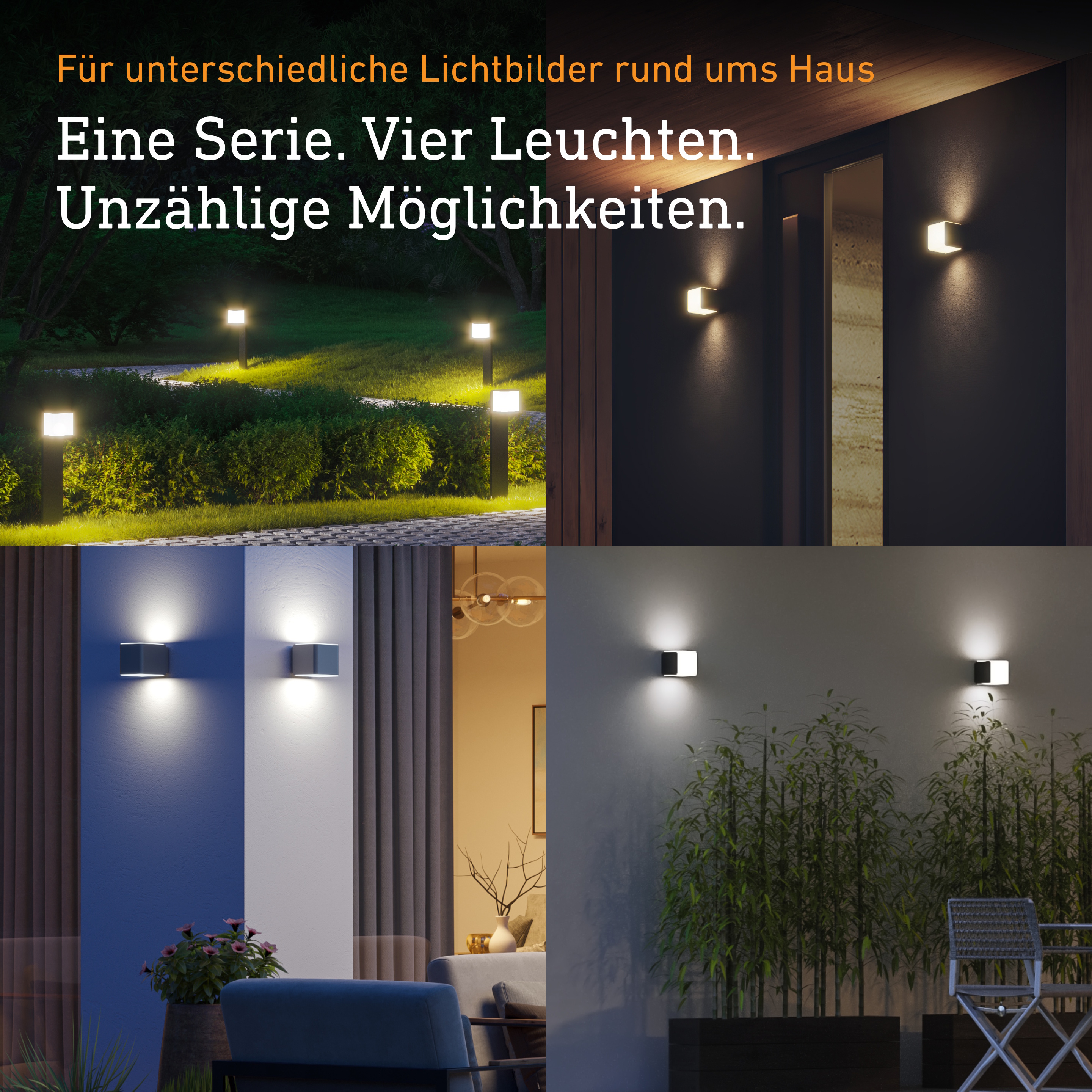

Whether as a lofty "lighthouse" in the garden or as an interconnected function group along the driveway - the elegant design is also an irresistible eye-catcher as a path light. The concealed STEINEL iHF sensor makes a decisive contribution to ensuring that nothing disturbs the clean design lines. And nevertheless features all of the benefits of a sensor-switched light of the high-quality STEINEL brand. Intelligent functions such as dimmable main light, dimmable night light (when combined with an SC version), a pleasant soft light start, and a practical scheduling function ensure the right lighting scenario in every situation. Available in the colours silver and anthracite.

Floor and path luminaire with motion detector, perfect for illuminating paths and driveways
Elegant and modern design in cube format made of UV-resistant material

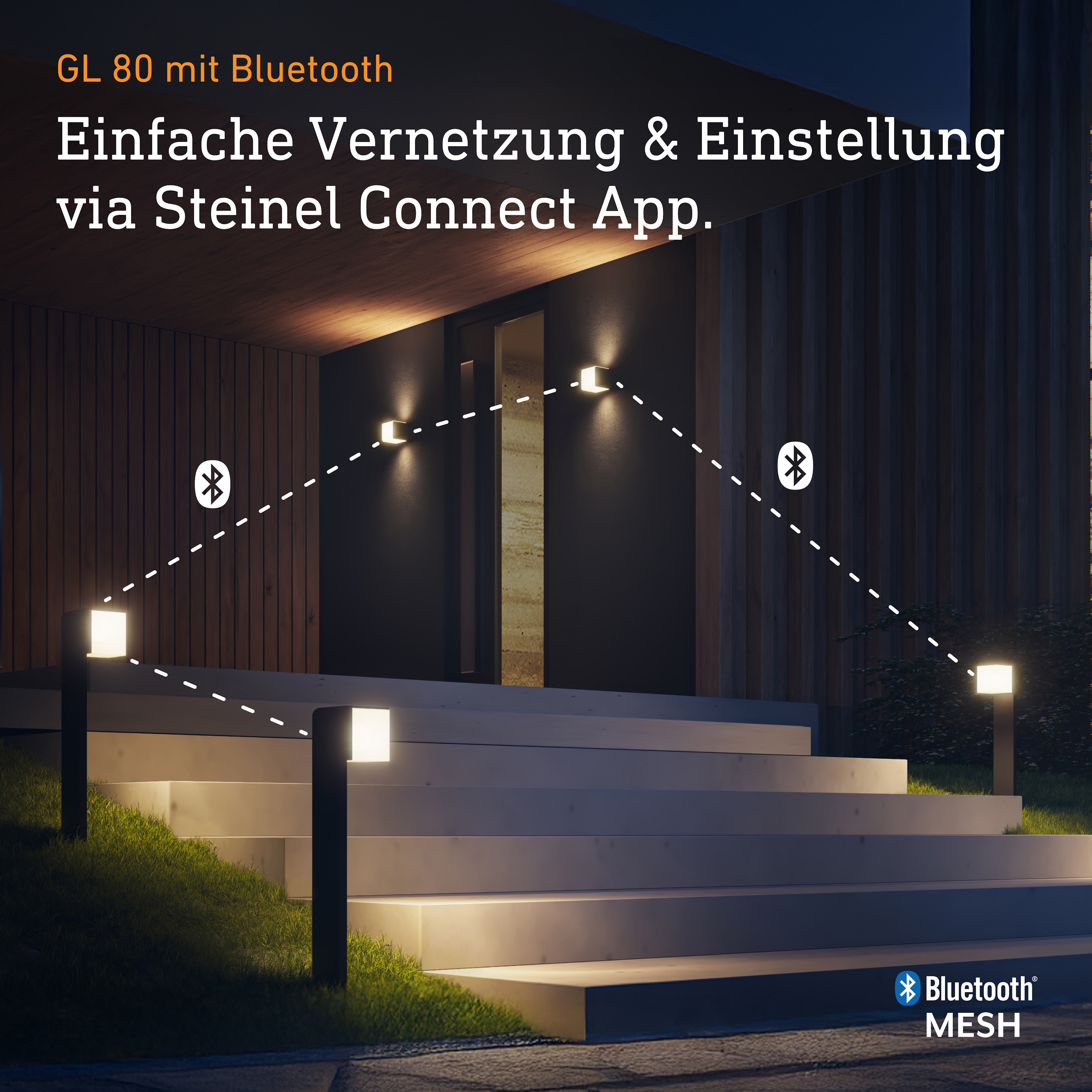

Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App
Automatic light thanks to invisibly integrated 160° high-frequency sensor with up to 5 m detection of movement
Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
Warm white light (3000 K) and long-life 9,1 W LEDs with 650 lm

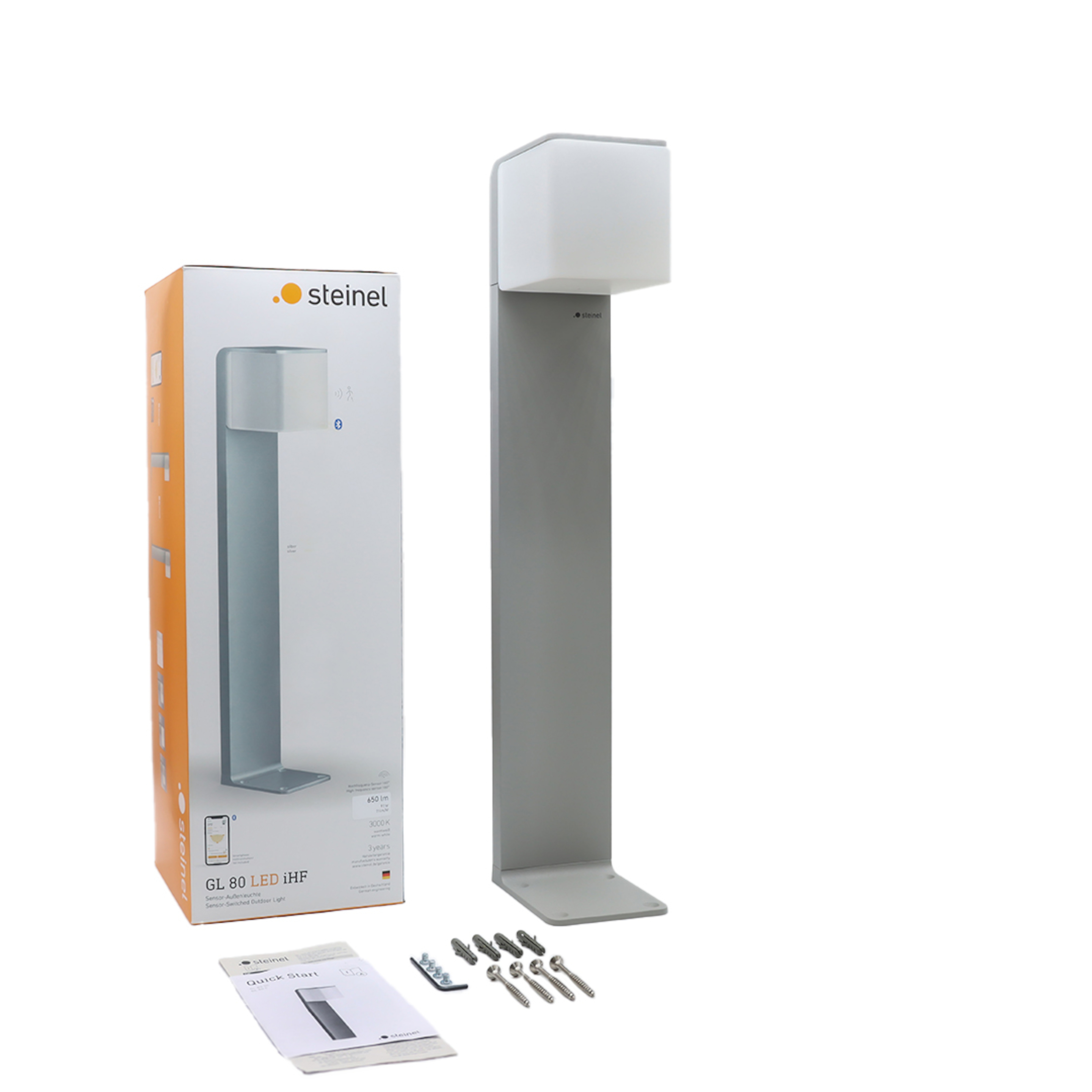

Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel

E-number 941200019

Variants

Version Sensor

Colour Silver

Dimensions

Dimensions L × W × H 161 x 110 x 633 mm

PU1 net weight 1.3700

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 9,1 W

Own consumption 1 W

Sensor technology

Sensor technology iHF (intelligent high-frequency technology)

With motion detector Yes

Detection angle 160 °

Electronic scalability Yes

Mechanical scalability Yes

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 650 lm

Colour temperature 3000 K

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time 10-30 min, all night

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature from -20 up to 40 °C

Housing material Aluminium

Cover material Plastic, opal

Mounting location Stand mounted

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Application room garden front door courtyard & driveway all round the building terrace / balcony

Colour Silver

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included No

Certificates & EPREL

Certificates GS TÜV

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Spare parts 25795,25794

Accessories 28871

Intelligent soft light start

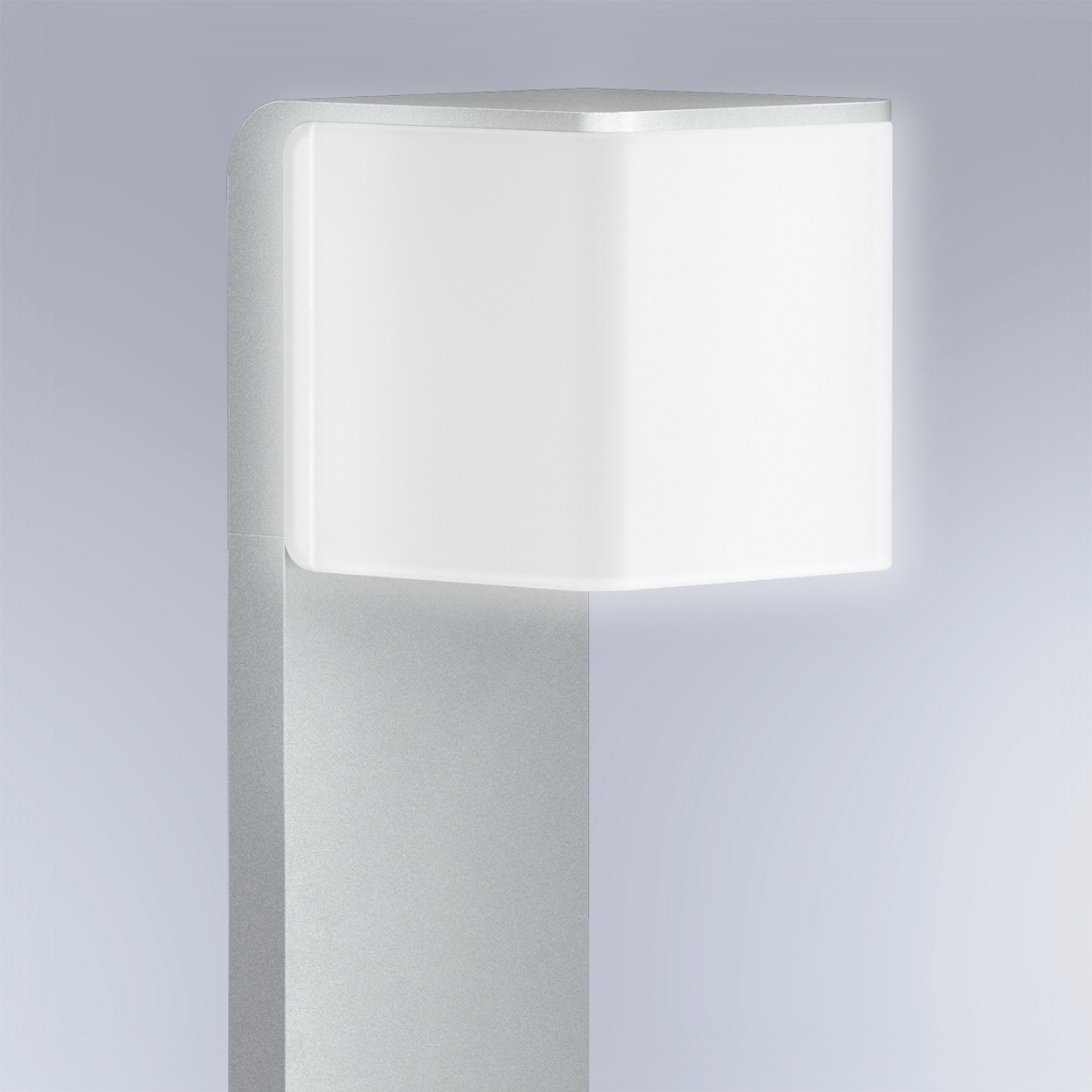

Adjustable main and basic light brighness (10 - 100%)

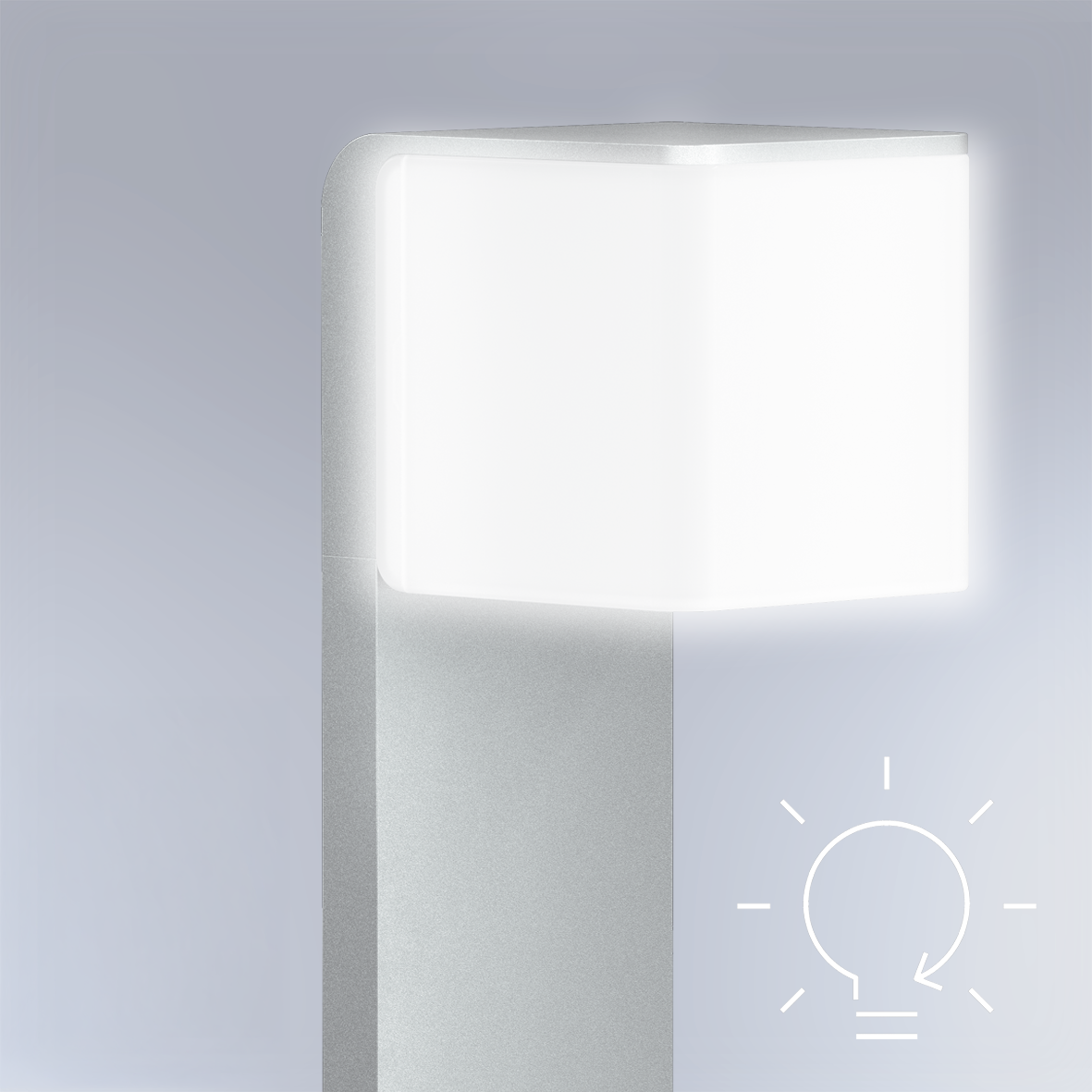

Continuous light individually switchable (optional)

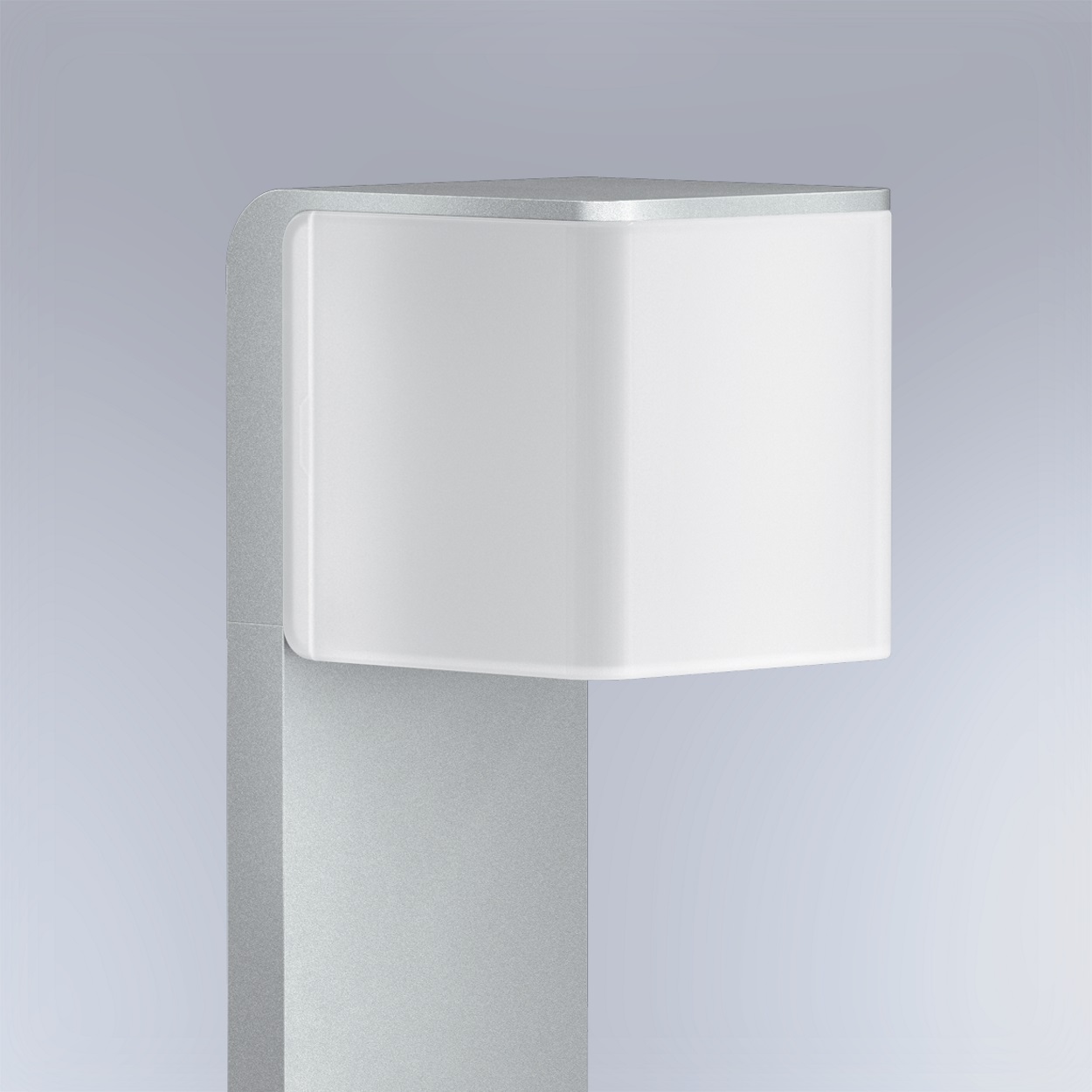

UV resistant material

Technical drawings

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth
