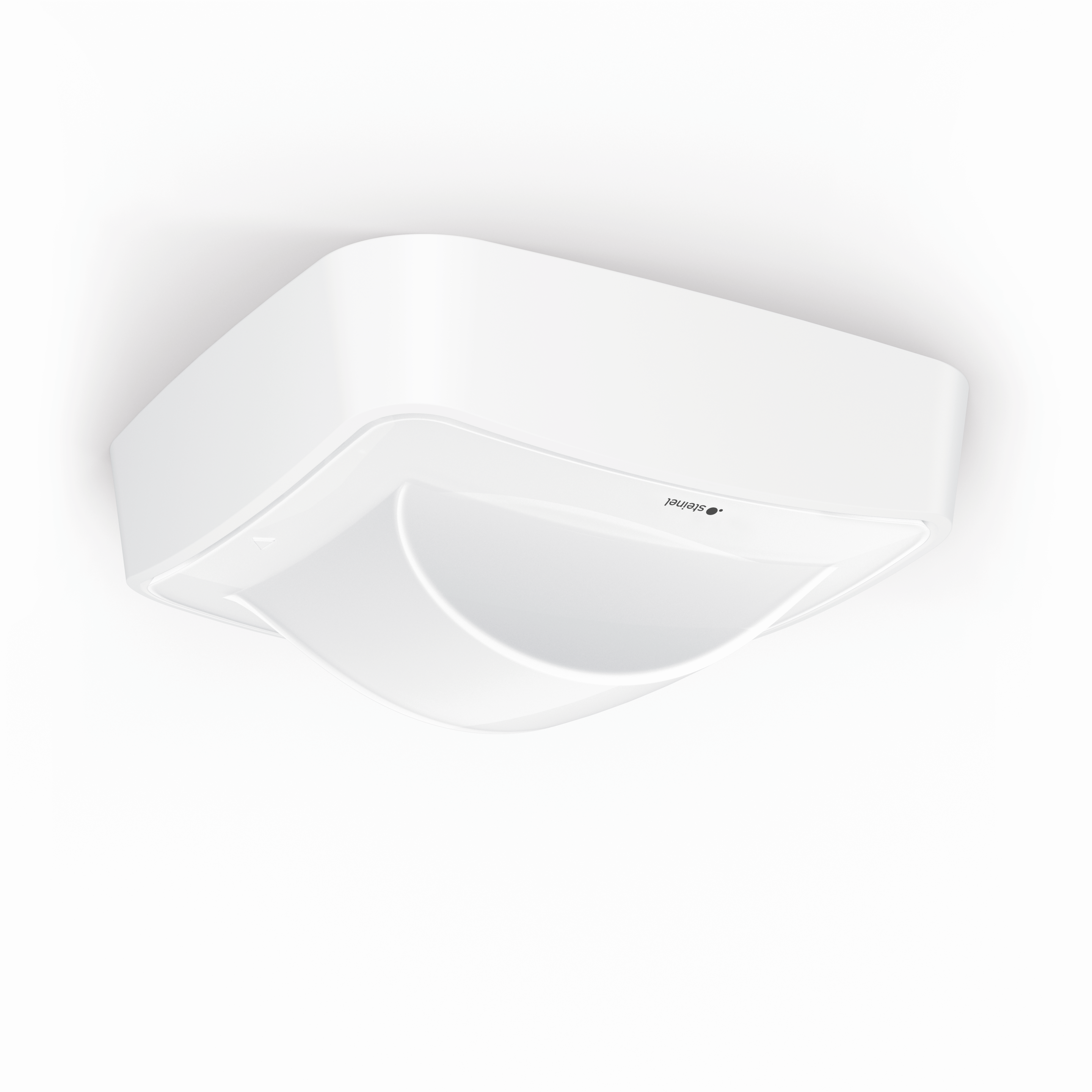

Steinel Hallway COM2 - Surface wiring
EAN-No. 4007841057992
ELDAS® no. 057992
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
Colour
White
Black
Mounting type
Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.
Identification
Version
Presence detector
Manufacturer
Steinel
E-number
535937202
Variants
Version
230V COM2
Colour
White
Mounting type
Surface-mounted
Dimensions
Dimensions L × W × H
62 x 123 x 123 mm
PU1 net weight
0.2920
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
2000 W
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
1500 W
Fluorescent lamps uncompensated
1000 VA
Fluorescent lamps series-compensated
400 VA
Fluorescent lamps parallel-compensated
1000 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in µF
176 µF
Own consumption
0,7 W
Switching output 1 number of LED/fluorescent lamps
8.0000
Switching output 1 potential-free
No
Switching output 2 resistive
230 W
Switching output 2 potential-free
Yes
Maximum inrush current
800 A
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,8 m
Nevalux sensor technology
BT Open Mesh, On / Off
Connectivity
Networking
Yes
Type of networking
Master/master
Master/slave
Networking via
Bluetooth
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
10 s – 60 Min.
Base light function
No
Main light adjustable
No
Functions
Group parameterisation
Semi-/fully automatic
Lighting scenario
Manual ON / ON-OFF
Neighbouring group function
Normal / test mode
Settings via
Bluetooth
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
Indoors
corridor / aisle
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No

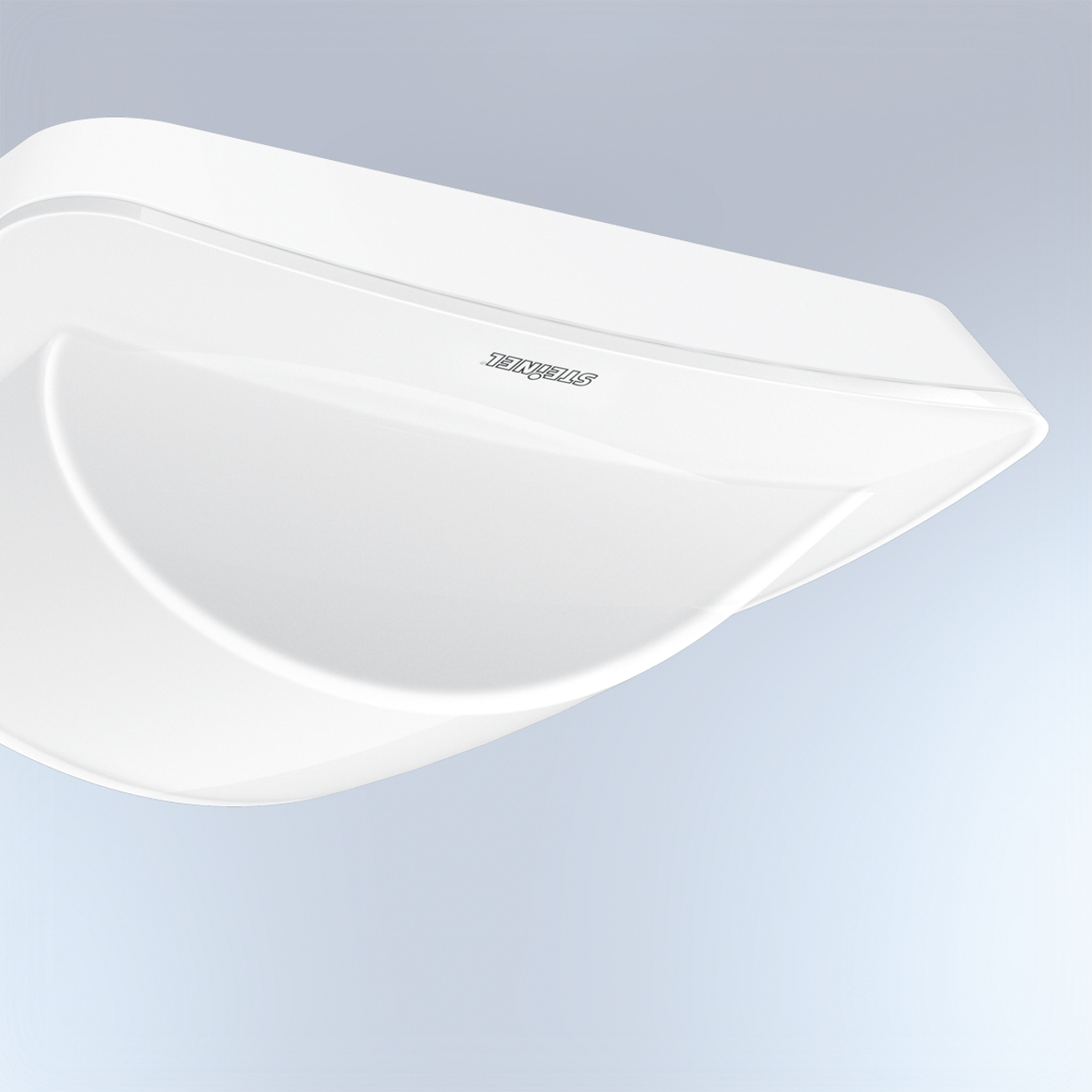

UV-resistant plastic

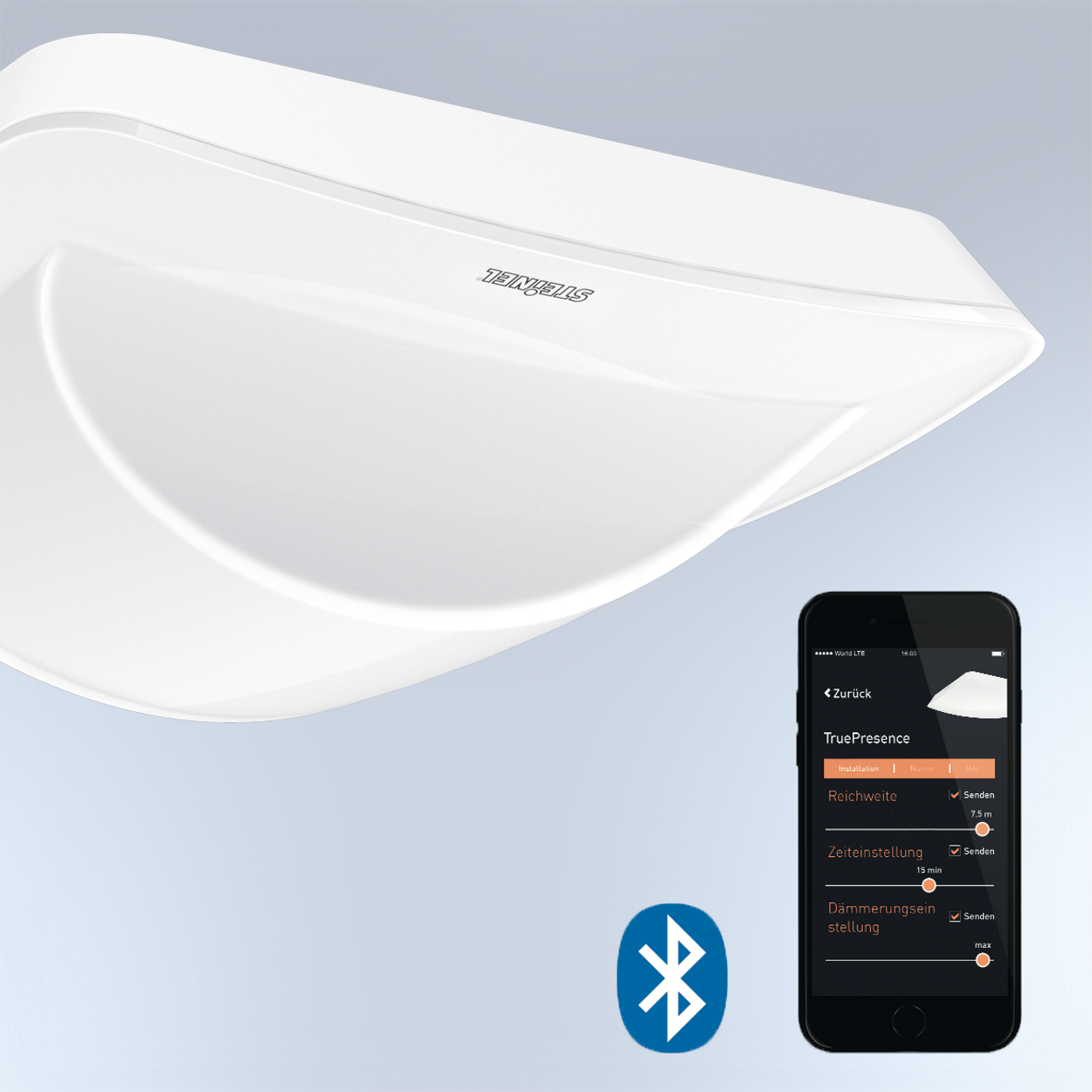

Interconnectable and adjustable via Bluetooth
Technical drawing
Sensor detection range
Wiring diagram 1
Master circuit diagram
