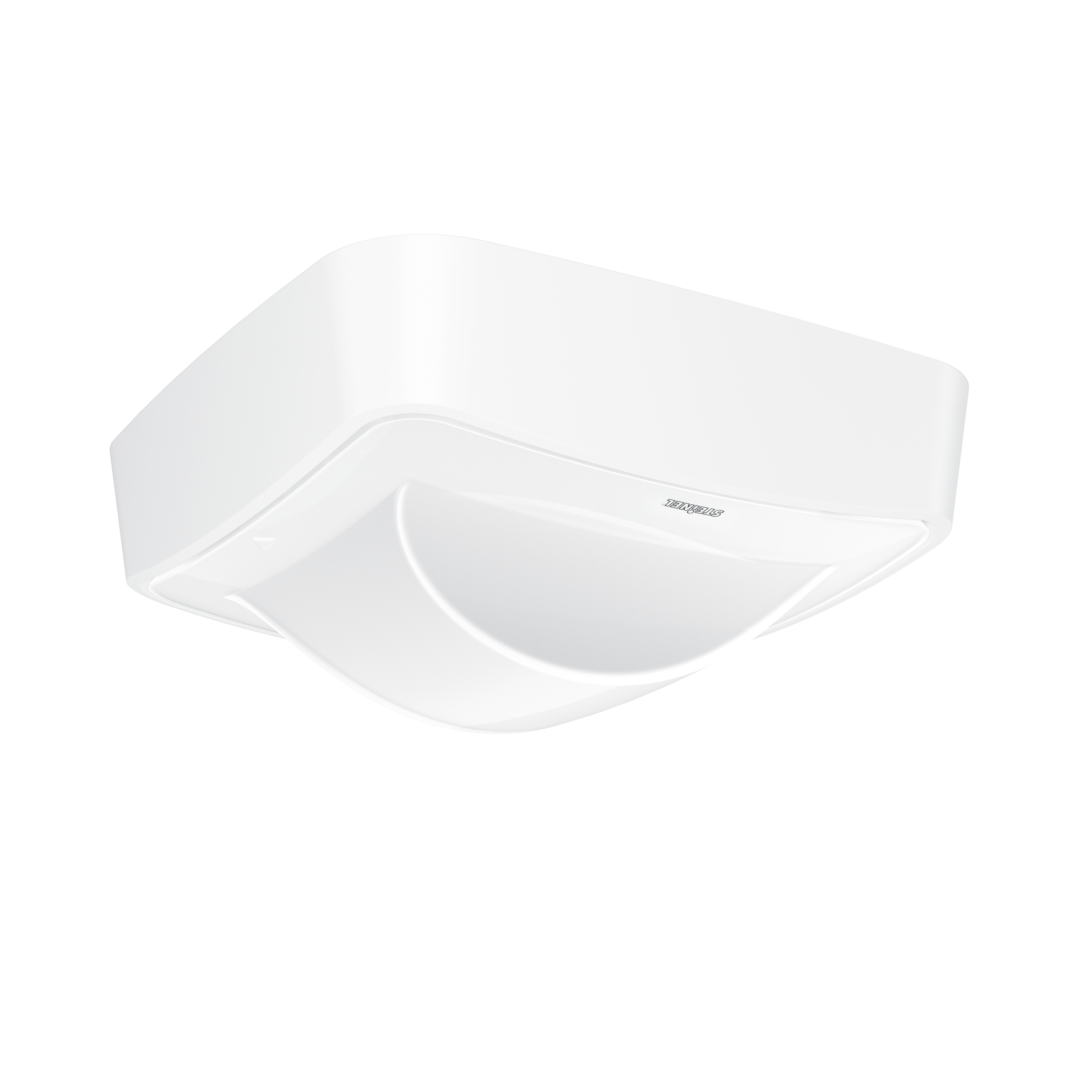

Steinel Hallway BT IPD - surface

EAN-No. 4007841064563

ELDAS® no. 064563

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

Identification

Version Presence detector
Manufacturer Steinel
E-number 535933008

Variants

Version Bluetooth Input Device
Colour White
Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 62 x 123 x 123 mm
PU1 net weight 0.2720

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 25 x 3 m (75 m²)
Tangential range 25 x 3 m (75 m²)
Mounting height 2,00 – 4,00 m
Optimal mounting height 2,8 m
Nevalux sensor technology BT Open Mesh

Connectivity

Networking Yes
Type of networking Master/slave
Networking via Bluetooth

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch No
Base light function No
Main light adjustable No
Settings via Bluetooth
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 50 °C
Mounting location ceiling
Application location Indoors
Mounting type Surface wiring
Material Plastic
Application room Indoors corridor / aisle
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

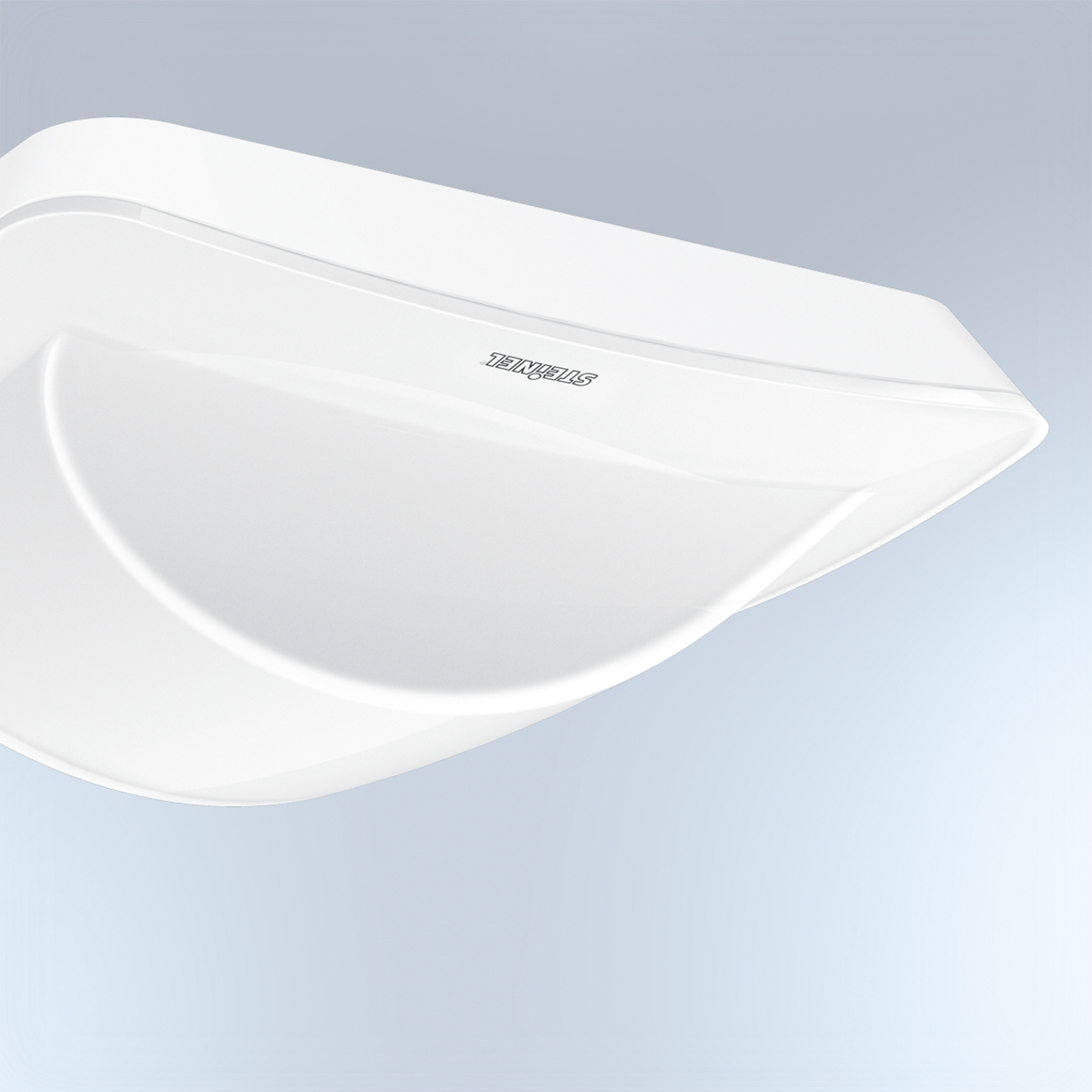

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
