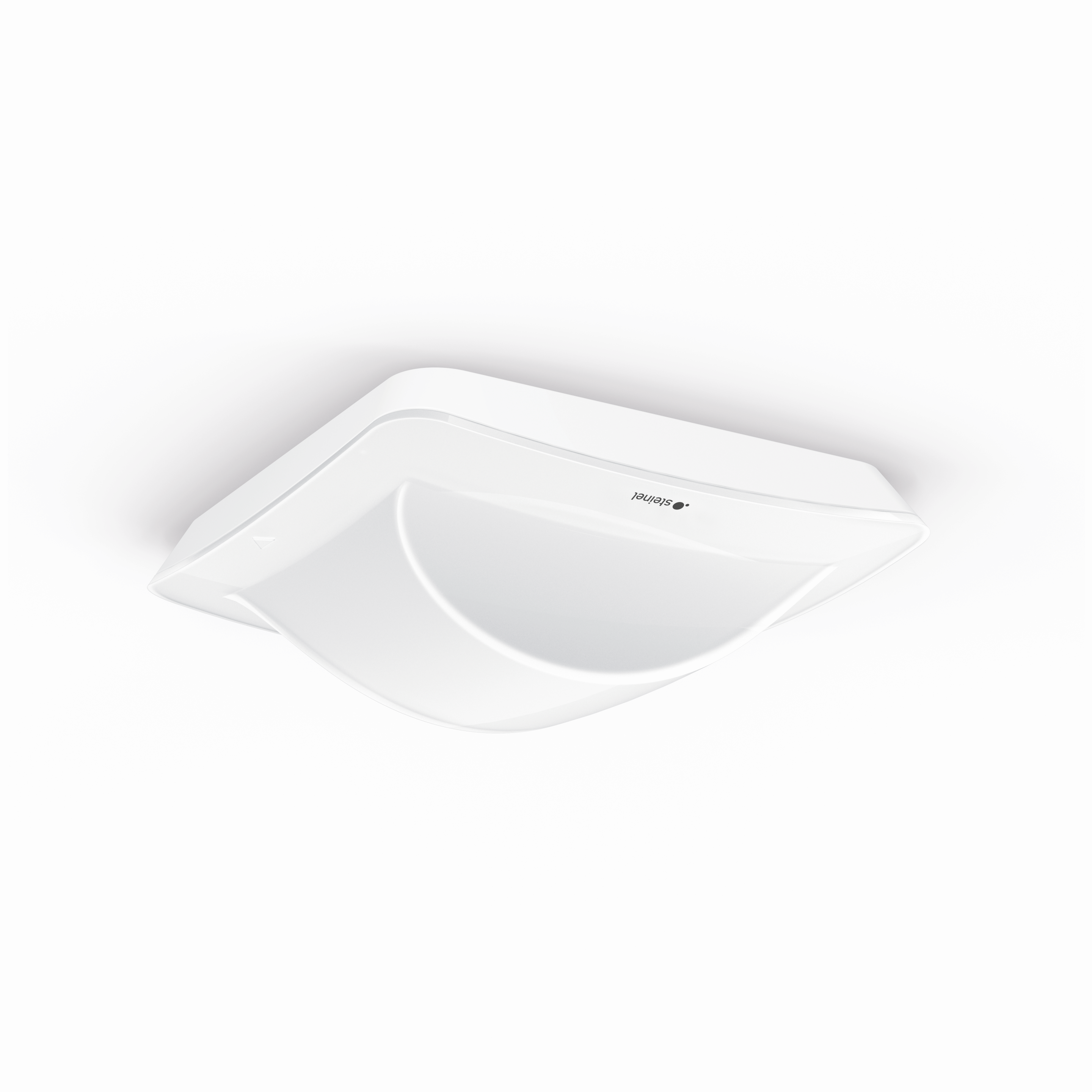

Steinel Hallway IP - concealed
EAN-No. 4007841086435
ELDAS® no. 086435
Price: Please log in to see prices
Version
Colour
White
Black
Mounting type
Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.
- Perfect radial detection with a range of up to 25 m, ideal for long corridors and hallways
- Customisable range that can be set individually in both direc
- Control PRO II design for a modern and functional look that enables versatile applications
- Bluetooth technology for simple connection and control via Bluetooth
- Multiple interfaces, compatible with COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD
- External light measurement required for black sensors that can be integrated via Bluetooth or KNX
Identification
Version
Presence detector
Manufacturer
Steinel
E-number
535903128
Variants
Version
IP (REST API, MQTT, BacNet)
Colour
White
Mounting type
Flush-mounted
Dimensions
Dimensions L × W × H
68 x 103 x 103 mm
PU1 net weight
0.1650
Electrical
Mains connection
18 – 55 V
Supply voltage detail
Passive PoE SELV, standard PoE (IEEE 802.3 af)
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2 – 4 m
Optimal mounting height
2,8 m
Nevalux sensor technology
BT Open Mesh, IP / IT
Connectivity
Networking
Yes
Networking via
Bluetooth Mesh
With bus coupler
Yes
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Base light function
No
Main light adjustable
No
Settings via
Bluetooth
Bus
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
corridor / aisle
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Texts & marketing
KNX description
https://pim.steinel.de/admin/ImageServer.php?ID=0ee56a193683@steinel&rand=cdf6b1fbea74677fae6f38950421724e&lang=2&force=true&download=true&omitPreview=true
UV-resistant plastic
Technical drawing

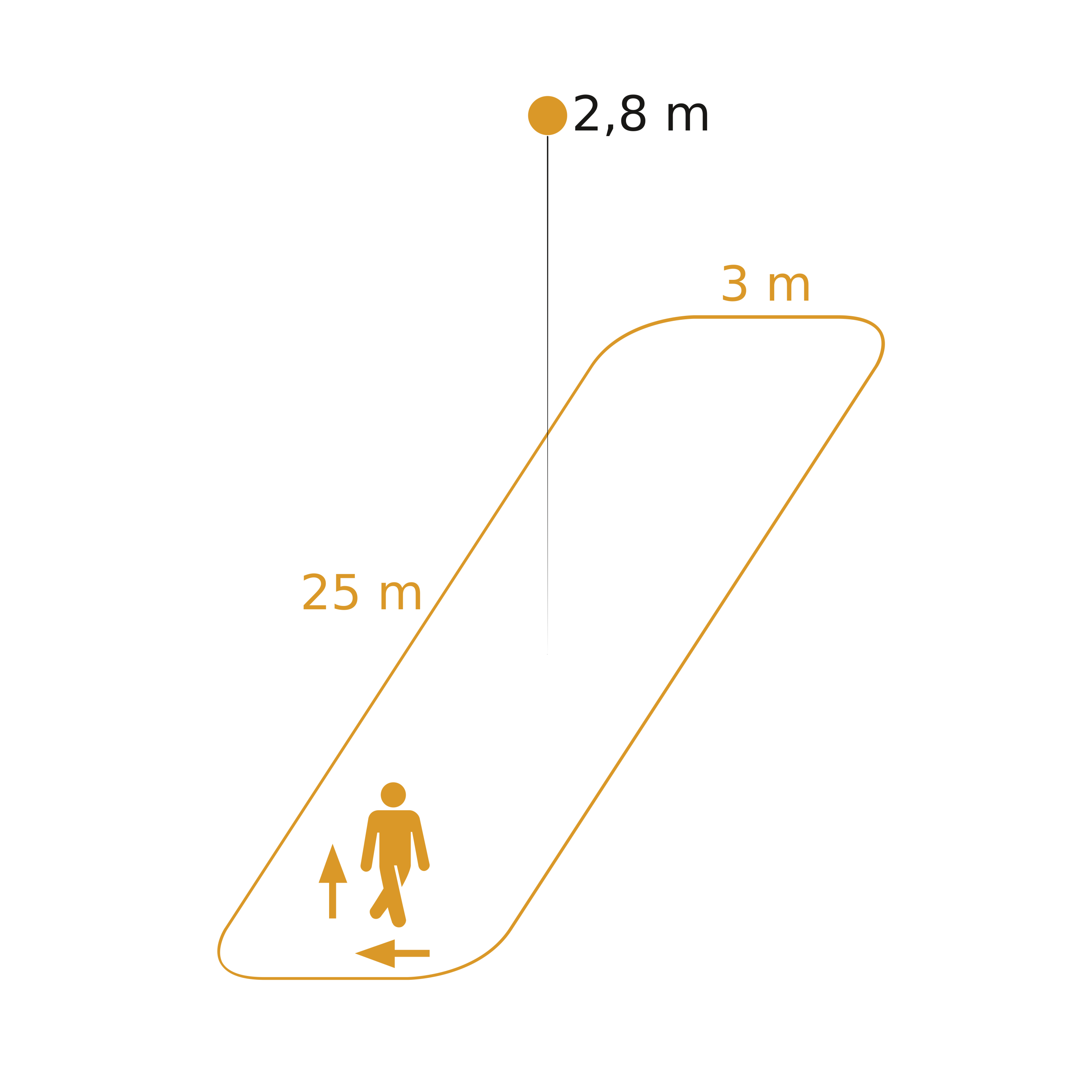

Sensor detection range
Wiring diagram 1
Circuit diagram
