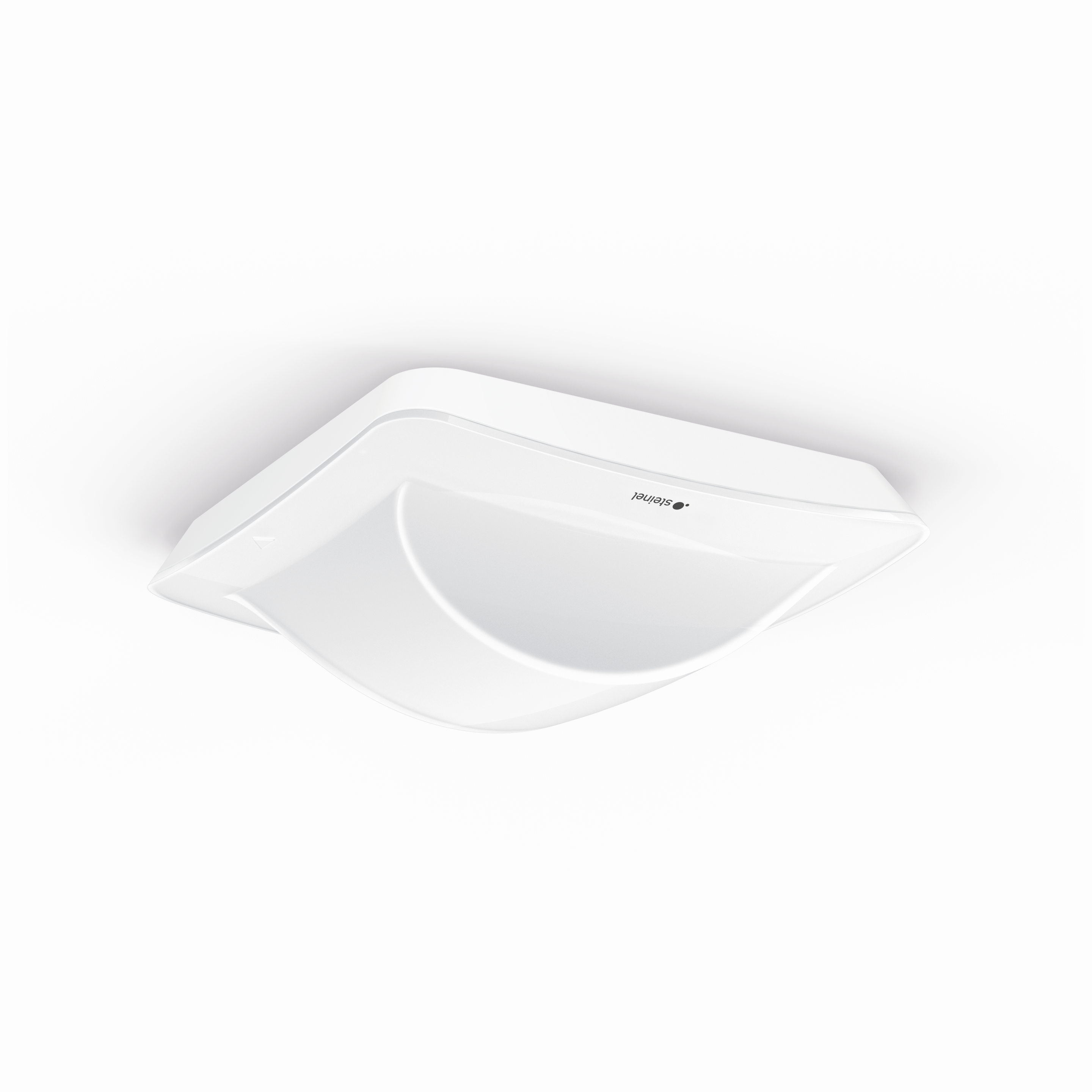

Steinel Hallway BT IPD - concealed
EAN-No. 4007841064556
ELDAS® no. 064556
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
DALI-2 Application Controller
230V COM1
KNX
IP (REST API, MQTT, BacNet)
230V COM2
DALI-2 Input Device
Bluetooth Input Device
Colour
White
Black
Mounting type
Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.
Identification
Version
Presence detector
Manufacturer
Steinel
E-number
535933508
Variants
Version
Bluetooth Input Device
Colour
White
Mounting type
Flush-mounted
Dimensions
Dimensions L × W × H
67 x 103 x 103 mm
PU1 net weight
0.1590
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,8 m
Nevalux sensor technology
BT Open Mesh
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Bluetooth
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
No
Base light function
No
Main light adjustable
No
Settings via
Bluetooth
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
corridor / aisle
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No

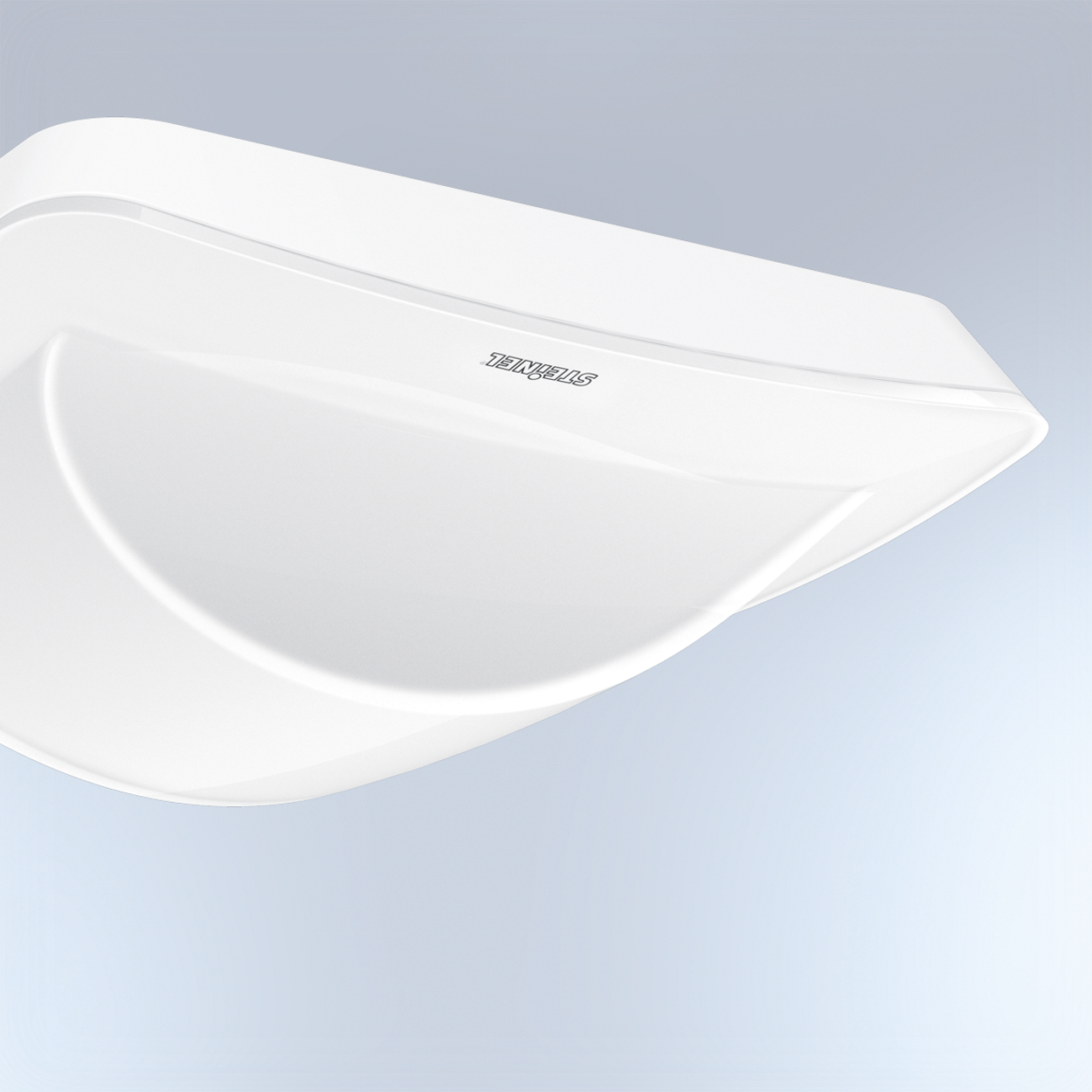

UV-resistant plastic
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
