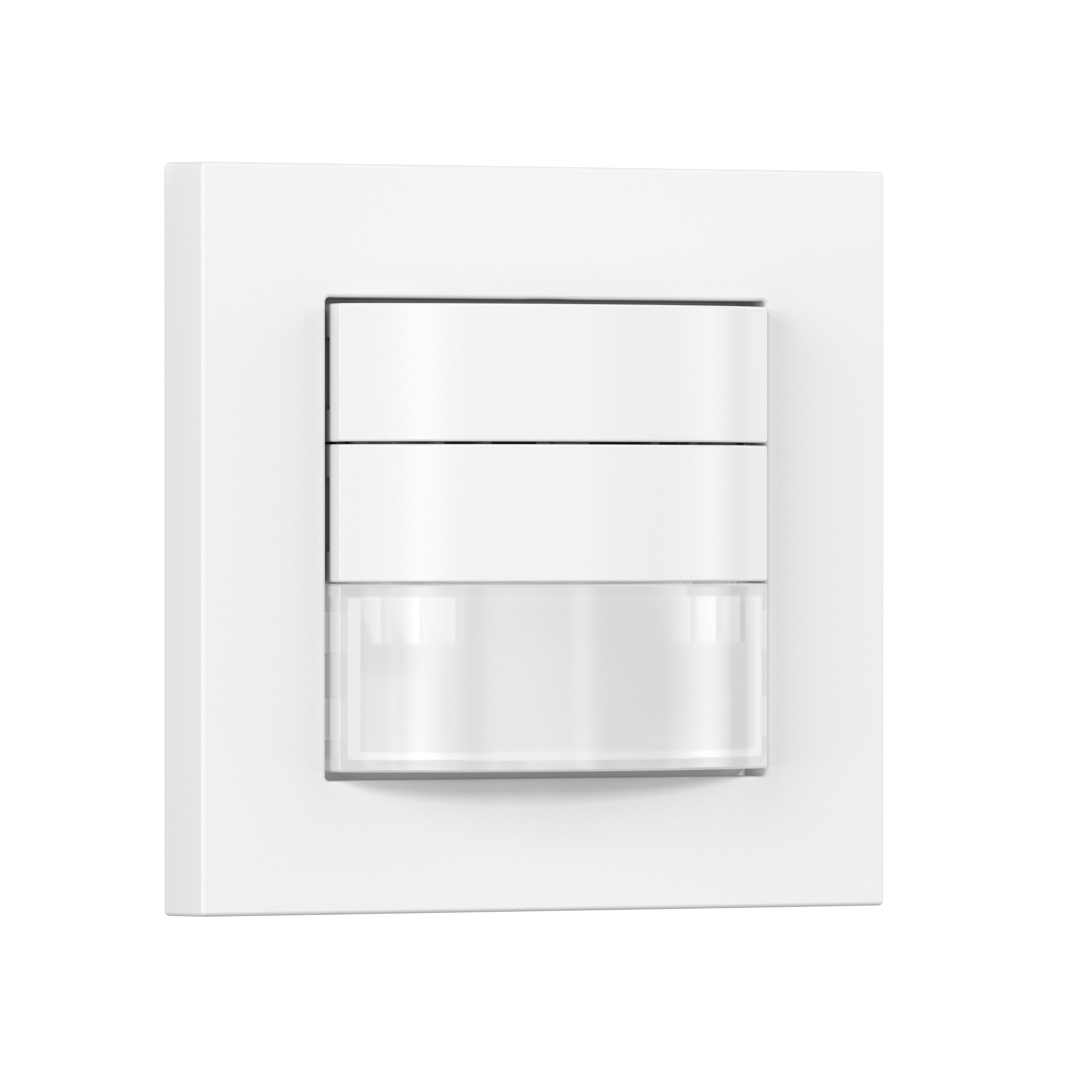

Steinel HF 180 COM1 - white

EAN-No. 4007841032883

ELDAS® no. 032883

Version

230V COM1 KNX

High-frequency technology meets top-calibre design! Producing an angle of coverage of 180°, the sensor switch HF 180 not only scores top marks in performance, it looks great too. The HF sensor technology detects every movement and switches instantly. The solution for offices, entrance rooms and washroom facilities where movement needs detecting through thin partition walls. Intelligent technology that not only looks good, but is also easy to install. The KNX version also indicates temperature and air humidity.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535941760

Variants

Version 230V COM1

Dimensions

Dimensions L × W × H 30 x 80 x 80 mm

PU1 net weight 0.1250

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1000 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8.0000

Maximum inrush current 10 A

Sensor technology

Max. mounting height 2,20 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 180 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 8 m (101 m²)

Tangential range r = 8 m (101 m²)

Switching zones 96 switching zones

Mounting height 1,20 – 2,20 m

Optimal mounting height 1,2 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Semi-/fully automatic Switch active / switch inactive Manual ON / ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room one-person office corridor / aisle function room / ancillary room kitchenette stairwell WC / washroom Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Media & files

Wiring diagram 3 text Master/slave interconnection circuit diagram

Cross-/up-selling

Accessories 11257,11259,11255,13686,12367

Optional adapters made of UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Declaration of conformity
