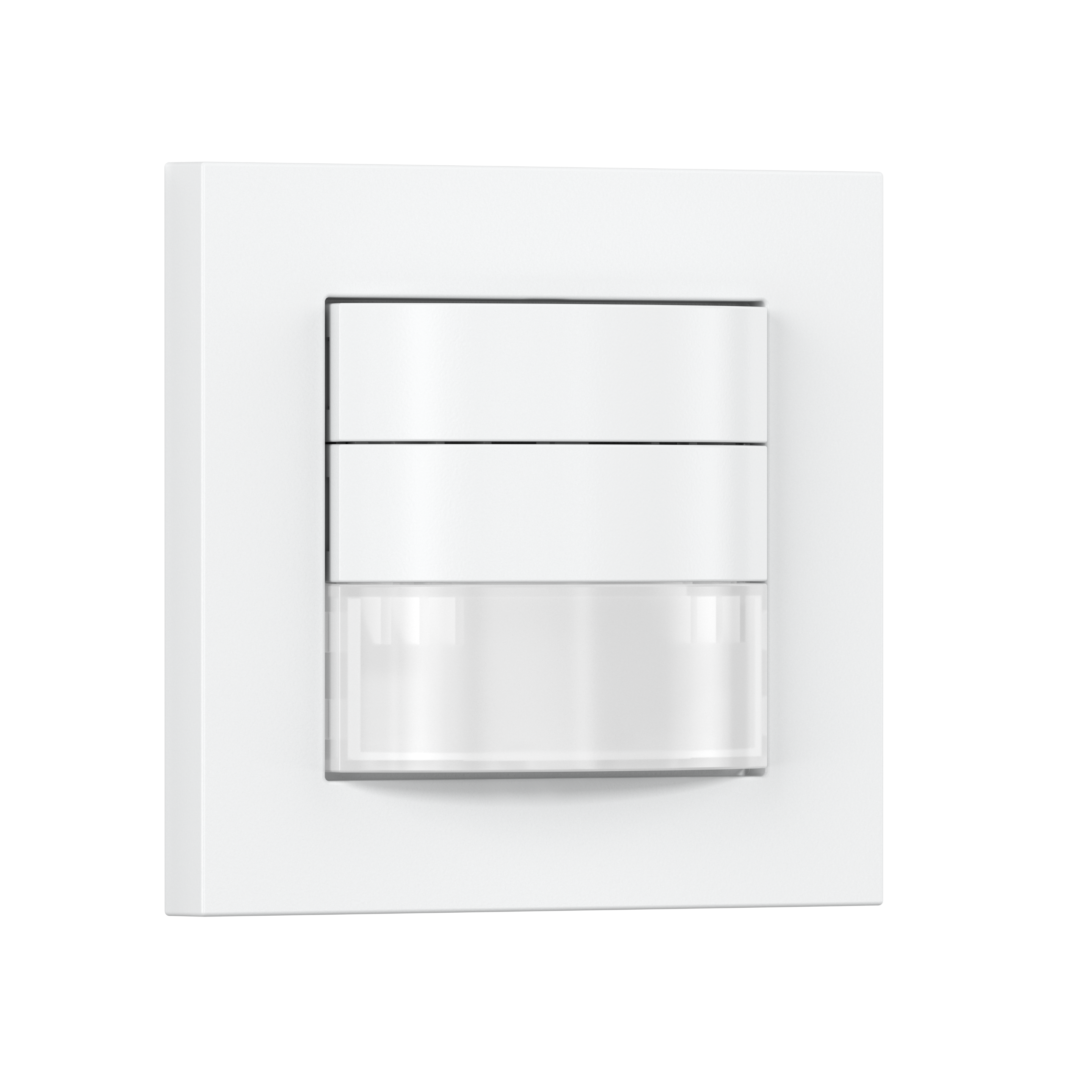

Steinel HF 180 KNX - white

EAN-No. 4007841059460

ELDAS® no. 059460

Version

230V COM1 KNX

High-frequency technology meets top-calibre design! Producing an angle of coverage of 180°, the sensor switch HF 180 not only scores top marks in performance, it looks great too. The HF sensor technology detects every movement and switches instantly. The solution for offices, entrance rooms and washroom facilities where movement needs detecting through thin partition walls. Intelligent technology that not only looks good, but is also easy to install. The KNX version also indicates temperature and air humidity.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535931708

Variants

Version KNX

Dimensions

Dimensions L × W × H 50 x 80 x 80 mm

PU1 net weight 0.0840

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 2,20 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 180 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range r = 8 m (101 m²)

Tangential range r = 8 m (101 m²)

Mounting height 1,20 – 2,20 m

Optimal mounting height 1,2 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 60 s – 255 Min.

Base light function Yes

Base light function time Permanently ON 1-255 min all night

Main light adjustable 0 - 100 %

Functions Presence detector logic

Settings via ETS software Remote control Bus Smart Remote

With remote control Yes

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP20

Protection class II

Ambient temperature from 0 up to 40 °C

Mounting location wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room one-person office corridor / aisle function room / ancillary room kitchenette stairwell WC / washroom Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No
