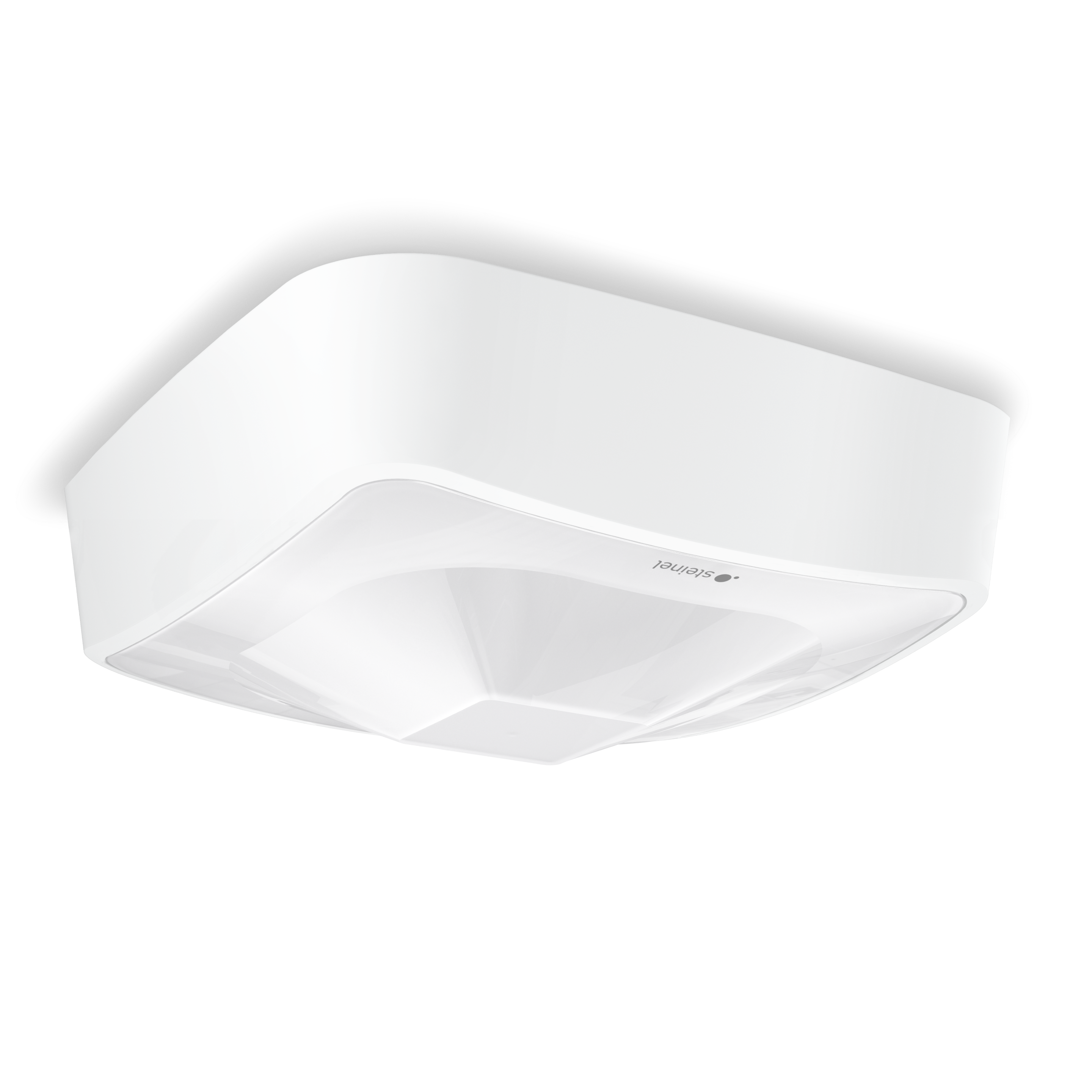

Steinel HF 360-2 COM2 - Surface wiring

EAN-No. 4007841064259

ELDAS® no. 064259

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Evolving from the HF 360, the HF 360-2 is the first product from our new Control PRO 2 range that not only switches light ON and OFF but delivers digital data too. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535937208

Variants

Version 230V COM2

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 57 x 123 x 123 mm

PU1 net weight 0.2760

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps uncompensated 1000 VA

Switching output 1 low-voltage halogen lamps 1000 VA

Capacitive load in µF 176 µF

Own consumption 0,7 W

Switching output 1 number of LED/fluorescent lamps 8.0000

Switching output 1 potential-free No

Switching output 2 resistive 230 W

Switching output 2 potential-free Yes

Maximum inrush current 800 A

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,50 – 4,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Bluetooth

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 Min.

Base light function No

Main light adjustable No

Functions Group parameterisation Semi-/fully automatic Master/slave override Neighbouring group function Normal / test mode Presence function Manual ON / ON-OFF

Settings via Bluetooth

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -25 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room function room / ancillary room kitchenette stairwell WC / washroom Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

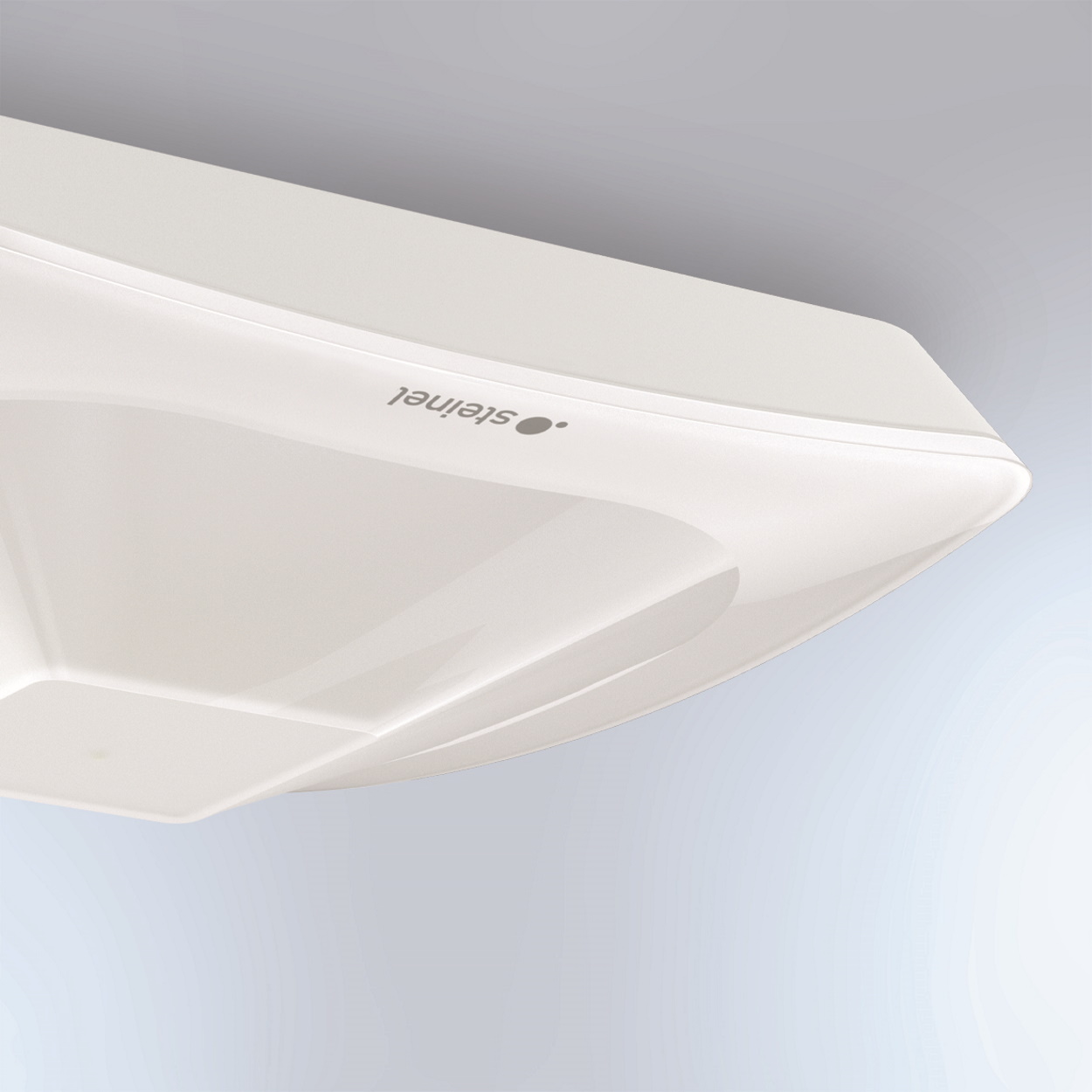

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram
