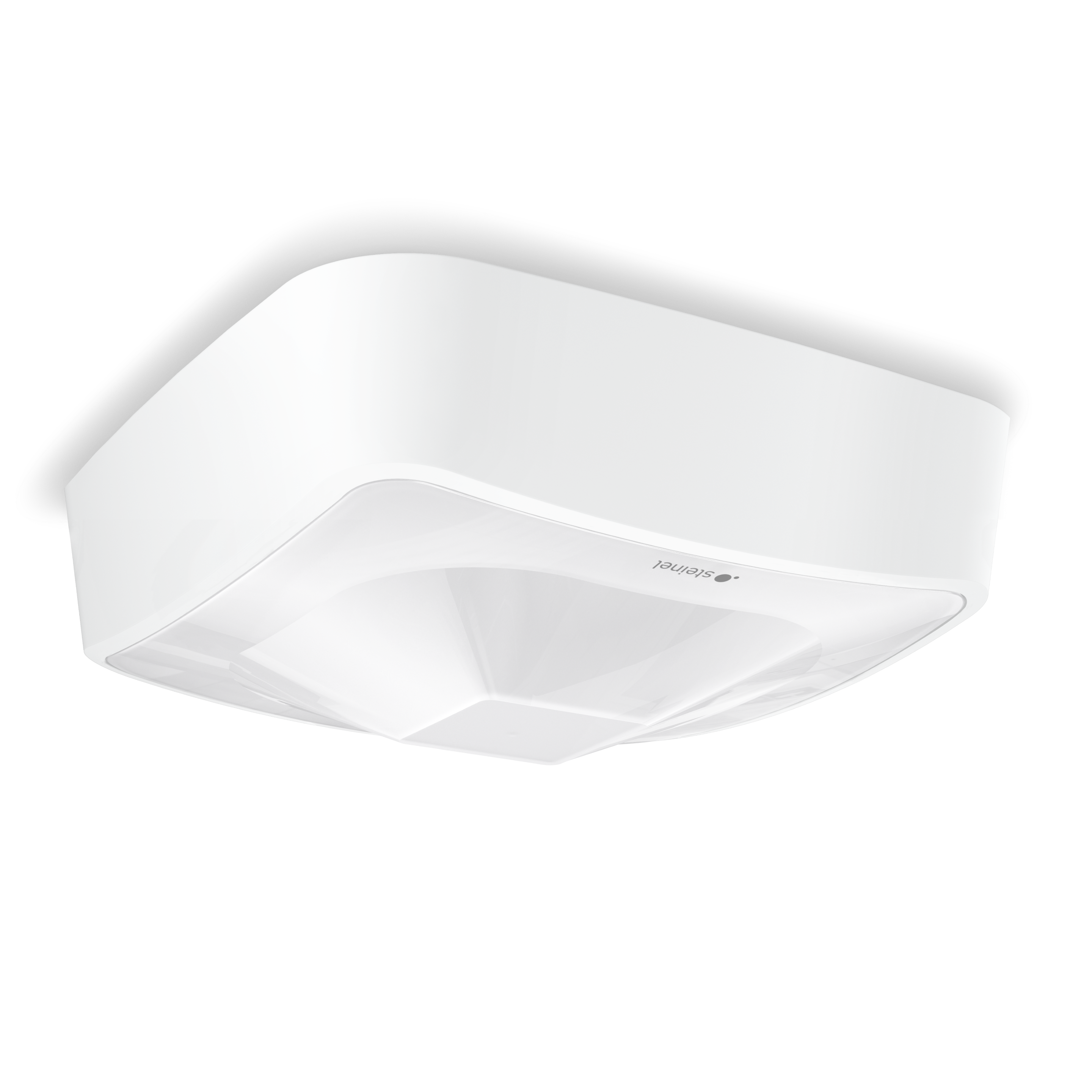

Steinel HF 360-2 DALI-2 APC - surface

EAN-No. 4007841064273

ELDAS® no. 064273

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Evolving from the HF 360, the HF 360-2 is the first product from our new Control PRO 2 range that not only switches light ON and OFF but delivers digital data too. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535937308

Variants

Version DALI-2 Application Controller

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 57 x 123 x 123 mm

PU1 net weight 0.2680

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Supply voltage detail max. 64 users

Control output DALI Broadcast 64 electronic ballasts / Addressable

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,50 – 4,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Bluetooth DALI bus

Number of DALI participants 64.0000

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 Min.

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 50 - 100 %

Functions Semi-/fully automatic Constant-lighting control Lighting scenario Master/slave override Neighbouring group function TouchDIM function Selecting programmed lighting scenarios Constant-lighting control ON-OFF Manual ON / ON-OFF Normal / test mode

Settings via Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 3 – 90 %

Base light function percent from 3.0000

Base light function percent to 90.0000

Housing & material

Protection class (IP) IP54

Ambient temperature from -25 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room function room / ancillary room kitchenette stairwell WC / washroom Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

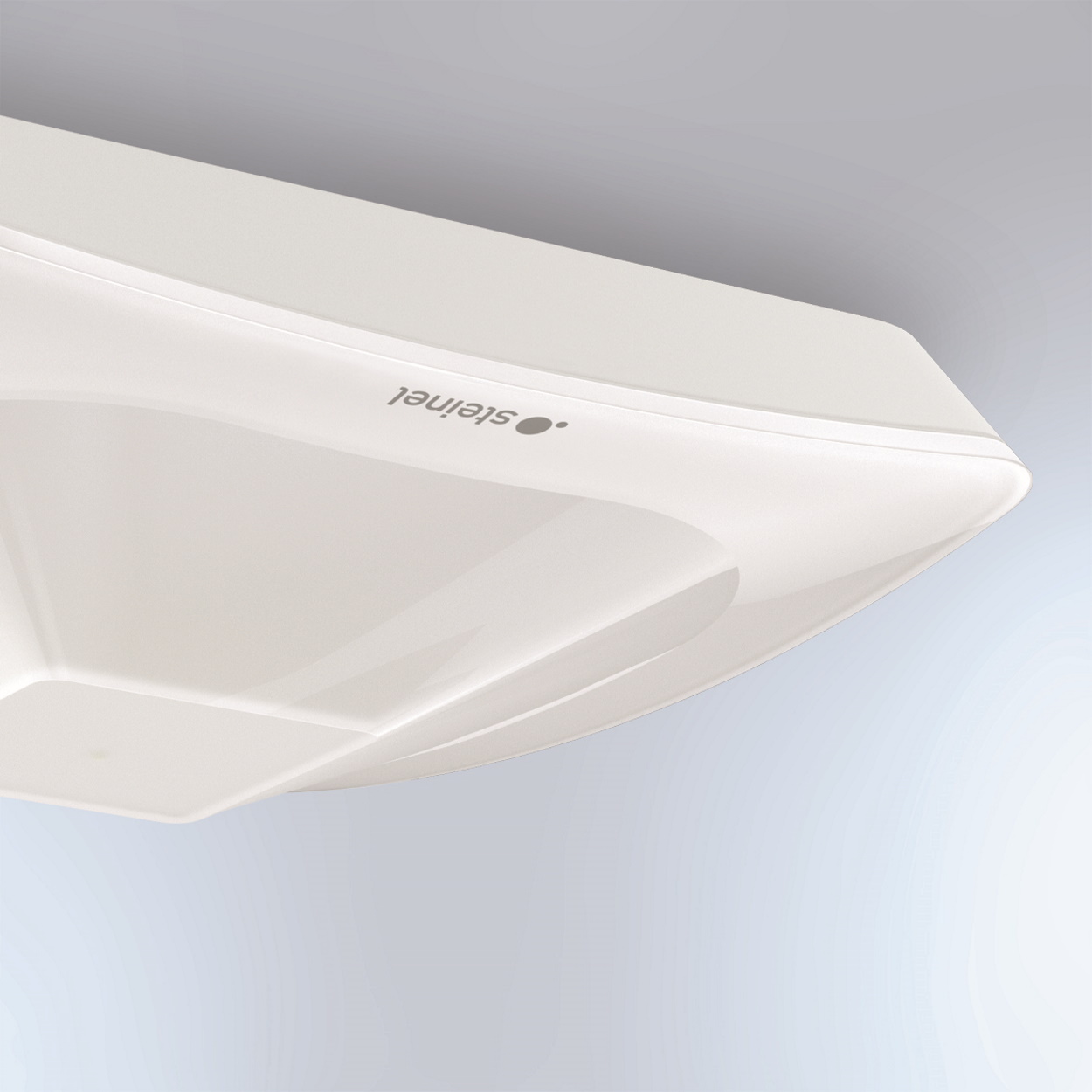

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
