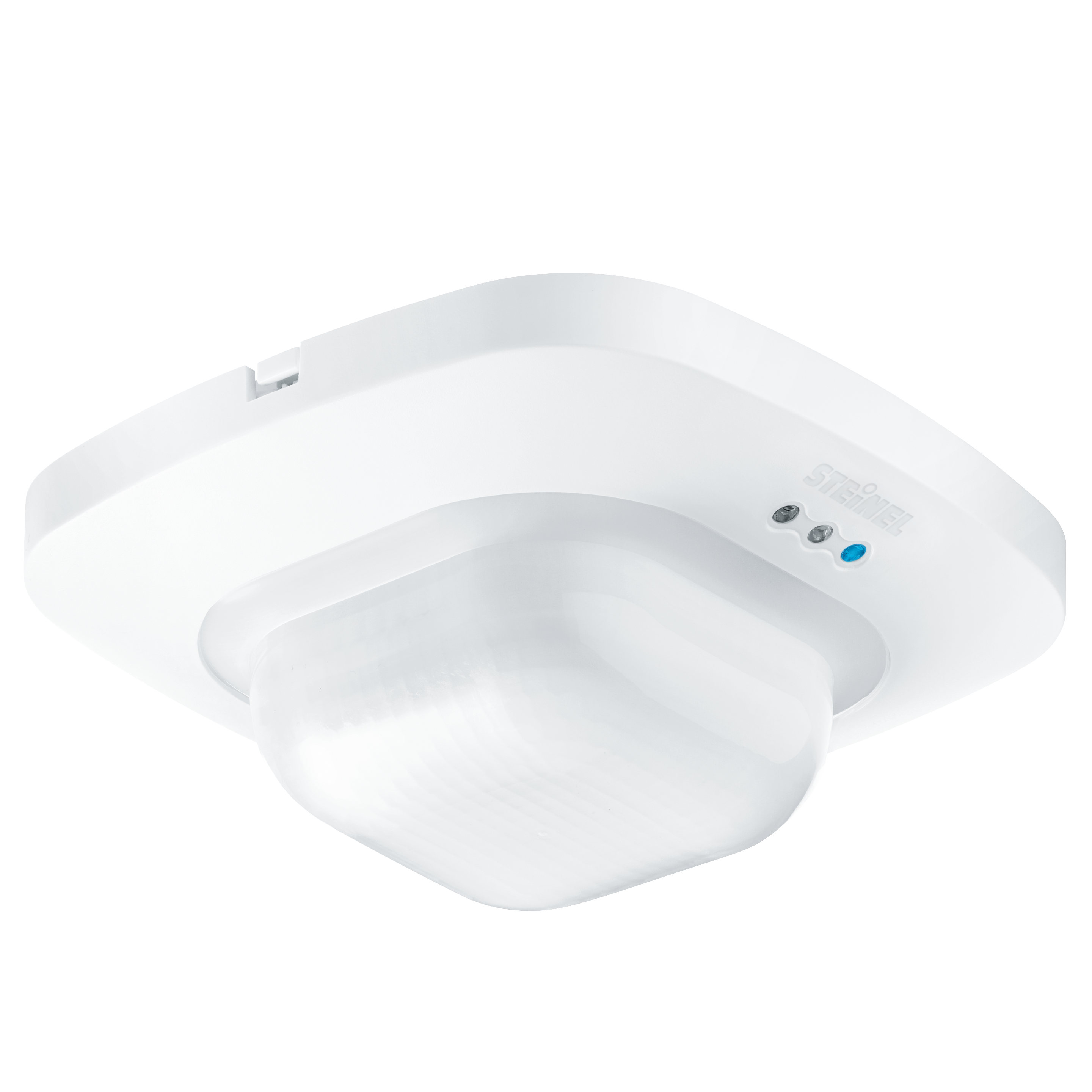

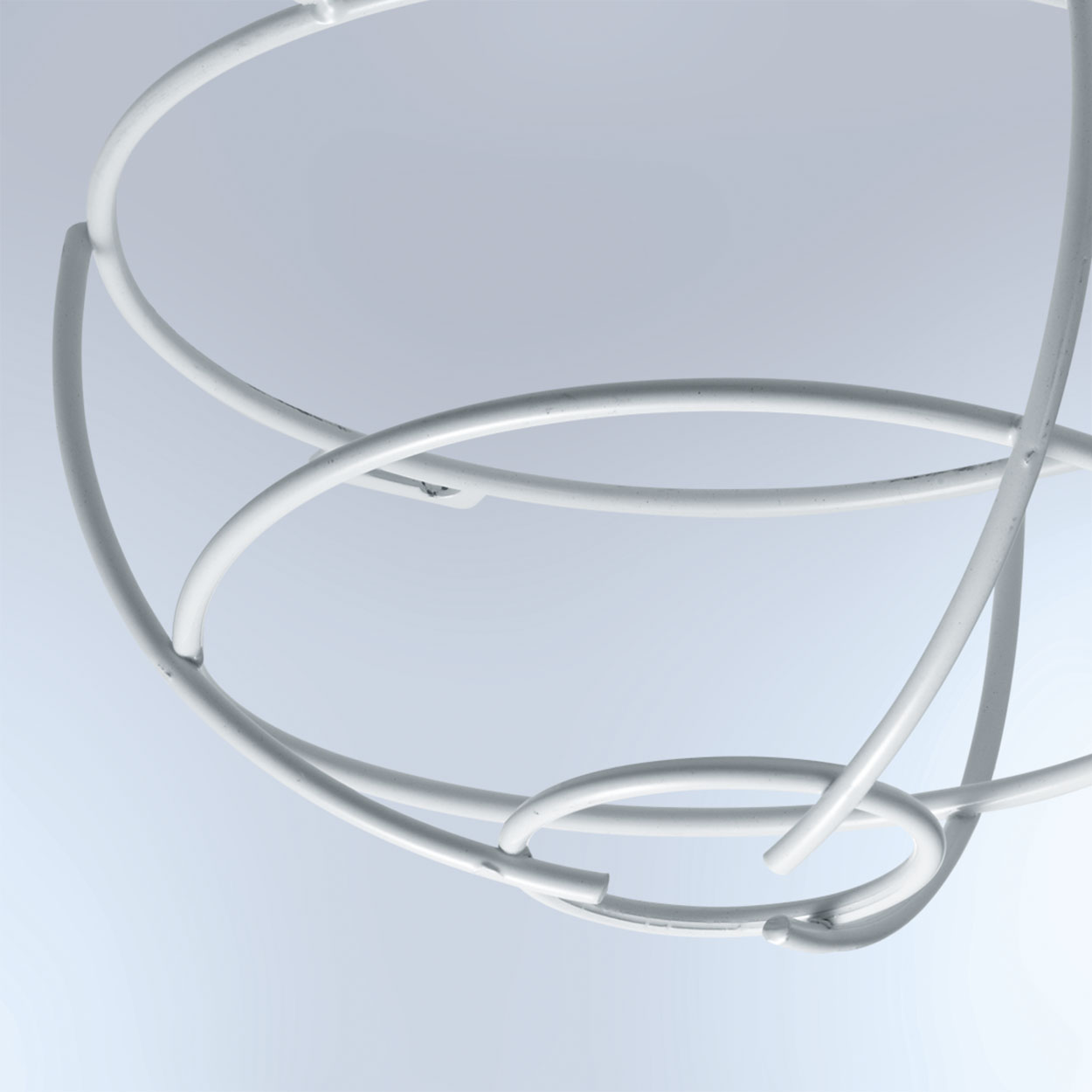

Steinel IR Quattro 8m DALI-2 APC - concealed

EAN-No. 4007841002749

ELDAS® no. 002749

Version

DALI-2 Application Controller KNX 230V 1 channel 230V 2 channels

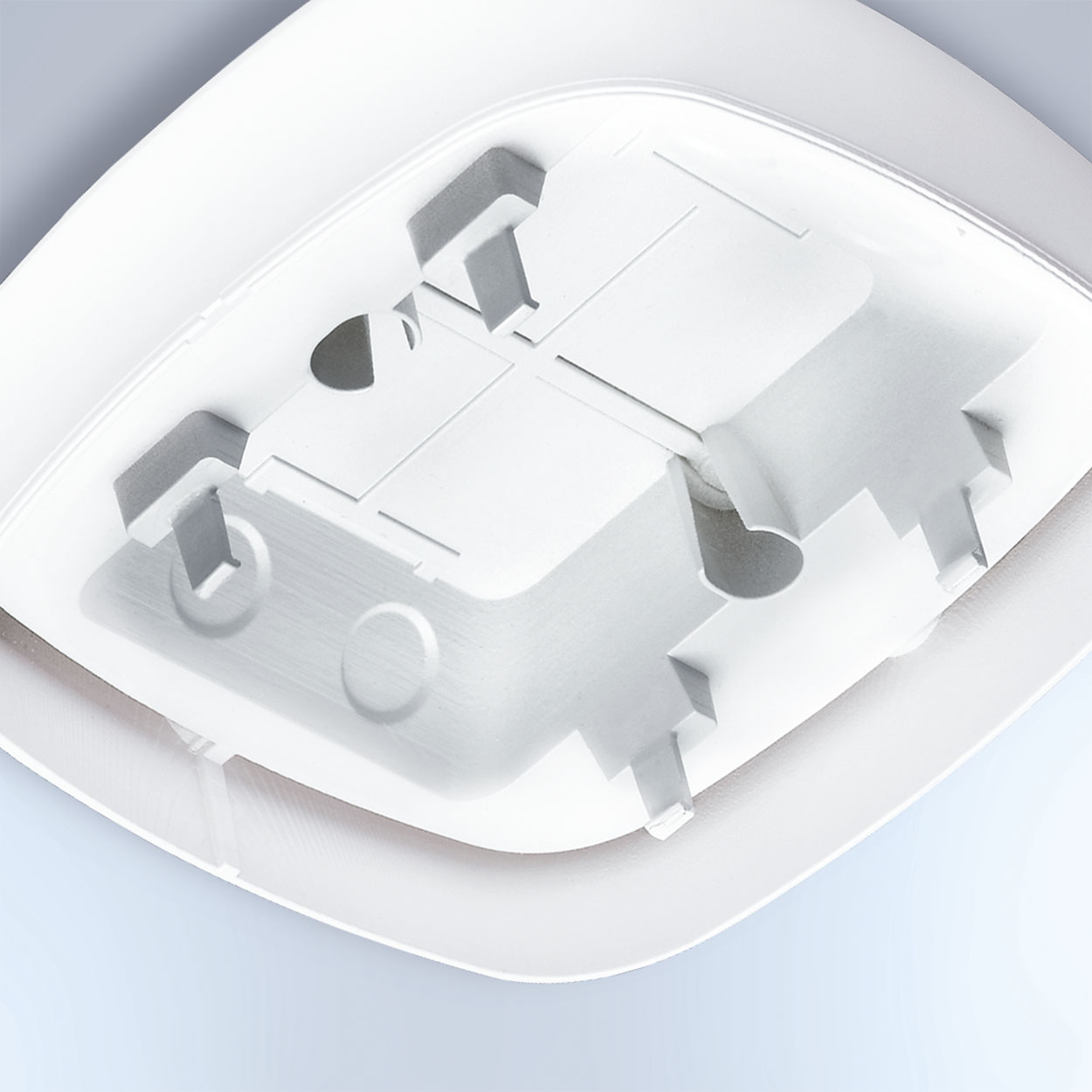

Mounting type

Flush-mounted Surface-mounted

Providing 1,760 switching zones, its sets new standards in detection quality especially in smaller-type offices, store rooms, service rooms, utility rooms and wash rooms. And the square detection zone too can be mechanically scaled without any loss of quality - a capability that's exclusive to STEINEL Professional Presence Control PRO.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535932905

Variants

Version DALI-2 Application Controller

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 76 x 120 x 120 mm

PU1 net weight 0.1510

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 2x12 electronic ballasts

Maximum inrush current 800 A

Sensor technology

Max. mounting height 8,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 100 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 5 x 5 m (25 m²)

Tangential range 7 x 7 m (49 m²)

Detection planes 13

Switching zones 1760 switching zones

Mounting height 2,50 – 8,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

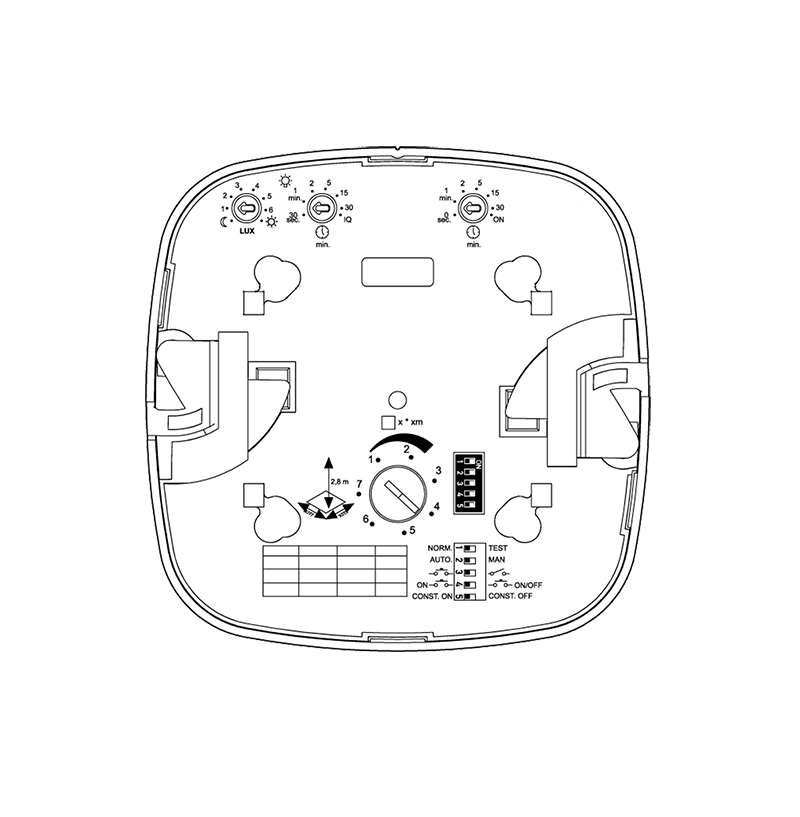

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 50 - 100 %

Functions Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 60 %

Base light function percent from 10.0000

Base light function percent to 60.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room one-person office conference room / meeting room duty room recreation room changing room function room / ancillary room kitchenette Indoors

Colour white

RAL colour 9010
