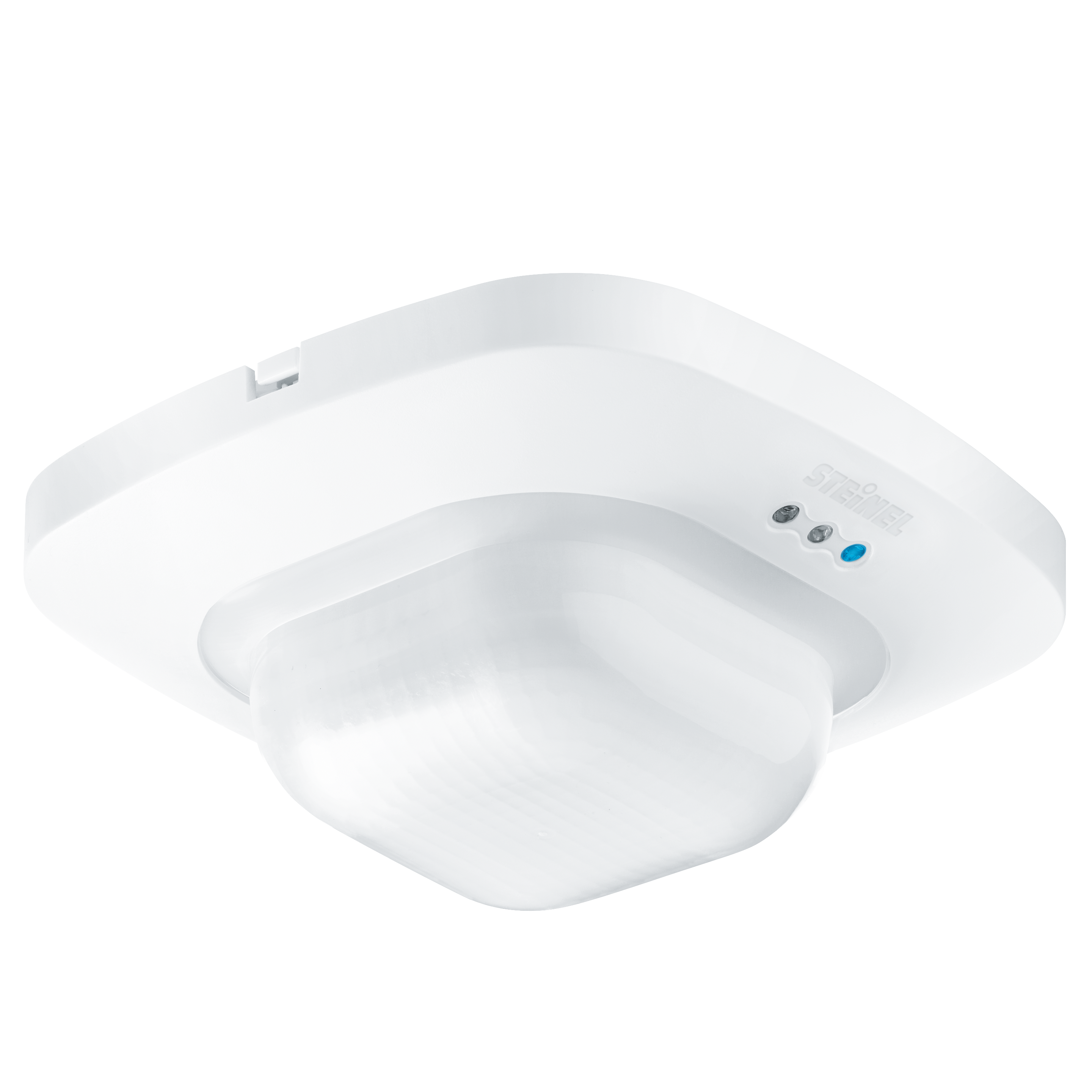

Steinel IR Quattro 8m KNX - Concealed wiring

EAN-No. 4007841058487

ELDAS® no. 058487

Version

DALI-2 Application Controller KNX 230V 1 channel 230V 2 channels

Mounting type

Flush-mounted Surface-mounted

Small offices as well as storage, service, utility and laundry rooms should be integrated reliably into a KNX system too. With its 1,760 switching zones, the IR Quattro KNX is the ideal solution. Its reach is infinitely scalable inside the 16 m² square presence detection zone. Without any loss of quality whatsoever. Permitting ultra-precise planning. Thanks to Presence Control PRO.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535933208

Variants

Version KNX

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 75 x 120 x 120 mm

PU1 net weight 0.1410

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 8,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 100 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

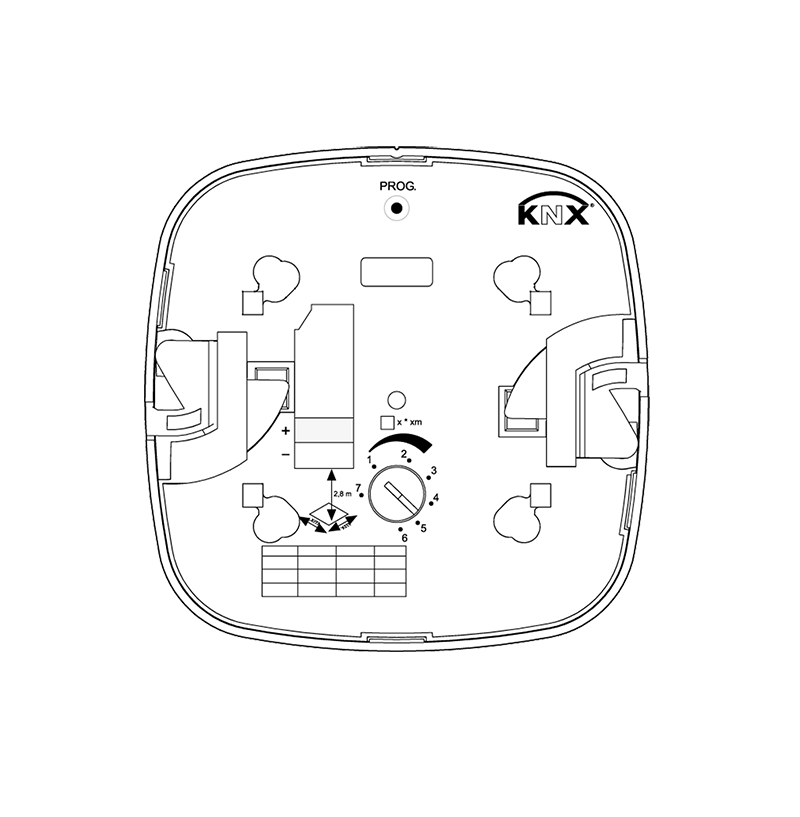

Radial range 5 x 5 m (25 m²)

Tangential range 7 x 7 m (49 m²)

Switching zones 1760 switching zones

Mounting height 2,50 – 8,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 10 s – 1092 Min.

Base light function Yes

Main light adjustable 0 - 100 %

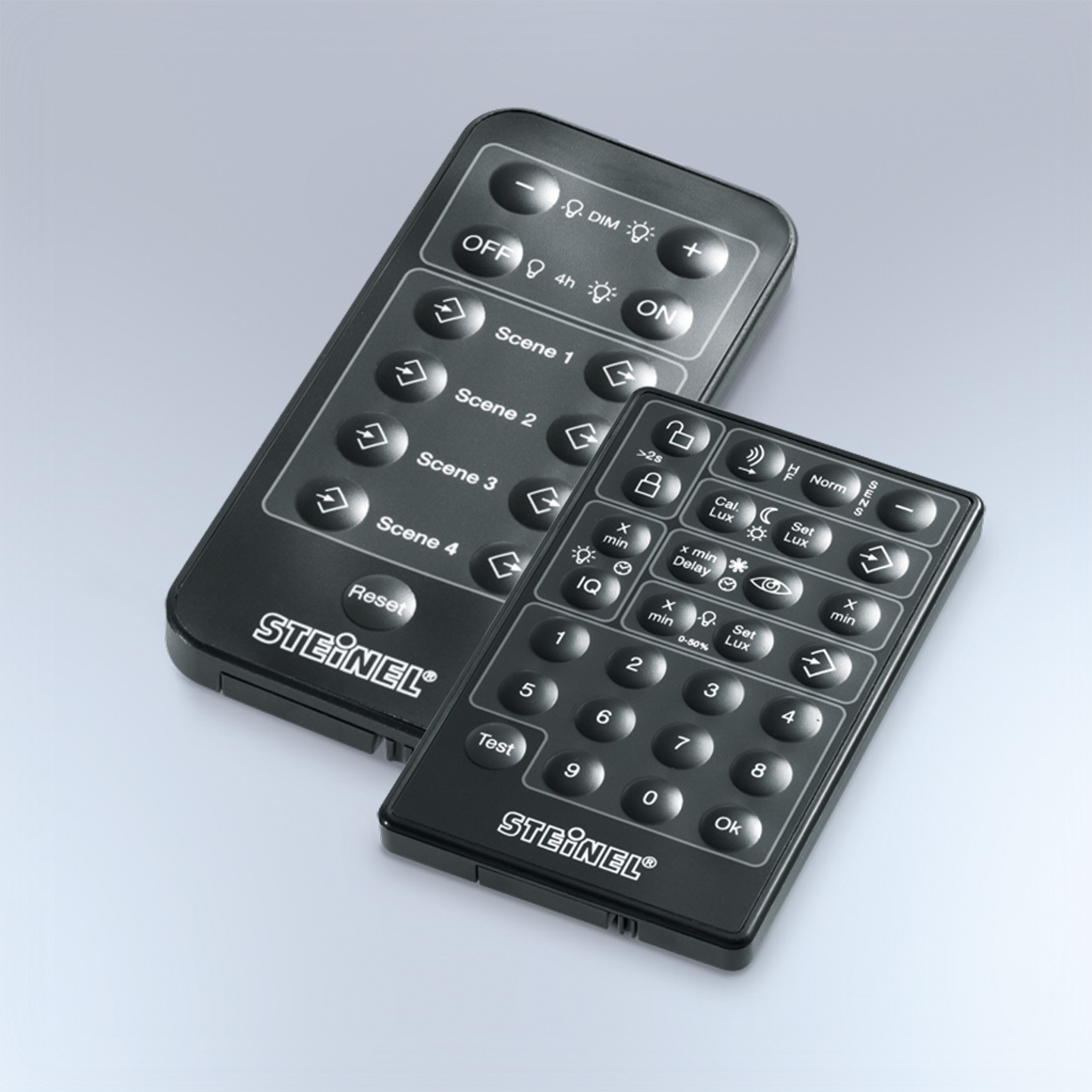

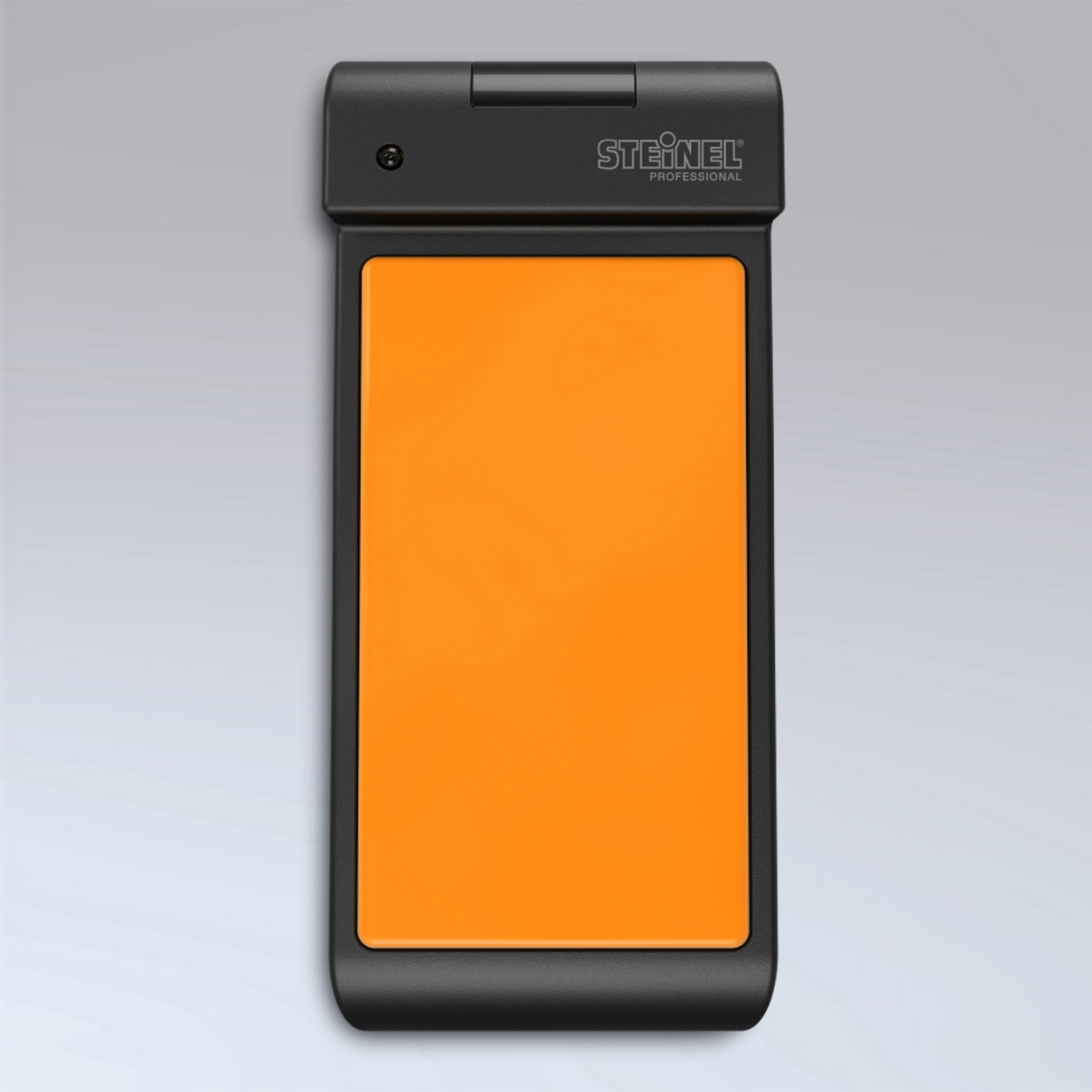

Settings via ETS software Remote control Bus Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room one-person office conference room / meeting room duty room recreation room changing room function room / ancillary room kitchenette Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing
