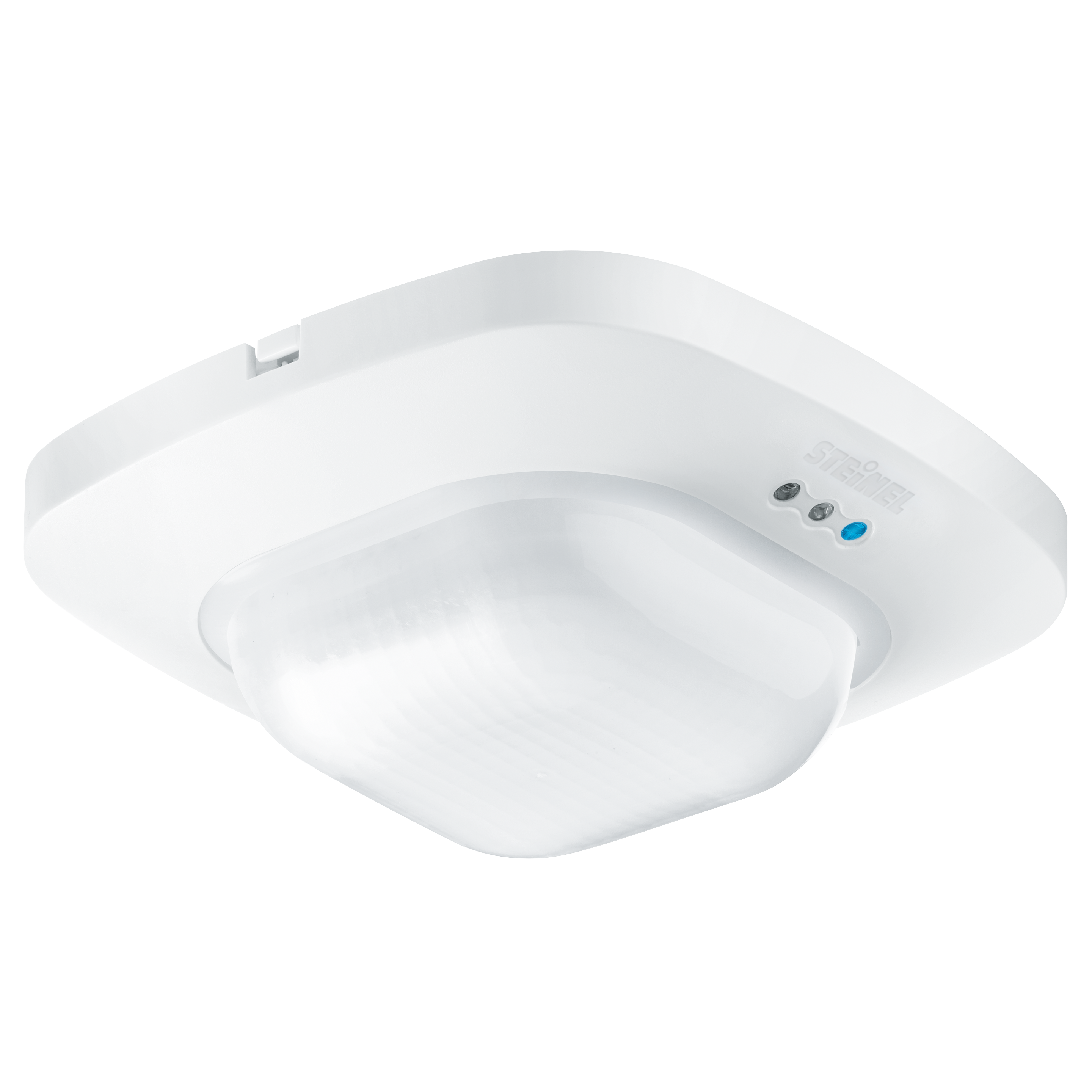

Steinel IR Quattro HD 24m DALI-2 APC - concealed

EAN-No. 4007841002756

ELDAS® no. 002756

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device 230V 1 channel 230V 2 channels

Colour

White Black

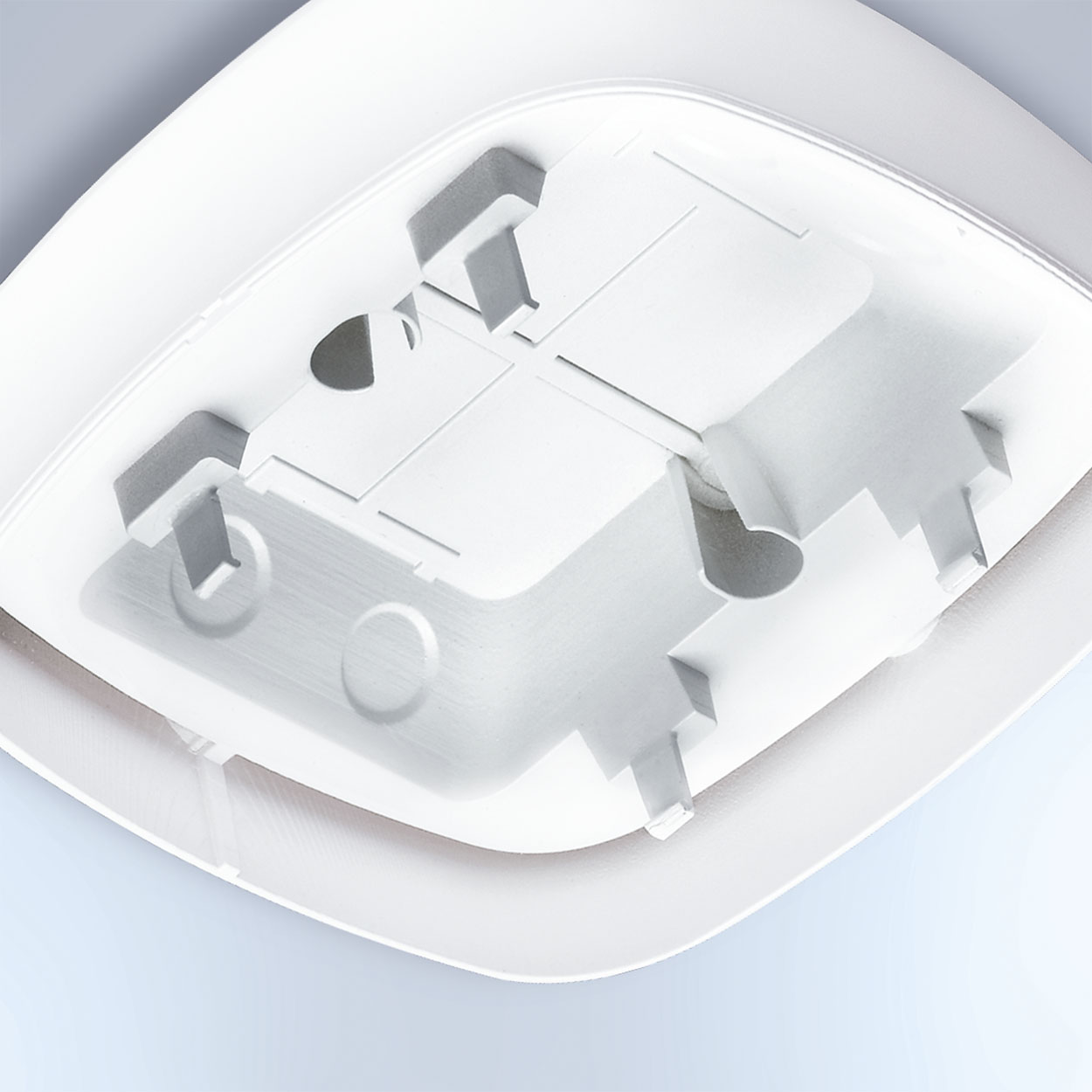

Mounting type

Flush-mounted Surface-mounted

HD isn't just restricted to televisions but from now on also used in presence detectors. Because IR Quattro HD provides extremely high-definition detection. 4,800 switching zones and a square detection footprint with a presence zone covering a true 64 m² leave no margin whatsoever for inadvertent triggering and blind spots. Unique: The presence zone can be mechanically scaled without the slightest loss of quality. This means IR Quattro HD applications in medium to large-size offices, conference and meeting rooms, class rooms and lecture theatres as well as sports halls and warehouses can be planned and configured with absolute precision. Something others can only dream of.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535933905

Variants

Version DALI-2 Application Controller

Colour White

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 70 x 120 x 120 mm

PU1 net weight 0.1640

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 2x12 electronic ballasts

Maximum inrush current 800 A

Sensor technology

Max. mounting height 10,00 m

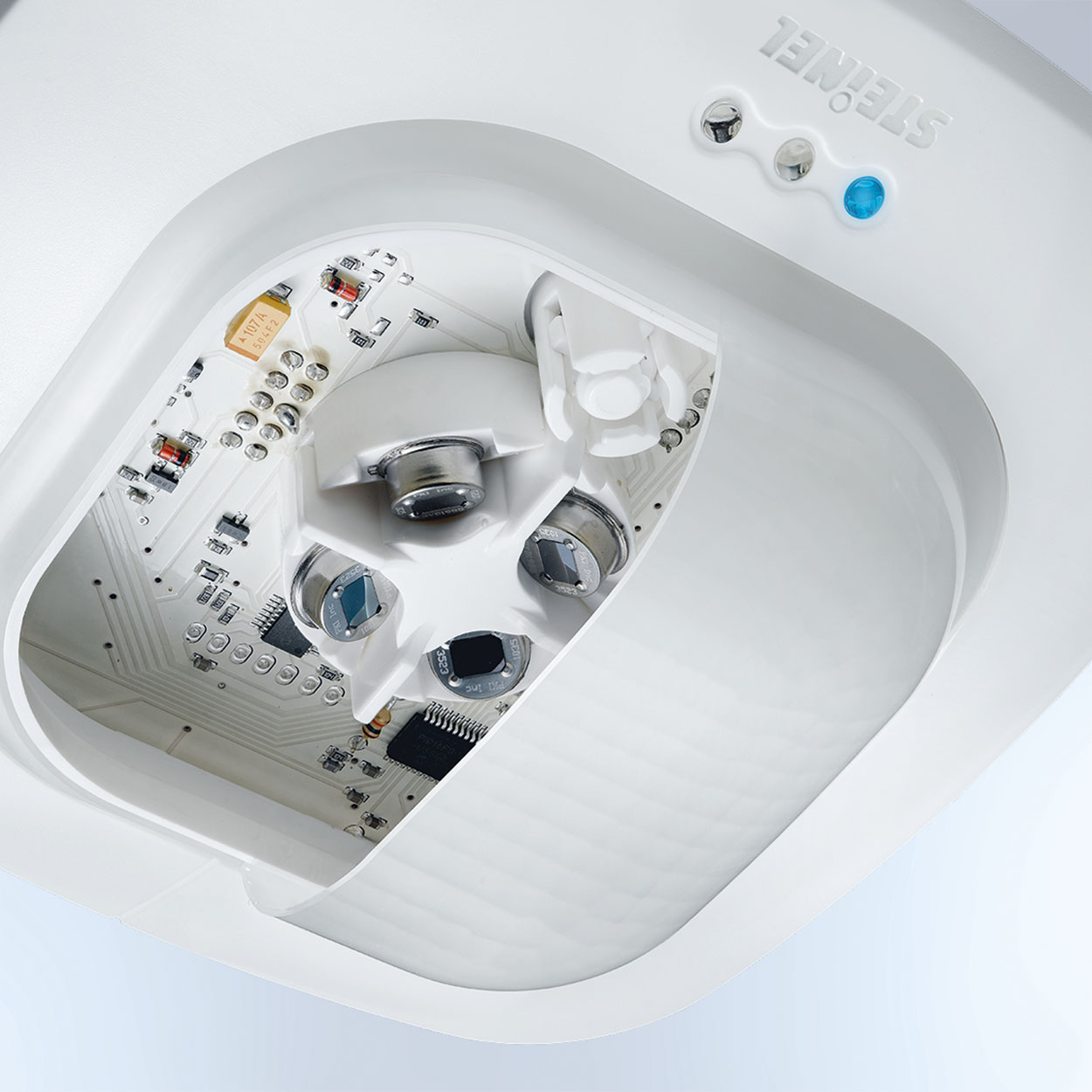

Sensor technology passive infrared

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Detection planes 13

Switching zones 4800 switching zones

Mounting height 2,50 – 10,00 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

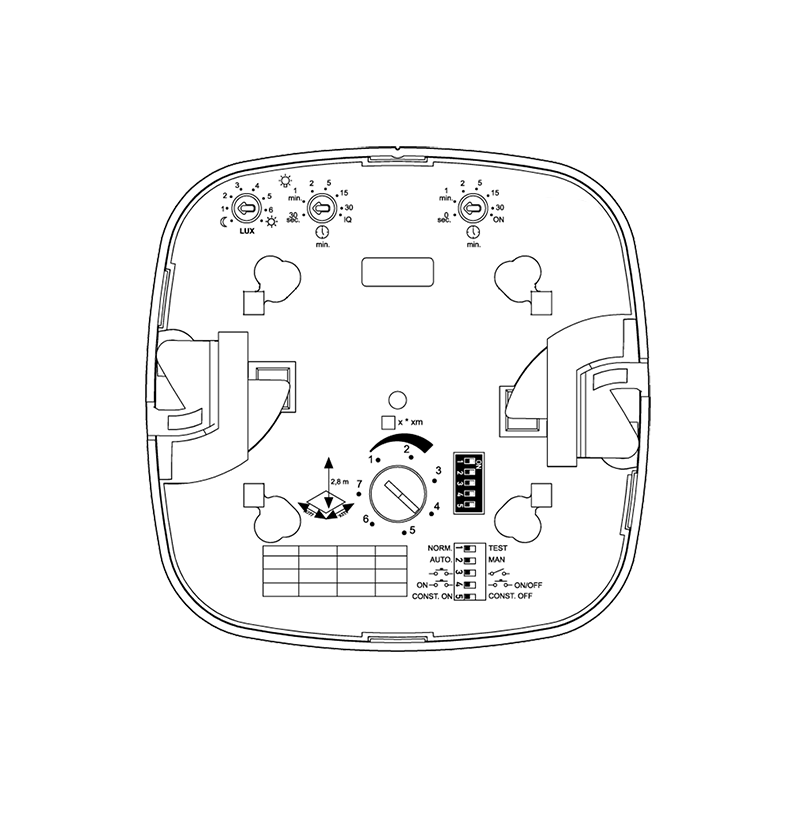

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 50 - 100 %

Functions Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room classroom lecture hall open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room sports hall reception / lobby multi-storey / underground car park Indoors

Colour white

RAL colour 9010
