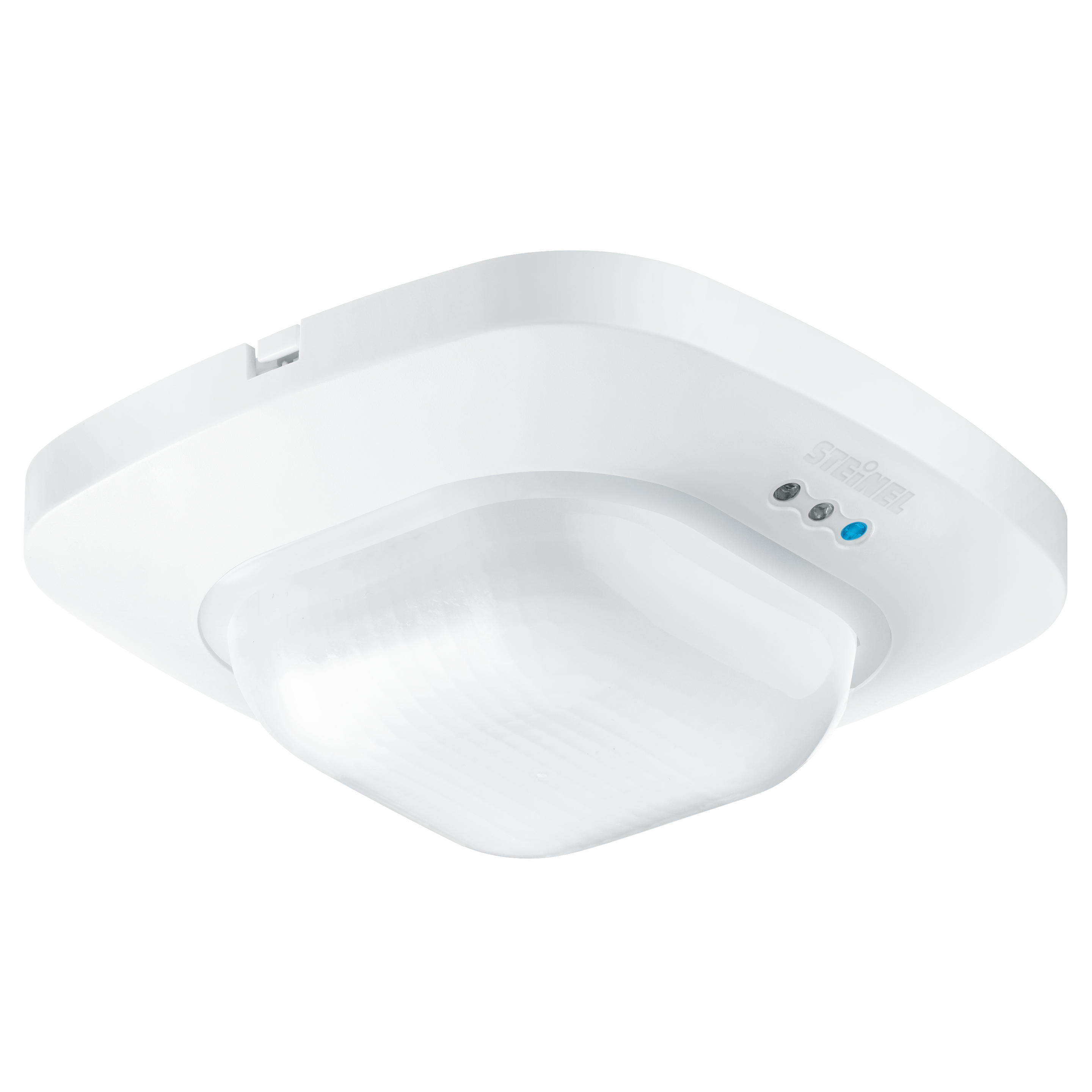

Steinel IR Quattro HD 24m DALI-2 Input Device

EAN-No. 4007841057497

ELDAS® no. 057497

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device 230V 1 channel 230V 2 channels

Colour

White Black

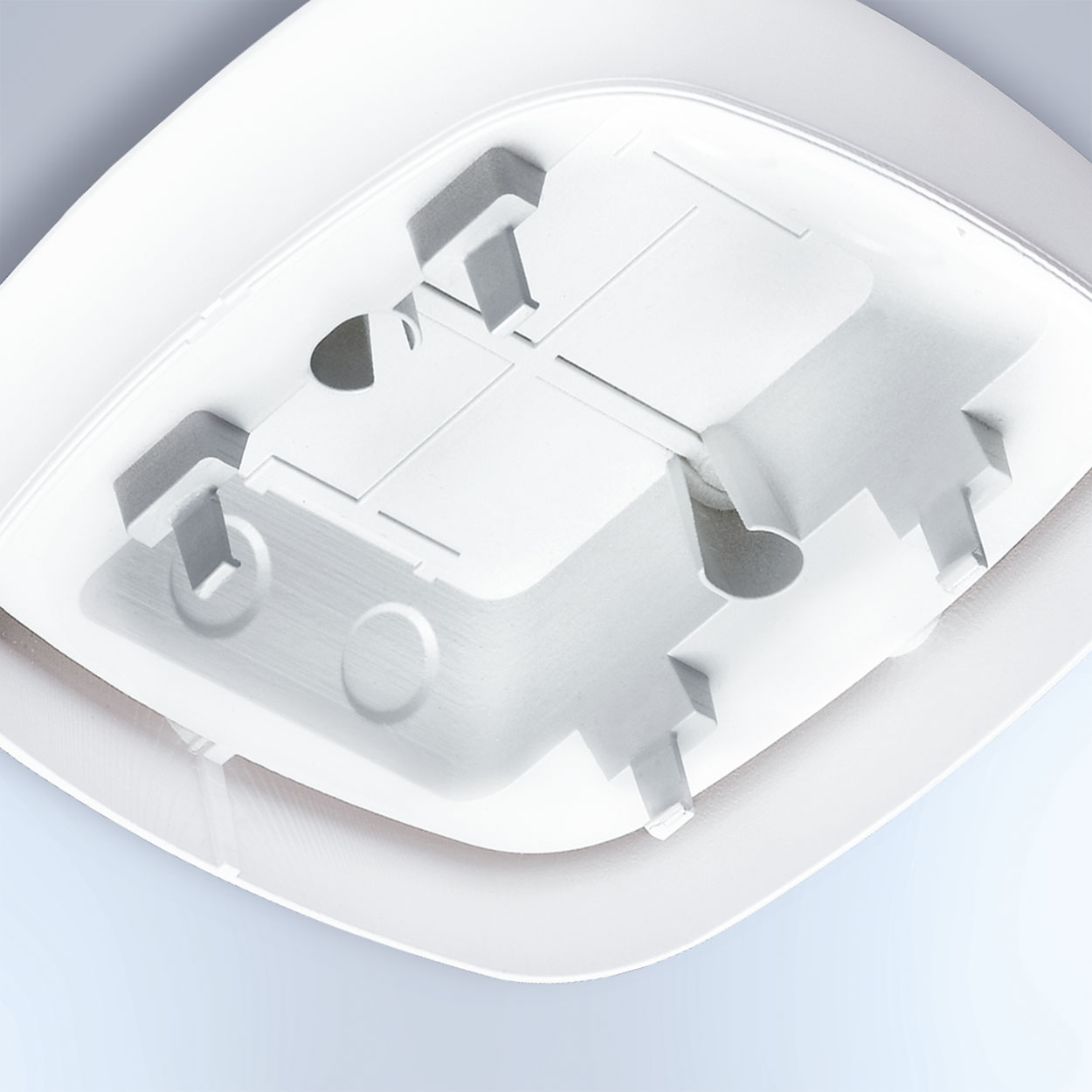

Mounting type

Flush-mounted Surface-mounted

HD isn't just restricted to televisions but from now on also used in presence detectors. Because IR Quattro HD provides extremely high-definition detection. 4,800 switching zones and a square detection footprint with a presence zone covering a true 64 m² leave no margin whatsoever for inadvertent triggering and blind spots. Unique: The presence zone can be mechanically scaled without the slightest loss of quality. This means IR Quattro HD applications in medium to large-size offices, conference and meeting rooms, class rooms and lecture theatres as well as sports halls and warehouses can be planned and configured with absolute precision. Something others can only dream of.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535932300

Variants

Version DALI-2 Input Device

Colour White

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 70 x 120 x 120 mm

PU1 net weight 0.0920

Electrical

Mains connection 12 – 22,5 V

Supply voltage detail DALI bus

Switching output 2 potential-free No

Control output DALI Addressable/slave

Max. current consumption per IEC 62386-101 42 mA

Typical current consumption at 16 V input voltage 6 mA

Max. current consumption at 10 V input voltage in regular operation 8 mA

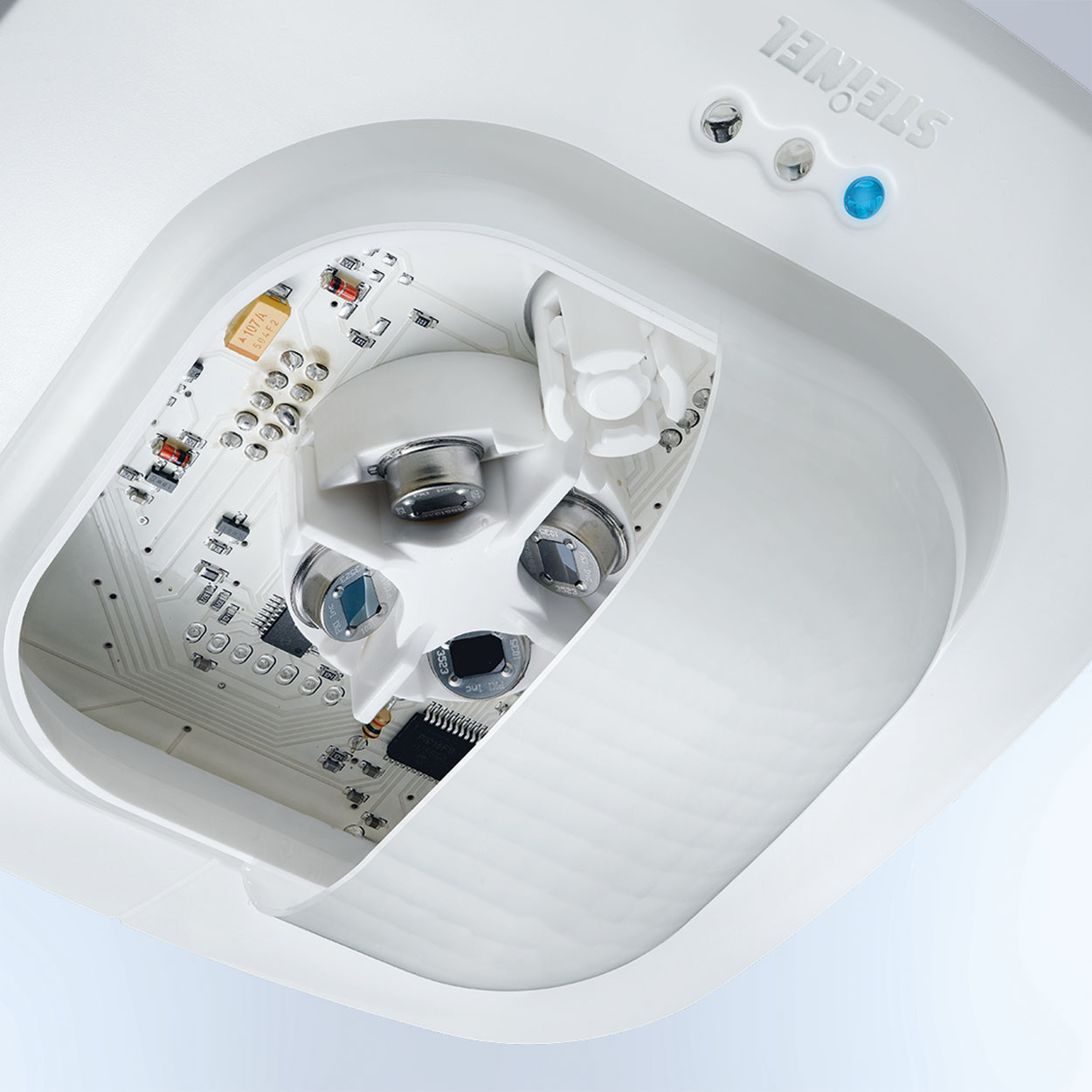

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Detection planes 13

Switching zones 4800 switching zones

Mounting height 2,50 – 10 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 4.0000

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Base light function No

Main light adjustable No

Functions Presence function

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Ambient temperature from -25 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room classroom lecture hall open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room sports hall reception / lobby multi-storey / underground car park Indoors

Colour white

RAL colour 9010
