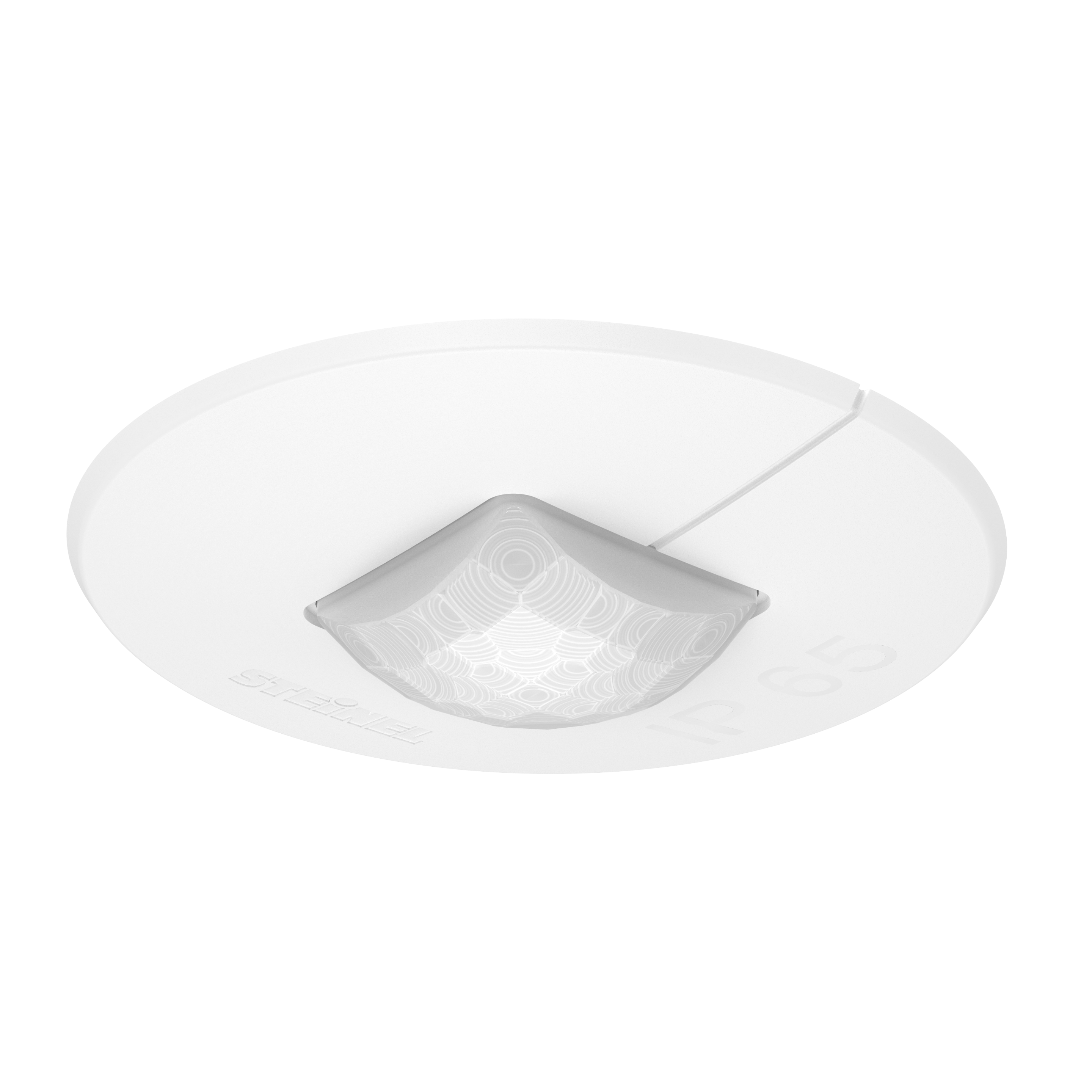

Steinel IR Quattro MICRO 6m KNX - white

EAN-No. 4007841064129

ELDAS® no. 064129

Version

KNX 230V 1 channel DALI-2

Colour

White Black

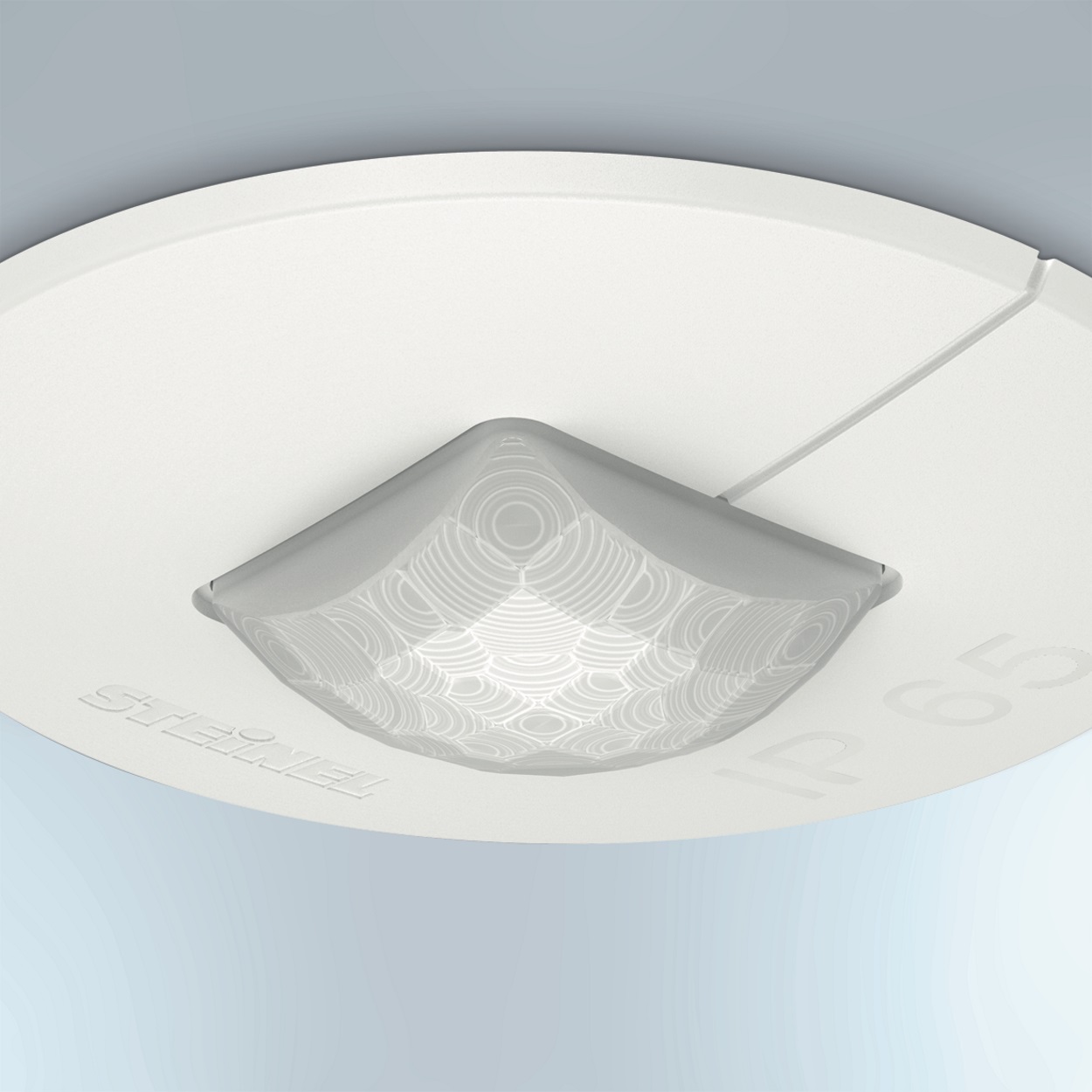

Required by planners and architects, made by STEINEL. The IR Quattro MICRO fulfills many wishes. Its small size and the low profile design make it perfect for applications where disturbing installations on the ceiling are to be avoided. The micro-precision lens measures just 15 x 15 mm. Its performance is nevertheless stunning. The 360° infrared presence detector detects 36 m². And the IP65 classification lets you install it in rooms that are subject to moisture. The IR Quattro MICRO – our smallest unit with huge potential.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535934808

Variants

Version KNX

Colour White

Dimensions

Dimensions L × W × H 71 x 43 x 43 mm

Dimensions Ø × H 43 x 71 mm

PU1 net weight 0.0300

Electrical

Mains connection 30 V

Own consumption 0,5 W

Supply voltage detail KNX bus

Maximum inrush current 10 A

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Switching zones 168 switching zones

Mounting height 2,00 – 5,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Day / night function Presence output Light output 4x Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 60 s – 255 Min.

Base light function Yes

Main light adjustable 0 - 100 %

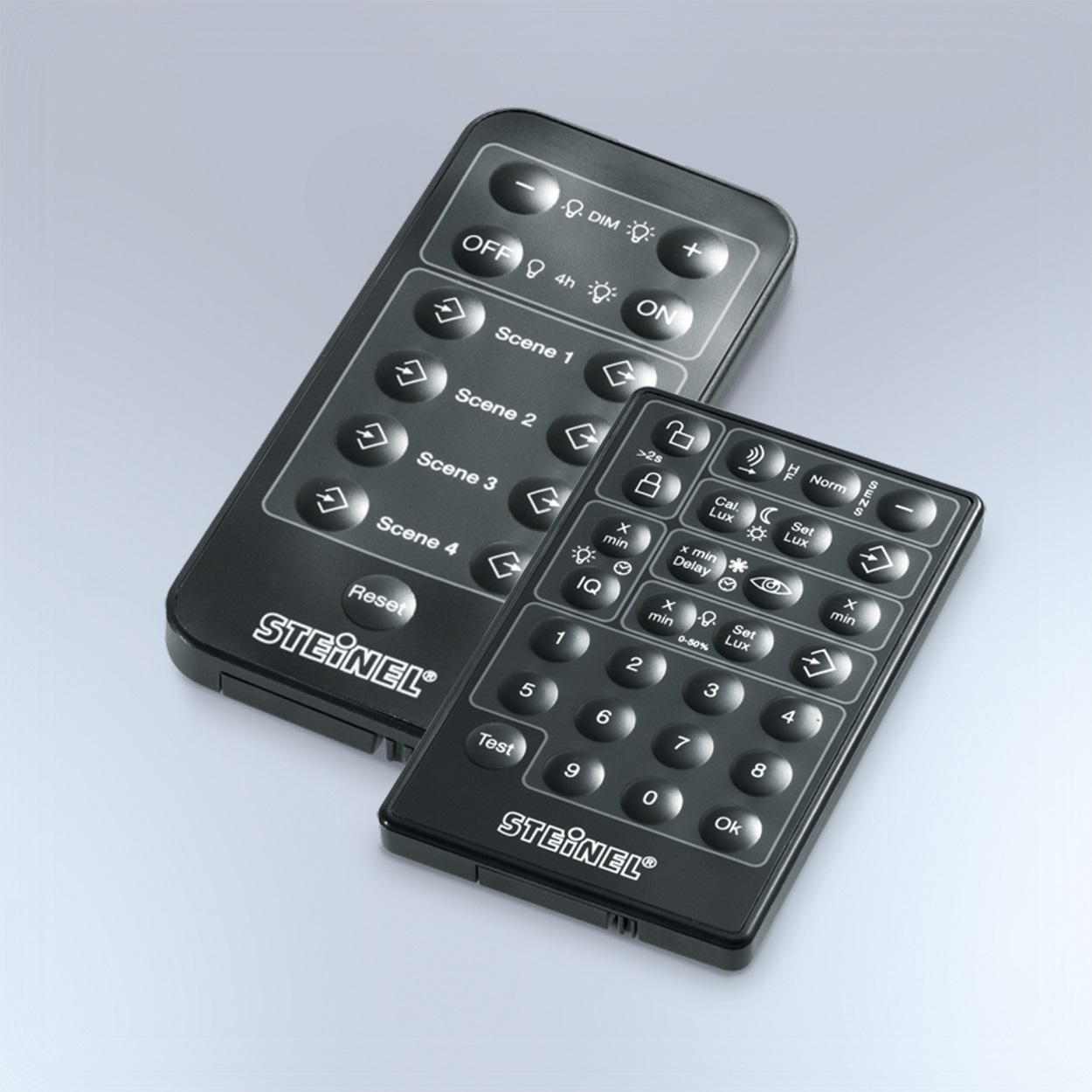

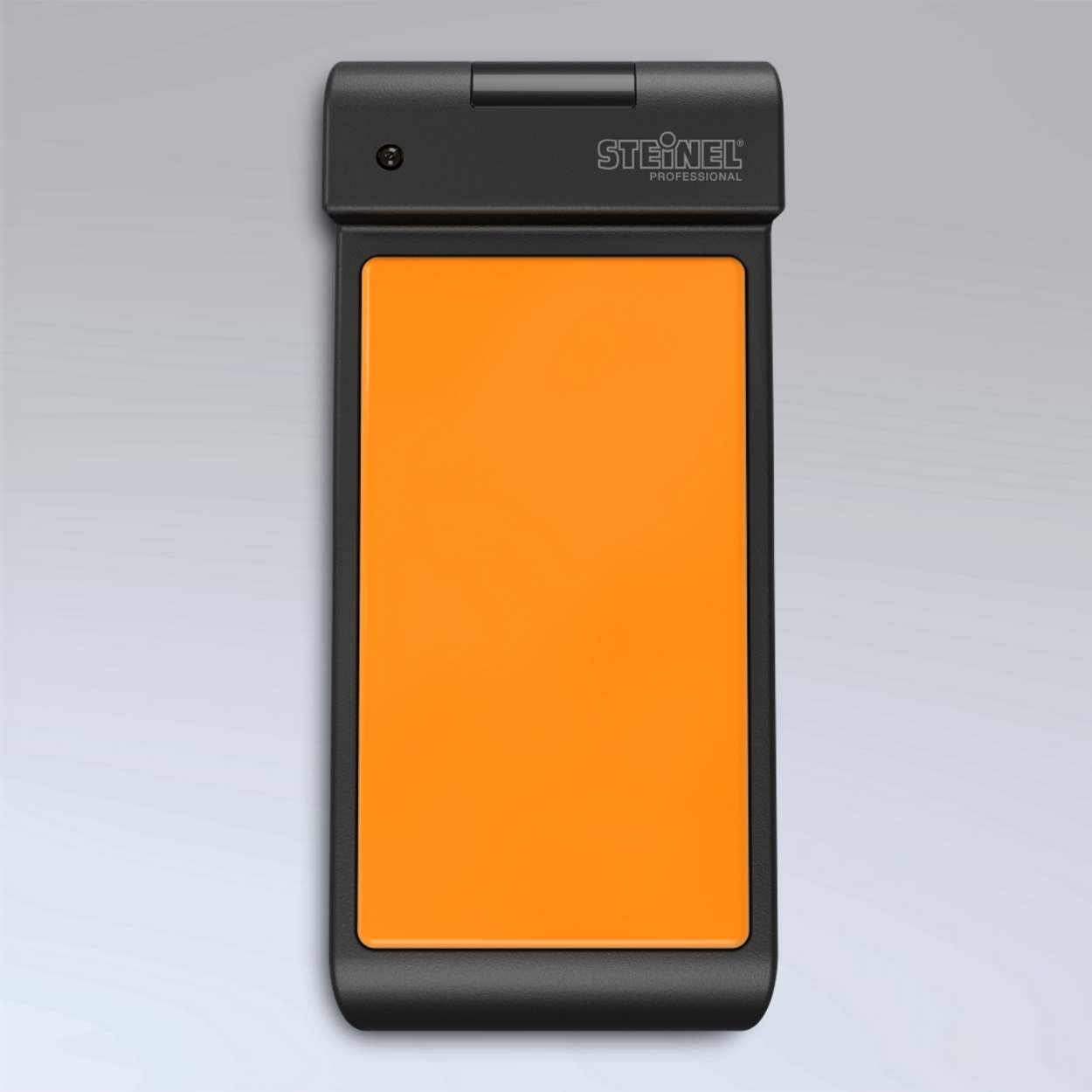

Settings via ETS software Remote control Bus Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP65

Ambient temperature from -25 up to 55 °C

Housing material Plastic

Cover material without cover

Mounting location ceiling

Application location Indoors

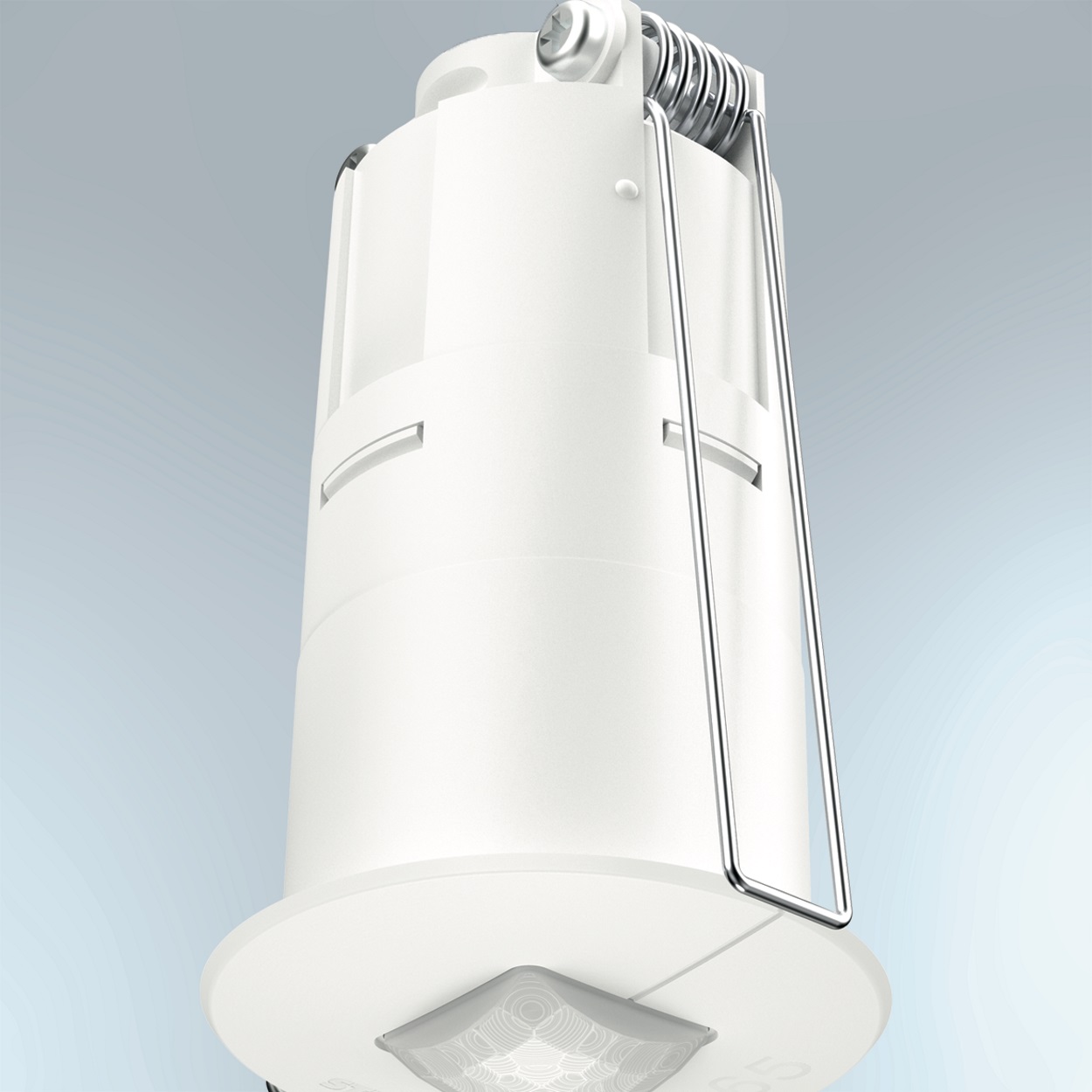

Mounting type In-ceiling installation

Material Plastic

Application room one-person office hotel room care room function room / ancillary room WC / washroom Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No
