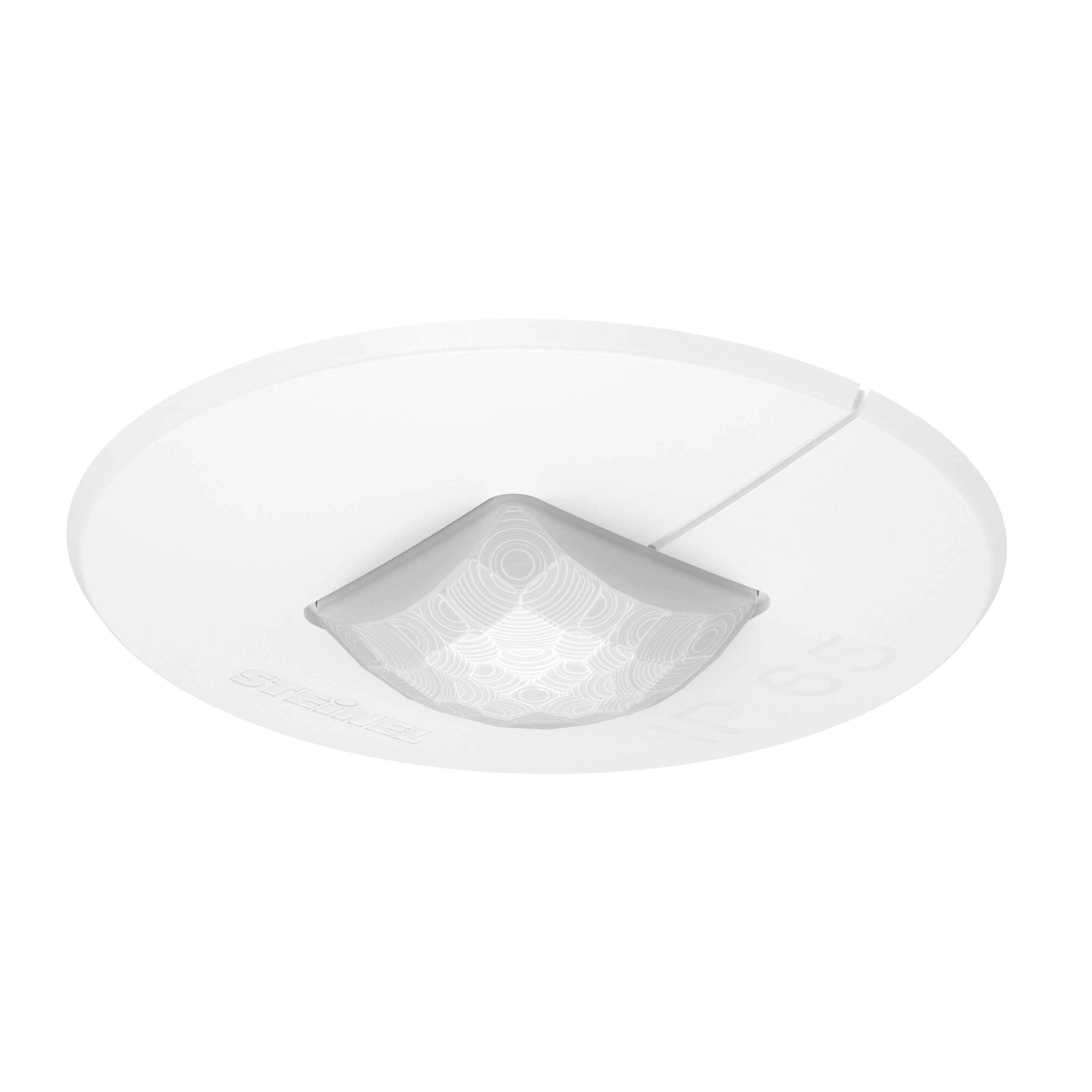

Steinel IR Quattro MICRO 6m DALI-2 Input Device - white

EAN-No. 4007841053871

ELDAS® no. 053871

Version

KNX 230V 1 channel DALI-2

Colour

White Black

Required by planners and architects, made by STEINEL. The IR Quattro MICRO fulfills many wishes. Its small size and the low profile design make it perfect for applications where disturbing installations on the ceiling are to be avoided. The micro-precision lens measures just 15 x 15 mm. Its performance is nevertheless stunning. The 360° infrared presence detector detects 36 m². And the IP65 classification lets you install it in rooms that are subject to moisture. The IR Quattro MICRO – our smallest unit with huge potential.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535933806

Variants

Version DALI-2

Colour White

Dimensions

Dimensions L × W × H 75 x 43 x 43 mm

Dimensions Ø × H 43 x 75 mm

PU1 net weight 0.1320

Electrical

Mains connection 12 – 22,5 V

Supply voltage detail DALI bus

Control output DALI Addressable/slave

Maximum inrush current 10 A

Max. current consumption per IEC 62386-101 12 mA

Typical current consumption at 16 V input voltage 4 mA

Max. current consumption at 10 V input voltage in regular operation 5 mA

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Switching zones 168 switching zones

Mounting height 2,00 – 5,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 2.0000

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP65

Ambient temperature from -25 up to 55 °C

Housing material Plastic

Cover material without cover

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room one-person office hotel room care room function room / ancillary room WC / washroom Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

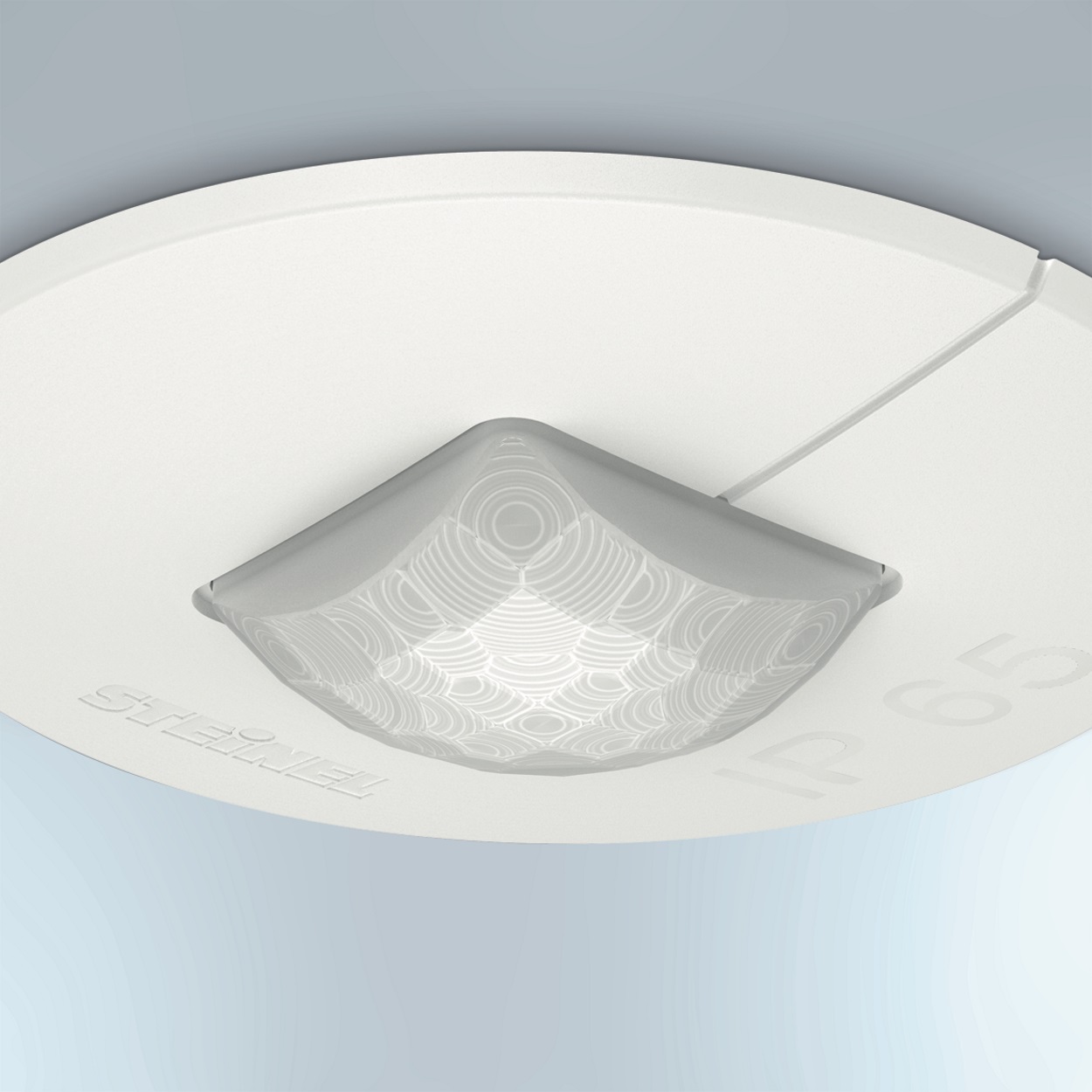

Miniature precision infrared lens

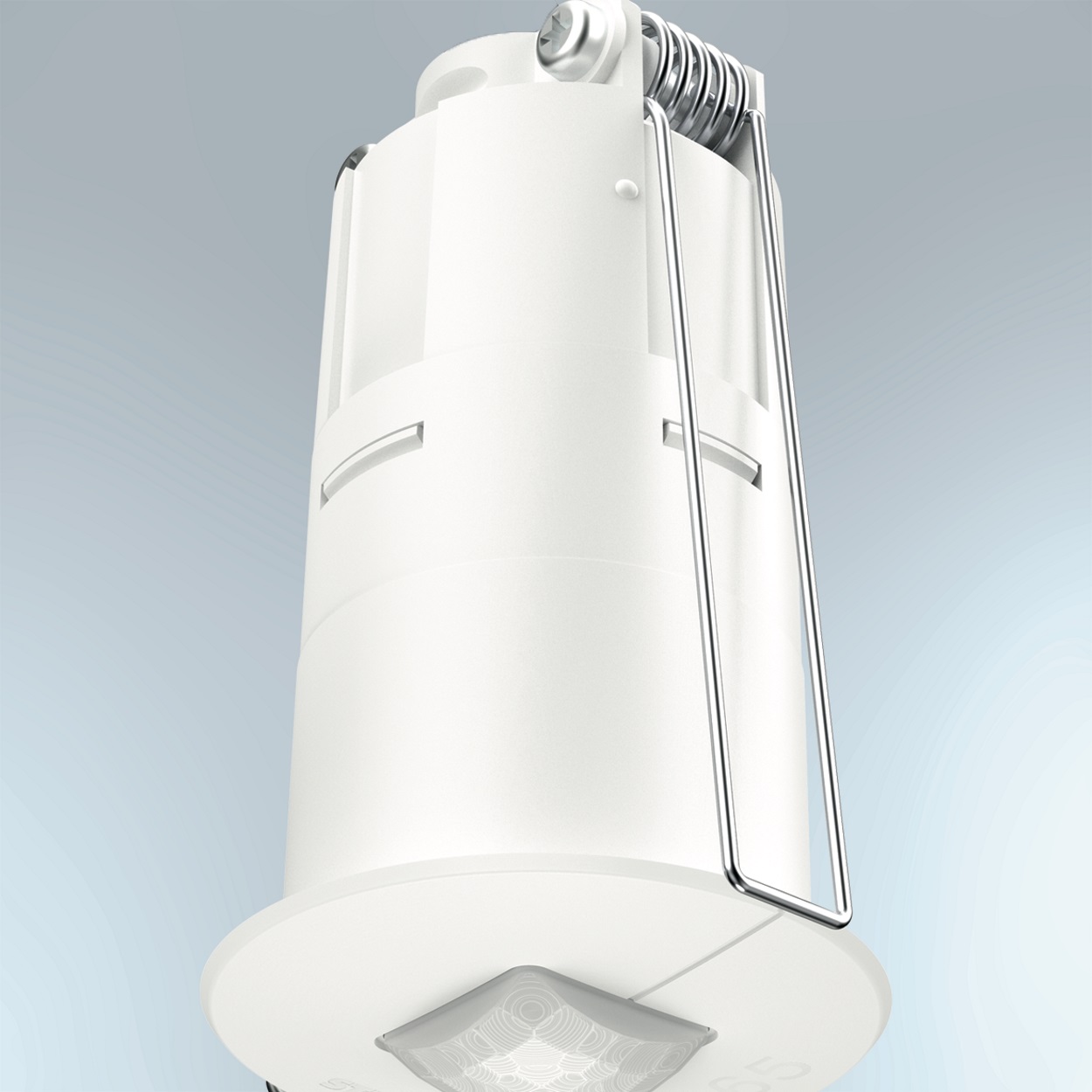

With spring clips

Technical drawing

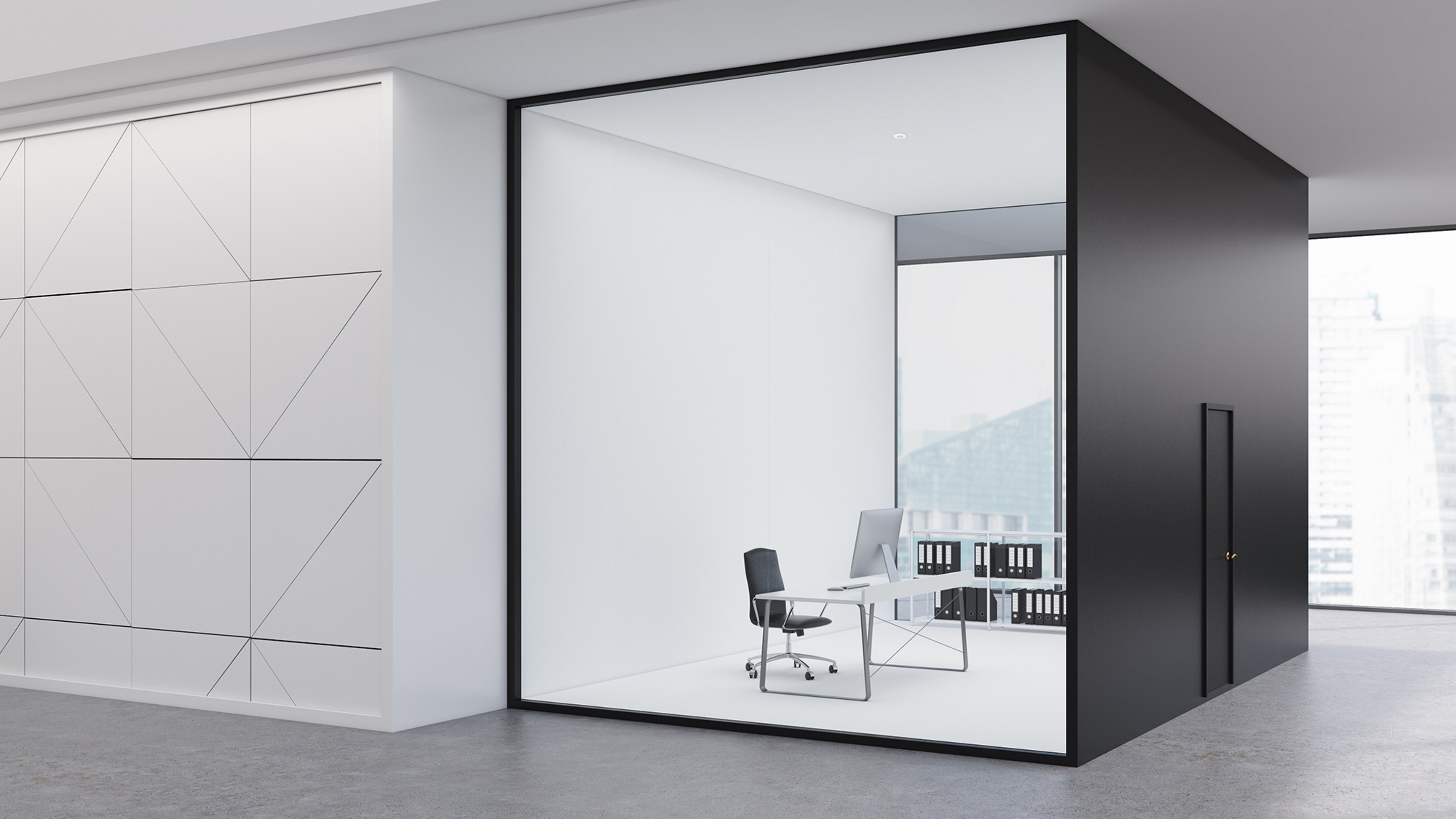

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity
