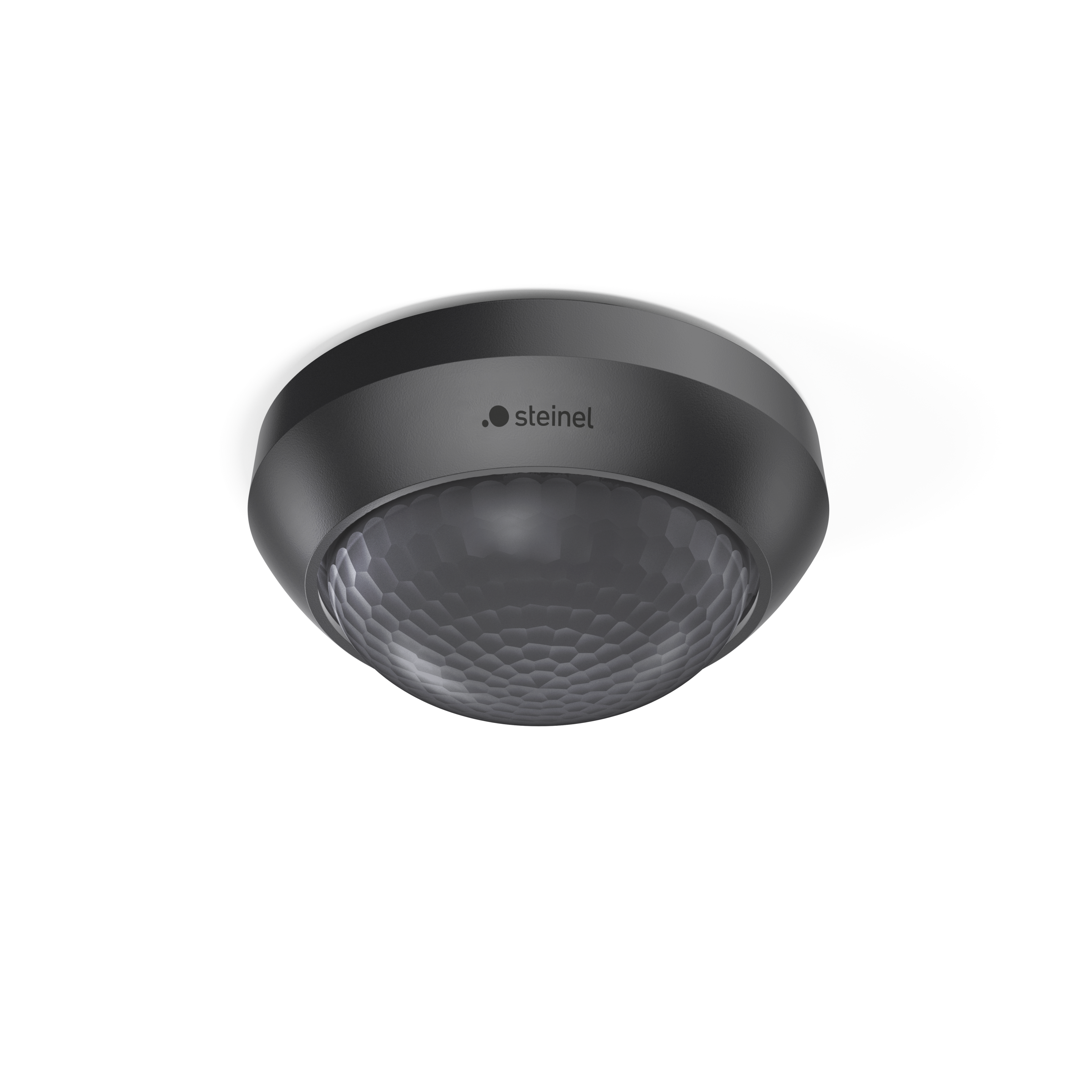

Steinel IS 2360-3 ECO 24m black
EAN-No. 4007841081706
ELDAS® no. 081706
Price: Please log in to see prices
Colour
White
Black
Detection range
Ø7 m
Ø24 m
The infrared ceiling sensor that satisfies all demands and is really simple to install. Simply genius: sophisticated technology that is installed and configured in just a few steps thanks to a clever installation concept. Thanks to its three pyro sensors, the infrared surface-mounted sensor has an impressive 360° angle of coverage and a range of up to 12 m. The detection zone can be set to any requirement by fitting shrouds.
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535940508
Variants
Colour
Black
Detection range
Ø24 m
Dimensions
Dimensions Ø × H
121 x 57 mm
PU1 net weight
0.1770
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
500 W
Fluorescent lamps series-compensated
900 VA
Fluorescent lamps parallel-compensated
400 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
250 W
LED lamps > 8 W
500 W
Capacitive load in µF
176 µF
Own consumption
0,56 W
Switching output 1 number of LED/fluorescent lamps
8.0000
Switching output 1 potential-free
No
Maximum inrush current
200 A
Sensor technology
Max. mounting height
6,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 6 m (28 m²)
Tangential range
Ø 24 m (452 m²)
Switching zones
972 switching zones
Mounting height
2,50 – 6,00 m
Optimal mounting height
2,8 m
Nevalux sensor technology
On / Off
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Networking quantity
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
5 s – 15 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Protection class
II
Ambient temperature
from -20 up to 50 °C
Cover material (scope of delivery)
shrouds
Mounting location
ceiling
Application location
Outdoors
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
corridor / aisle
changing room
function room / ancillary room
kitchenette
stairwell
WC / washroom
multi-storey / underground car park
outdoors
warehouse
Indoors
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
VDE

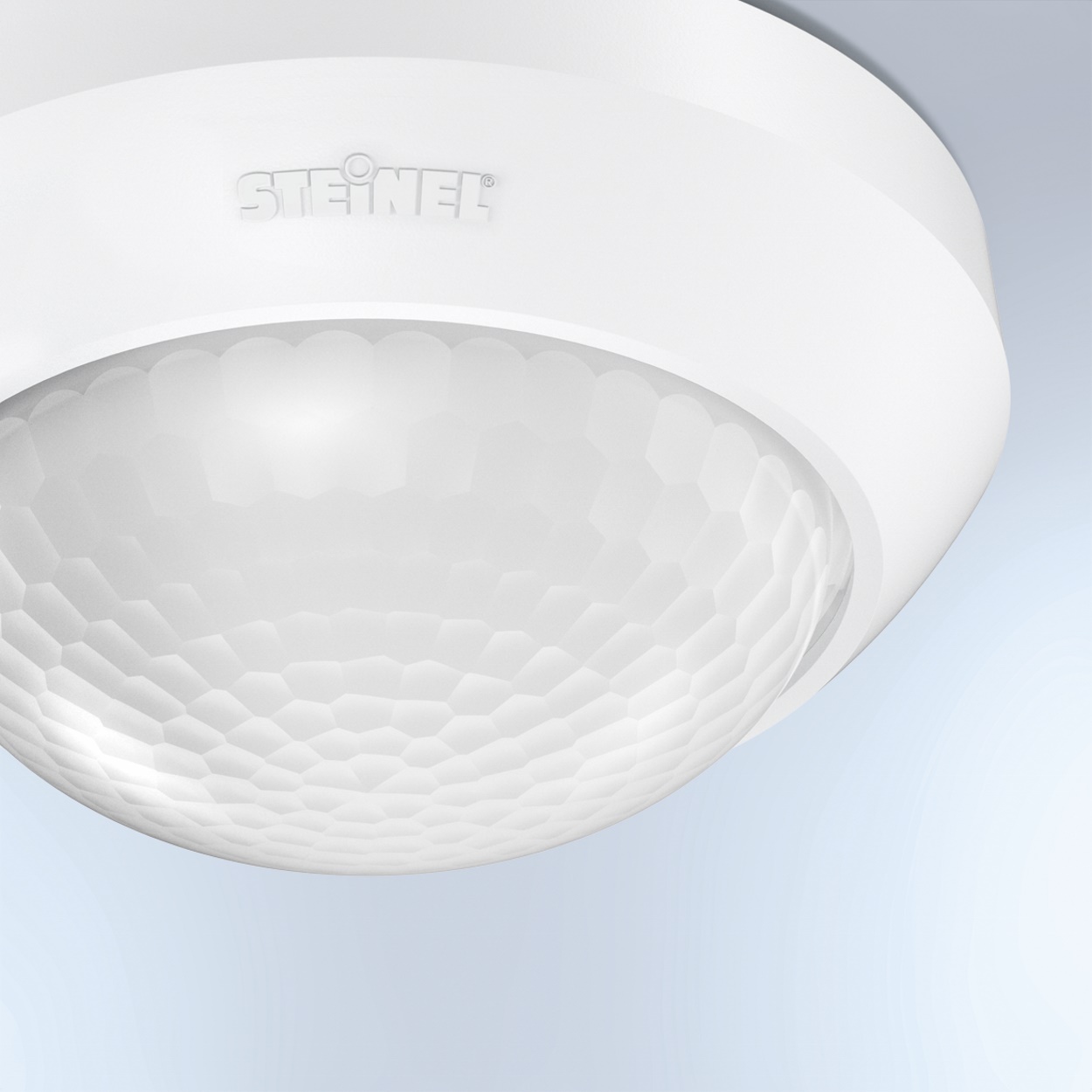

UV-resistant plastic
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
