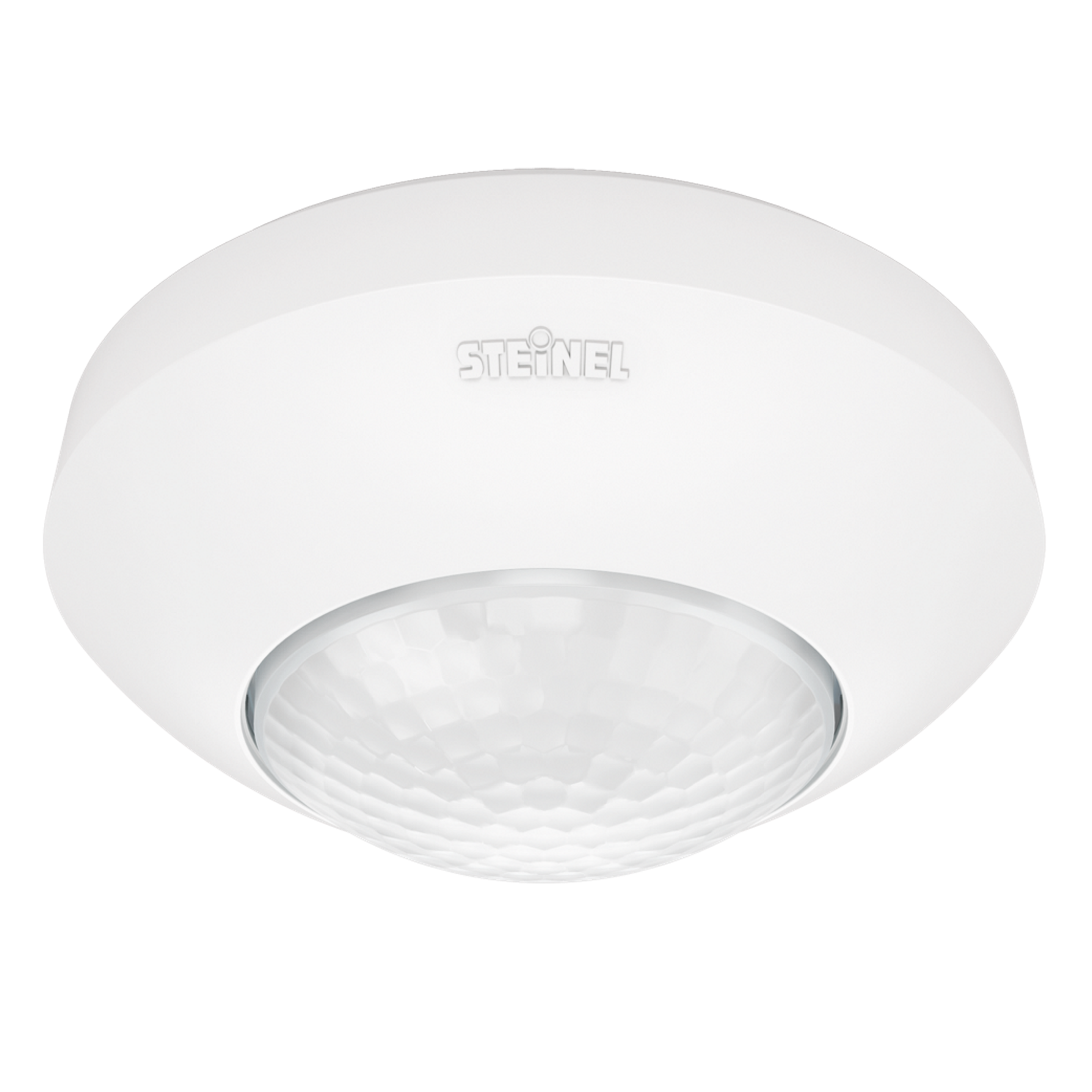

Steinel IS 2360 ECO 7m white
EAN-No. 4007841006556
ELDAS® no. 006556
Price: Please log in to see prices
Colour
White
Black
Detection range
Ø7 m
Ø24 m
Stylish infrared ceiling sensor with an unobtrusive compact look. The surface-mounted IS 2360 motion detector with passive infrared sensor technology is the perfect choice for porches and small rooms. With a reach of 7 m and 360° detection zone, it reliably detects all movements with absolute precision. The precision IR sensor also impresses with its ease of installation.
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535954000
Variants
Colour
White
Detection range
Ø7 m
Dimensions
Dimensions Ø × H
115 x 51 mm
PU1 net weight
0.1200
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
2000 W
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
350 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
500 VA
Fluorescent lamps parallel-compensated
500 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
175 W
LED lamps > 8 W
350 W
Capacitive load in µF
132 µF
Switching output 1 number of LED/fluorescent lamps
50.0000
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 3 m (7 m²)
Tangential range
Ø 7 m (38 m²)
Switching zones
664 switching zones
Mounting height
2,00 – 4,00 m
Optimal mounting height
2,8 m
Nevalux sensor technology
On / Off
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Networking quantity
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Outdoors
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
corridor / aisle
changing room
function room / ancillary room
kitchenette
stairwell
WC / washroom
multi-storey / underground car park
outdoors
warehouse
Indoors
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
VDE

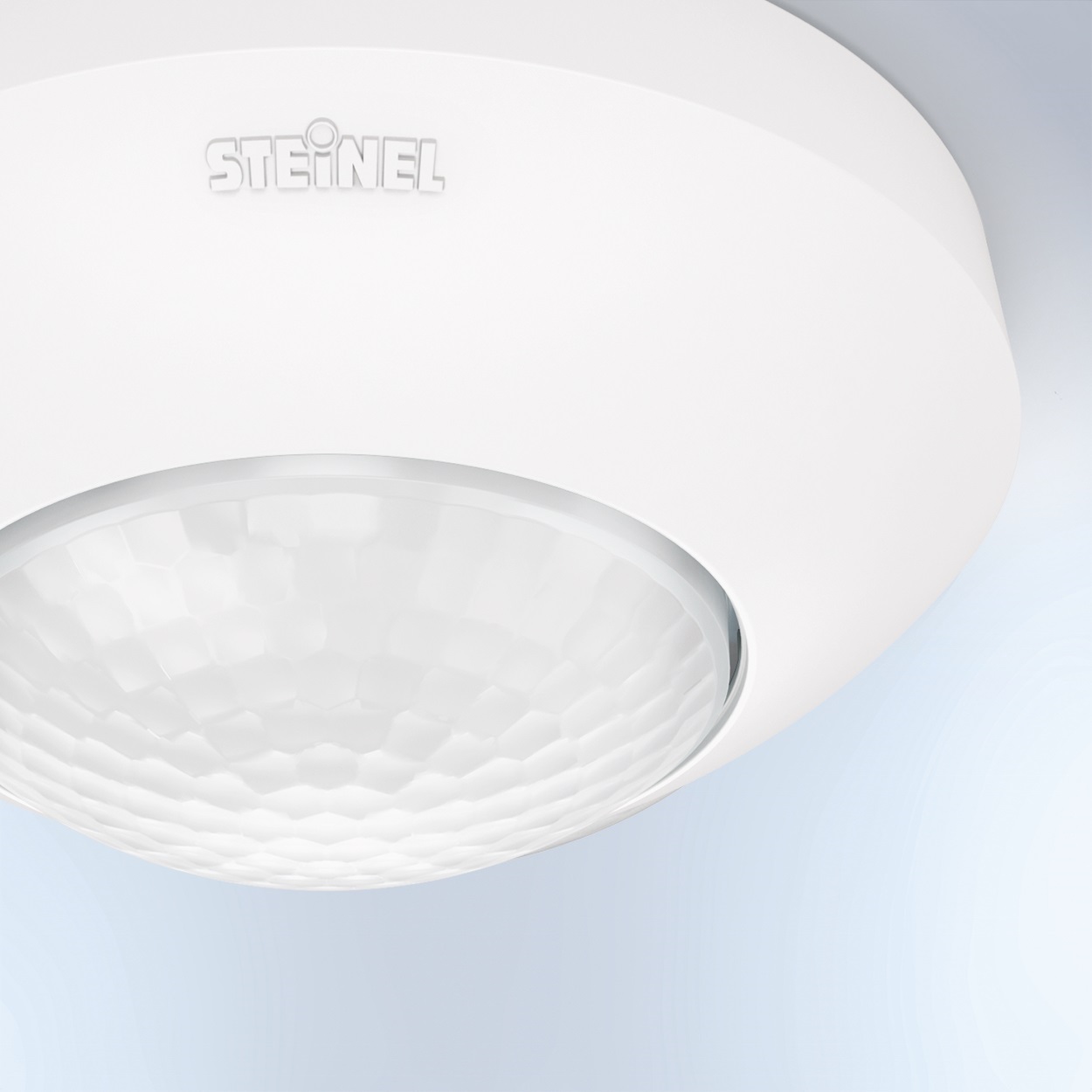

UV-resistant plastic
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
