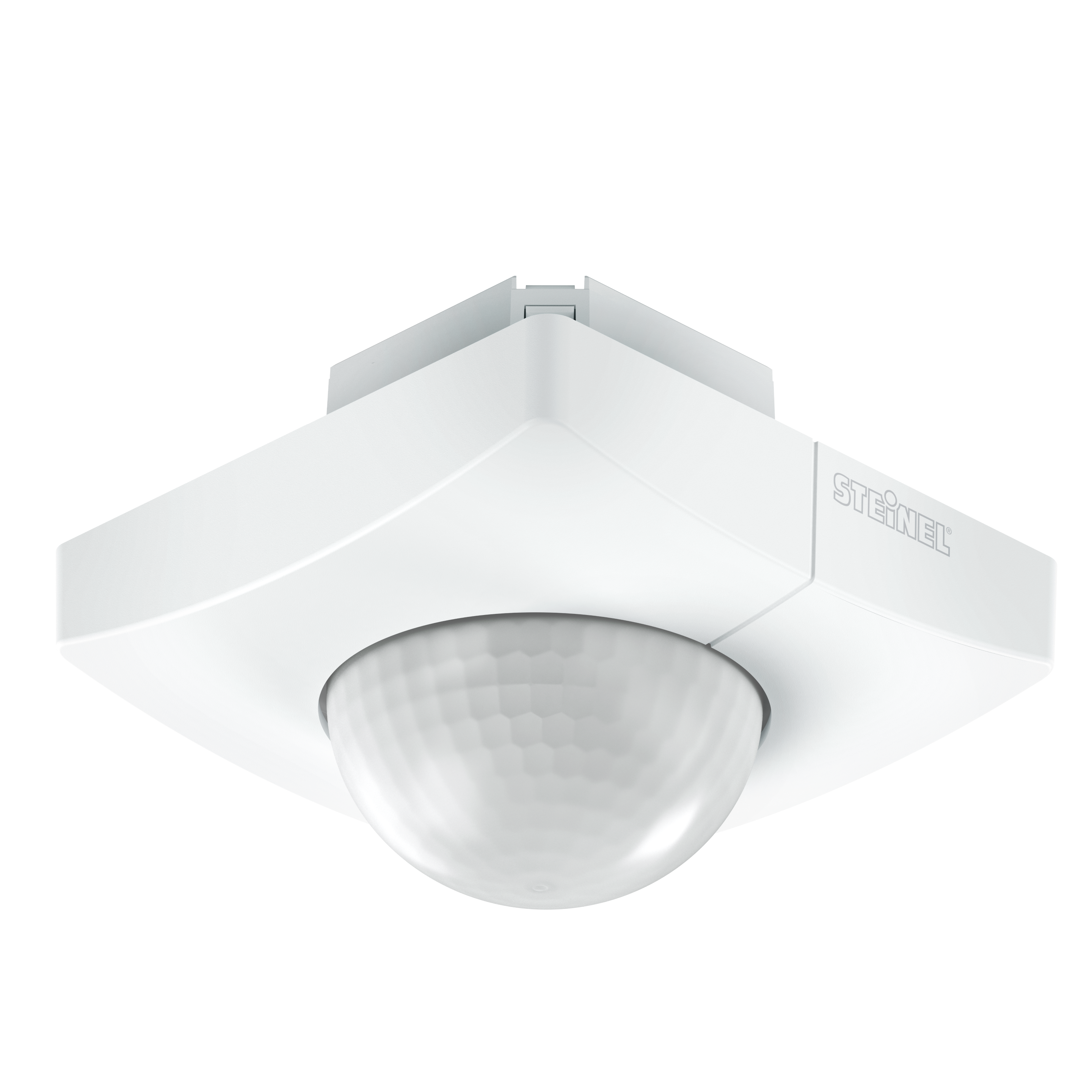

Steinel IS 3360 DALI-2 Input Device - concealed, sq.
EAN-No. 4007841057244
ELDAS® no. 057244
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
Colour
White
Black
Mounting height
Shape
Angular
Round
Large spaces, multi-storey car parks and production buildings with ceiling heights of up to 4 m rarely provide installation surfaces every metre. These environments call for presence detectors with a long reach. Like the IS 3360. It detects any tangential movement within an all-round radius of 20 metres. Even installed at heights of up to 4 metres. In short: one IS 3360 covers an area of more than 1000 m²! STEINEL Infrared technology that keeps its promises.
Identification
Version
Motion and Presence Detector
Manufacturer
Steinel
E-number
535943105
Variants
Version
DALI-2 Input Device
Colour
White
Shape
Angular
Dimensions
Dimensions L × W × H
78 x 94 x 94 mm
PU1 net weight
0.1300
Electrical
Mains connection
12 – 22,5 V / 50 – 60 Hz
Supply voltage detail
DALI bus
Switching output 1 potential-free
No
Control output DALI
Addressable/slave
Max. current consumption per IEC 62386-101
24 mA
Typical current consumption at 16 V input voltage
5 mA
Max. current consumption at 10 V input voltage in regular operation
7 mA
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 40 m (1257 m²)
Switching zones
1416 switching zones
Mounting height
2,5 – 4,00 m
Presence range
Ø 3 m (7 m²)
Optimal mounting height
2,8 m
Nevalux sensor technology
DALI 2
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
DALI bus
Number of DALI participants
3.0000
With bus coupler
Yes
Lighting technology
Soft light start
No
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Base light function
No
Main light adjustable
No
Settings via
Bus
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
production facilities
recreation room
changing room
function room / ancillary room
sports hall
reception / lobby
stairwell
WC / washroom
multi-storey / underground car park
warehouse
Indoors
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
DALI-2
Cross-/up-selling
Accessories
12367,21694

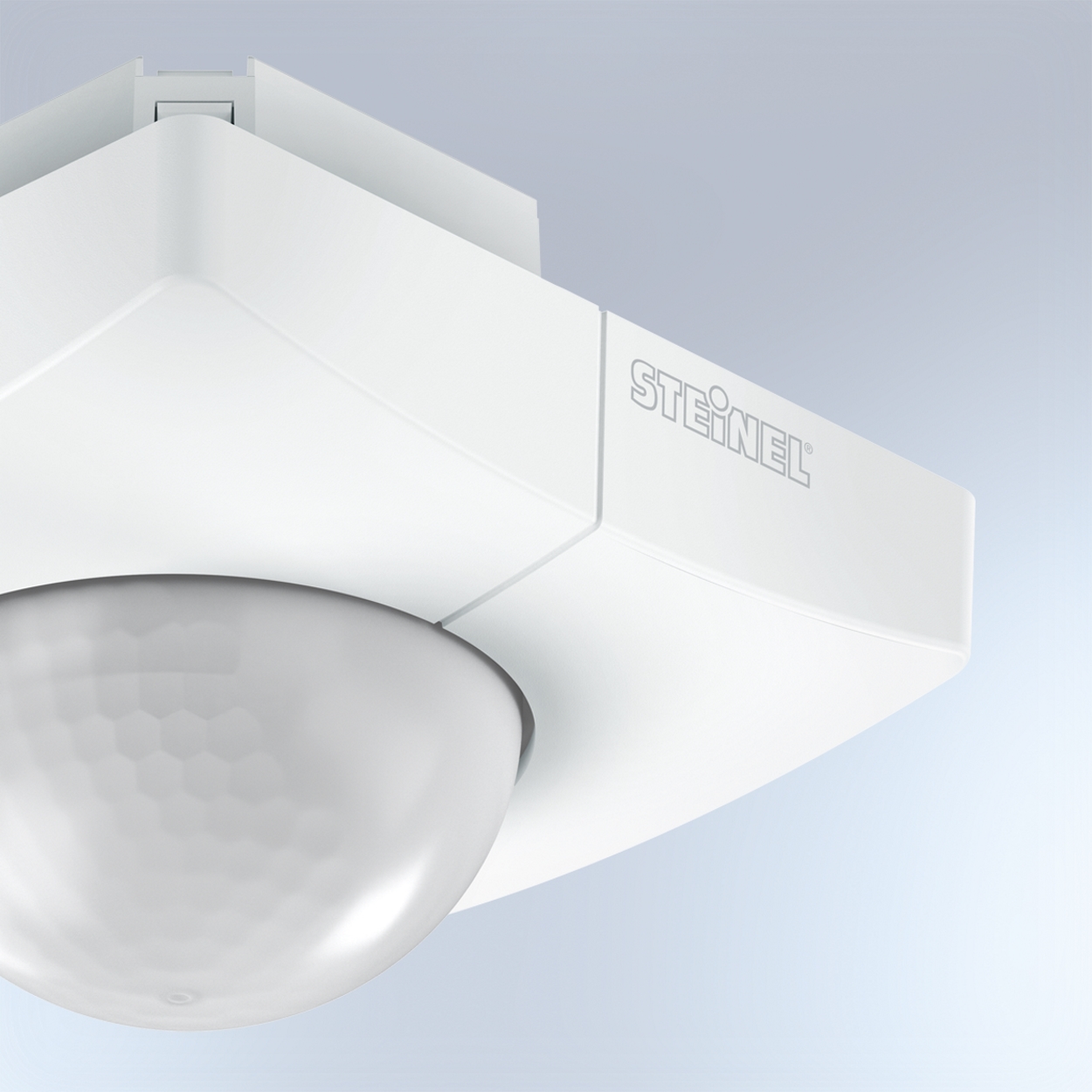

UV-resistant plastic
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
