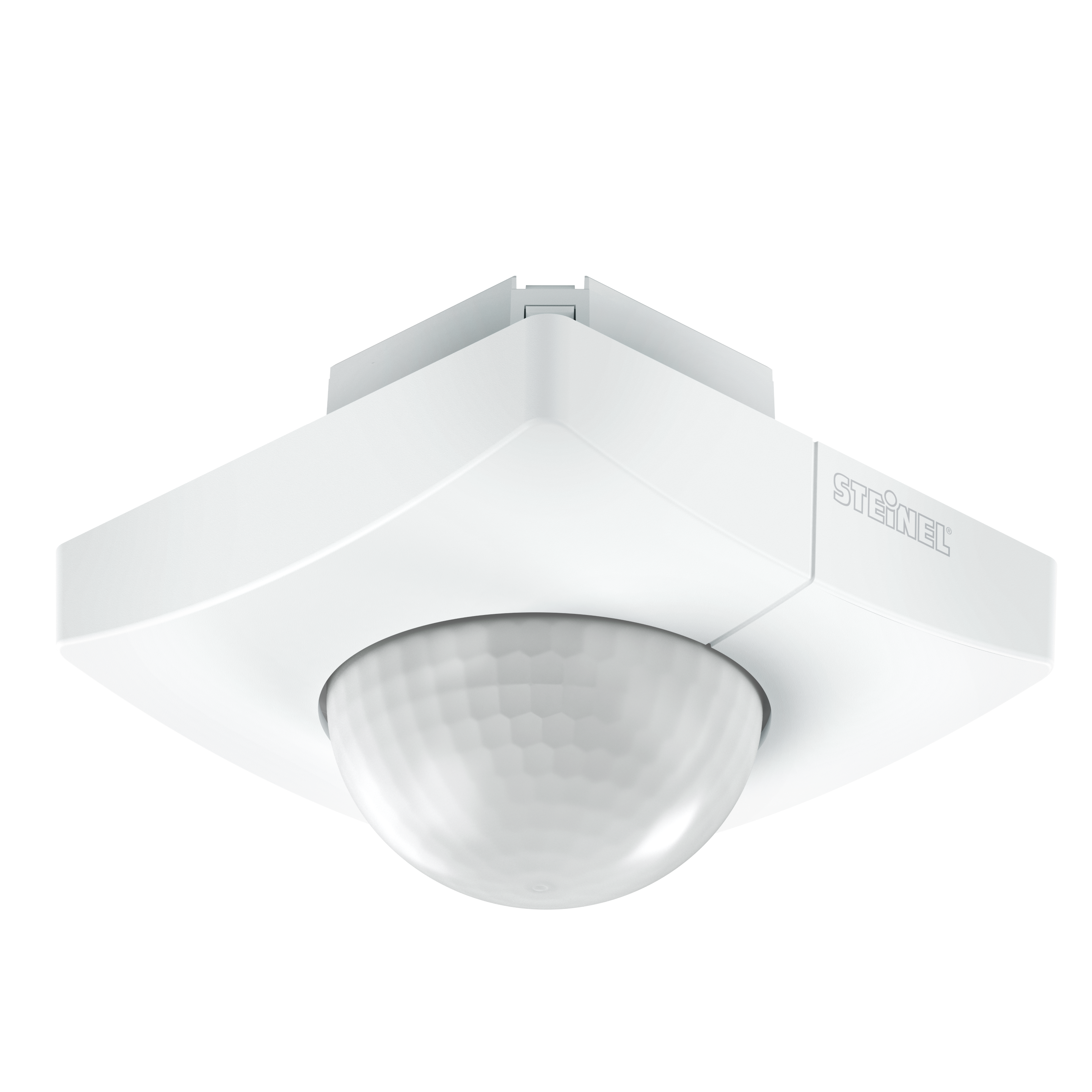

Nevalux IS 3360 PF - Unterputz eckig
EAN-No. 4007841033491
ELDAS® no. 4007841033491
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
Colour
White
Black
Mounting height
Shape
Angular
Round
- UV-resistant plastic
- Optional remote controls
Identification
Variant
PF - concealed, sq.
Version
Motion and Presence Detector
Manufacturer
Nevalux
E-number
535945067
Variants
Version
PF (Potential Free)
Colour
White
Shape
Angular
Dimensions
Dimensions L × W × H
78 x 94 x 94 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
2000 W
Fluorescent lamps ECG
1500 W
Fluorescent lamps uncompensated
1000 VA
Fluorescent lamps series-compensated
400 VA
Fluorescent lamps parallel-compensated
400 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in µF
176 µF
FIL_2_PRO interfaces
PF (Switching a floating relay)
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 40 m (1257 m²)
Switching zones
1416 switching zones
Mounting height
2,50 – 4,00 m
Presence range
Ø 3 m (7 m²)
Optimal mounting height
2,8 m
Nevalux sensor technology
On / Off
FIL_4_PRO sensor technology
Passive infrared
Connectivity
Networking
Yes
Type of networking
Master/master
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 1000 lx
Time setting
5 sec – 15 min
Base light function
No
Functions
Normal / test mode, Manual ON / ON-OFF
Settings via
Remote control, Potentiometers, Smart Remote
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
production facilities, recreation room, changing room, function room / ancillary room, sports hall, reception / lobby, stairwell, WC / washroom, multi-storey / underground car park, warehouse, Indoors
