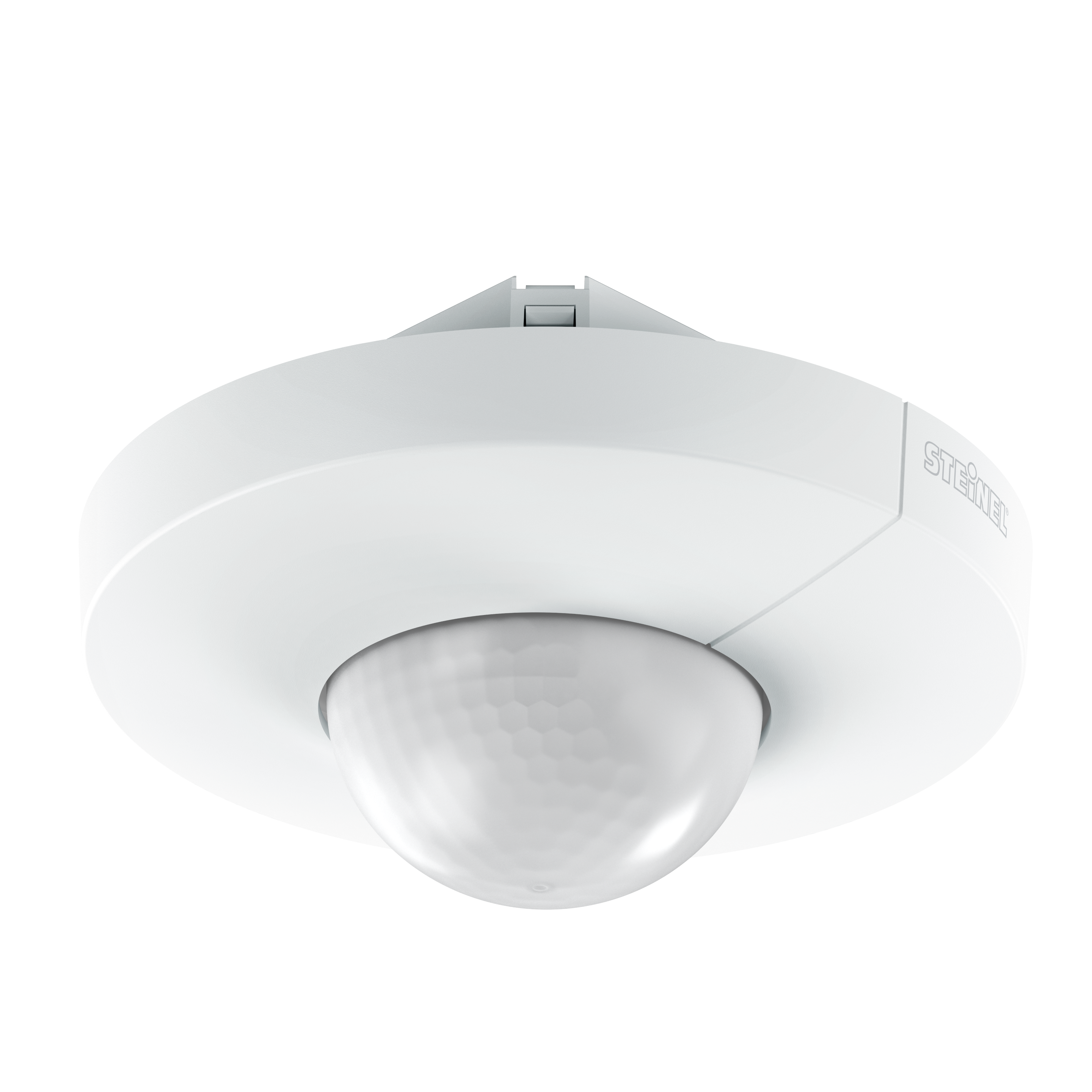

Steinel IS 345 DALI-2 Input Device - concealed, rd.
EAN-No. 4007841057305
ELDAS® no. 057305
Price: Please log in to see prices
Version
Mounting type
Flush-mounted
Surface-mounted
Mounting height
Mounting height 2.5 to 4 metres
Mounting height 4 to 14 metres
Shape
Angular
Round
Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535941205
Variants
Version
DALI-2 Input Device
Mounting type
Flush-mounted
Mounting height
Mounting height 2.5 to 4 metres
Shape
Round
Dimensions
Dimensions L × W × H
78 x 94 x 94 mm
Dimensions Ø × H
124 x 78 mm
PU1 net weight
0.1370
Electrical
Mains connection
12 – 22,5 V / 50 – 60 Hz
Supply voltage detail
DALI bus
Control output DALI
Addressable/slave
Max. current consumption per IEC 62386-101
24 mA
Typical current consumption at 16 V input voltage
5 mA
Max. current consumption at 10 V input voltage in regular operation
7 mA
Sensor technology
Max. mounting height
5,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
45 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
12 x 6 m (72 m²)
Tangential range
23 x 6 m (138 m²)
Switching zones
280 switching zones
Mounting height
2,5 – 5 m
Optimal mounting height
2,8 m
Nevalux sensor technology
DALI 2
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
DALI bus
Number of DALI participants
3.0000
With bus coupler
Yes
Lighting technology
Soft light start
No
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Base light function
No
Base light function time
1-30 min, all night
Main light adjustable
No
Settings via
Bus
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
corridor / aisle
multi-storey / underground car park
Indoors
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
DALI-2
Cross-/up-selling
Accessories
12367,21696

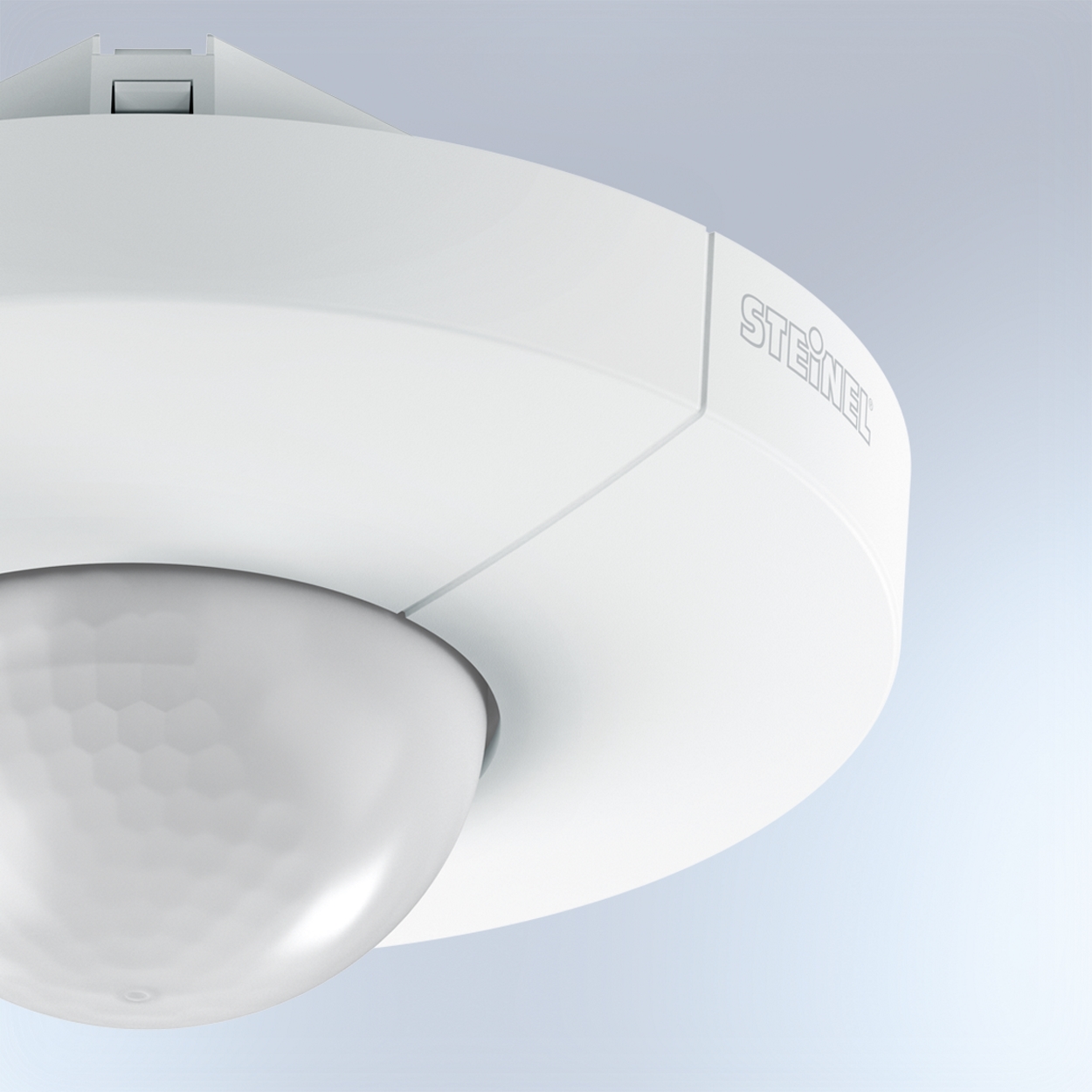

UV-resistant plastic
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
