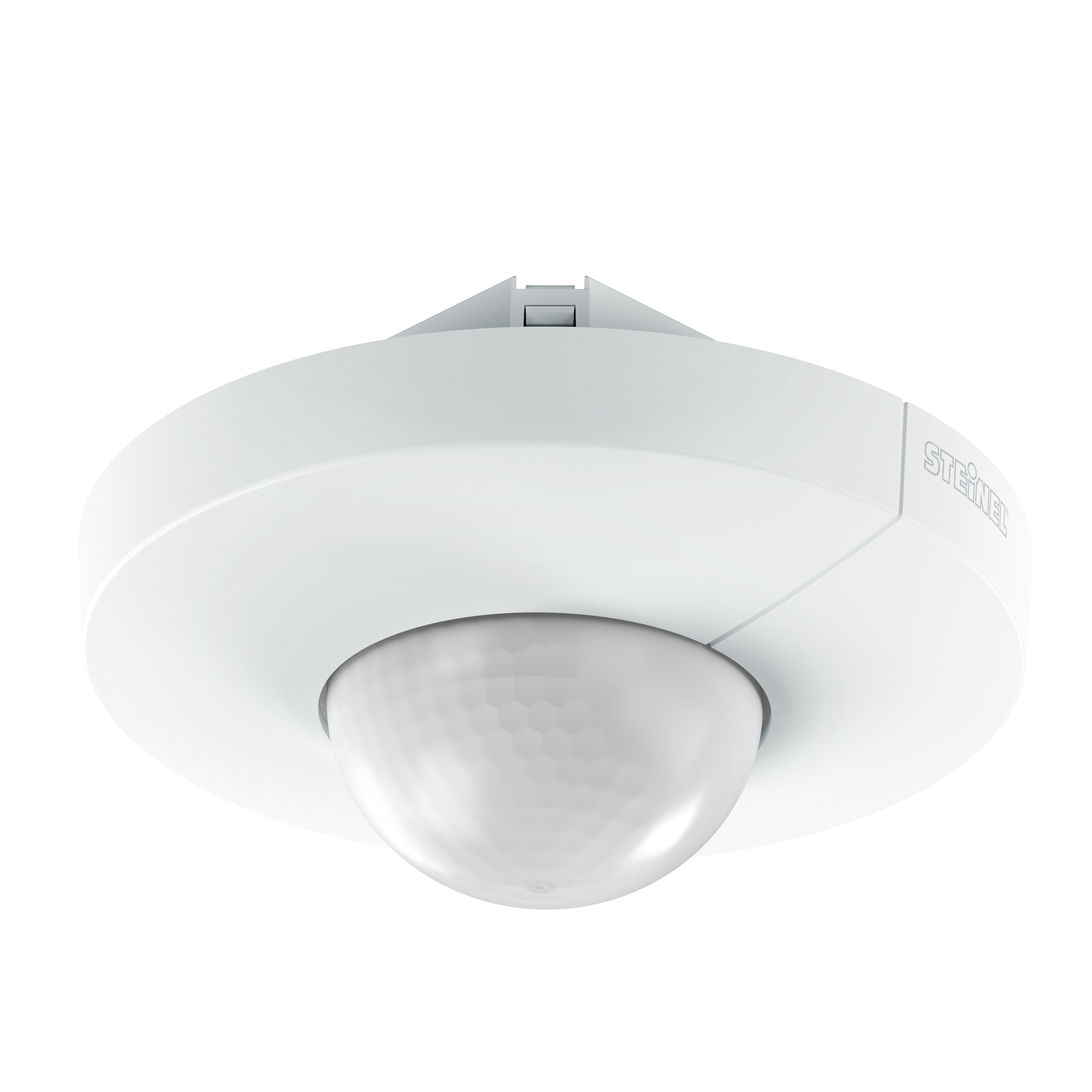

Steinel IS 345 DALI-2 APC - concealed, rd.

EAN-No. 4007841033873

ELDAS® no. 033873

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Mounting type

Flush-mounted Surface-mounted

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535941366

Variants

Version DALI-2 Application Controller

Mounting type Flush-mounted

Mounting height Mounting height 2.5 to 4 metres

Shape Round

Dimensions

Dimensions Ø × H 124 x 78 mm

PU1 net weight 0.1500

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Control output DALI Broadcast 1x30 electronic ballasts

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Switching zones 280 switching zones

Mounting height 2,50 – 5,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable, 4h

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 1-30 min all night

Main light adjustable 50 - 100 %

Functions Normal / test mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room corridor / aisle multi-storey / underground car park Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Cross-/up-selling

Accessories 12367,13686,13685,21696

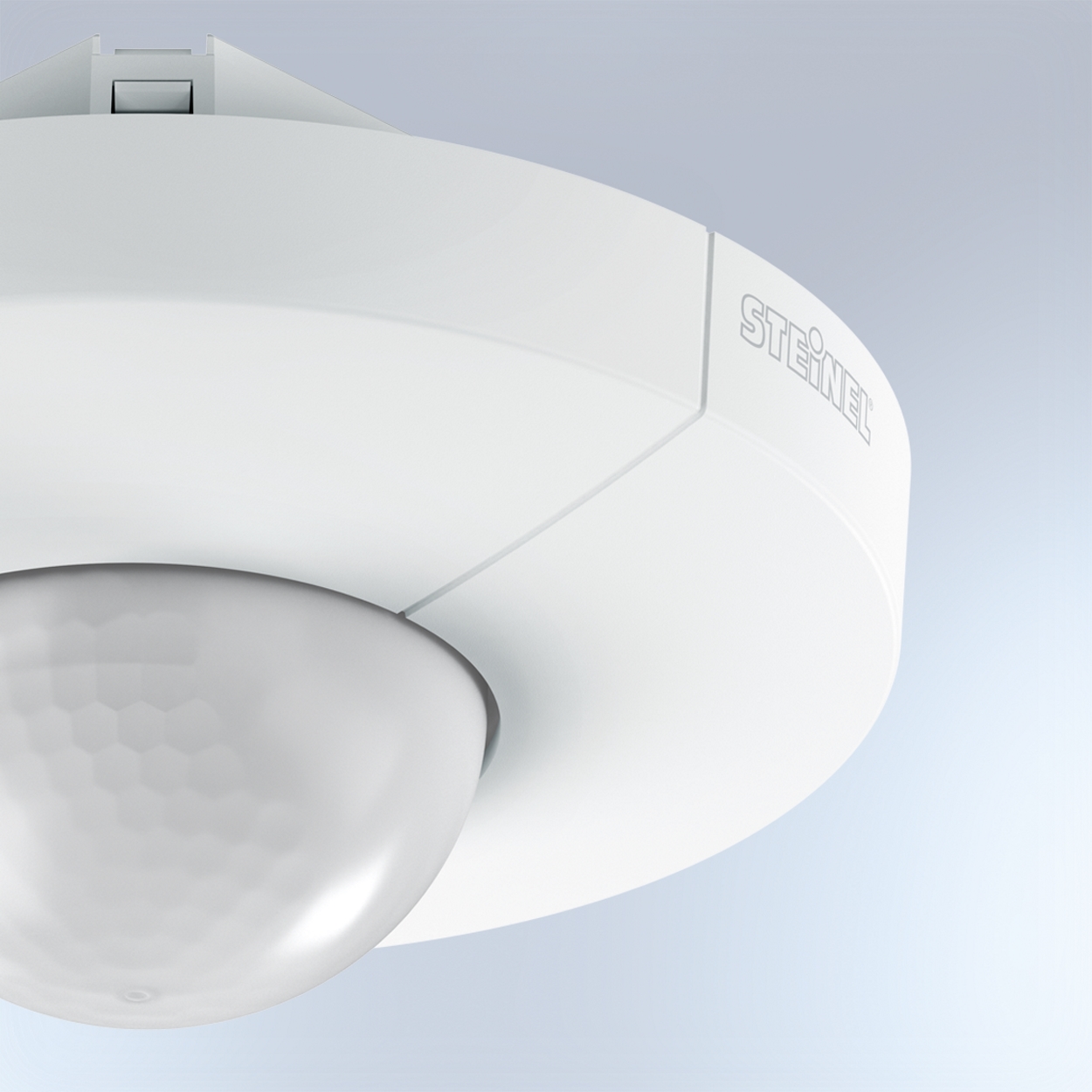

UV-resistant plastic

Optional remote controls

Technical drawings

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD
