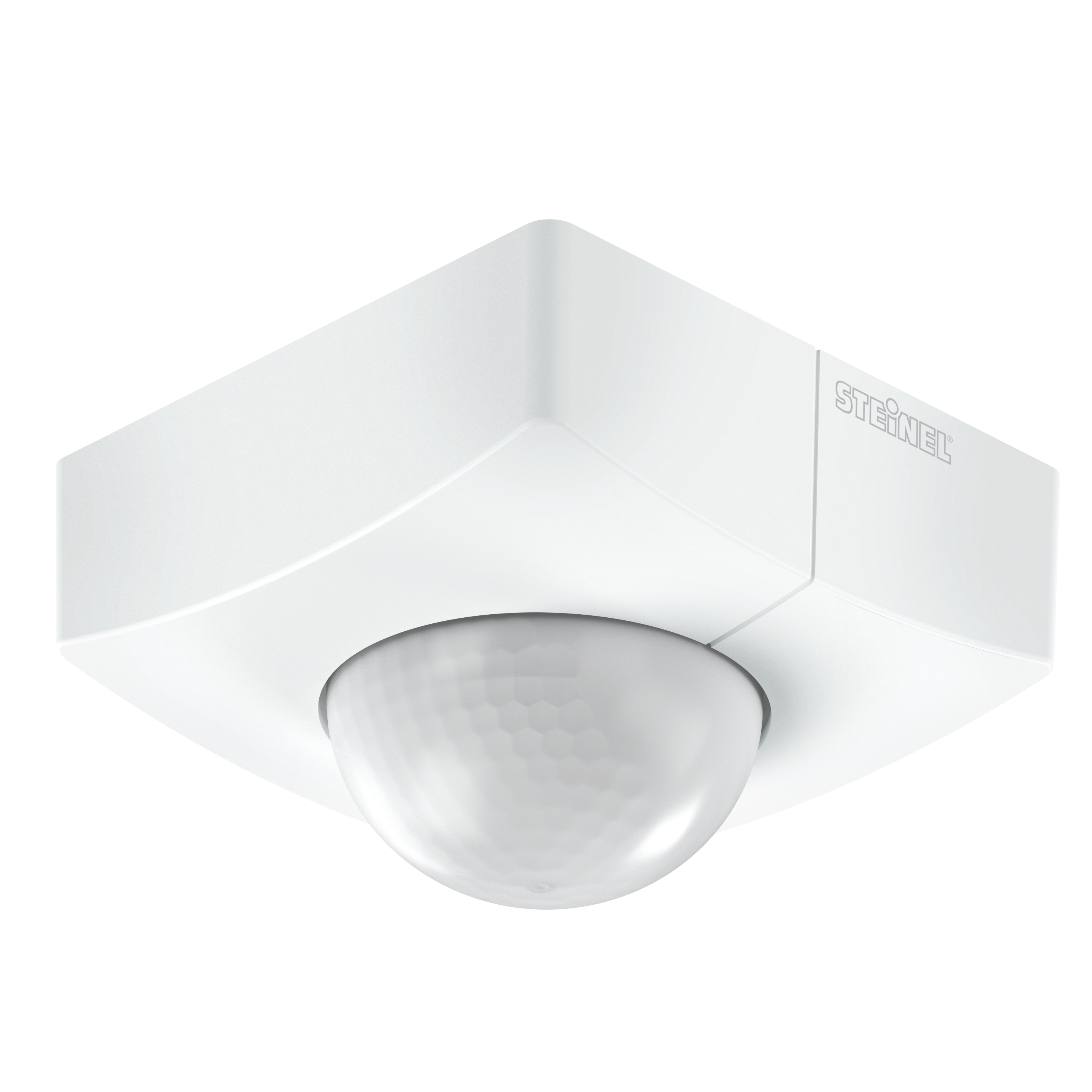

Steinel IS 345 DALI-2 Input Device - surface, sq.

EAN-No. 4007841057275

ELDAS® no. 057275

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Mounting type

Flush-mounted Surface-mounted

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535941107

Variants

Version DALI-2 Input Device

Mounting type Surface-mounted

Mounting height Mounting height 2.5 to 4 metres

Shape Angular

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

PU1 net weight 0.1510

Electrical

Mains connection 12 – 22,5 V / 50 – 60 Hz

Supply voltage detail DALI bus

Control output DALI Addressable/slave

Max. current consumption per IEC 62386-101 24 mA

Typical current consumption at 16 V input voltage 5 mA

Max. current consumption at 10 V input voltage in regular operation 7 mA

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 12 x 6 m (72 m²)

Tangential range 23 x 6 m (138 m²)

Switching zones 280 switching zones

Mounting height 2,5 – 5 m

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 3.0000

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Base light function time 1-30 min, all night

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Outdoors Indoors

Mounting type Surface wiring

Material Plastic

Application room corridor / aisle multi-storey / underground car park outdoors Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Cross-/up-selling

Accessories 12367,21693

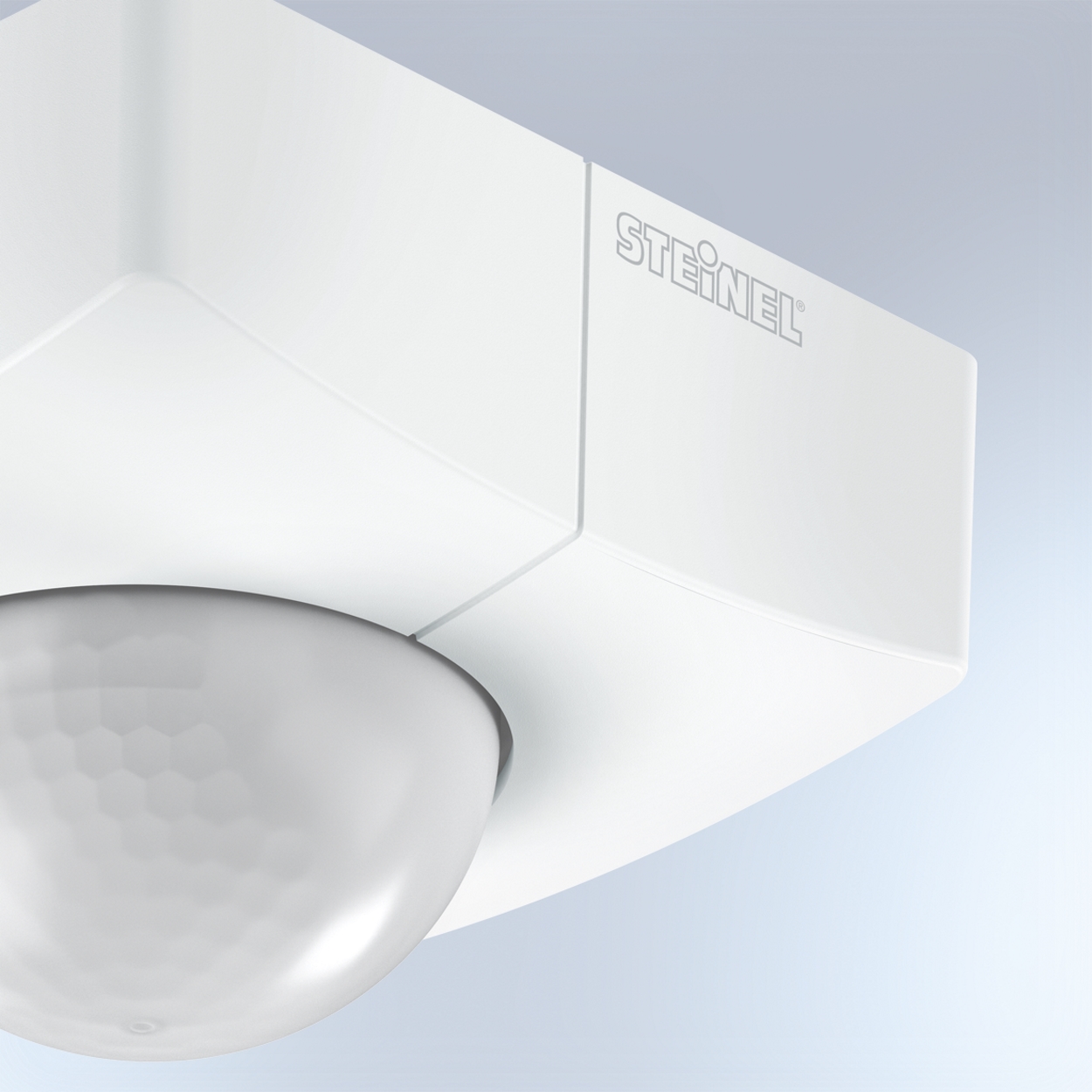

UV-resistant plastic

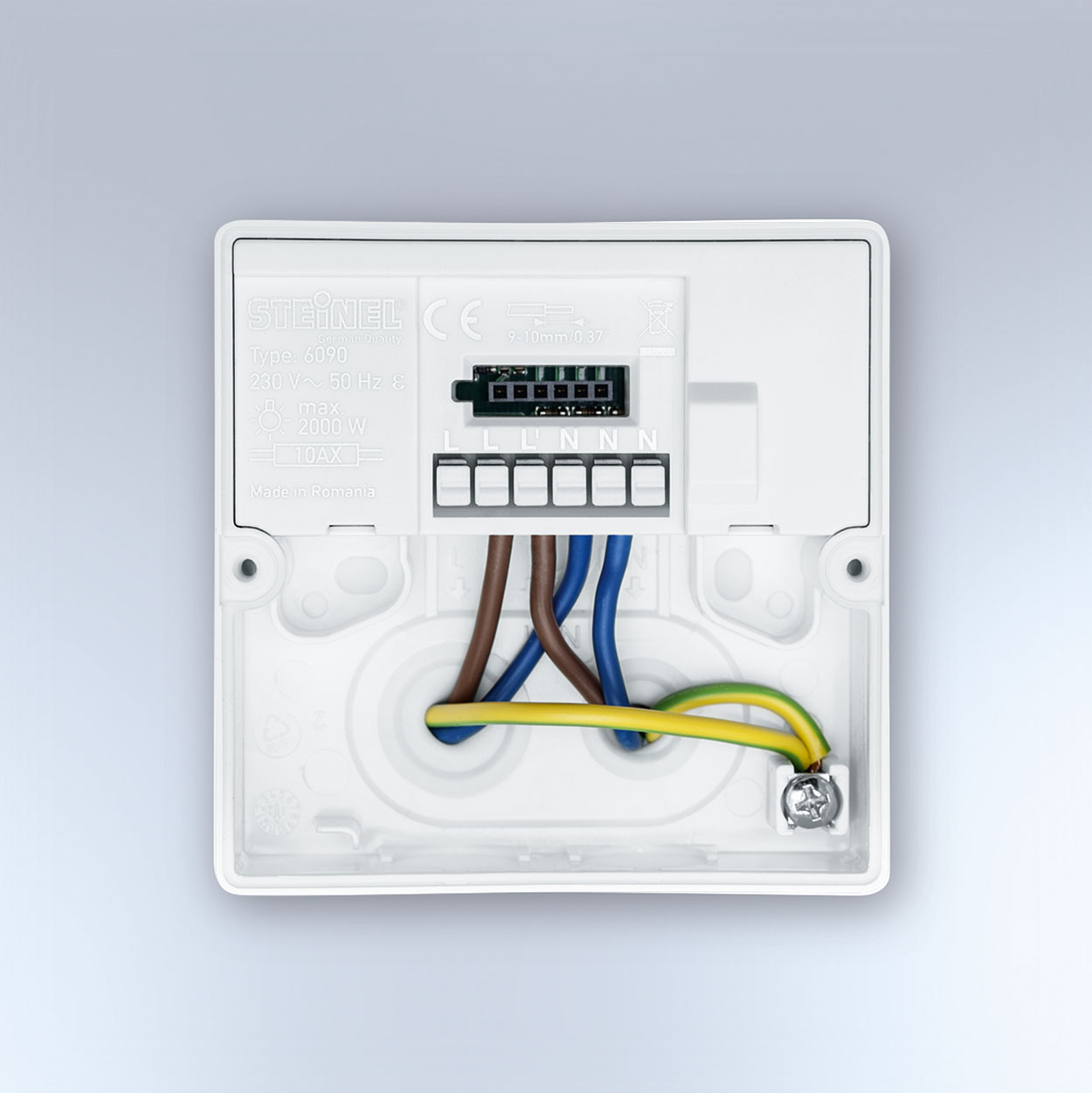

Large terminal compartment
