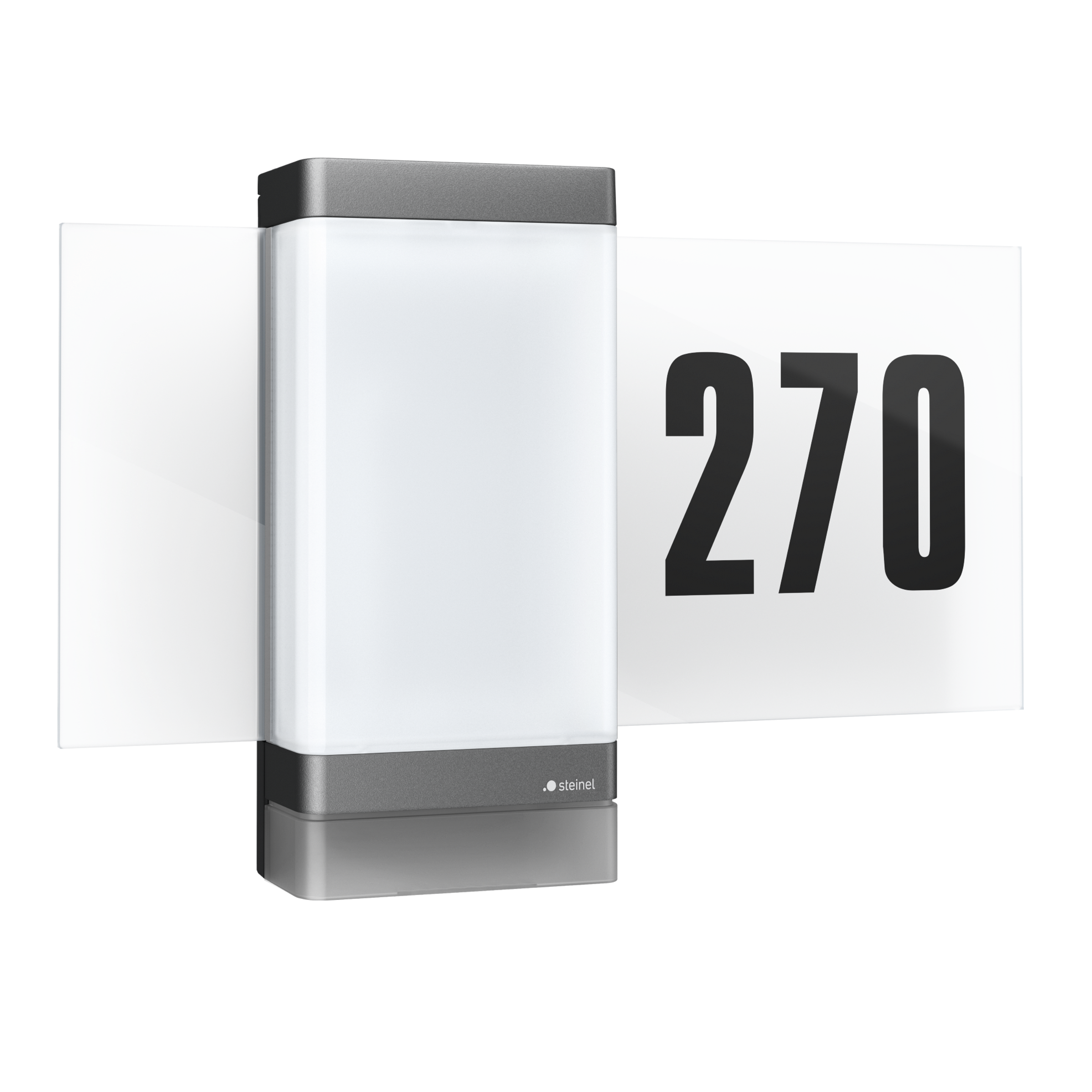

Steinel L 270 digi SC with motion detector & Bluetooth

Steinel L 270 digi SC with motion detector & Bluetooth

EAN-No. 4007841067205 · ELDAS® no. 067205

Steinel Bluetooth Mesh

Steinel L 270 digi SC with motion detector & Bluetooth

EAN-No. 4007841067205

ELDAS® no. 067205

Price: Please log in to see prices

Version

Sensor and Bluetooth Without sensor, with Bluetooth

Design

The modern outdoor lights L 271 digi SC and L 270 digi SC (including house number panel) from the STEINEL Connect series can be networked extremely quickly via Bluetooth – while also leaving a well-balanced impression around the building. Settings are conveniently made via app. Besides their attractive design and wide range of functions, the sensor-switched outdoor light leave no margin of doubt either with their superior infrared technology. Innovative digi-sensor technology detects tangential and radial movements with almost the same level of precision. Within a radius of up to 8 metres, the perfectly devised mirror system inside the 180° sensor now makes the walking direction virtually irrelevant. Up to three detection zones can be activated or deactivated to suit any situation. Delivering 637 lm, of warm white light in a colour temperature of 3000 K and using just 7,8 W of power (82 lm/W), the LED outdoor light come complete with a basic light level and soft light start function. Their stay-ON time can be digitally selected across a range of 10 seconds to 60 minutes. The whole product family is finished in high-quality aluminium. The L 271 digi SC outdoor light is also available in a version without sensor.

  • Outdoor luminaire with motion detector and illuminated house number panel in flat linear design
  • Invisibly integrated sensor with three individually adjustable detection areas

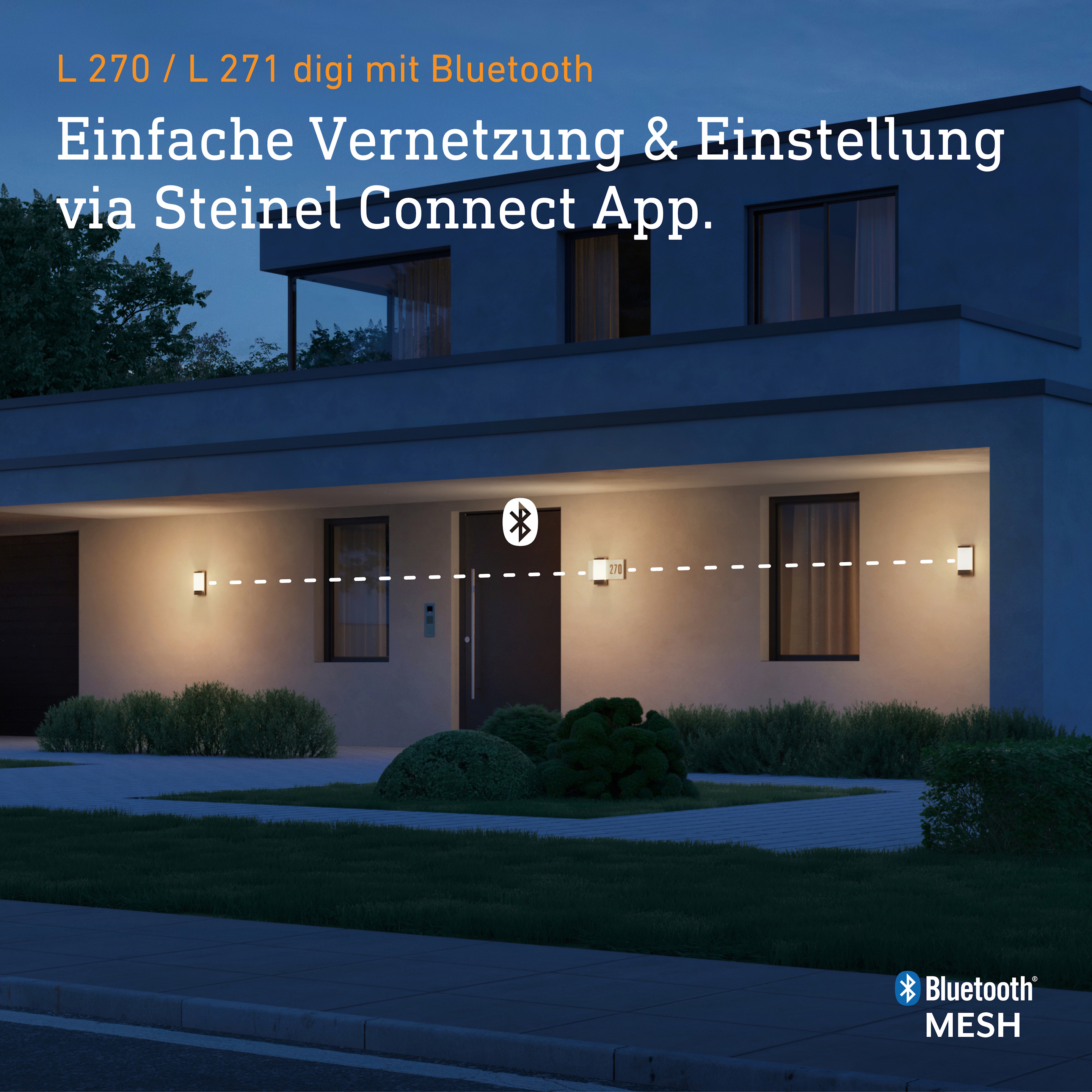

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

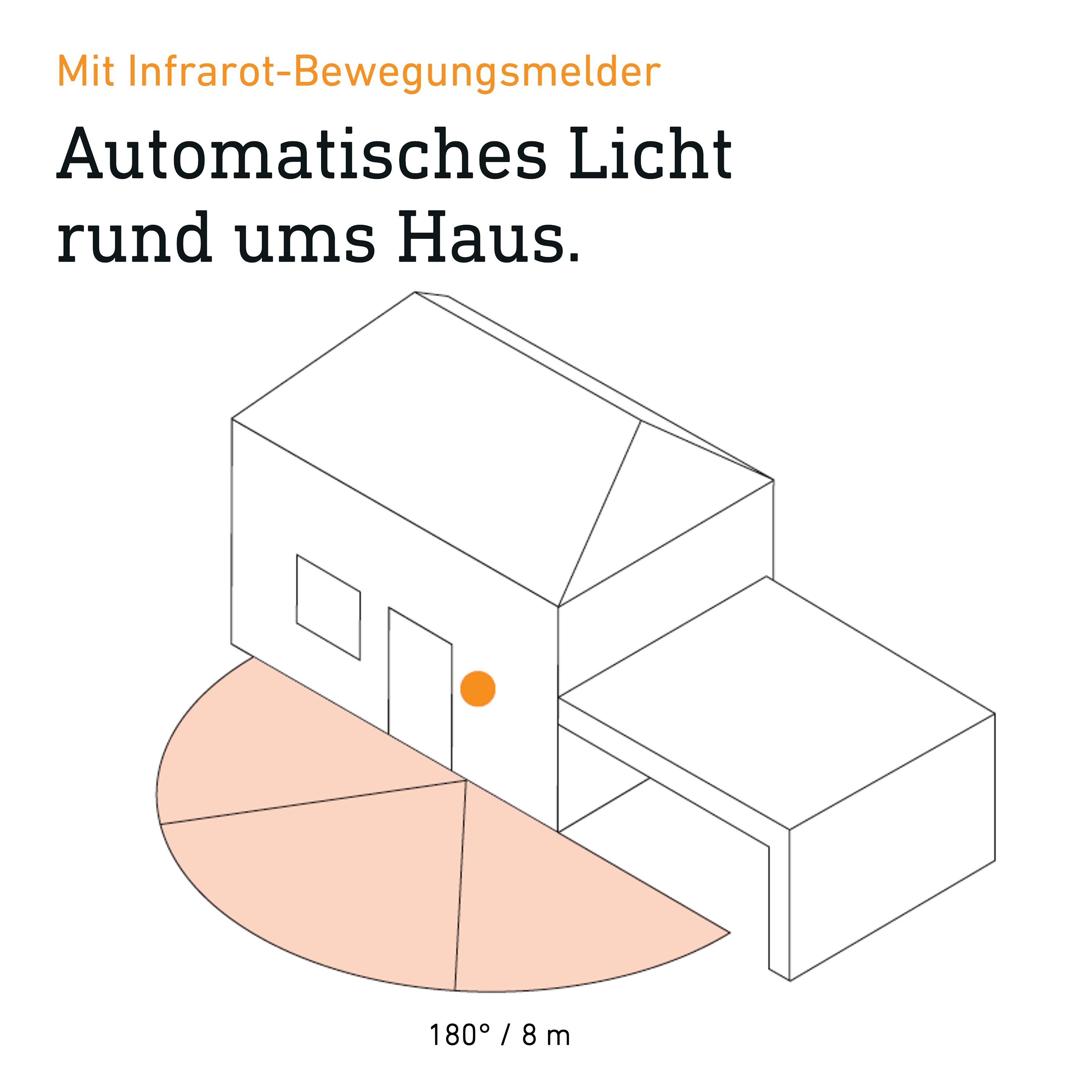

  • Automatic light thanks to 180° infrared sensor with up to 8 m detection of movement (detection quality equally reliable regardless of walking direction)
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
  • Warm white light (3000 K) and long-life 7,8 W LEDs with 637 lm

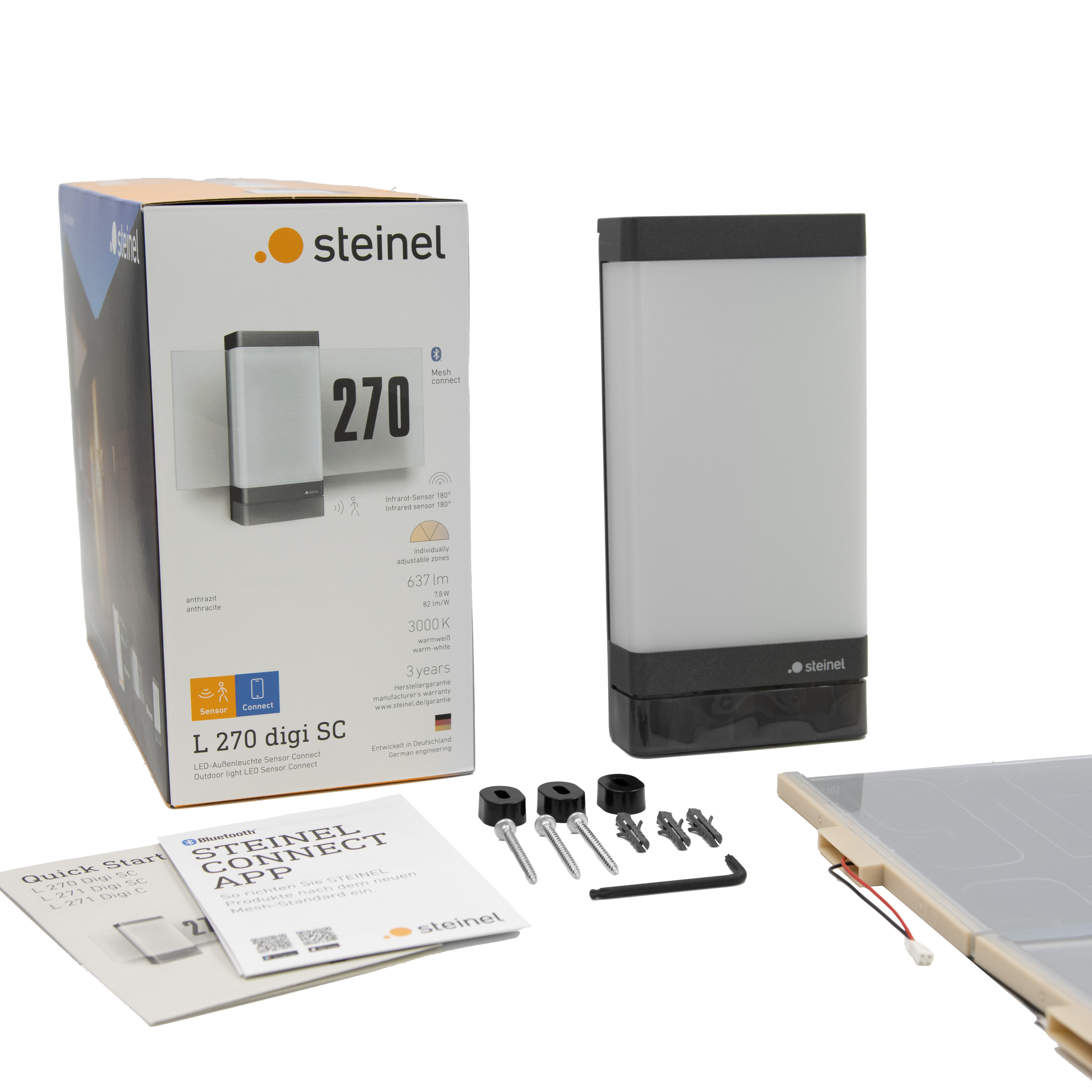

  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941012799

Variants

Version Sensor and Bluetooth
Design Standard

Dimensions

Dimensions L × W × H 65 x 366 x 235 mm
PU1 net weight 1.0650

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 7,8 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Range detail 3 detection zones can be (de)activated individually, range can be set separately
Radial range r = 6 m (57 m²)
Tangential range r = 8 m (101 m²)
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 637 lm
Efficiency 82 lm/W
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function detail LED effect light
Base light function time 10s-60 min OFF Brightness-controlled
Main light adjustable 5 - 100 %
Settings via App Smartphone Tablet Bluetooth Mesh
With remote control No
Twilight setting teach Yes
Base light function in percent 5 – 100 %
Base light function percent from 5.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -10 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room outdoors front door
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included Yes

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28871

Intelligent soft light start

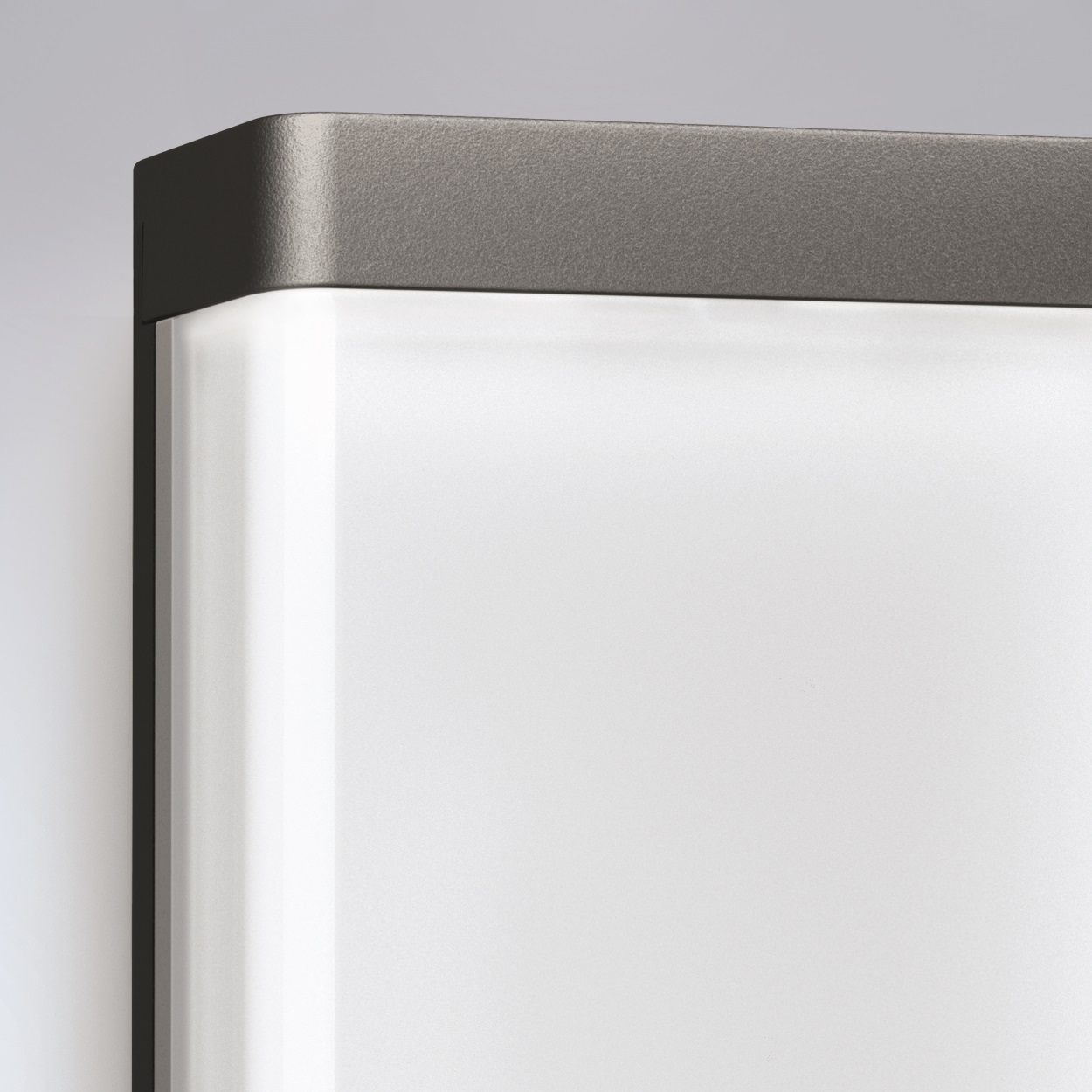

High-quality aluminium

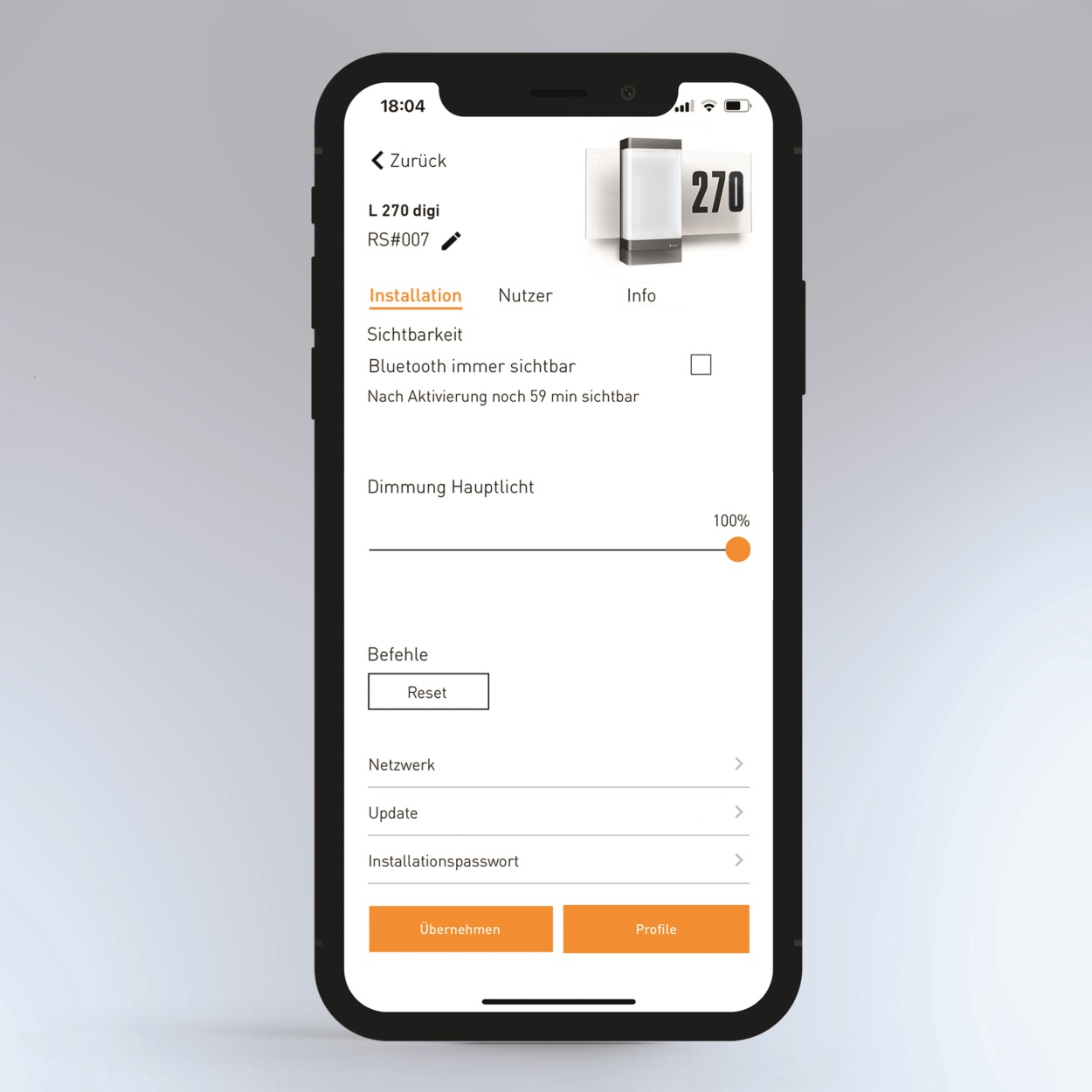

Operatable via app

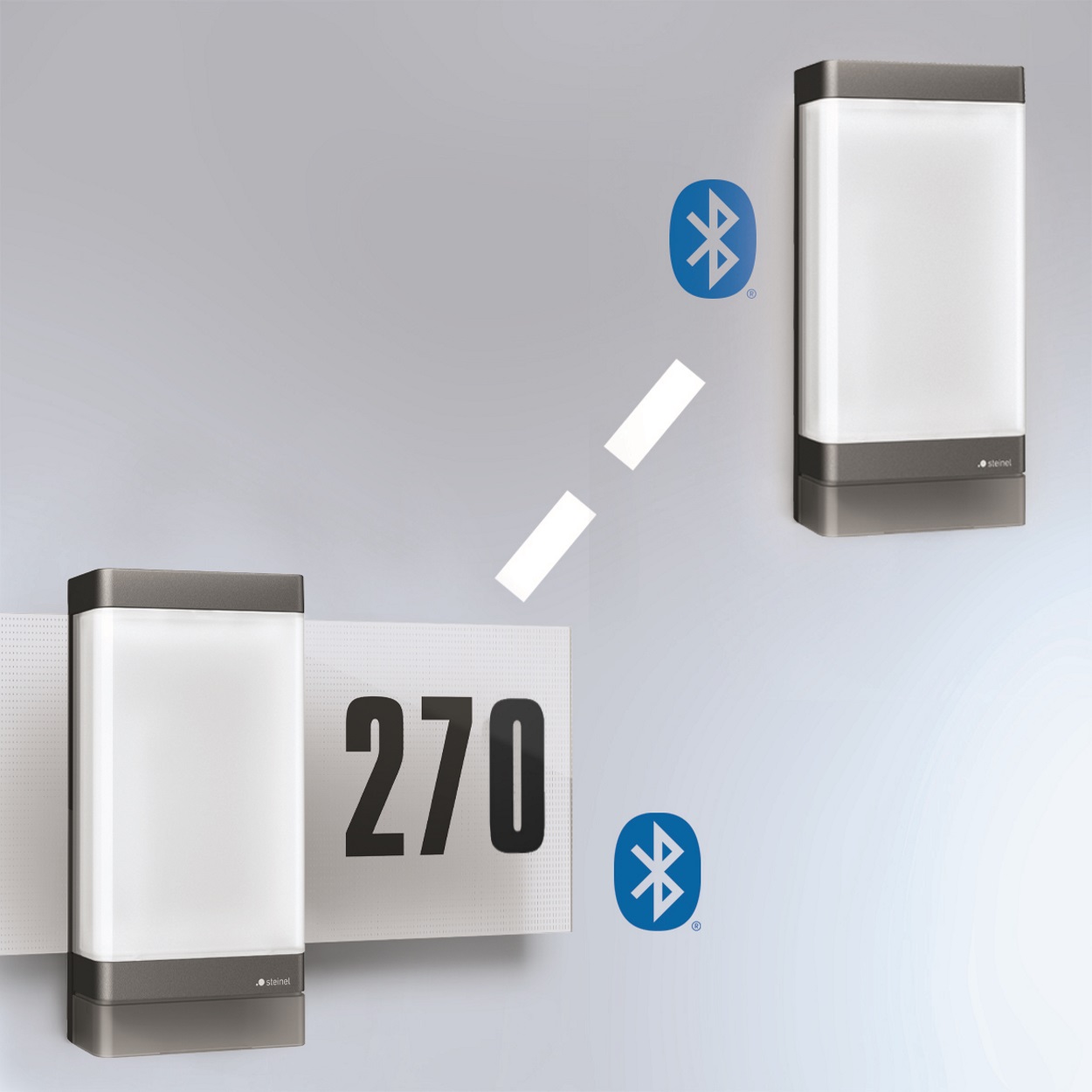

Interconnectable and adjustable via Bluetooth

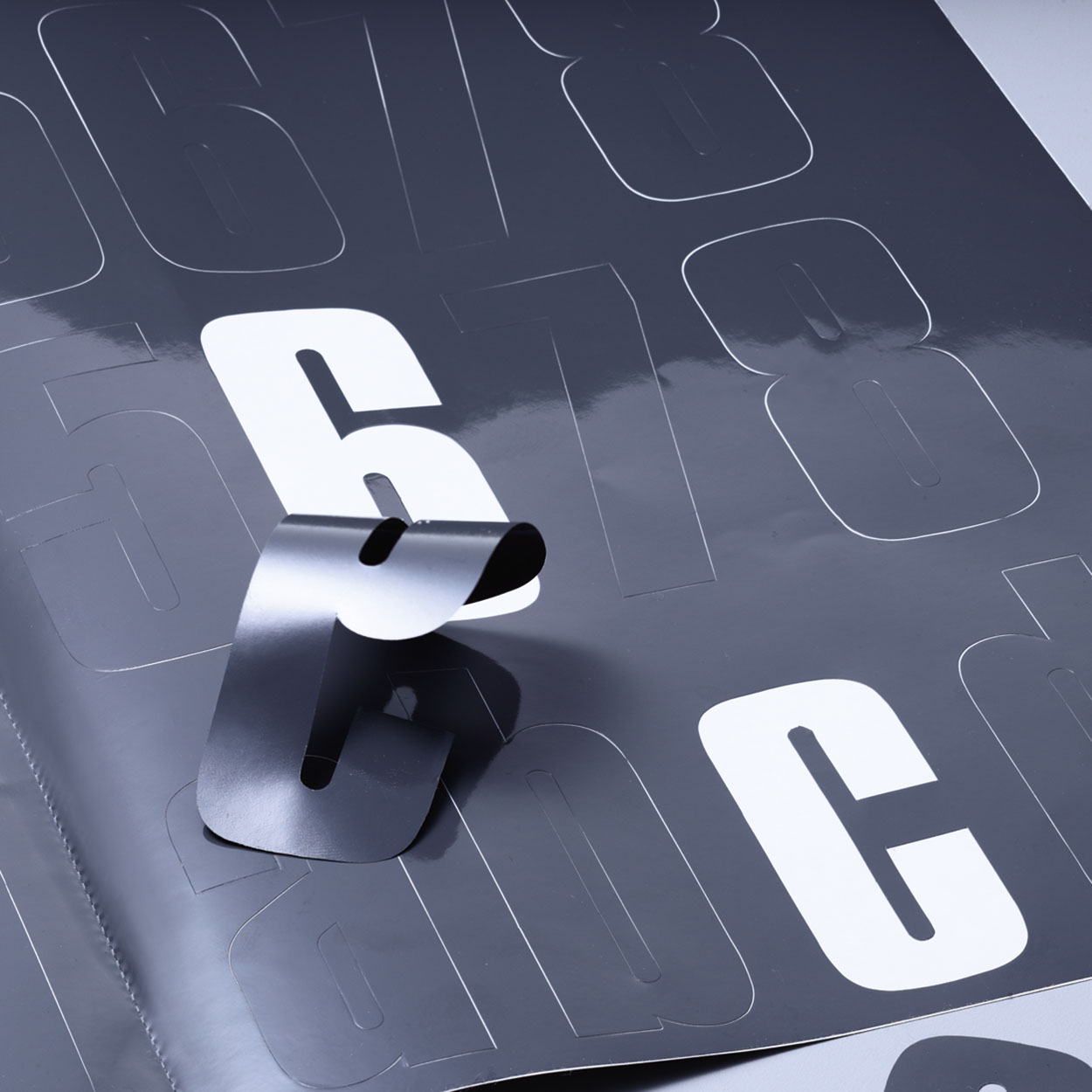

Including sheet of self-adhesive house numbers

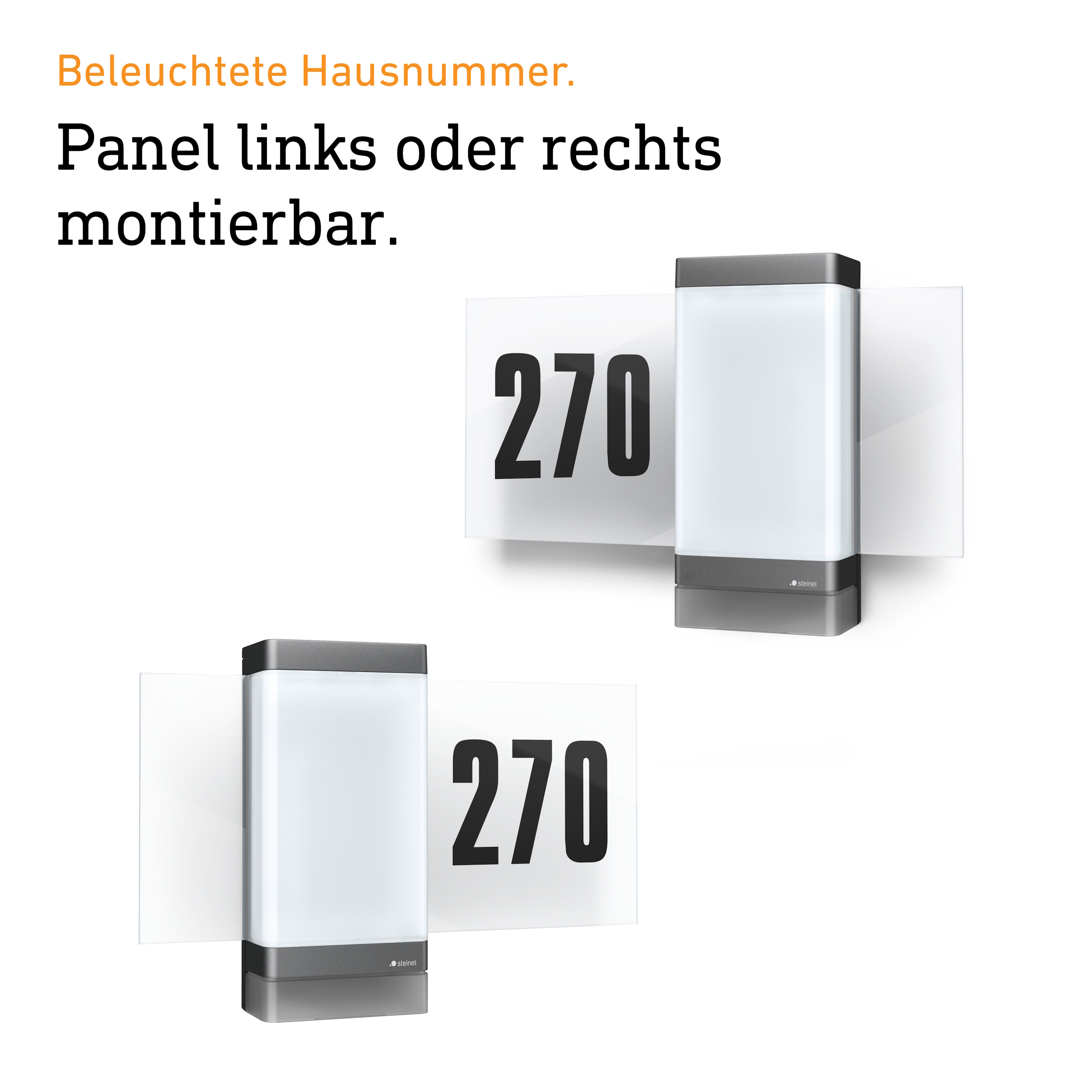

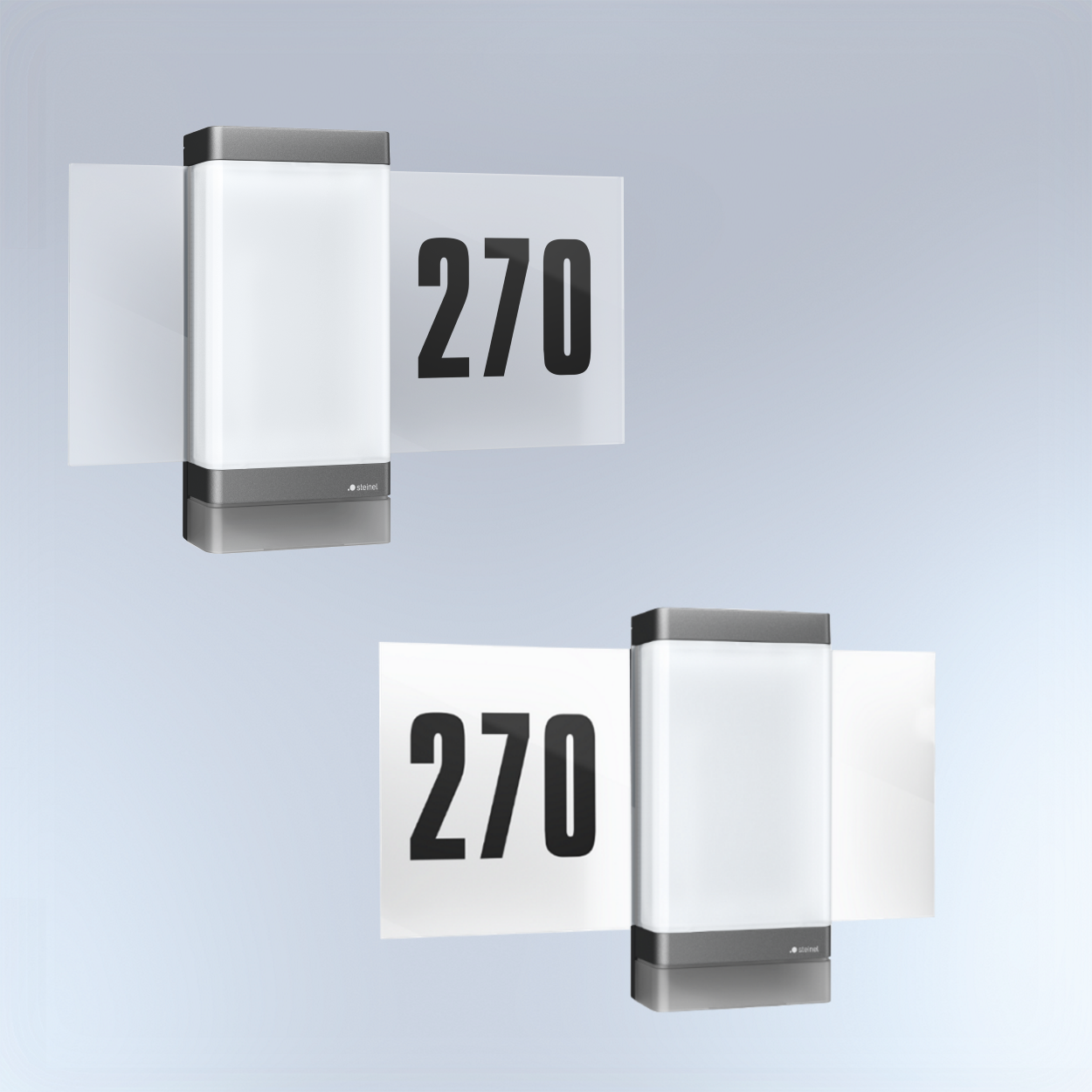

House number panel mountable on both sides
