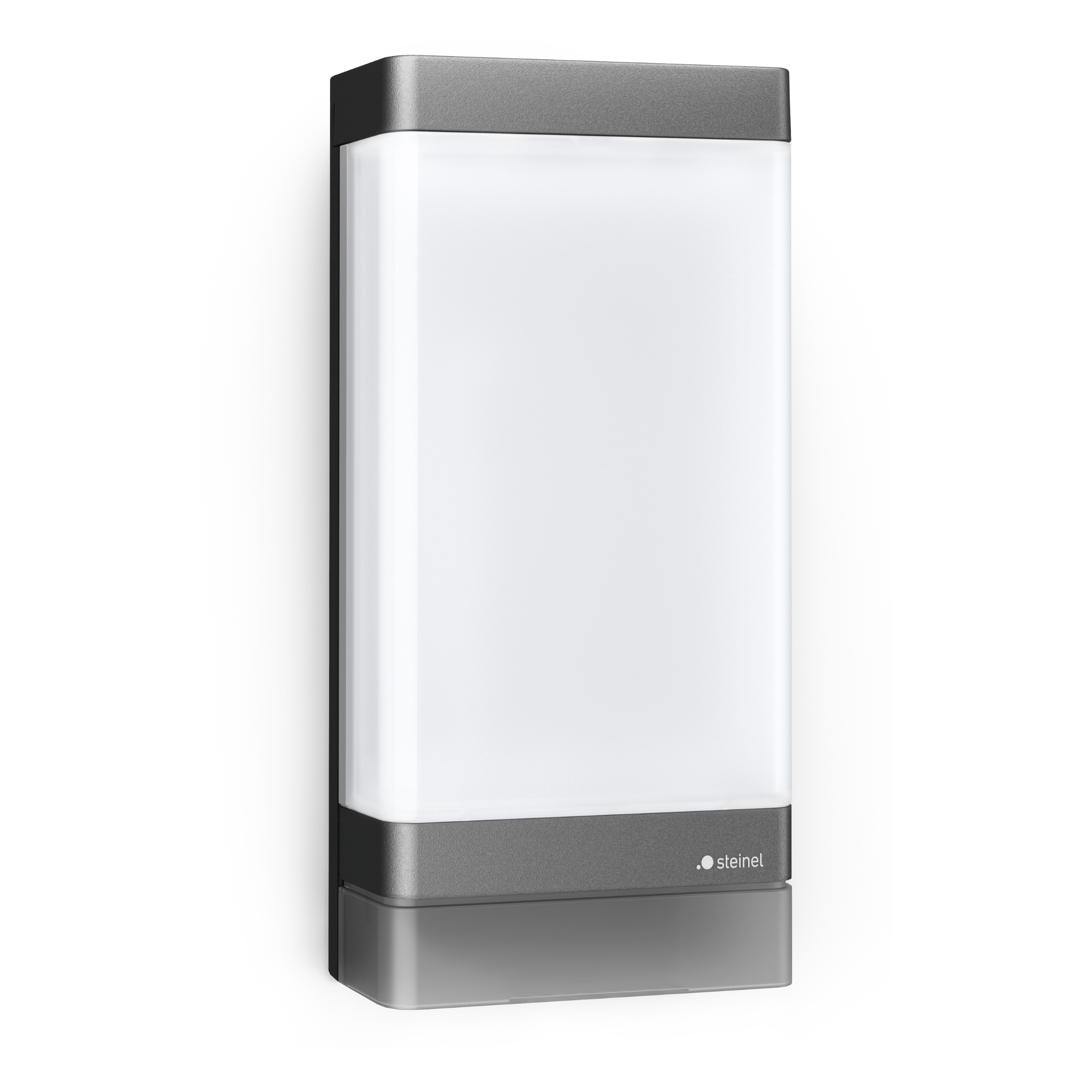

Steinel L 271 digi C without motion detector, with Bluetooth

Steinel L 271 digi C without motion detector, with Bluetooth

EAN-No. 4007841068714 · ELDAS® no. 068714

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads Videos Accessories
Steinel Bluetooth Mesh

Steinel L 271 digi C without motion detector, with Bluetooth

EAN-No. 4007841068714

ELDAS® no. 068714

Price: Please log in to see prices

Version

Sensor and Bluetooth Without sensor, with Bluetooth

Design

With house number panel Standard

The modern outdoor light L 271 digi C from the STEINEL Connect series can be networked extremely quickly via Bluetooth – while also leaving a well-balanced impression around the building. Settings are conveniently made via app. In addition, the outdoor light has an attractive look. The LED outdoor light is equipped with 566 lm, a power consumption of 6,6 W and 3000 K warm white light. The whole product family is finished in high-quality aluminium. With the LED outdoor light L 271 digi SC, a version with sensor is also available.

  • Outdoor light without motion detector in flat linear design
  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App
  • Functions: adjustable basic and main light (basic light only in combination with a Bluetooth sensor luminaire), scheduling function
  • Warm white light (3000 K) and long-life 6,6 W LEDs with 566 lm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941012849

Variants

Version Without sensor, with Bluetooth
Design With house number panel

Dimensions

Dimensions L × W × H 65 x 116 x 235 mm
PU1 net weight 0.7540

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 6,6 W

Sensor technology

With motion detector No
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 566 lm
Efficiency 85 lm/W
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Continuous light selectable

Lifetime

Average rated power supply lifetime at 25 °C > 60000 h

Settings

With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature from -10 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room garden front door all round the building terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28871

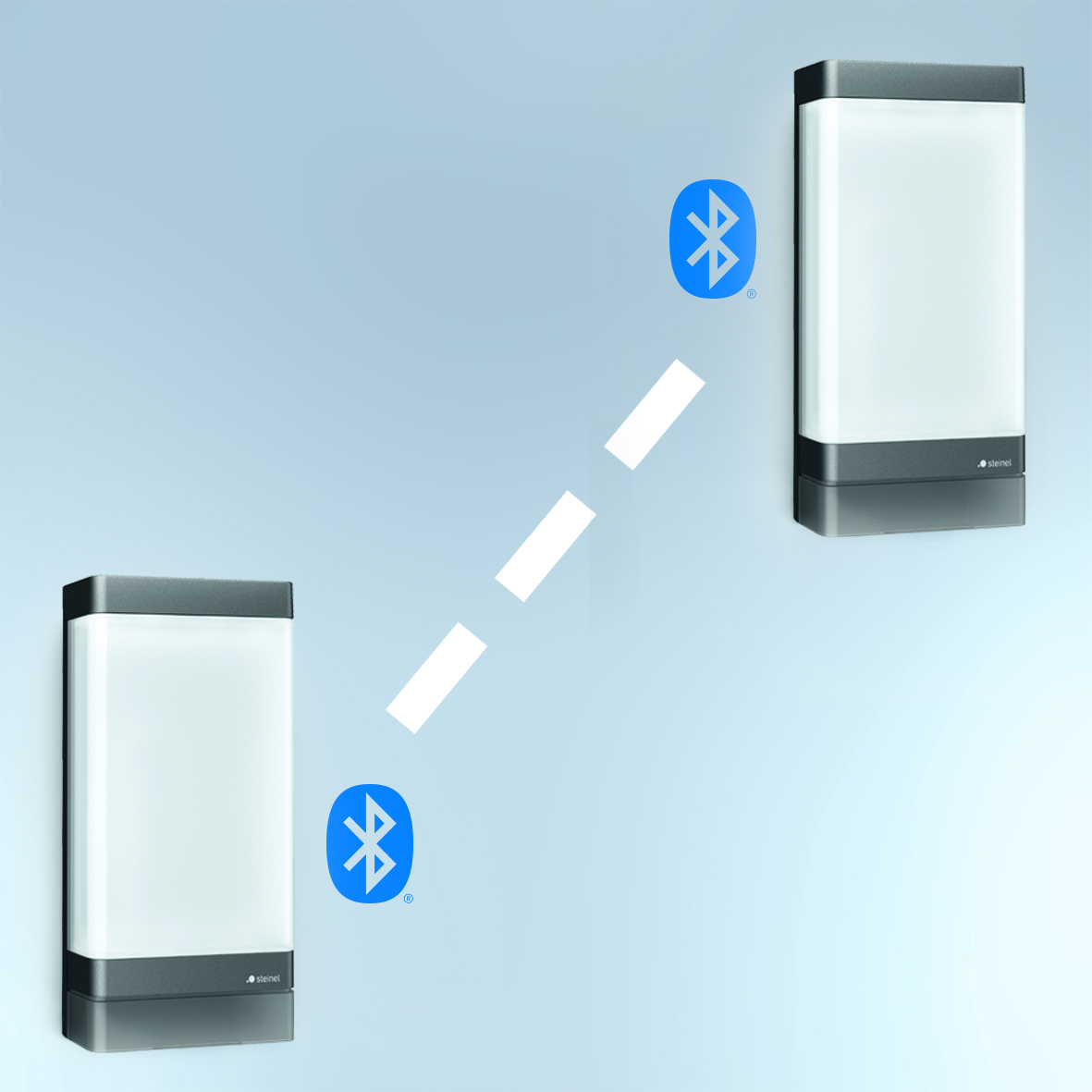

Interconnectable and adjustable via Bluetooth

High-quality materials

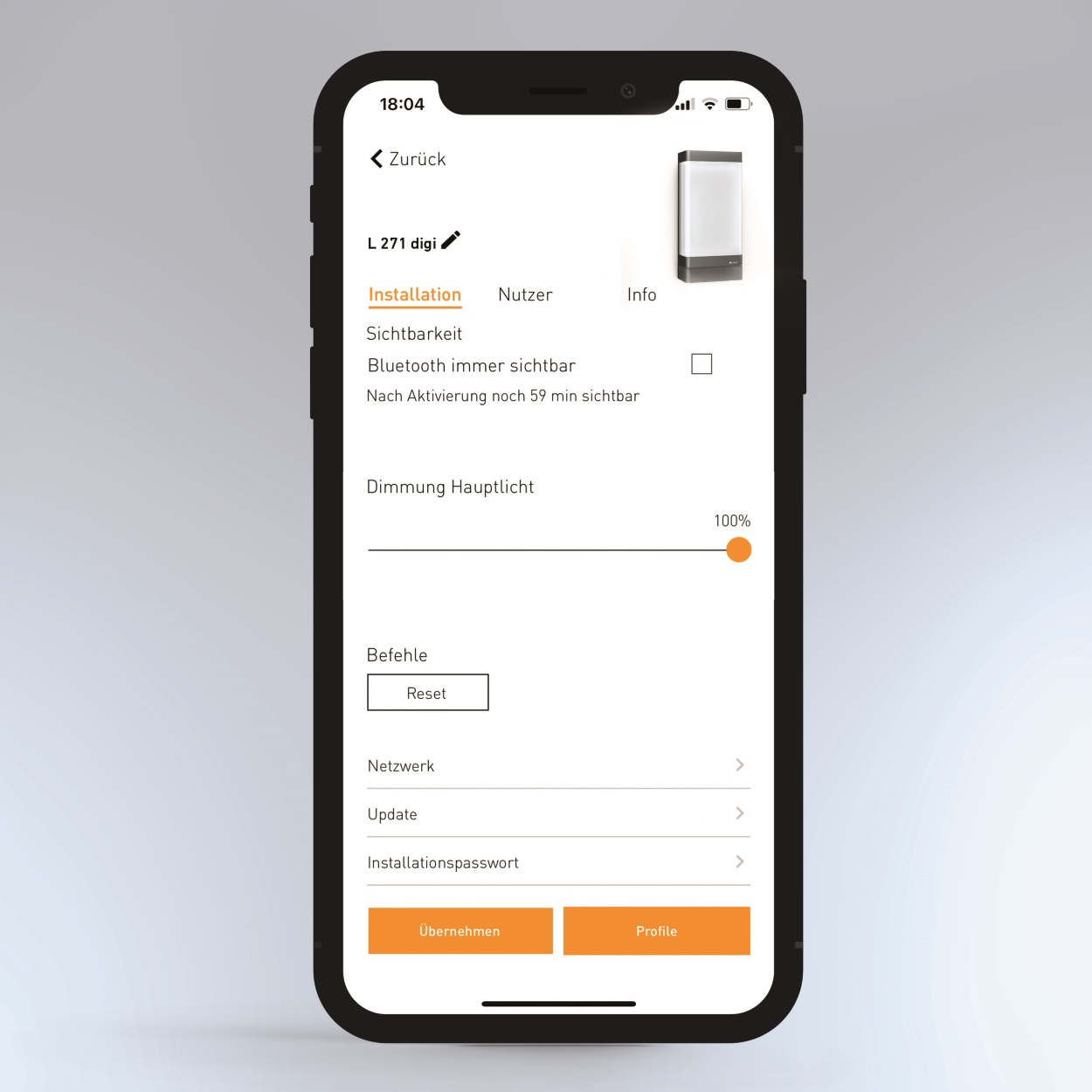

Operatable via app

Technical drawing

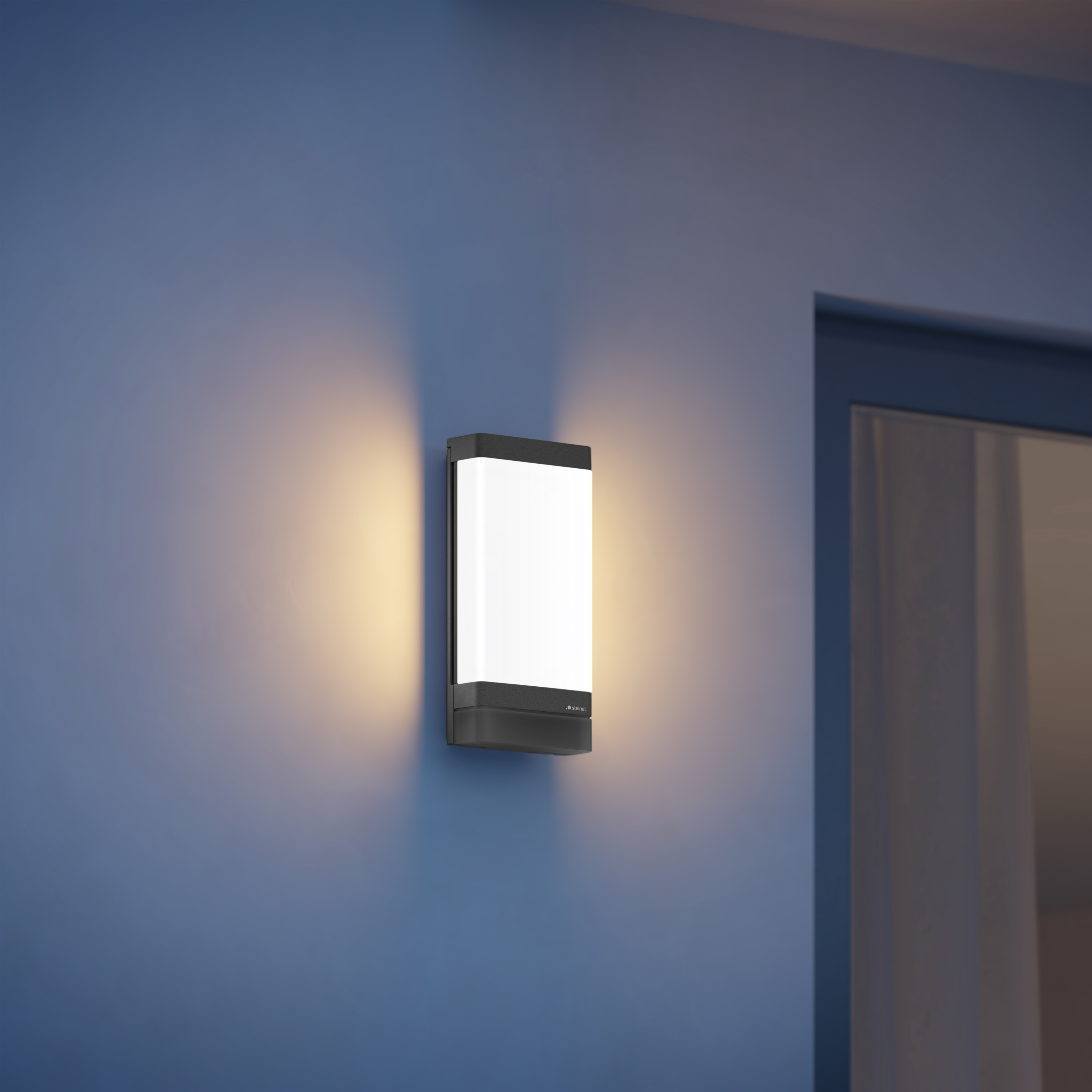

Sensor detection range

Wiring diagram 1

Circuit diagram Bluetooth

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620
