Steinel L 40 SC with motion detector & Bluetooth

Steinel L 40 SC with motion detector & Bluetooth

EAN-No. 4007841085247 · ELDAS® no. 085247

Steinel Bluetooth Mesh

Steinel L 40 SC with motion detector & Bluetooth

EAN-No. 4007841085247

ELDAS® no. 085247

Price: Please log in to see prices

Version

Without sensor, with Bluetooth With sensor and Bluetooth

Design

Narrow Wide

The LED sensor L 40 SC wall light features an aluminium housing that is both robust and visually appealing. With its square dimensions, this modern outdoor light makes a harmonious impression on any house type. Alongside an attractive housing concept, the light particularly stands out when it comes to its inner values. Once installed, the STEINEL LED system is highly durable and, with its warm white colour of 3000 K, will provide the most beautiful light around the house for many years. Whether opting for a soft light start, basic light or main light – thanks to Bluetooth Mesh, all settings can be adjusted quickly and conveniently via the app. The app also makes it possible to network any number of other Bluetooth Mesh lights to control them simultaneously and to assign group functions. The new infrared sensor generation used in the light signifies thoroughly demand-oriented light without compromise and enables high energy savings. The unobtrusive sensor offers a detection angle of 180°. The new cover clips included in the scope of delivery are conveniently mounted on the design ring using an intelligent push-fit system. This means that the detection area can be adjusted as required at any time. The high-quality outdoor light is also available as a Connect version without sensor using the product name L 40 C – and can be easily networked via the new Connect Bluetooth Mesh standard. The lights are delivered in plastic-free packaging.

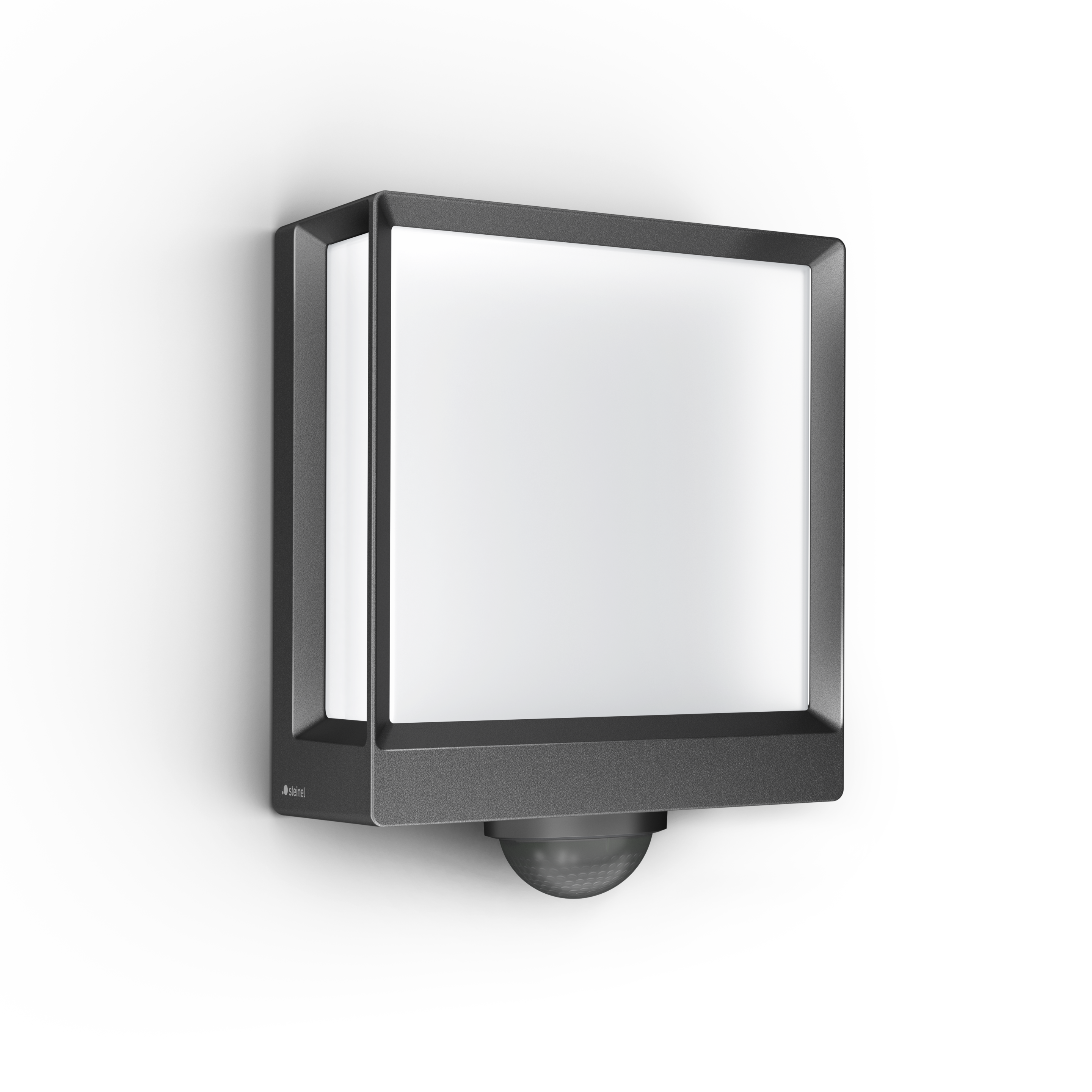

  • Outdoor light with motion detector and high-quality, square aluminium housing

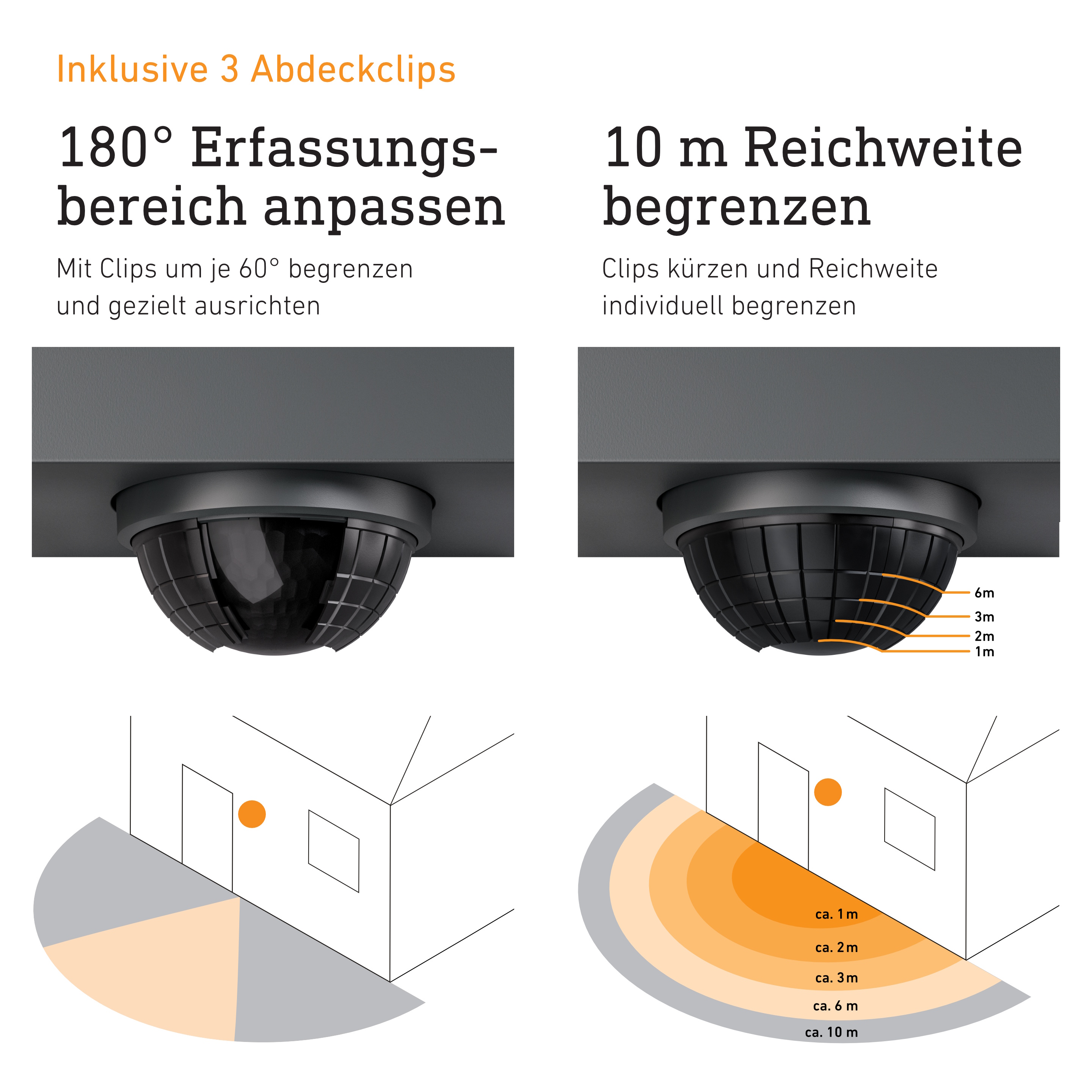

  • Sensor coloured in inconspicuous housing colour, the detection area can be individually limited by cover clips

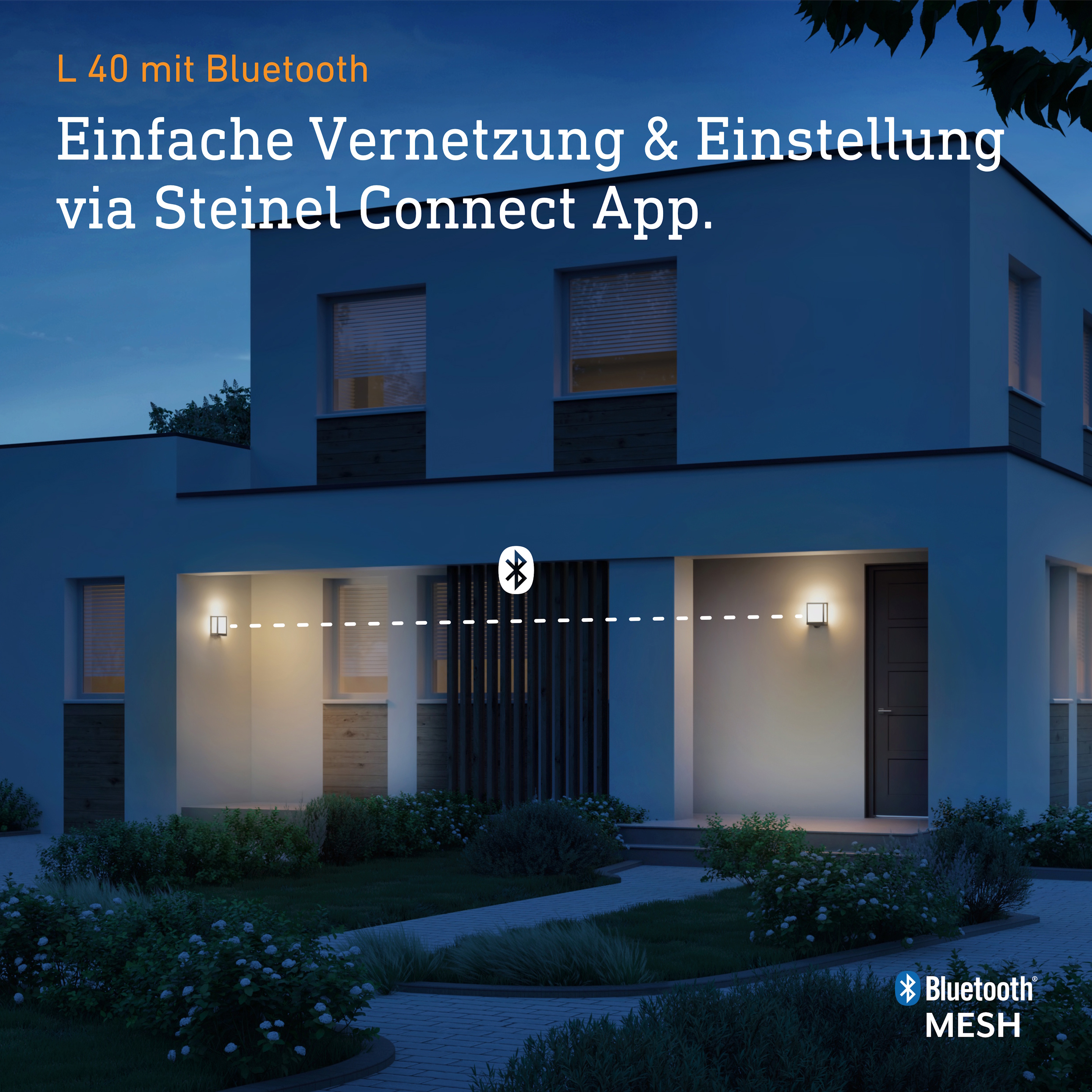

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

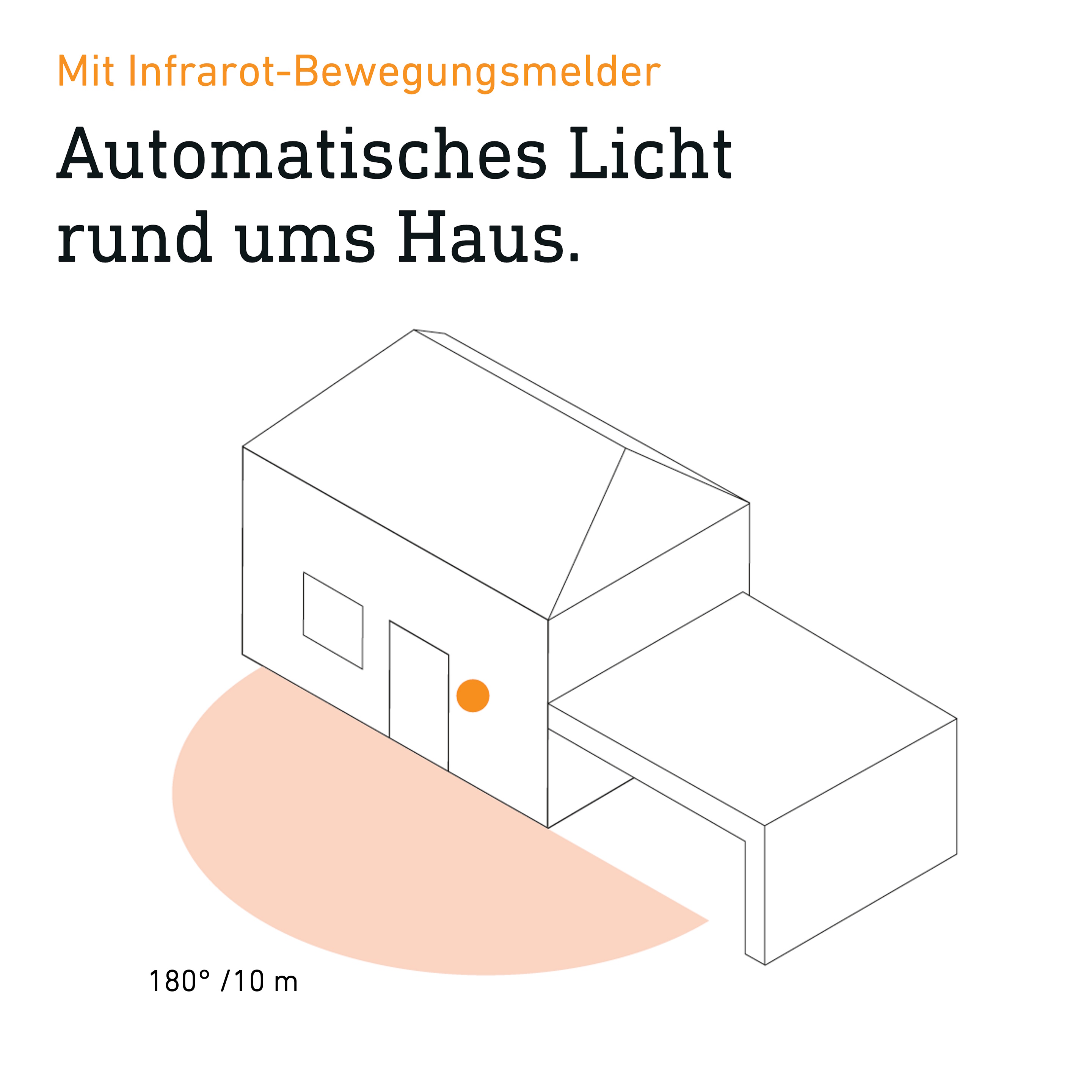

  • Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
  • Warm white light (3000 K) and long-life 12,9 W LEDs with 930 lm

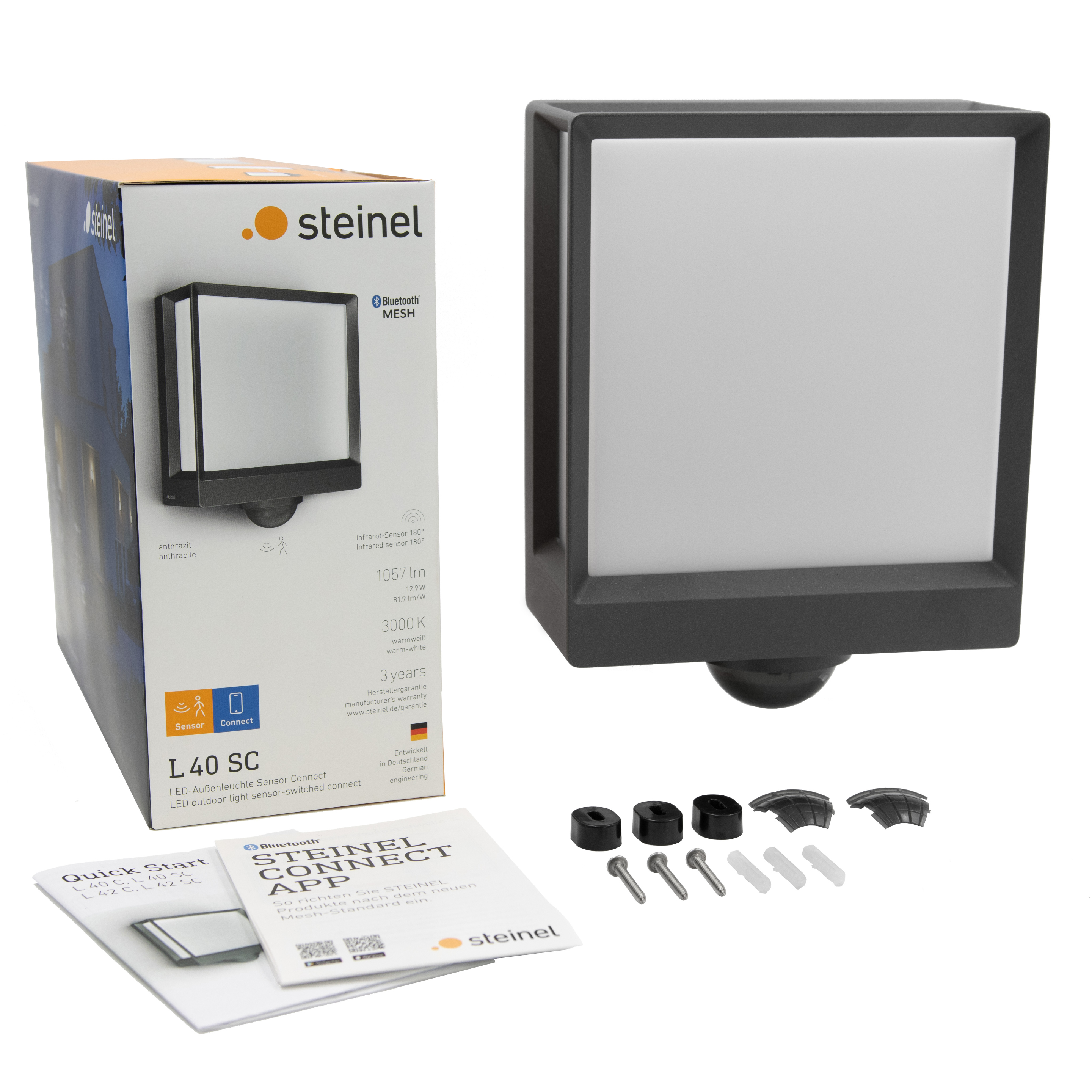

  • Incl. mounting accessories - plastic-free packaging

Identification

Type of accessory Other
Manufacturer Steinel
E-number 941012869

Variants

Version With sensor and Bluetooth
Design Wide

Dimensions

Dimensions L × W × H 105 x 201 x 261 mm
PU1 net weight 1.2190

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 12,9 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability Yes
Radial range r = 4 m (25 m²)
Tangential range r = 10 m (157 m²)
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/master Master/slave
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 930 lm
Efficiency 72,1 lm/W
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 10s-60 min Brightness-controlled OFF Permanently ON
Main light adjustable 5 - 100 %
Settings via Smartphone Tablet Bluetooth Mesh
With remote control No
Twilight setting teach Yes
Base light function in percent 5 – 100 %
Base light function percent from 5.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Cover material (scope of delivery) Cover clips
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room outdoors front door all round the building terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28871

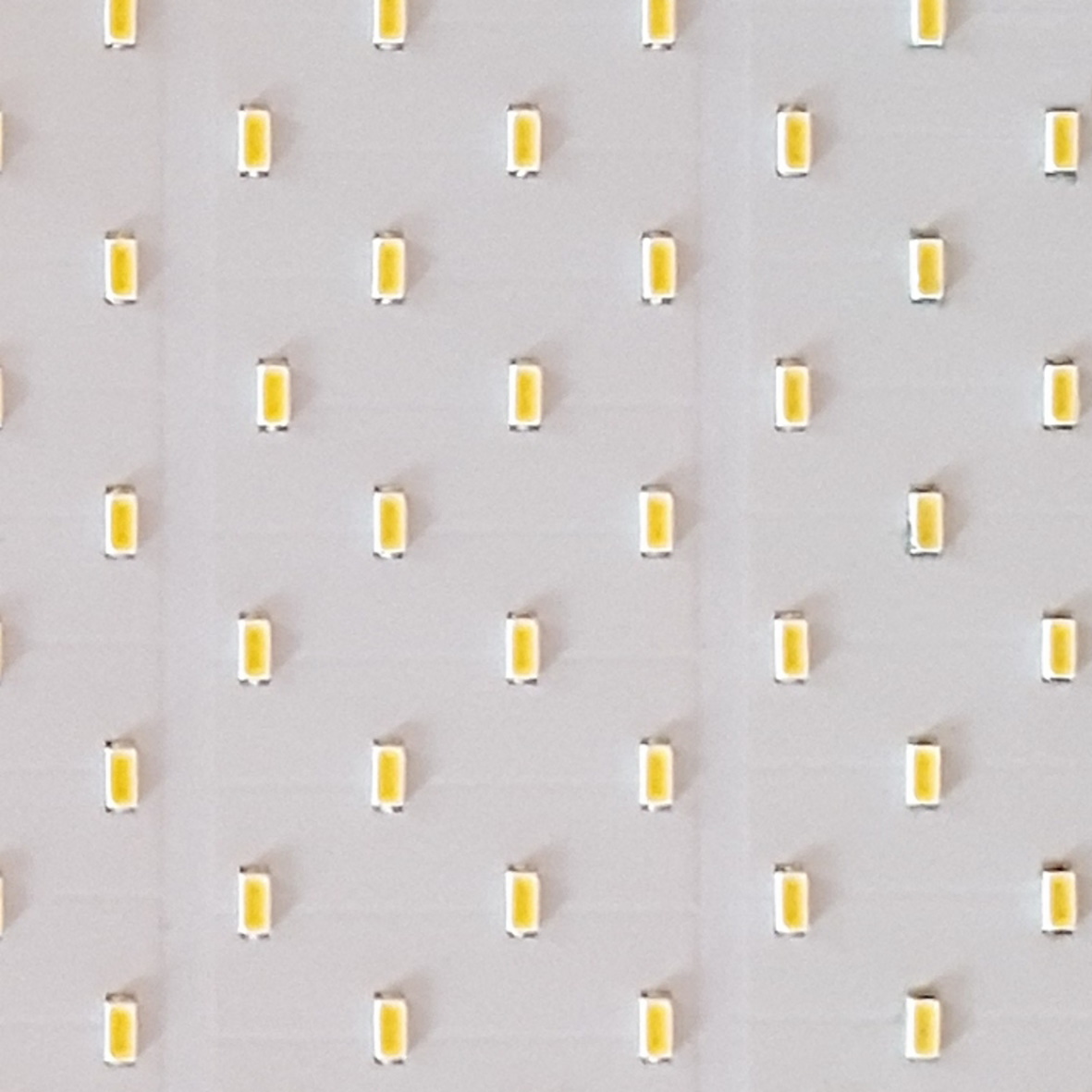

Including STEINEL LED system

Intelligent soft light start

High-quality aluminium

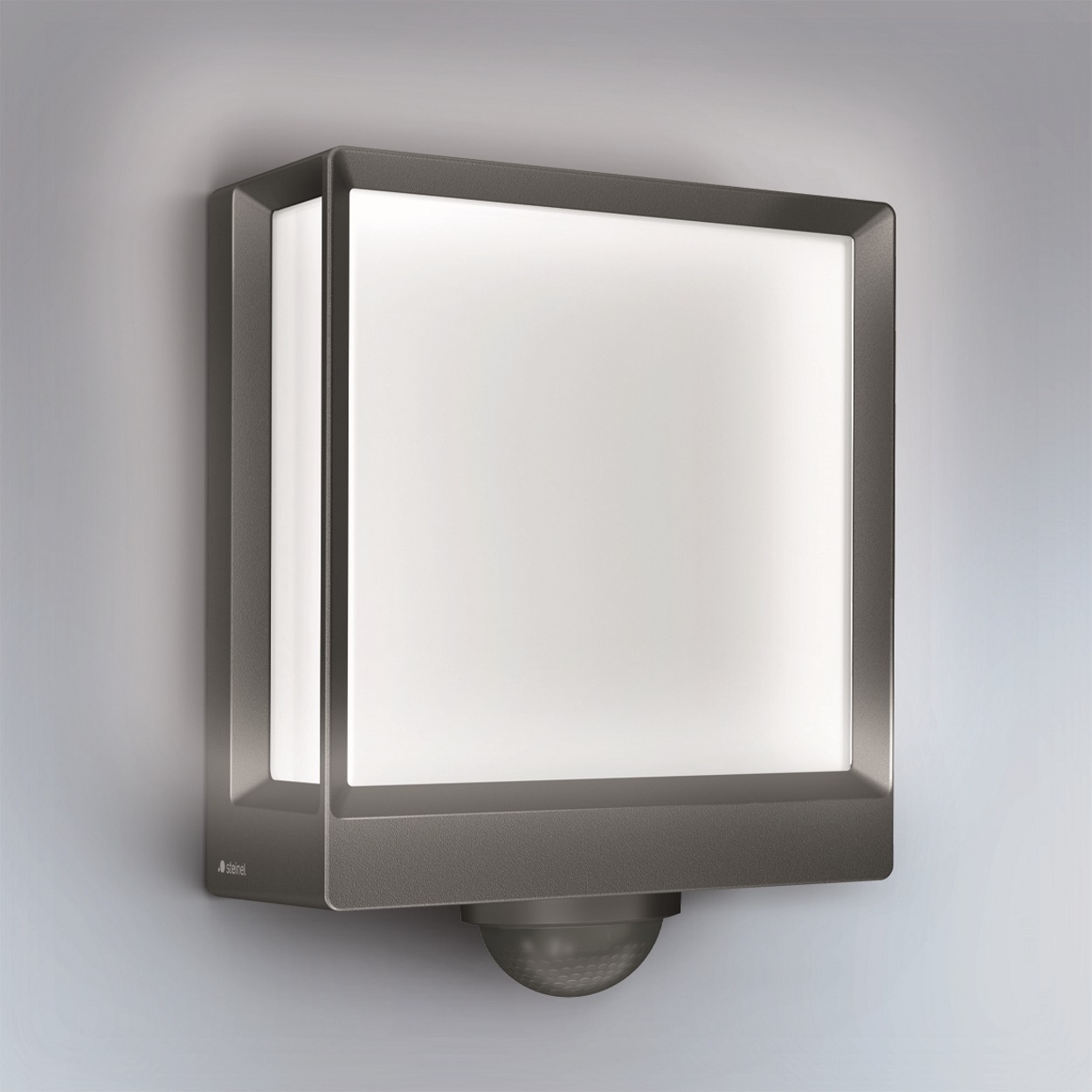

LED ambient light

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620
