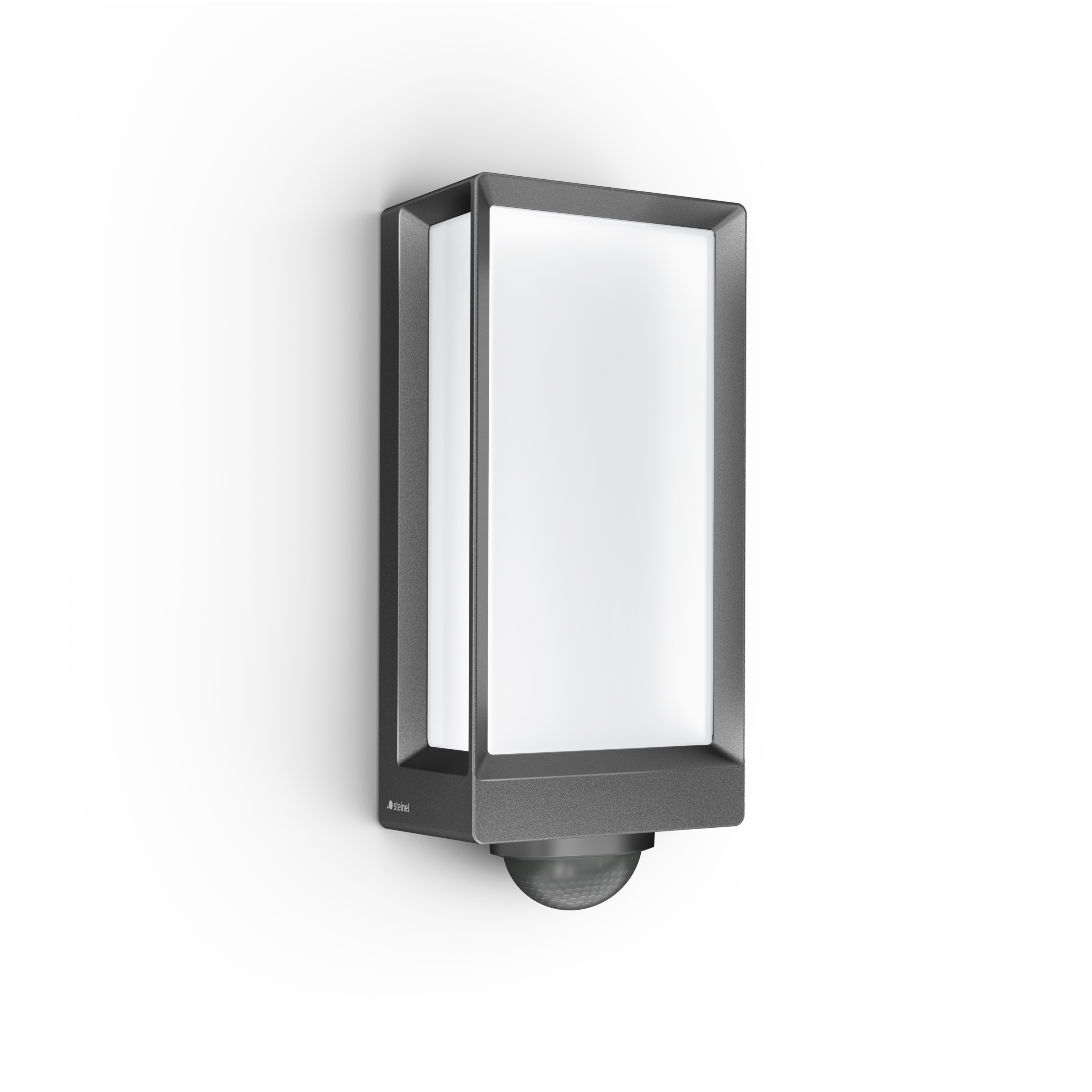

Steinel L 42 SC with motion detector & Bluetooth

Steinel L 42 SC with motion detector & Bluetooth

EAN-No. 4007841085261 · ELDAS® no. 085261

Steinel Bluetooth Mesh

Steinel L 42 SC with motion detector & Bluetooth

EAN-No. 4007841085261

ELDAS® no. 085261

Price: Please log in to see prices

Version

Without sensor, with Bluetooth With sensor and Bluetooth

Design

Narrow Wide

The high-quality sensor L 42 SC outdoor light with 180° detection and long-life STEINEL LED system stands out thanks to its no-frills design and beautifully sets the scene for houses with its warm white 3000 K. The rectangular aluminium housing not only looks very elegant, but is also extremely robust. Thanks to the Bluetooth Mesh standard combined with the free STEINEL app, commissioning, networking and grouping with other Bluetooth Mesh lights as well as setting functions such as soft light start, basic light and main light levels are particularly easy and take very little time. The new generation of sensors installed in the light always provides the most suitable light and saves a great deal of energy. The scope of delivery includes innovative cover clips that can be conveniently plugged into the sensor’s design ring. This means that the detection range can be adjusted in just a few simple steps. The outdoor light is supplied in plastic-free packaging and is also available as a Connect version without sensor using the product name L 42 C – it can be networked effortlessly using the new Connect Bluetooth Mesh standard.

  • Outdoor light with motion detector and high-quality, robust aluminium housing

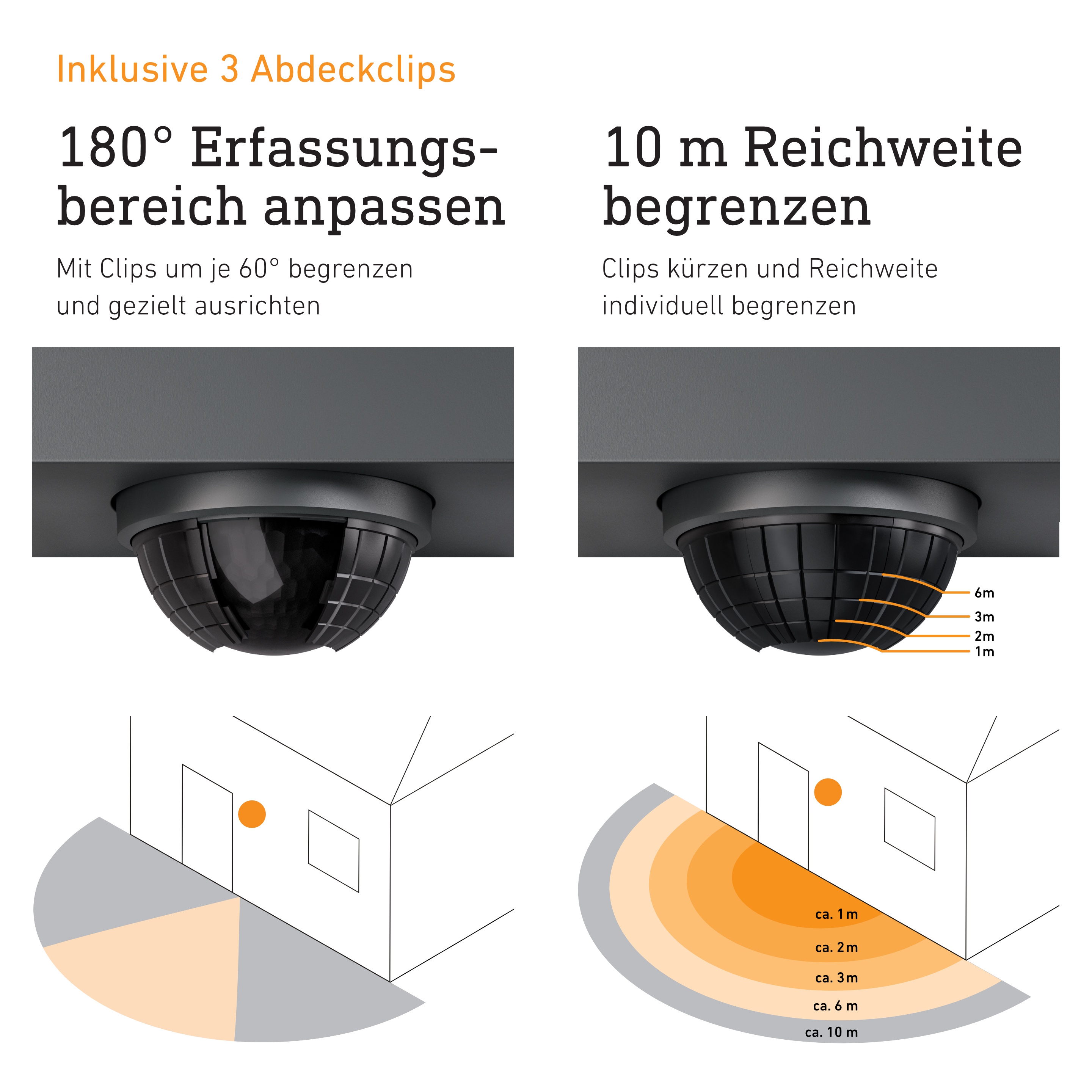

  • Sensor coloured in inconspicuous housing colour, the detection area can be individually limited by cover clips

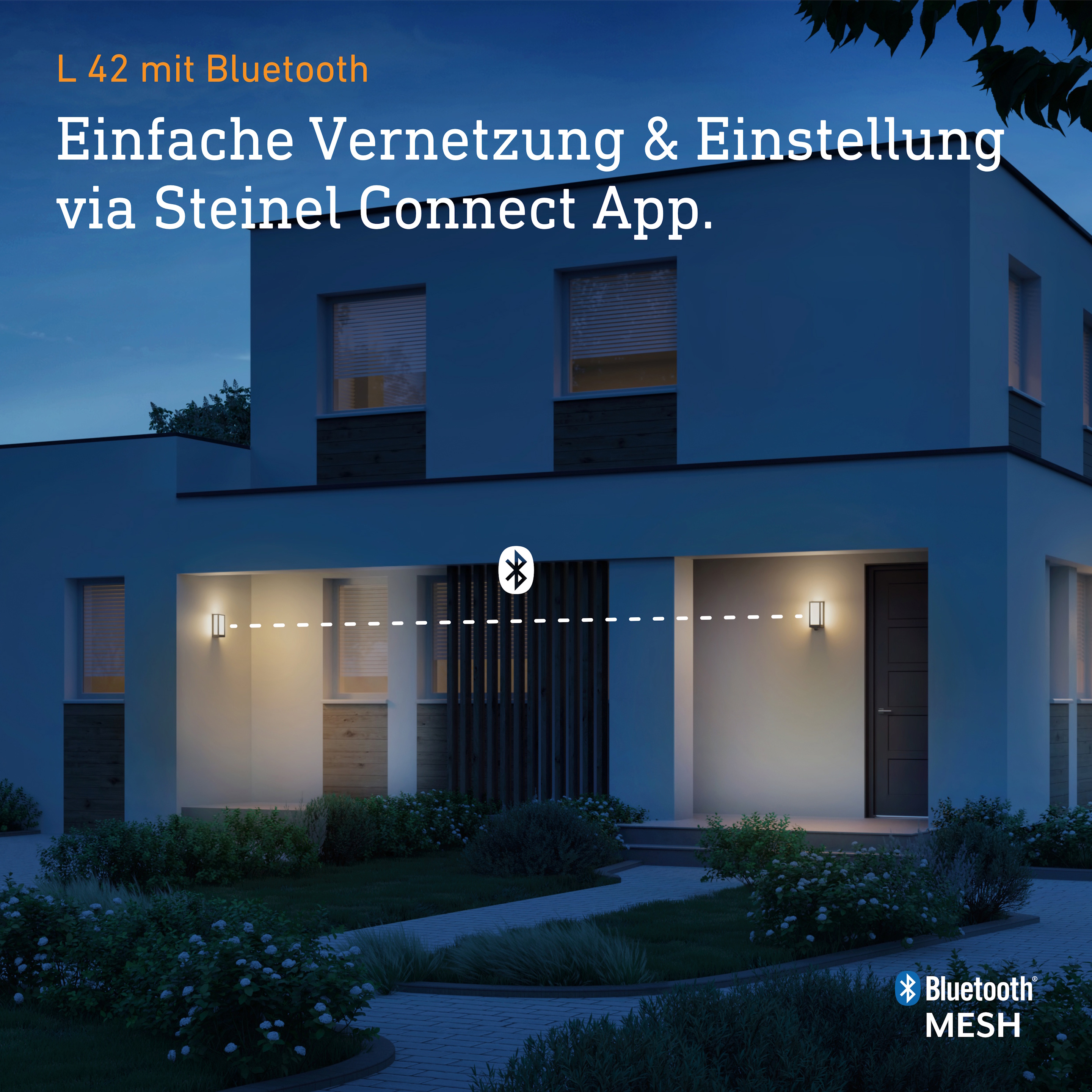

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

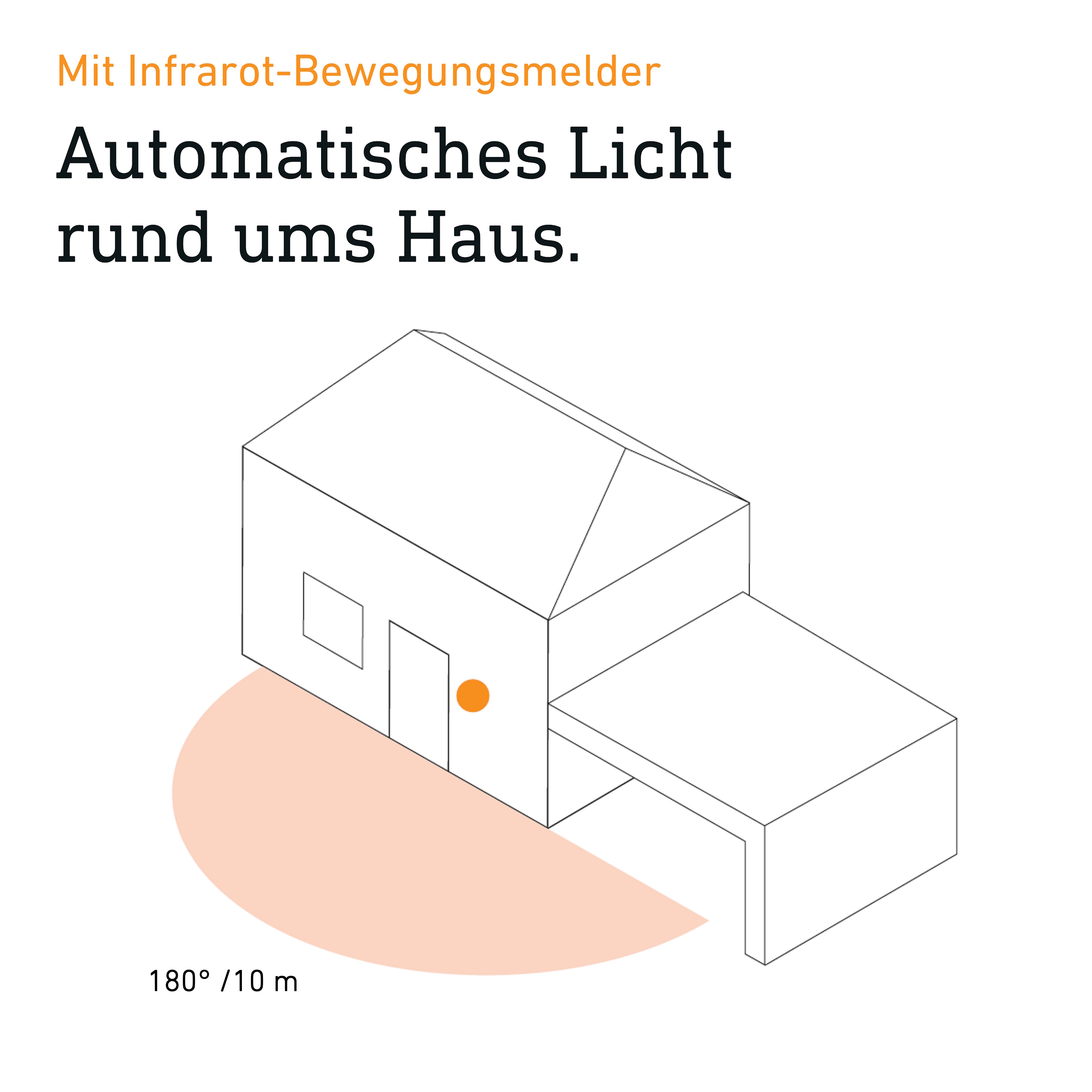

  • Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
  • Functions: adjustable basic and main light, pleasant soft light start, continuous light, scheduling function
  • Warm white light (3000 K) and long-life 13 W LEDs with 889 lm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941012909

Variants

Version With sensor and Bluetooth
Design Narrow

Dimensions

Dimensions L × W × H 105 x 131 x 306 mm
PU1 net weight 1.0340

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 13 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Electronic scalability No
Mechanical scalability Yes
Radial range r = 4 m (25 m²)
Tangential range r = 10 m (157 m²)
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/master Master/slave
Networking via Bluetooth Mesh
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 889 lm
Efficiency 68,4 lm/W
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Soft light start Yes
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 10s-60 min OFF Brightness-controlled
Main light adjustable 5 - 100 %
Functions Motions sensor Light sensor
Settings via Bluetooth Mesh
With remote control No
Twilight setting teach Yes
Base light function in percent 5 – 100 %
Base light function percent from 5.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Cover material (scope of delivery) Cover clips
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room outdoors front door all round the building terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28871

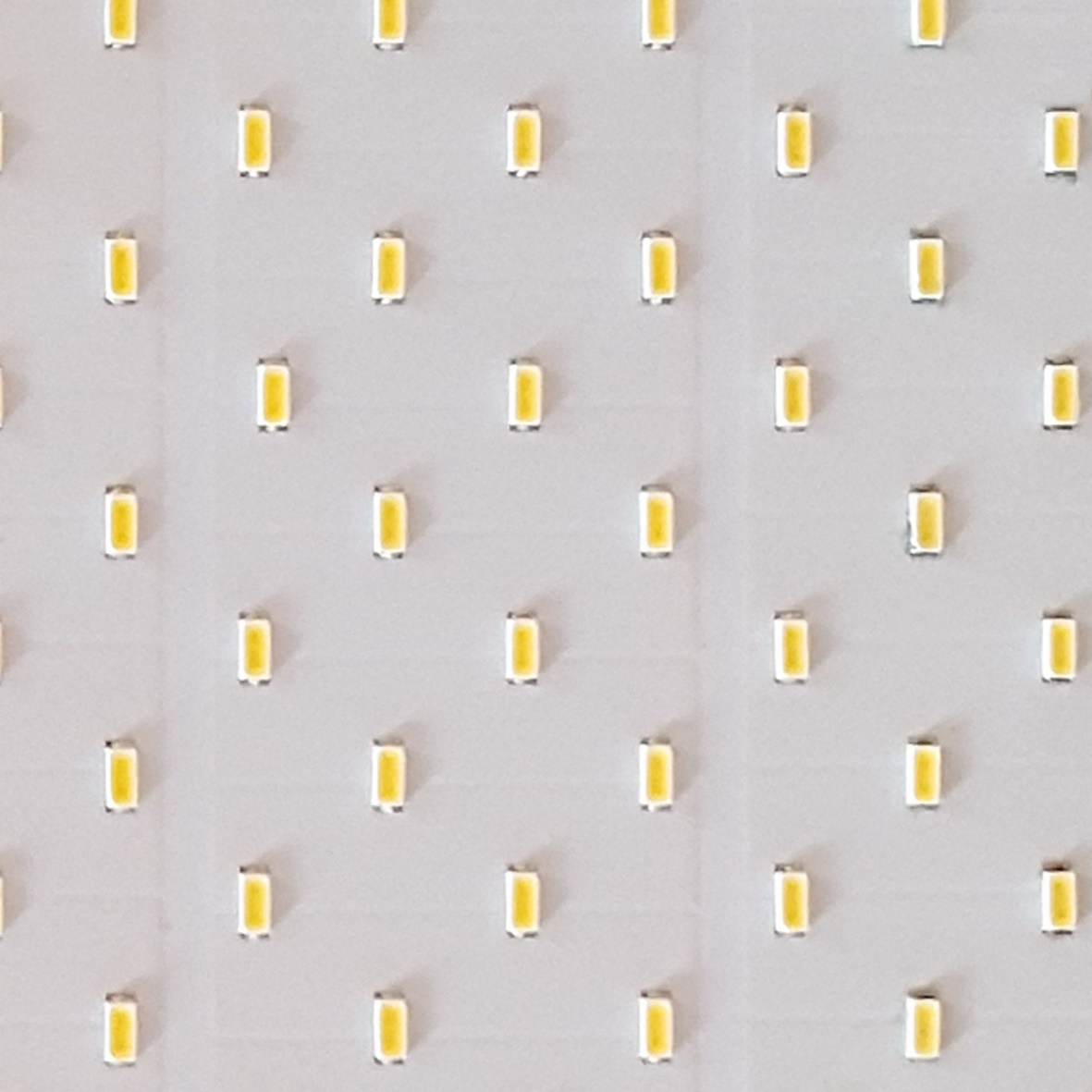

Including STEINEL LED system

Intelligent soft light start

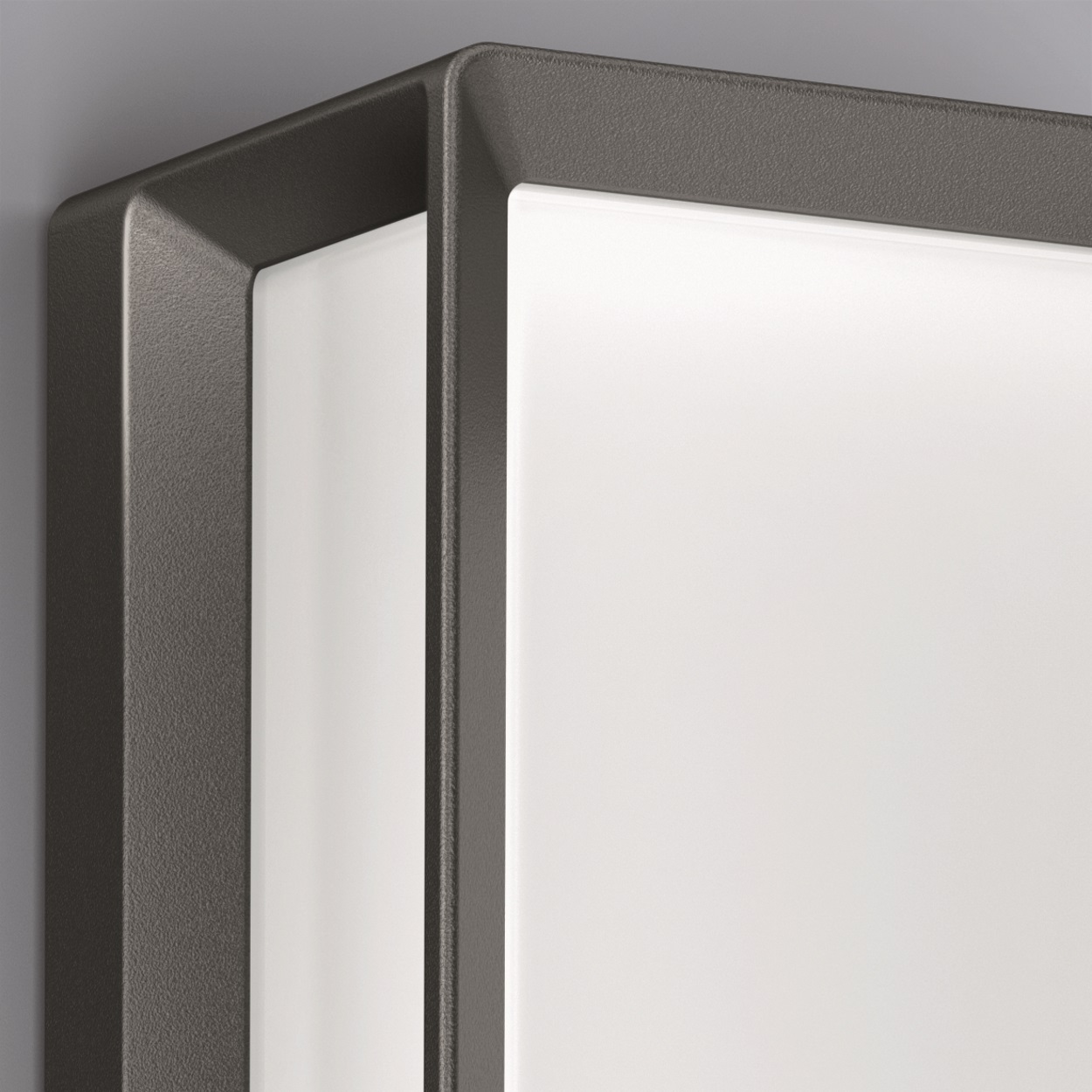

High-quality aluminium

LED ambient light

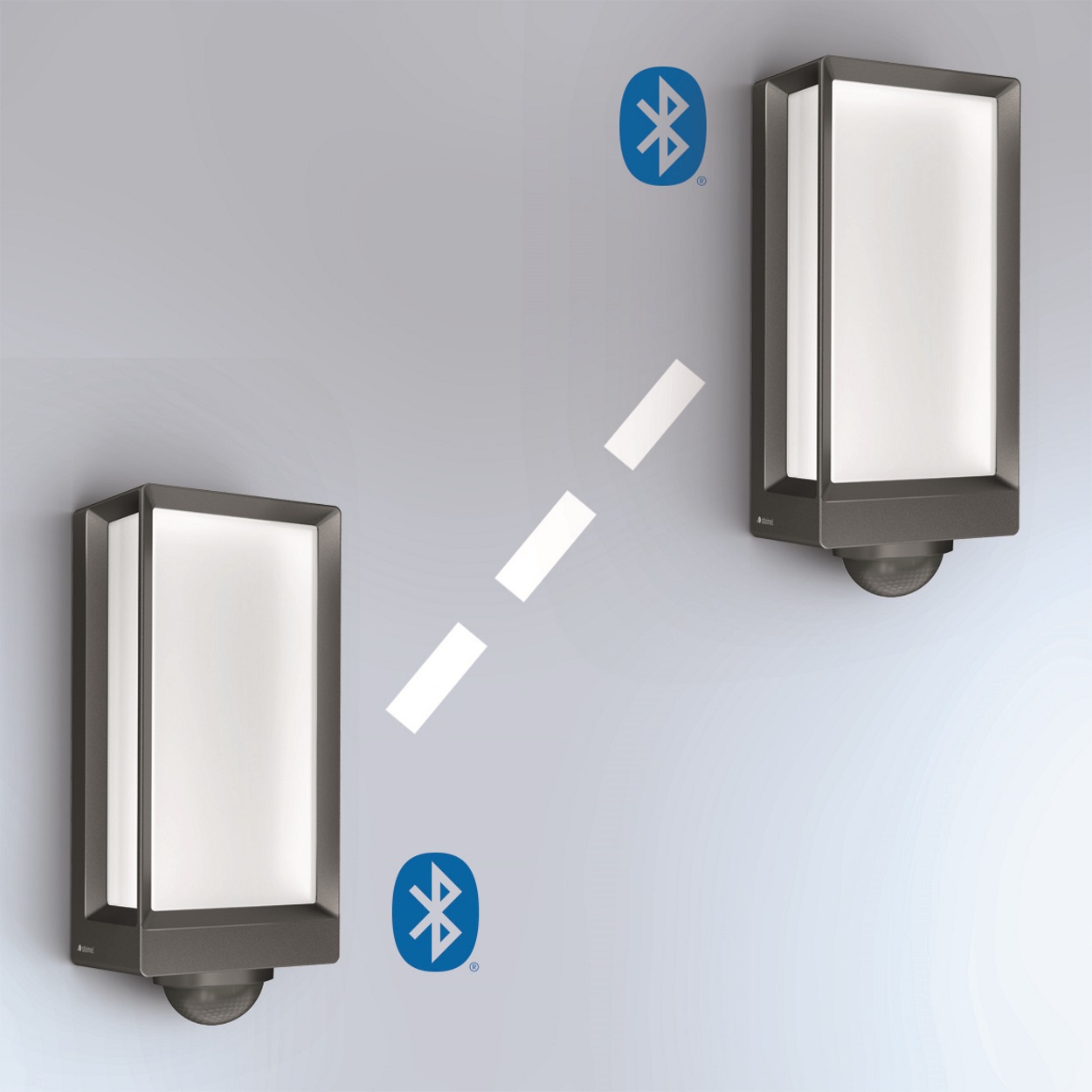

Interconnectable and adjustable via Bluetooth

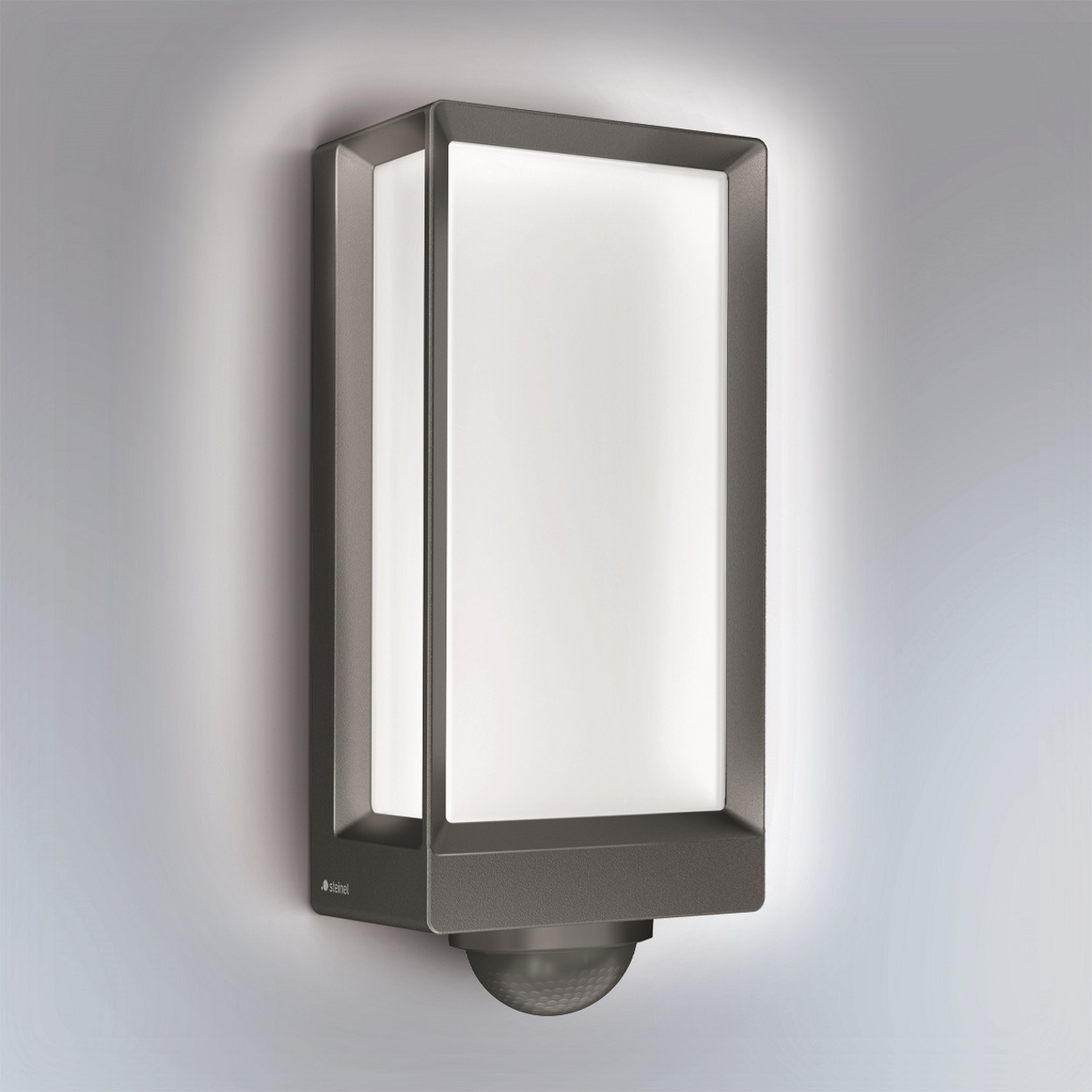

Adjustable main and basic light brighness (5 - 100%)

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth
