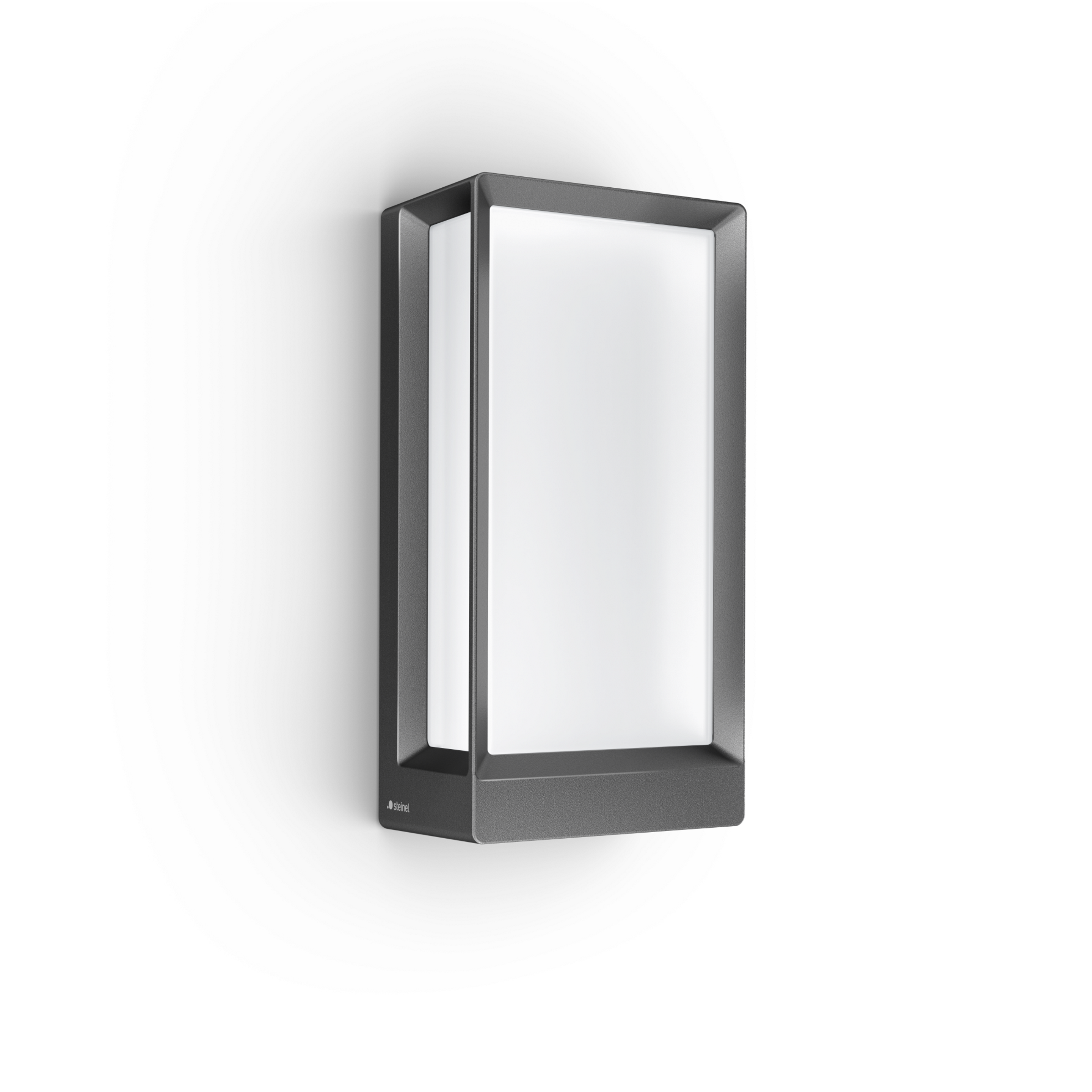

Steinel L 42 C without motion detector, with Bluetooth

Steinel L 42 C without motion detector, with Bluetooth

EAN-No. 4007841085254 · ELDAS® no. 085254

Steinel Bluetooth Mesh

Steinel L 42 C without motion detector, with Bluetooth

EAN-No. 4007841085254

ELDAS® no. 085254

Price: Please log in to see prices

Version

Without sensor, with Bluetooth With sensor and Bluetooth

Design

Narrow Wide

The high-quality L 42 C outdoor light long-life STEINEL LED system stands out thanks to its no-frills design and beautifully sets the scene for houses with its warm white 3000 K. The rectangular aluminium housing not only looks very elegant, but is also extremely robust. Thanks to the Bluetooth Mesh standard combined with the free STEINEL app, commissioning, networking and grouping with other Bluetooth Mesh lights as well as setting functions such as soft light start, basic light and main light levels are particularly easy and take very little time. Thanks to the Bluetooth Mesh standard combined with the free STEINEL app, commissioning, networking and grouping with other Bluetooth Mesh lights as well as setting the dimming function are particularly easy and take very little time. The outdoor light is supplied in plastic-free packaging and is also available as a Connect version without sensor using the product name L 42 C – it can be networked effortlessly using the new Connect Bluetooth Mesh standard.

  • Outdoor light without motion detector, with high-quality, robust aluminium housing
  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App
  • Functions: adjustable basic and main light (basic light only in combination with a Bluetooth sensor luminaire), scheduling function
  • Warm white light (3000 K) and long-life 12,6 W LEDs with 871 lm
  • Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel
E-number 941012829

Variants

Version Without sensor, with Bluetooth
Design Narrow

Dimensions

Dimensions L × W × H 105 x 131 x 274 mm
PU1 net weight 1.0120

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 12,6 W

Sensor technology

With motion detector No
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/master Master/slave
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 871 lm
Efficiency 69,1 lm/W
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Continuous light selectable

Lifetime

LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Main light adjustable 5 - 100 %
Settings via Bluetooth Mesh
With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Cover material (scope of delivery) Cover clips
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room outdoors front door all round the building terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 28871

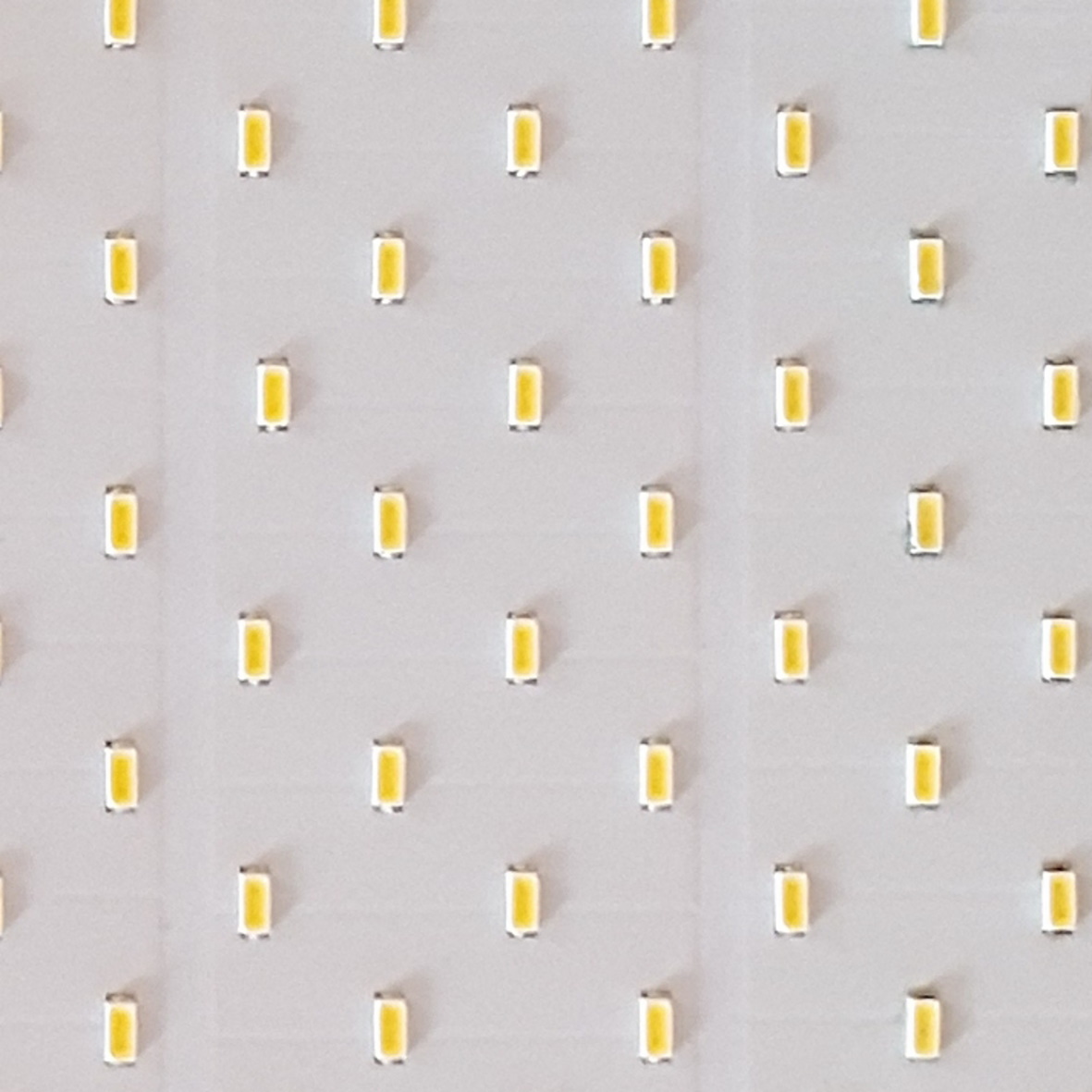

Including STEINEL LED system

Intelligent soft light start

High-quality aluminium

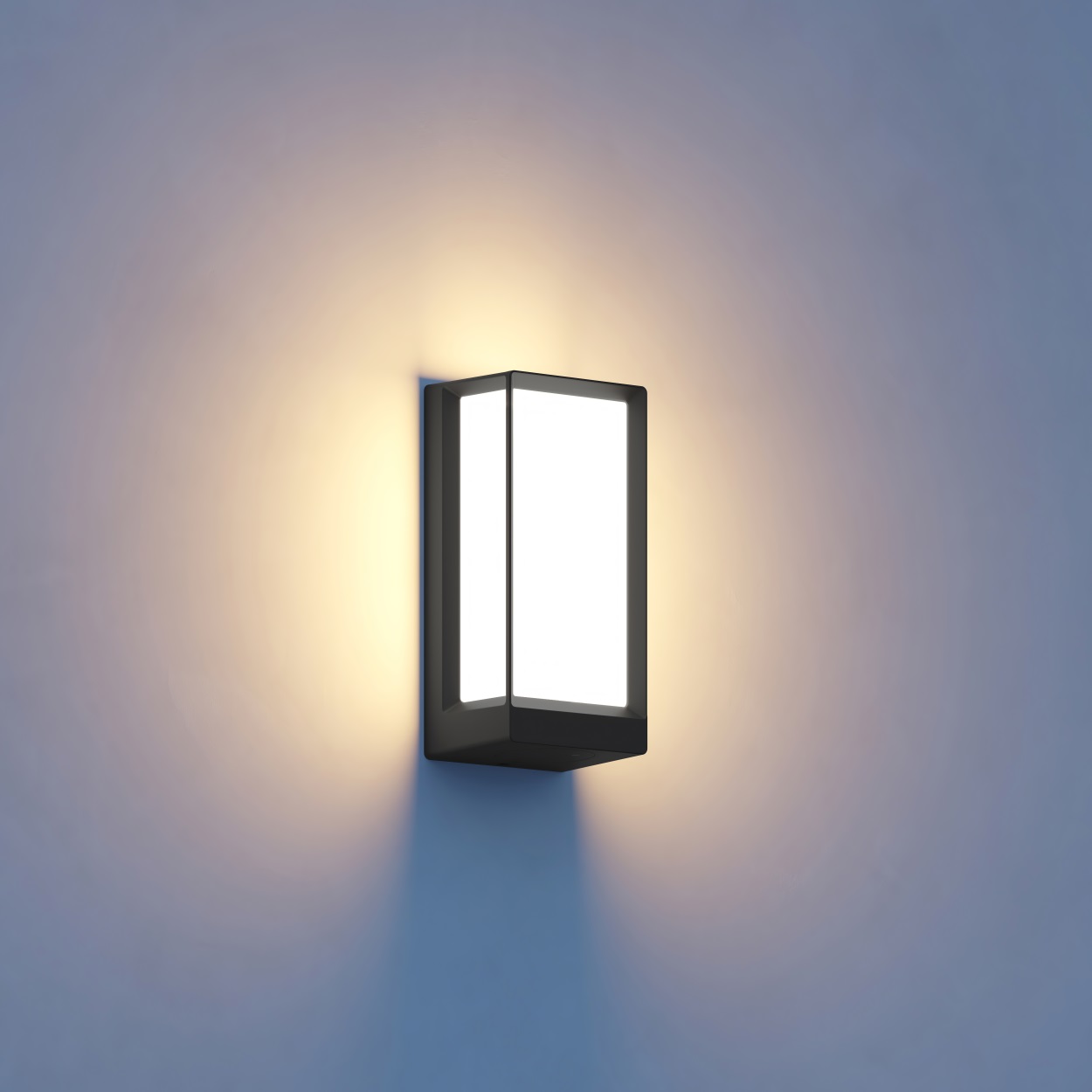

LED ambient light

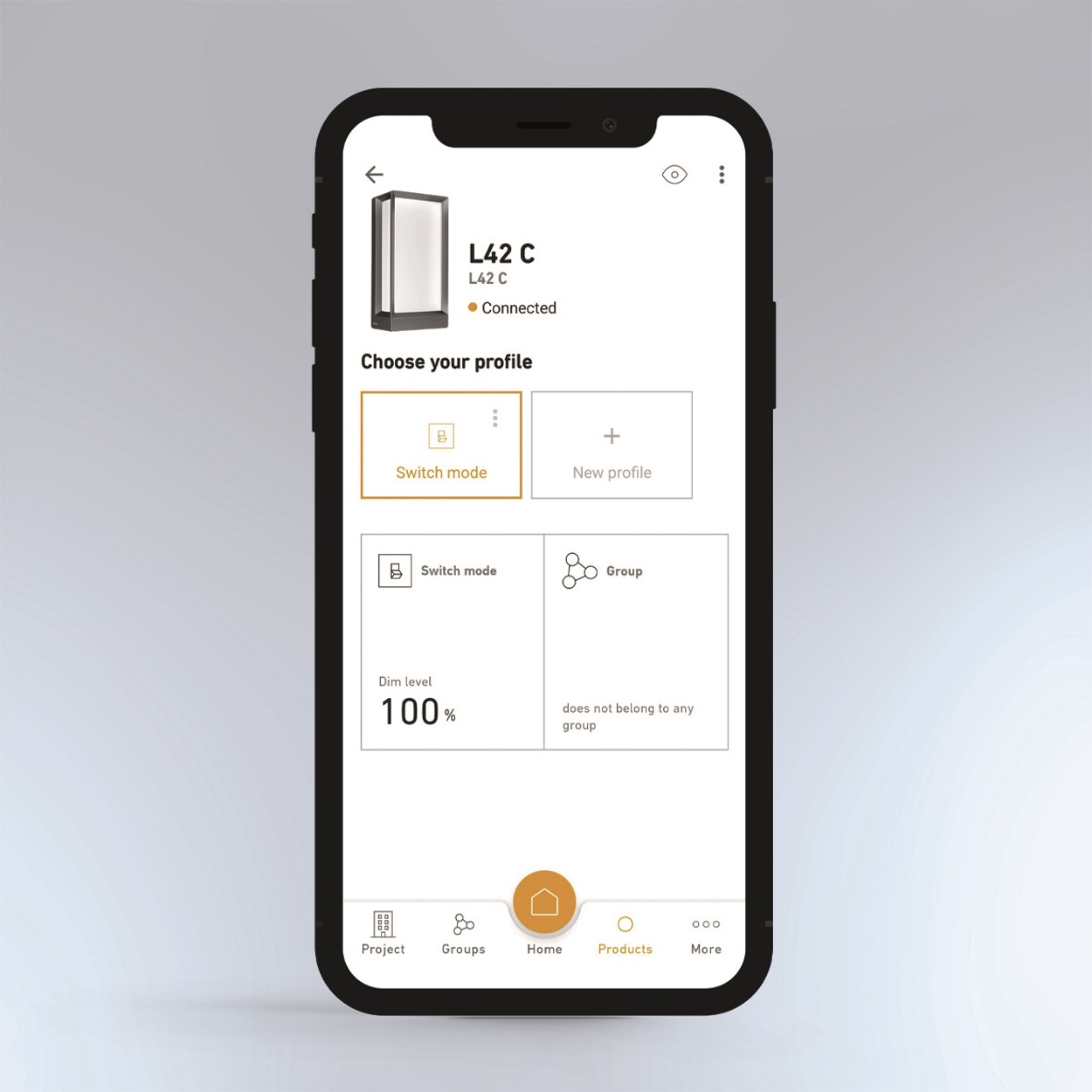

Operatable via app

Technical drawing

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth

Wireless pushbutton TapDuo C

Wireless pushbutton TapDuo C

Item no. 088620
