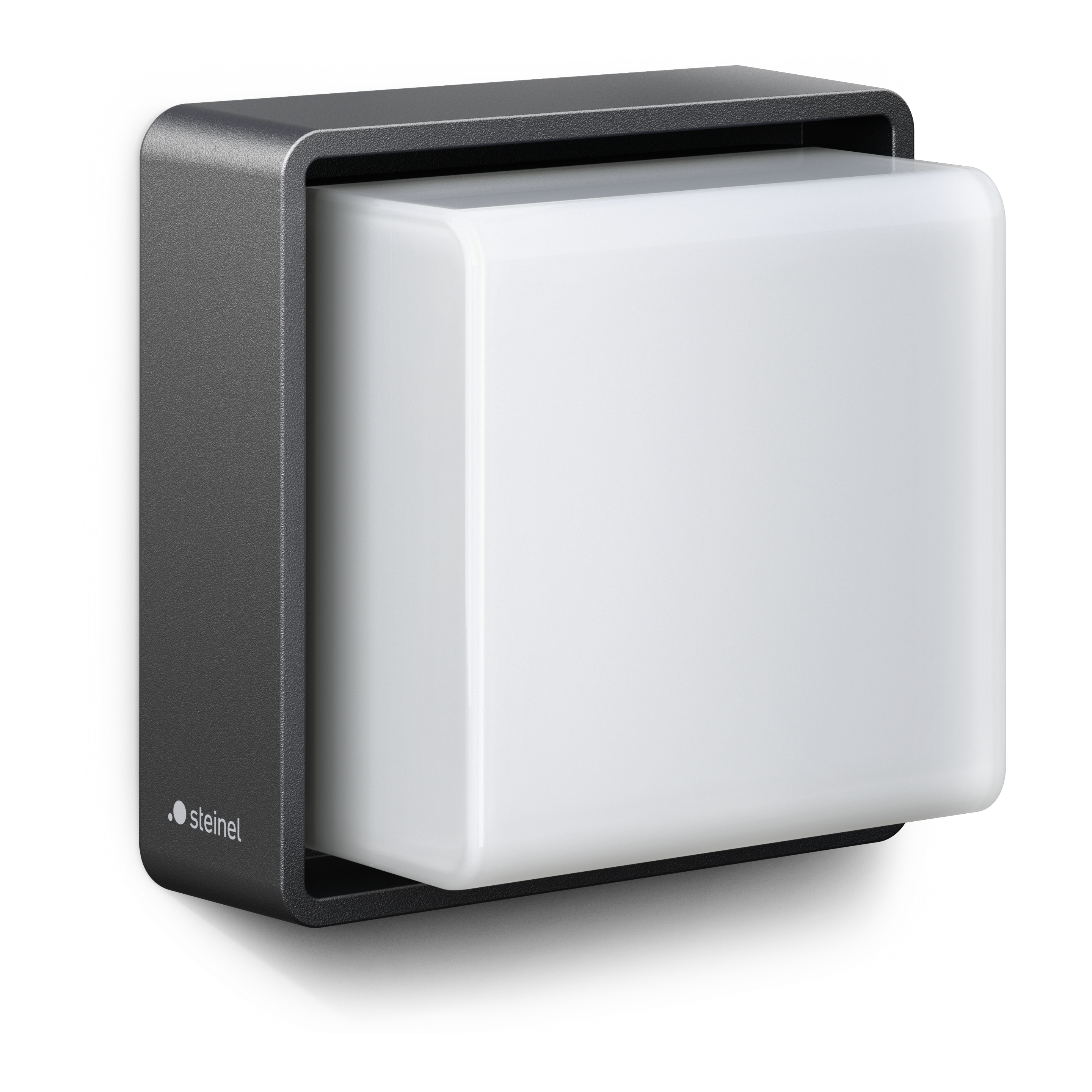

Steinel L 845 C without motion detector, with Bluetooth

Steinel L 845 C without motion detector, with Bluetooth

EAN-No. 4007841078638 · ELDAS® no. 078638

Steinel Bluetooth Mesh

Steinel L 845 C without motion detector, with Bluetooth

EAN-No. 4007841078638

ELDAS® no. 078638

Price: Please log in to see prices

Version

Without sensor Sensor

The modern L 845 SC wall light from the Cube Pro range is equipped with a 160° high-frequency sensor, covers a detection radius of up to 5 m and can be adjusted digitally with absolute precision. The light is made of high-quality aluminium and features a sophisticated cube design. Offering 3000 K and 719 lm , the wall light sets brilliant accents around the house, while also providing safe yet stylish direction at all times. Bluetooth Mesh and the STEINEL Connect app ensure the wall lights can be commissioned, set up and networked wirelessly, rapidly and easily. Thanks to the interconnected group function, visionary light makes it very pleasant and comfortable for residents and visitors alike to spend time outside. The attractive wall light features a soft light start and basic light function (10-100%), as well as dimmable main light (10-100%). To summarise, this is the ideal lighting solution for needs-based illumination along a building. Requiring only 9 W, this designer light is also surprisingly economical. The attractive wall light is also available without a sensor (L 845 C).

Identification

Manufacturer Steinel
E-number 941260149

Variants

Version Without sensor

Dimensions

Dimensions L × W × H 134 x 134 x 87 mm
PU1 net weight 0.7400

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9 W

Sensor technology

Max. mounting height 2,50 m
With motion detector No
Mounting height 1,8 – 2,50 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/slave
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 719 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L70B50

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Main light adjustable 10 - 100 %
Settings via App Smartphone Bluetooth Mesh
With remote control No
Twilight setting teach Yes

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room outdoors front door all round the building terrace / balcony courtyard & driveway

Scope of delivery & warranty

Manufacturer warranty 5 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

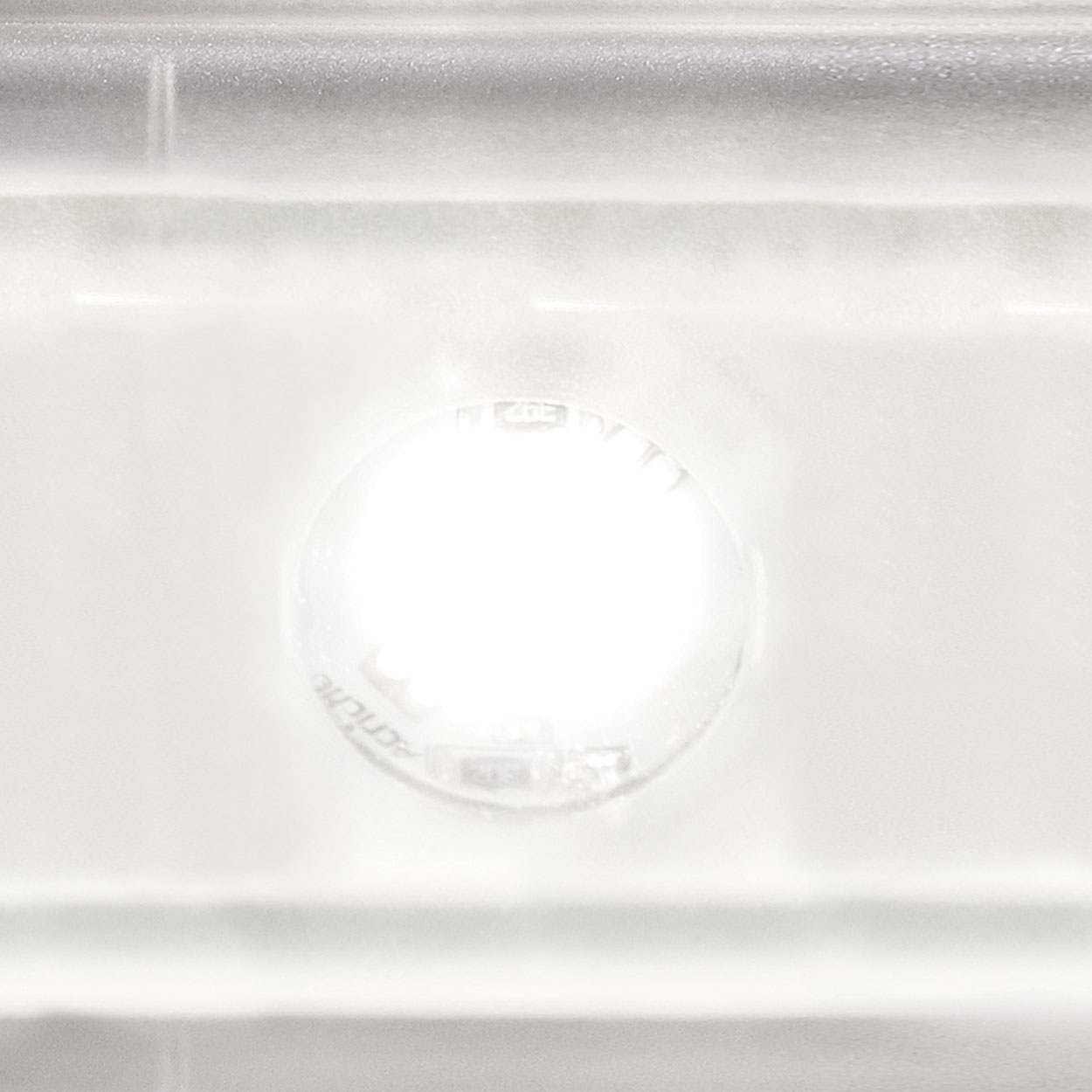

Including STEINEL LED system

Intelligent soft light start

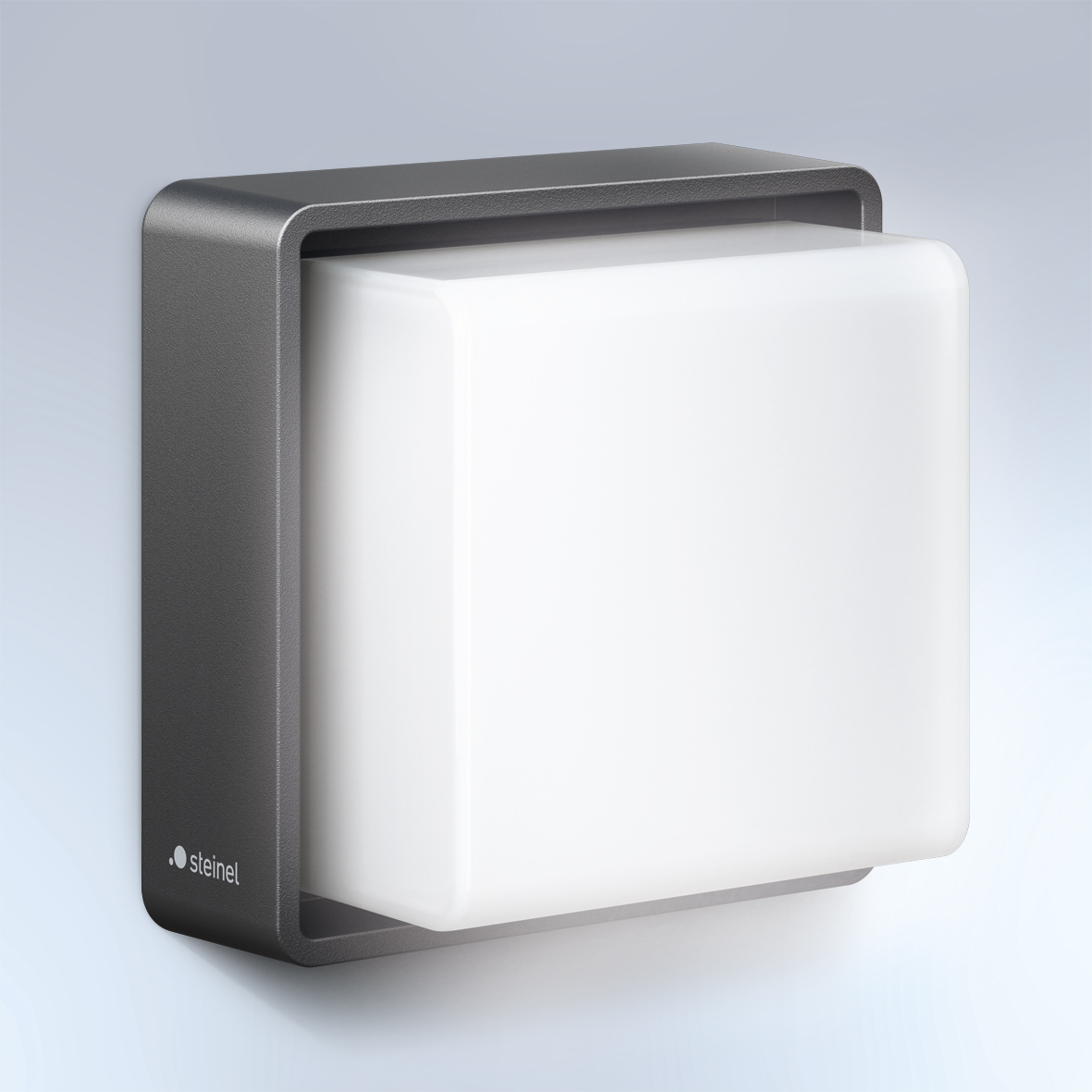

Optional basic lighting level 10 - 100 % (only with bluetooth sensor product)

High-quality aluminium

Technical drawings

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth
