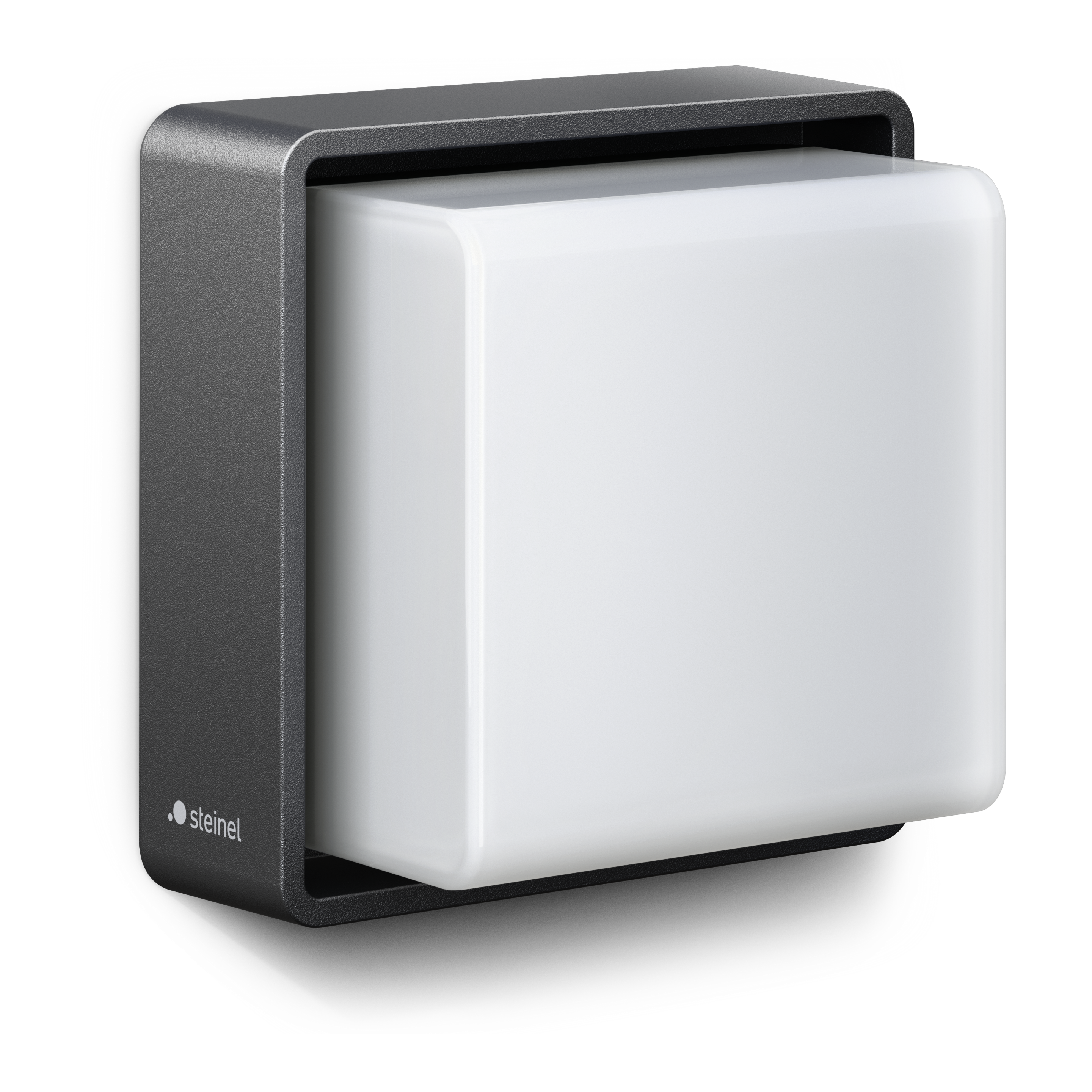

Steinel L 845 SC with motion detector & Bluetooth

Steinel L 845 SC with motion detector & Bluetooth

EAN-No. 4007841078645 · ELDAS® no. 078645

Steinel Bluetooth Mesh

Steinel L 845 SC with motion detector & Bluetooth

EAN-No. 4007841078645

ELDAS® no. 078645

Price: Please log in to see prices

Version

The modern L 845 SC wall light from the Cube Pro range is equipped with a 160° high-frequency sensor, covers a detection radius of up to 5 m and can be adjusted digitally with absolute precision. The light is made of high-quality aluminium and features a sophisticated cube design. Offering 3000 K and 655 lm , the wall light sets brilliant accents around the house, while also providing safe yet stylish direction at all times. Bluetooth Mesh and the STEINEL Connect app ensure the wall lights can be commissioned, set up and networked wirelessly, rapidly and easily. Thanks to the interconnected group function, visionary light makes it very pleasant and comfortable for residents and visitors alike to spend time outside. The attractive wall light features a soft light start and basic light function (10-100%), as well as dimmable main light (10-100%). To summarise, this is the ideal lighting solution for needs-based illumination along a building. Requiring only 9 W, this designer light is also surprisingly economical. The attractive wall light is also available without a sensor (L 845 C).

Identification

Manufacturer Steinel
E-number 941260159

Variants

Version Sensor

Dimensions

Dimensions L × W × H 134 x 134 x 87 mm
PU1 net weight 0.7600

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology iHF (intelligent high-frequency technology)
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 160 °
Opening angle 160 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Range detail Detection zone adjustable on 3 axes
Tangential range r = 5 m (35 m²)
Mounting height 1,8 – 2,50 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Type of networking Master/slave
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 655 lm
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light individually adjustable via app

Lifetime

LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L70B50

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 10s-60 min Brightness-controlled OFF
Main light adjustable 10 - 100 %
Settings via App Smartphone Bluetooth Mesh
With remote control No
Twilight setting teach Yes
Base light function in percent 10 – 100 %
Base light function percent from 10.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Plastic, opal
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Aluminium
Application room outdoors front door all round the building terrace / balcony courtyard & driveway

Scope of delivery & warranty

Manufacturer warranty 5 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

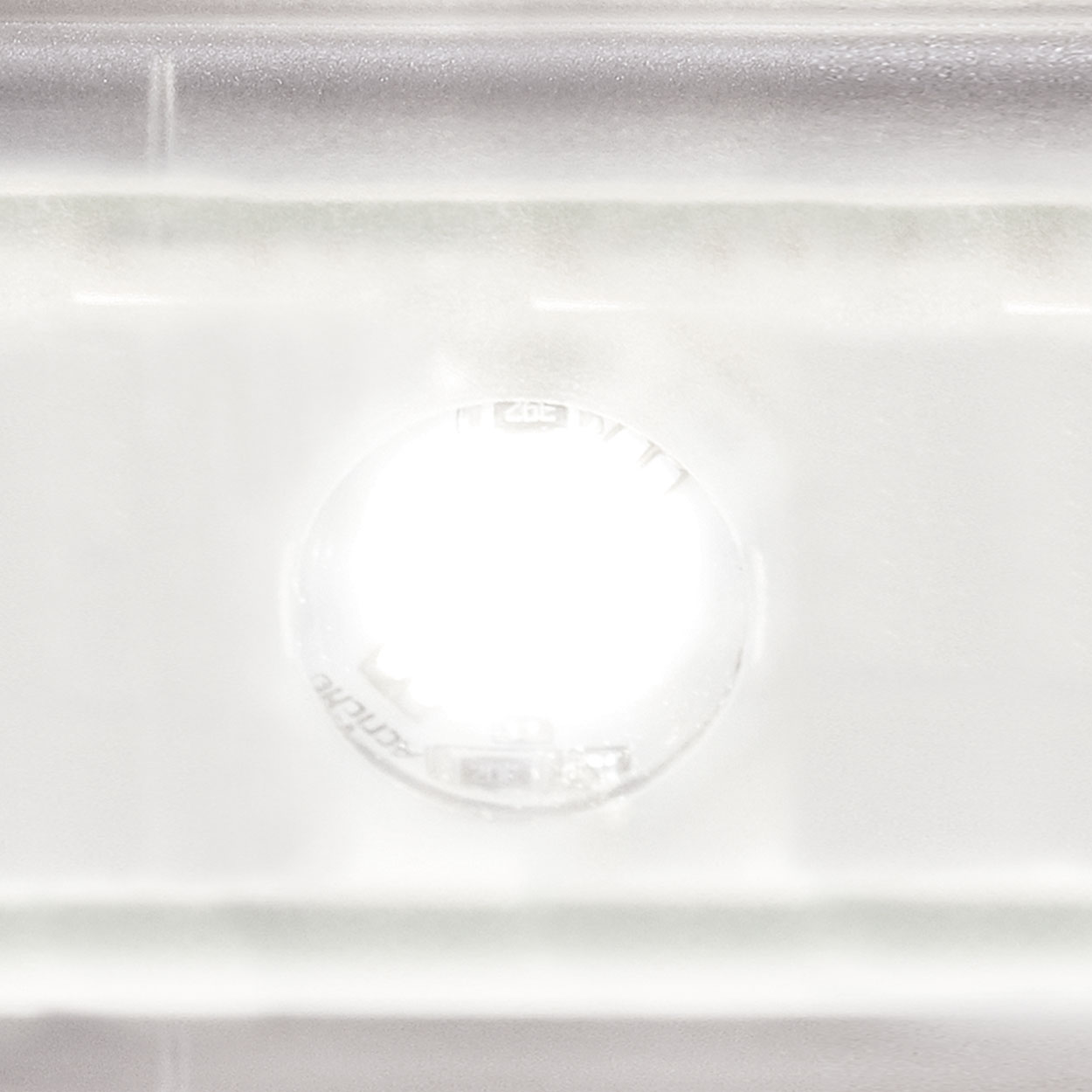

Including STEINEL LED system

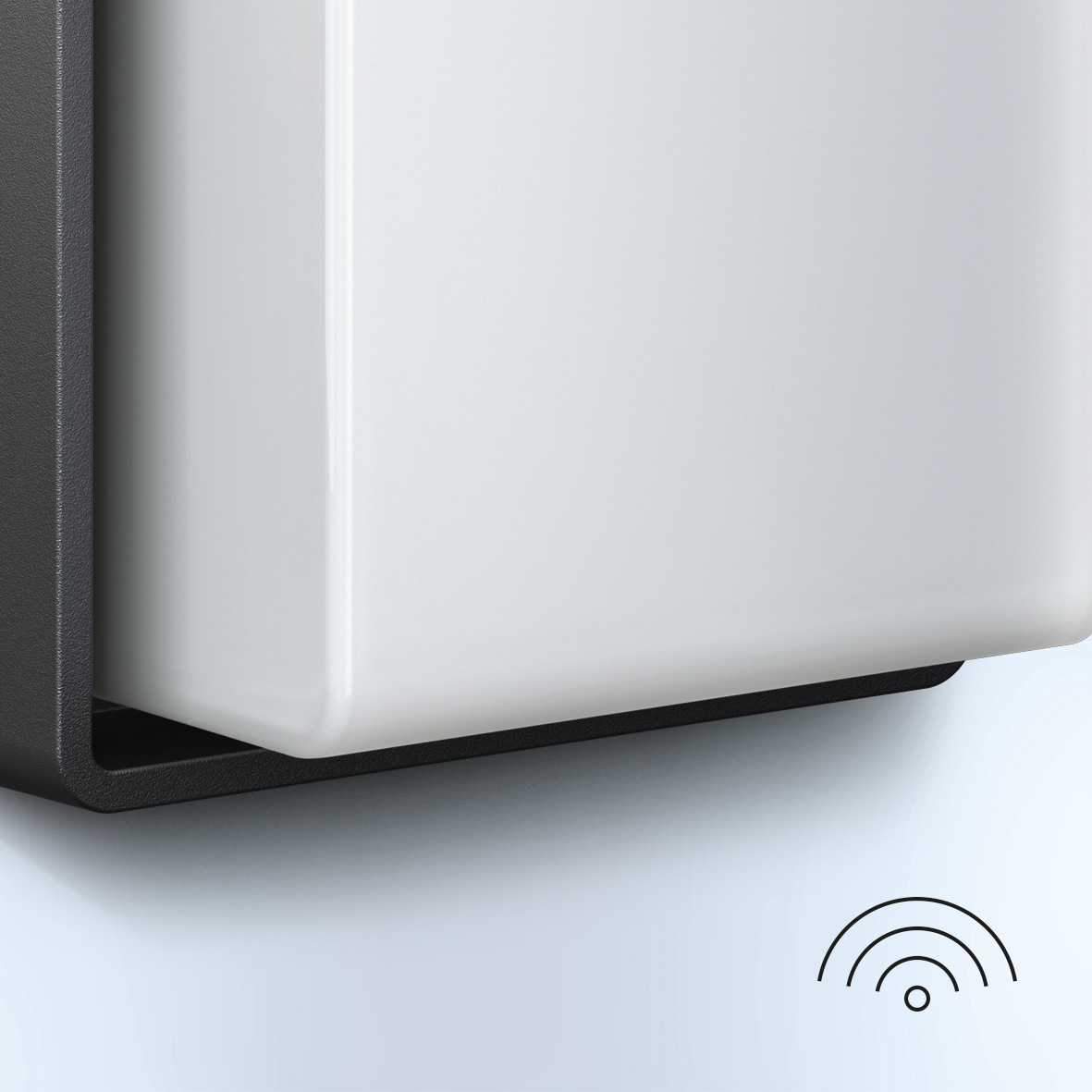

Concealed iHF sensor

Intelligent soft light start

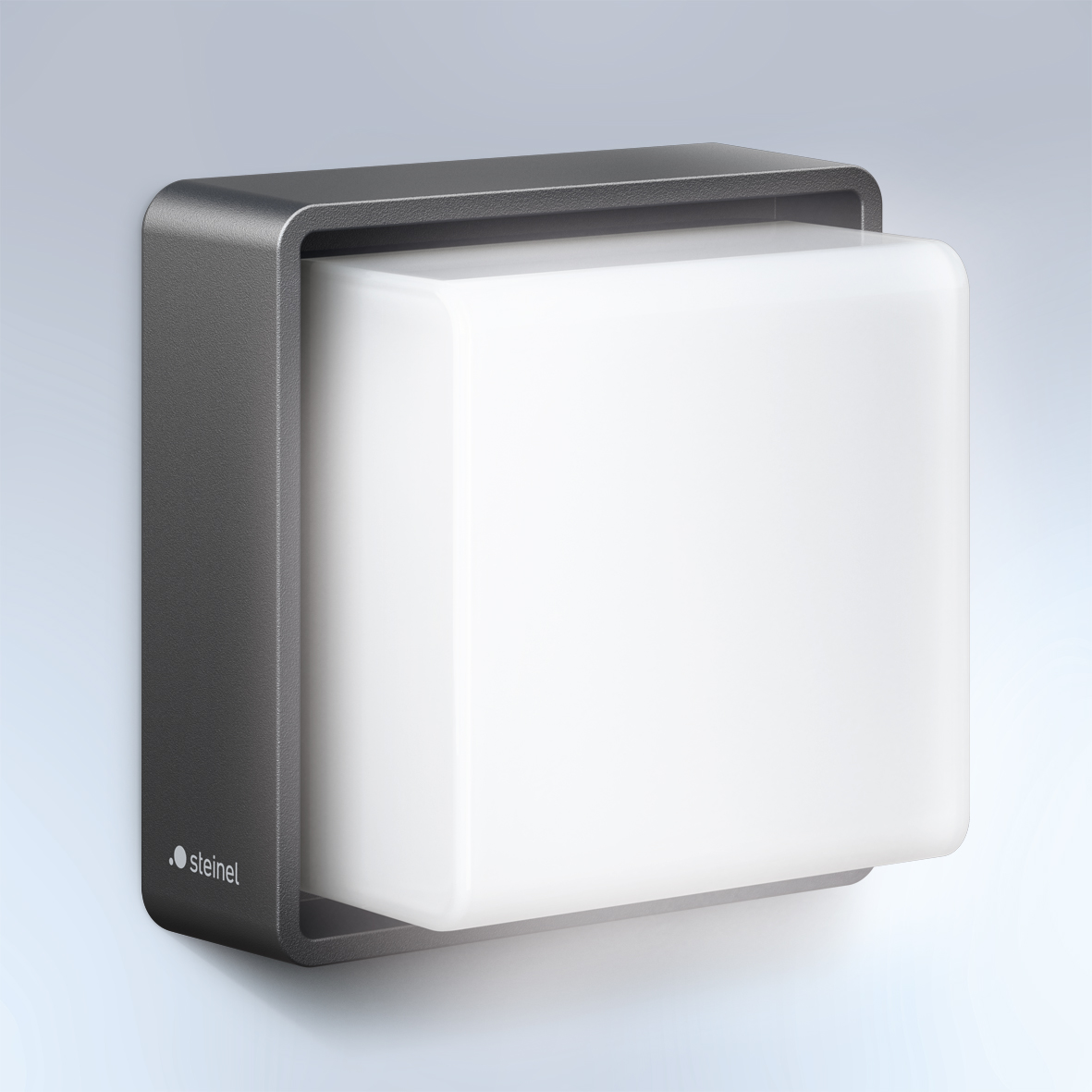

Optional basic lighting level 10 - 100 %

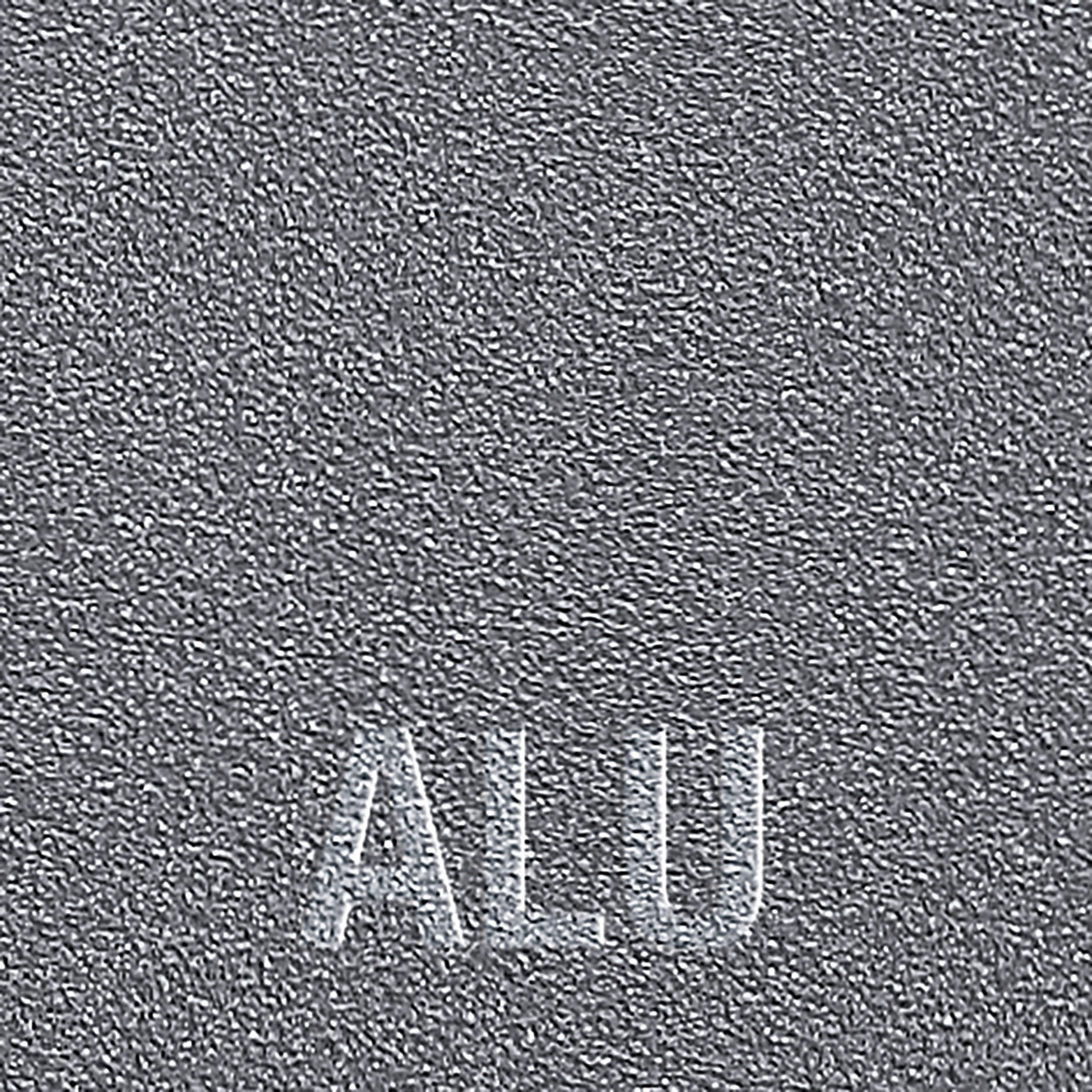

High-quality aluminium

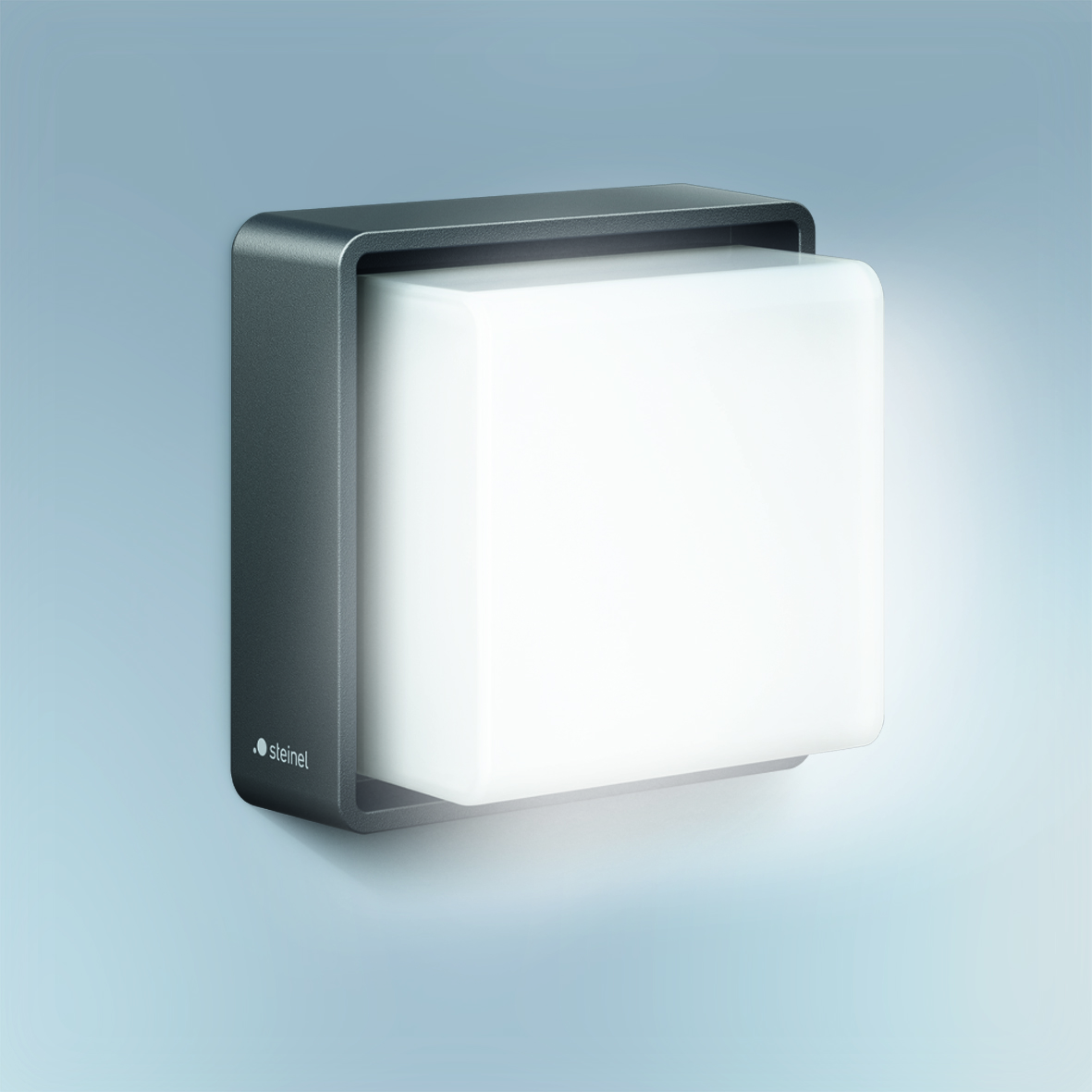

Continuous light individually switchable (optional)

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram Bluetooth

Wiring diagram 2

Circuit diagram Bluetooth
