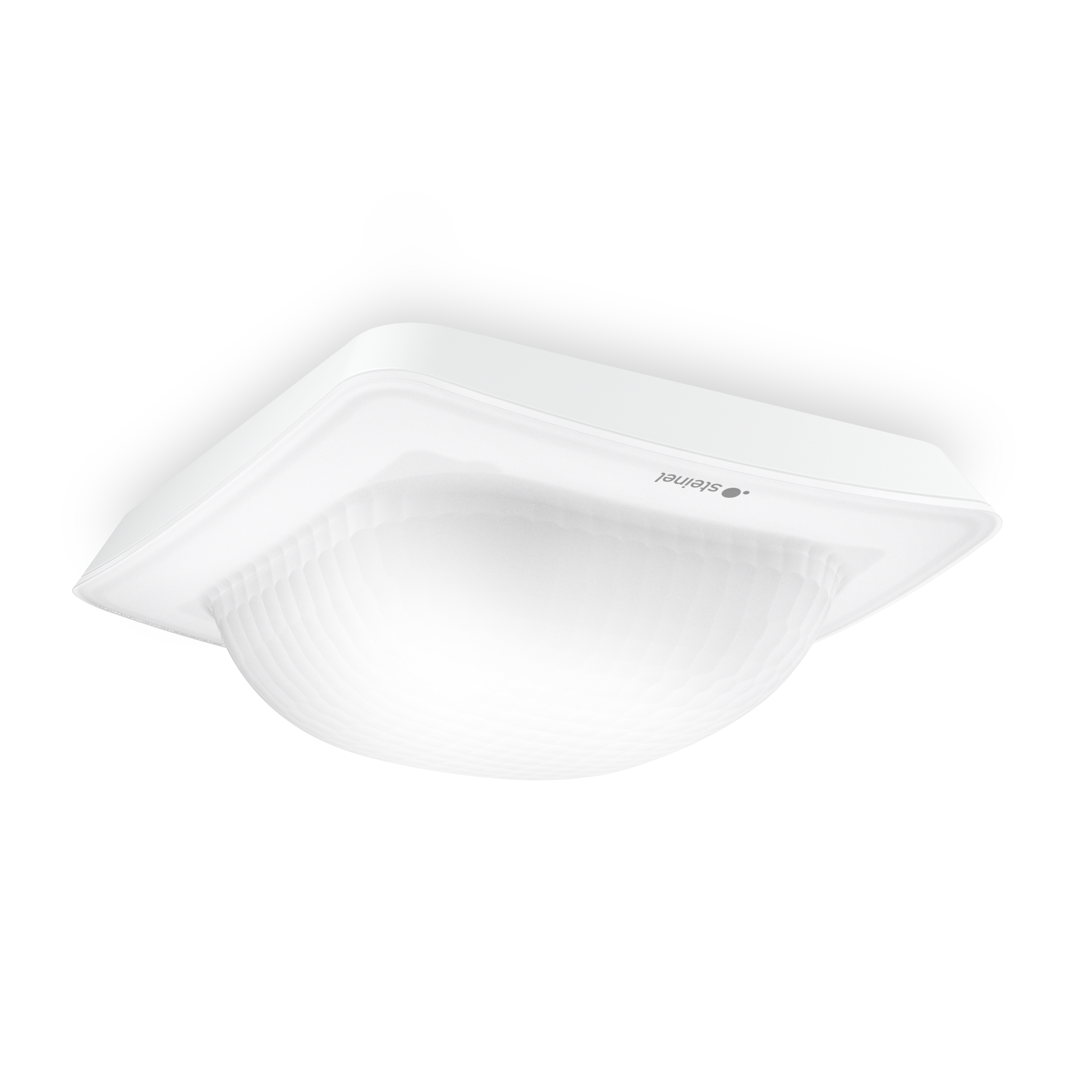

Steinel LuxMaster IR Quattro HD-2 24m DALI-2 APC - concealed

EAN-No. 4007841064358

ELDAS® no. 064358

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Designed for the most sensitive detection in the largest detection area among our infrared presence detectors. Ideal for open-plan offices or classrooms. The LuxMaster IR Quattro HD-2 with 360° detection and 5,200 switching zones. Wireless adjustment and networking via Bluetooth. Pyro sensors individually controllable. Maximum installation height 10 m. Range: 81 m² (radial), 576 m² (tangential). The LuxMaster can control up to 64 participants in a maximum of 4 groups. Selectable operating modes: broadcast, fully and semi-automatic, light sensor mode or night-time economy mode. Time-based control with time- and day-dependent light profiles is also possible. Plug & play factory settings, scenes in Bluetooth with selection of operating mode, temporary scenes via DALI button, constant light control, basic and main light as well as range limitation adjustable. An additional button interface and DALI-2 IPD or BT IPD sensors for range extension are available.

Passive infrared presence detector with square 360° detection
5.200 switching zones for the finest detection
Ideal for open-plan offices and classrooms
4 pyrosensors can be individually activated/deactivated, sensitivity digitally adjustable
Setting and networking via Bluetooth
Measurement of presence and brightness
DALI addressing of up to 64 participants in max. 4 groups
Operating modes: fully and semi-automatic, light sensor operation, night-time economy mode
Time-based control with time and day-dependent light profiles
Flexible system expansion possible with system components

Identification

Version Presence detector

Manufacturer Steinel

E-number 535903071

Variants

Version DALI-2 Application Controller

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 69 x 103 x 103 mm

PU1 net weight 0.1580

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Own consumption 0,3 W

Supply voltage detail max. 64 users

Control output DALI Addressable / broadcast 64 electronic ballasts

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 360 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability Yes

Radial range 9 x 9 m (81 m²)

Tangential range 24 x 24 m (576 m²)

Switching zones 5200 switching zones

Mounting height 2,50 – 10,00 m

Presence range 9 x 9 m (81 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology BT SIG Mesh, DALI 2

Connectivity

Networking Yes

Networking via Bluetooth DALI bus

Number of DALI participants 64.0000

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 30 Min.

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 10 - 100 %

Functions Selecting programmed lighting scenarios Semi-/fully automatic Constant-lighting control ON-OFF Lighting scenario Manual ON / ON-OFF Neighbouring group function Normal / test mode TouchDIM function

Settings via Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 3 – 90 %

Base light function percent from 3.0000

Base light function percent to 90.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room lecture hall classroom open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room reception / lobby sports hall multi-storey / underground car park dining hall / staff restaurant Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

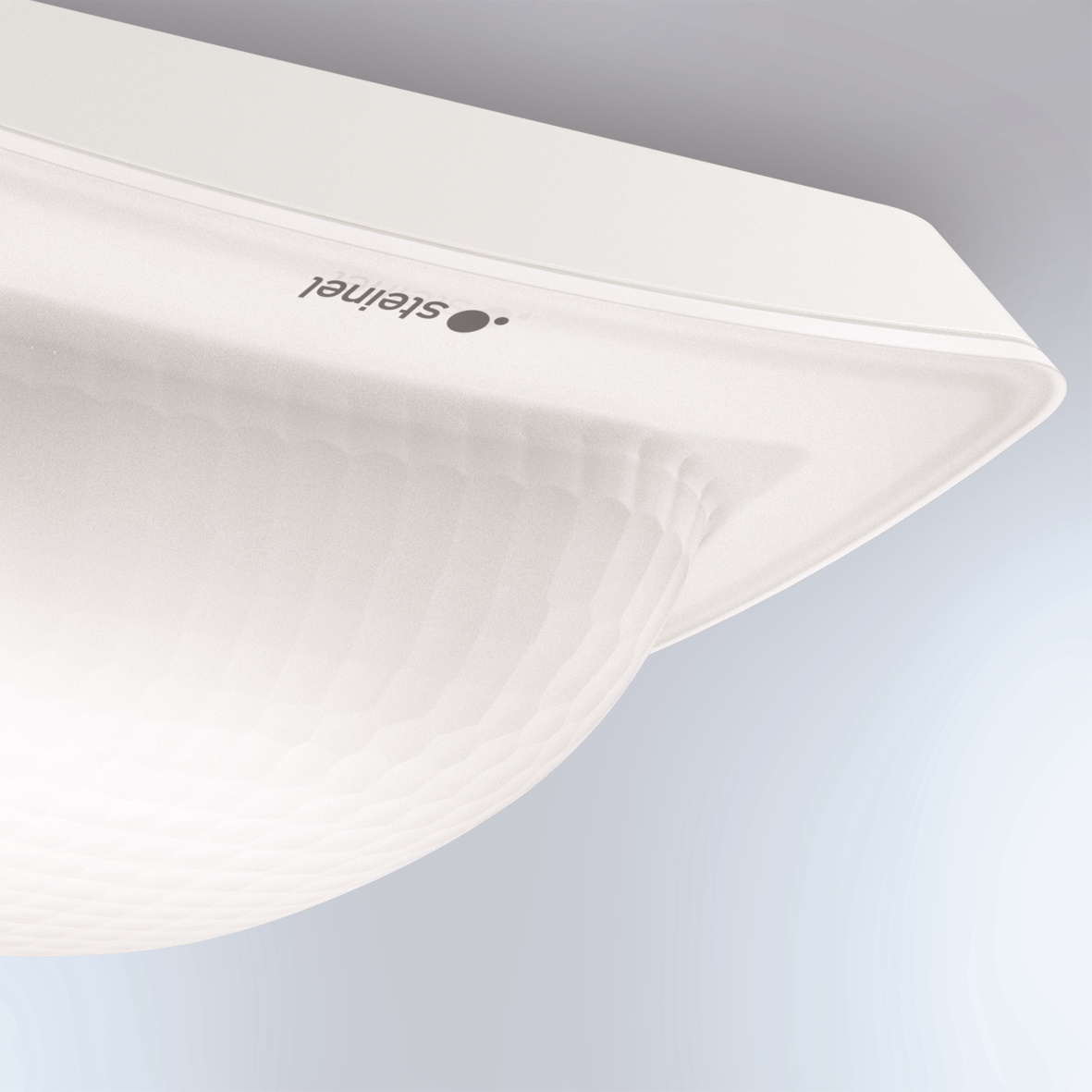

UV-resistant plastic

Technical drawing

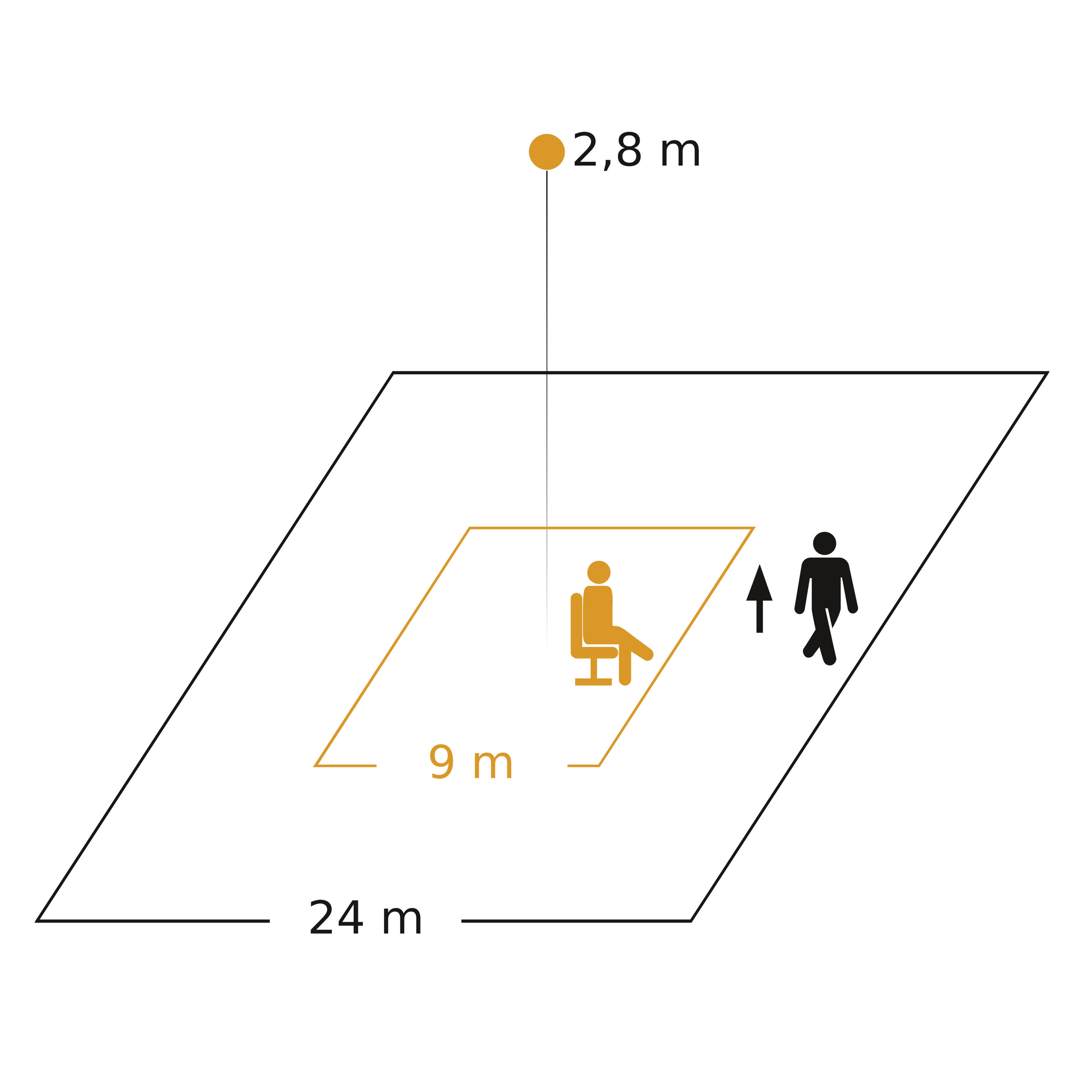

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity Product brochure

Relay REL5A-Bluetooth

Item no. 067335

PC4 Bluetooth push-button coupler

Item no. 067342
