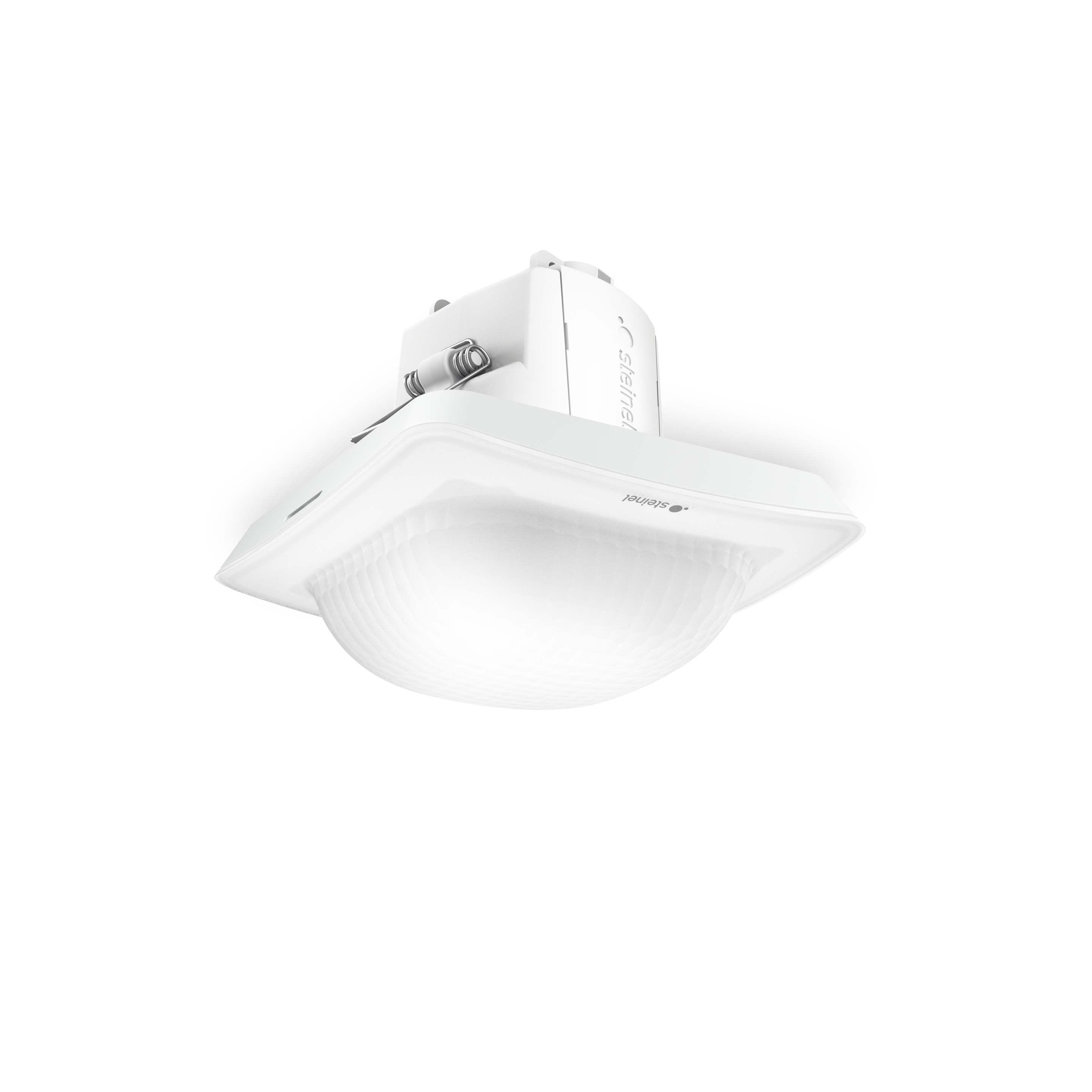

Steinel IR Quattro HD-2 24m KNX - in-ceiling installation, white

EAN-No. 4007841079413

ELDAS® no. 079413

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

The IR Quattro HD-2 infrared presence detector provides 360° detection and can be digitally set, adjusted and interconnected via Bluetooth without the need for cables. The four built-in pyro sensors can be selected and deselected individually. Not only available in a concealed and surface-mounted version for COM1, COM2, DALI-2 IPD, KNX V3.5, IP and BT IPD interfaces, the latest-generation presence detector also comes in a ceiling-mounted version for COM1 and KNX V3.5 interfaces. Besides presence function and light level, this presence detector can also measure temperature and humidity on the basis of IP, KNX and DALI-2 IPD. It is suitable for mounting at heights of 2.50 m to 10 m and provides 5,200 switching zones. Maximum radial reach is 81 m2 (9 x 9 m), maximum tangential reach 576 m2 (24 x 24 m).

Passive infrared presence detector with square 360° detection
5.200 switching zones for the finest detection
Offers the largest detection range in our IR range
4 pyro sensors individually de-/activatable
Sensitivity digitally adjustable
Measures presence and brightness
Temperature and humidity measurement with IP, KNX and DALI-2 IPD
Setting and networking via Bluetooth
Ideal for open-plan offices and classrooms

Identification

Version Presence detector

Manufacturer Steinel

E-number 535900060

Variants

Version KNX

Mounting type Ceiling recessed

Dimensions

Dimensions L × W × H 106 x 103 x 103 mm

PU1 net weight 0.1800

Electrical

Mains connection 30 V

Own consumption 0,3 W

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability Yes

Radial range 9 x 9 m (81 m²)

Tangential range 24 x 24 m (576 m²)

Mounting height 2,50 – 10,00 m

Presence range 9 x 9 m (81 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology BT SIG Mesh, KNX

Connectivity

Networking Yes

Networking via KNX bus Bluetooth Mesh

KNX functions Comfort Photo-cell controller Individual pyro evaluation Basic light level function Light level HVAC output Constant-lighting control Light output 4x Humidity output Presence output Day / night function Dewpoint Temperature output Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 1092 Min.

Base light function Yes

Main light adjustable 0 - 100 %

Settings via Bus ETS software App Potentiometers Bluetooth Mesh

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room lecture hall classroom open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room reception / lobby sports hall multi-storey / underground car park dining hall / staff restaurant Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=59320a250572@steinel&rand=57ba8587bf7267a0c7bd51a6d512acd1&lang=2&force=true&download=true&omitPreview=true

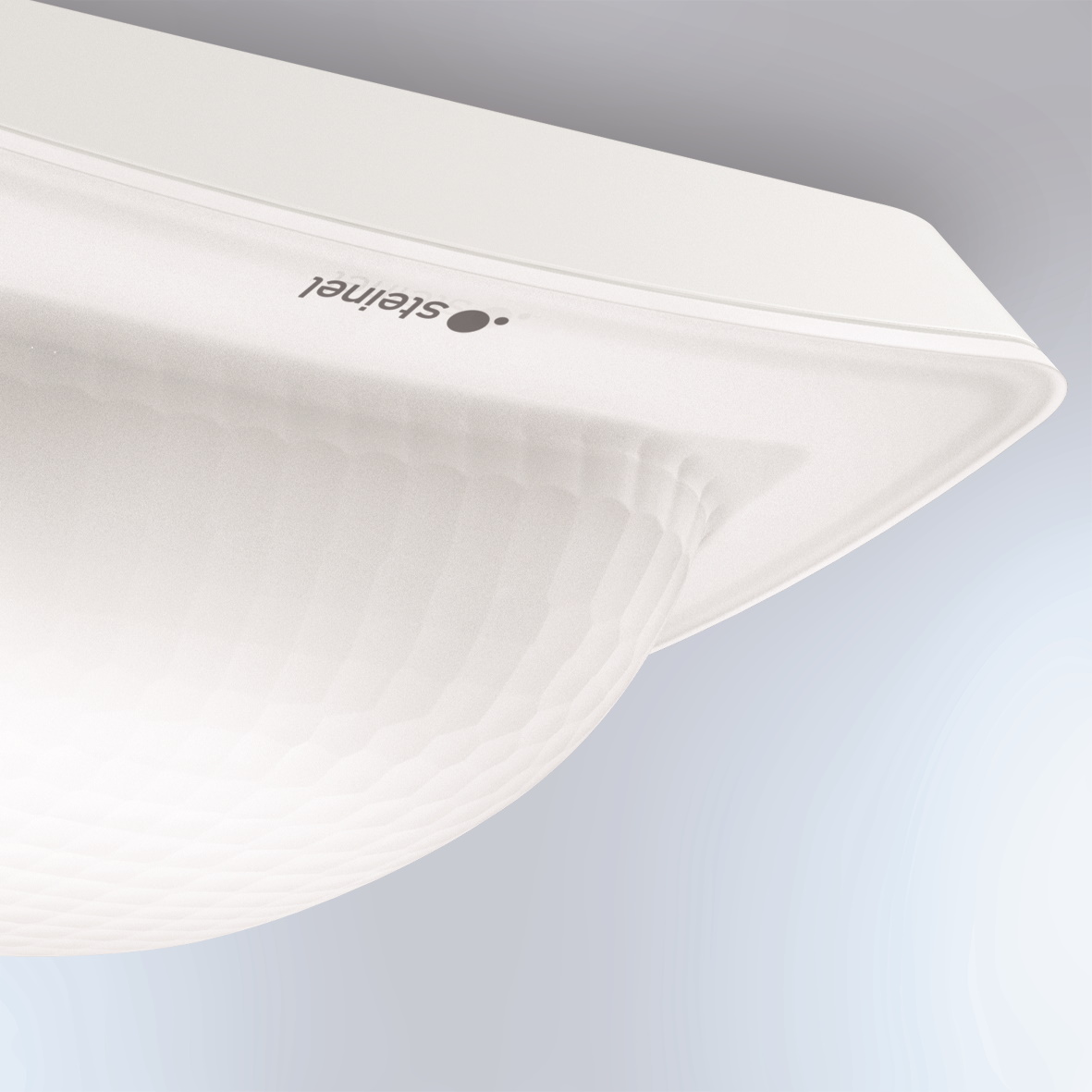

UV-resistant plastic

Technical drawing

Sensor detection range

Data sheet User manual Declaration of conformity Product brochure
